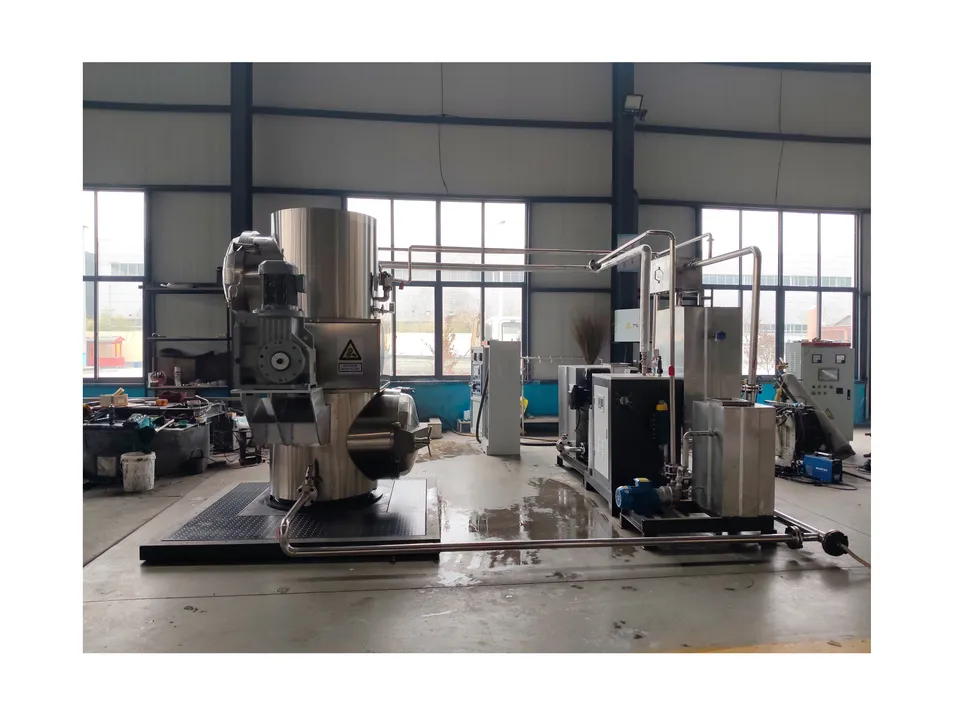

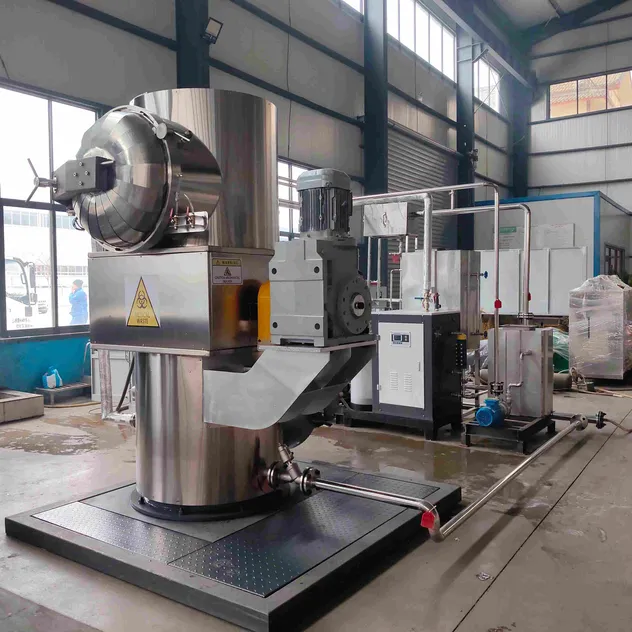

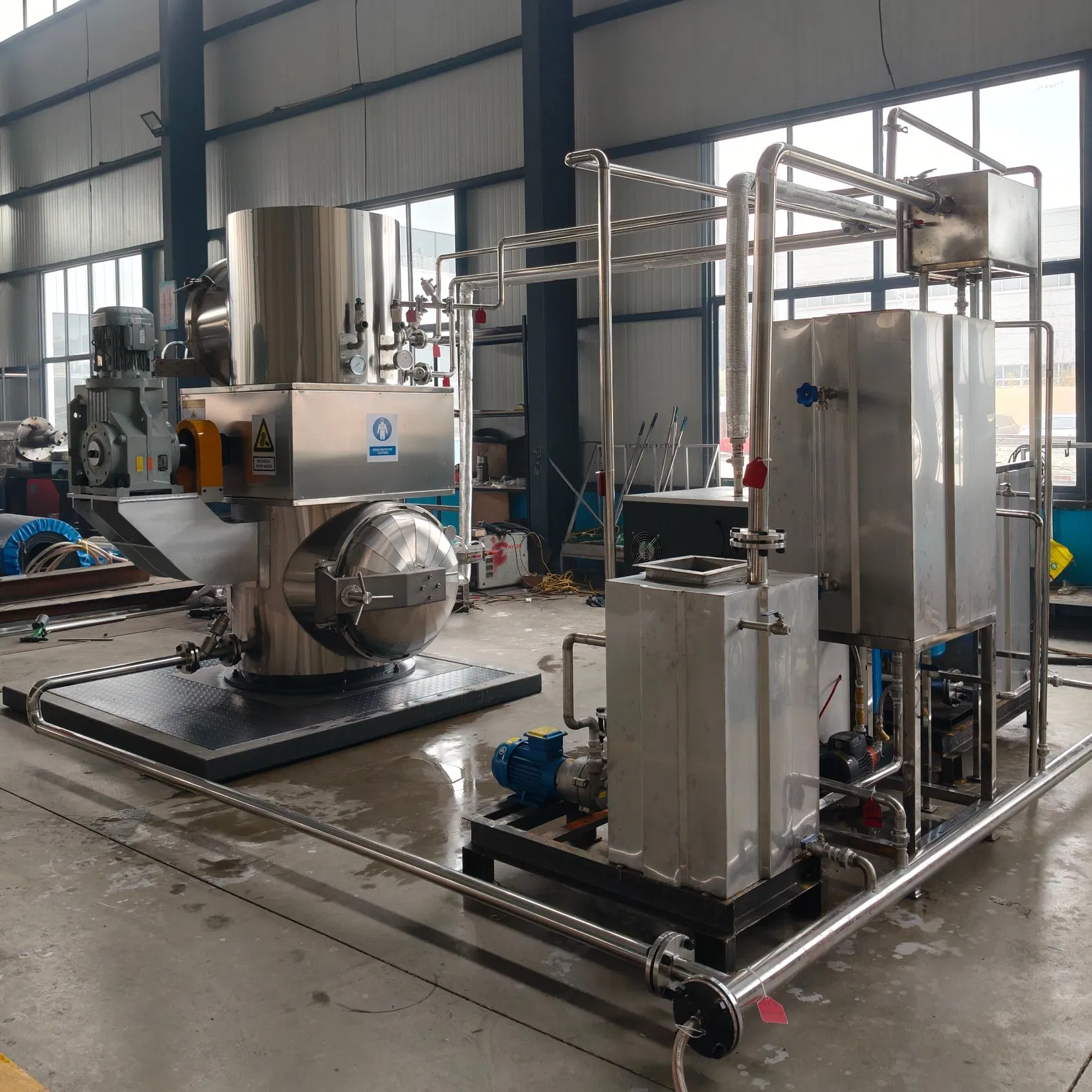

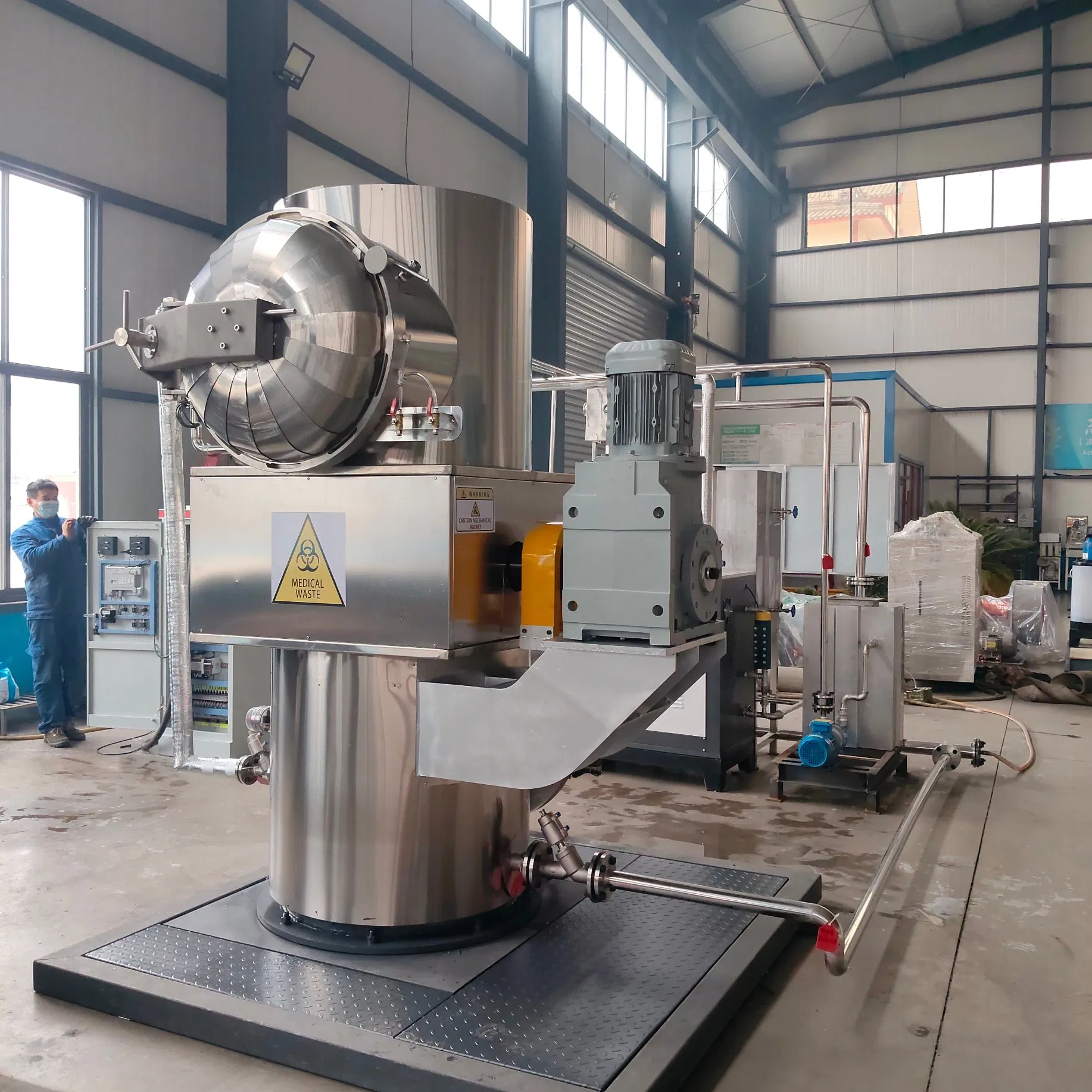

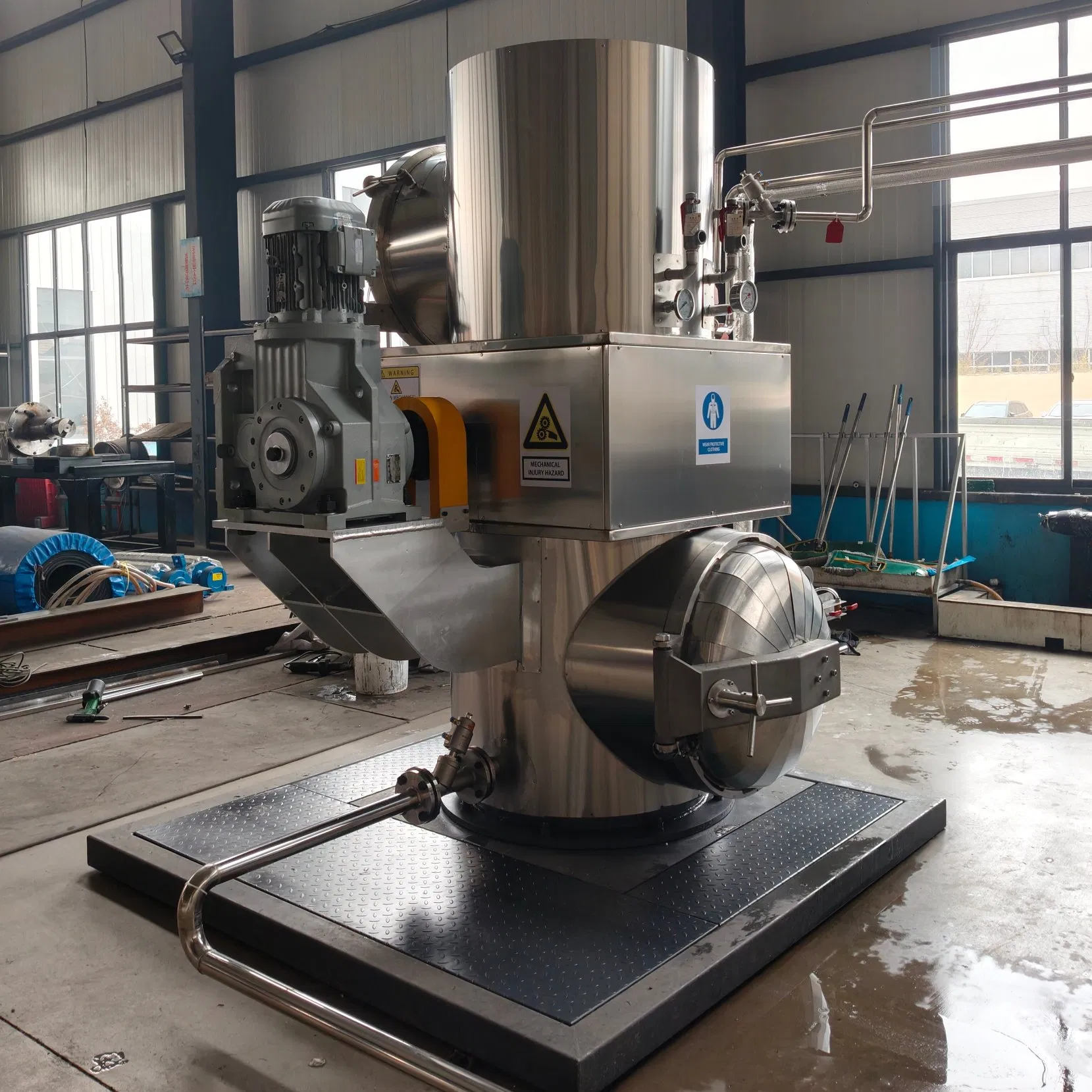

Vertical medical waste high-temperature disinfection and sterilization environmental protection equipment
Working Principle:
The collected medical waste is manually fed into a sterilizer, and the feed door is closed. Inside the sterilizer, a shredding system breaks the medical waste into particles. After shredding, a pre-vacuum method is used to purge the air. Then, high-temperature, high-pressure saturated steam is introduced. After treatment, a vacuum process removes remaining air, and sterilized waste is removed. This process significantly reduces waste volume and weight while effectively killing pathogens.

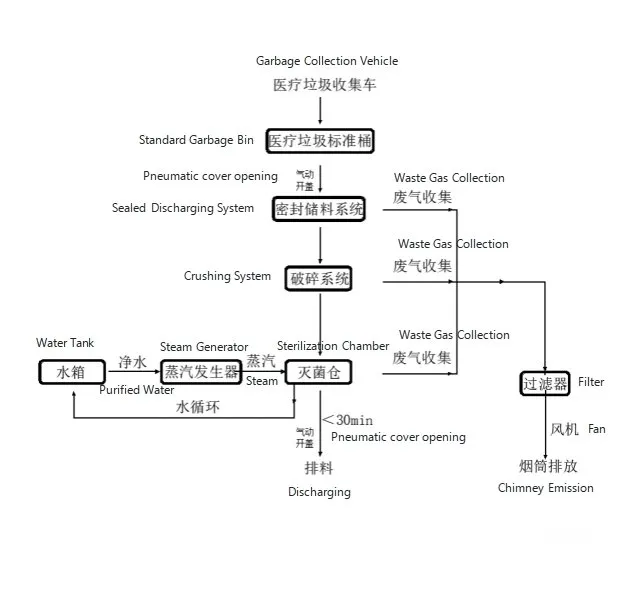

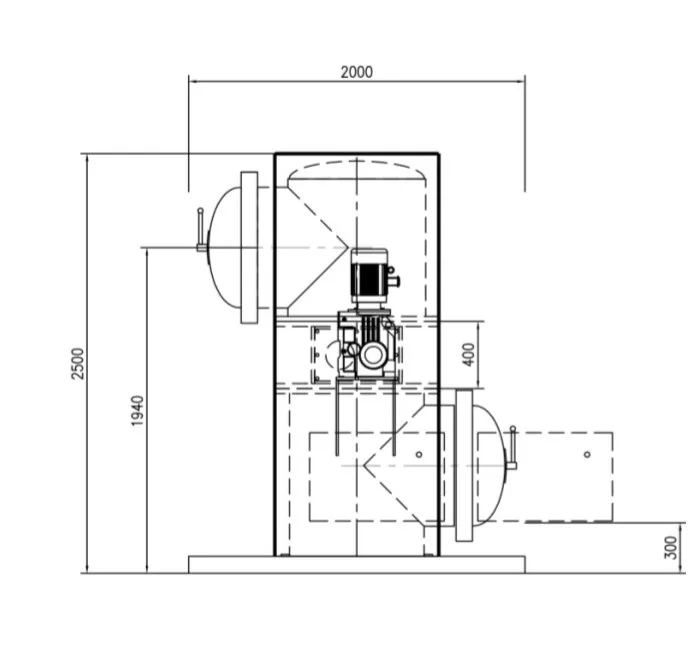

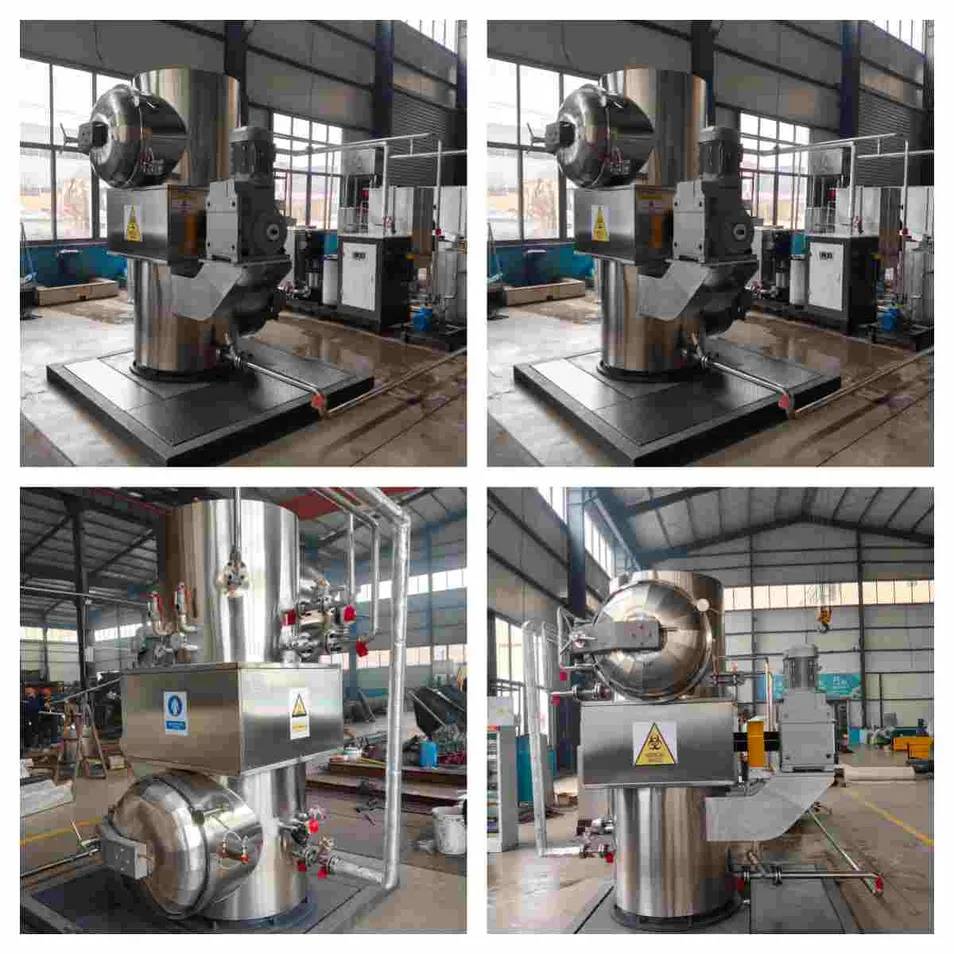

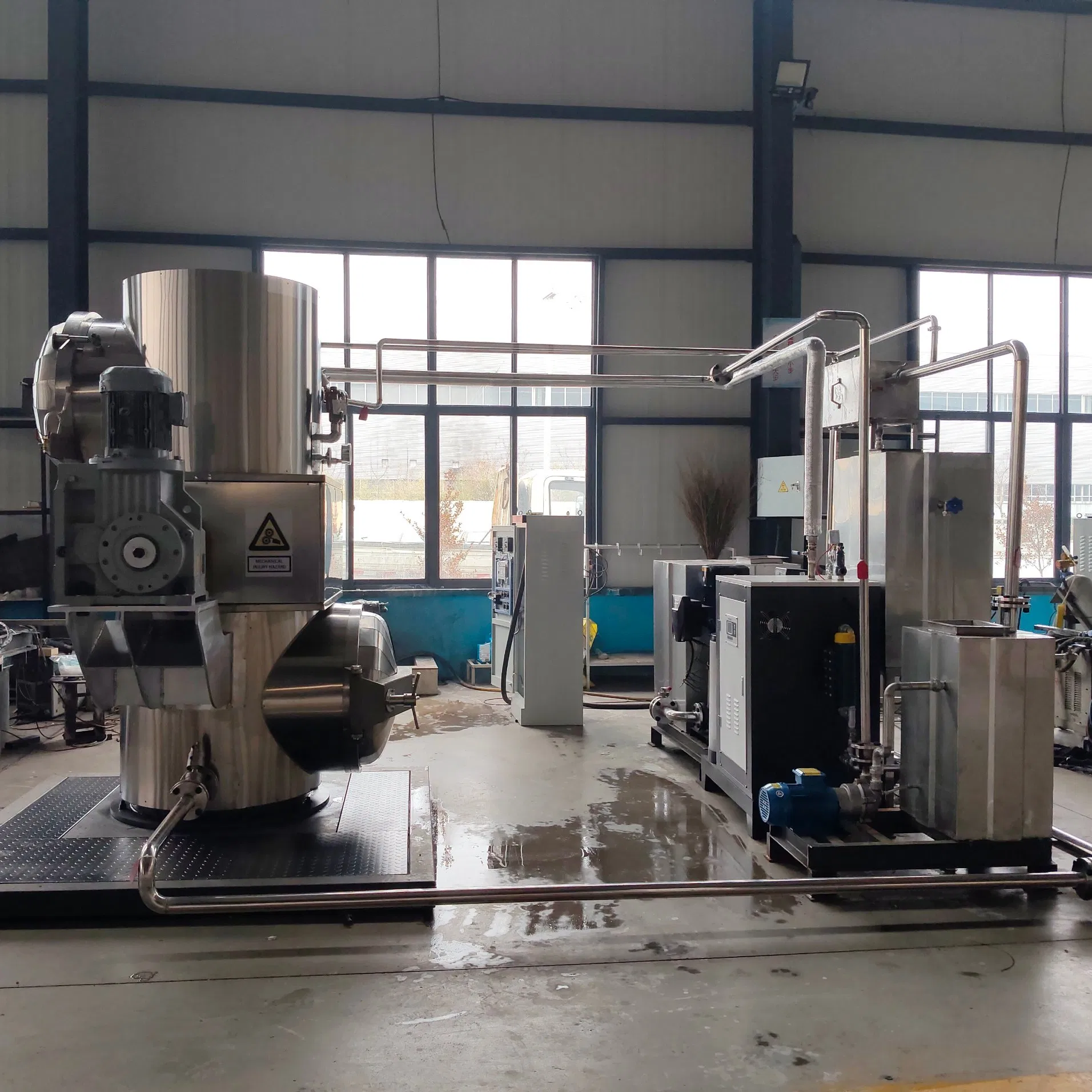

Schematic Diagram of Working Process and System Unit Assembly
The system utilizes a stainless steel flange and high-temperature resistant gaskets for sealing. The quick-opening discharge door uses an inflatable gasket method. The high-temperature sterilization chamber is securely mounted using welded fixed lugs and high-strength bolts within a steel frame structure.
| System Unit | Project | Technical Parameters |
|---|---|---|
| Processor Parameters | Processing Capacity | 60kg/h |
| Sterilization Method | High-temperature steam | |
| Inactivation Level | 8Log10 (Spore microorganism) | |
| Volume Reduction Rate | 85% | |
| Vertical Vessel | Volume | 420L |
| Working Pressure | 0.3MPa | |
| Working Temperature | 134℃ | |
| Material | Stainless steel | |
| Crushing System | Power | 7.5kw*1 |
| Blade Material | Imported hardened material | |
| Crushing Action | PLC-controlled automatic reversal |
