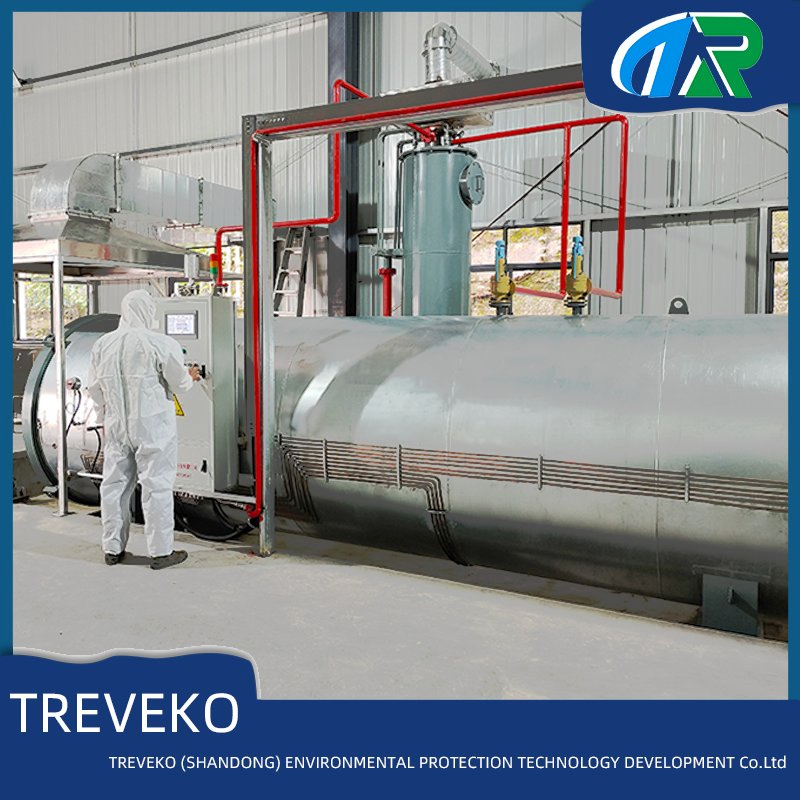

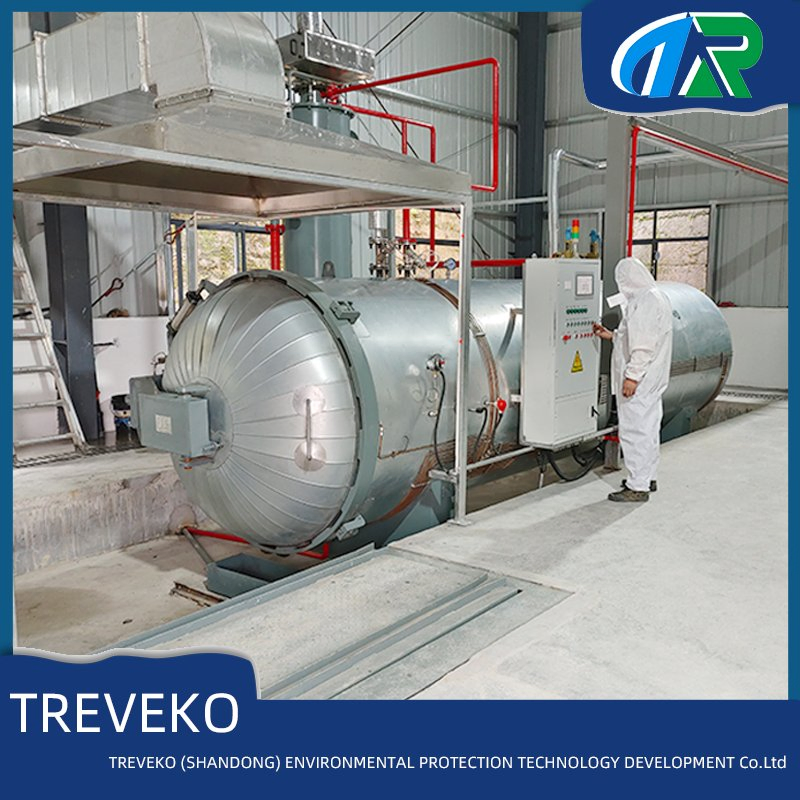

Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
1 / 5
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE

Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO. TR-HMT-3.2
Condition New
Certification ISO, CE
Automation Automatic
Daily Processing Capacity ≥ 3.2 T/D
Sterilization Temperature ≥ 135°C
Working Pressure ≥ 0.22 MPa
System Material 304 Stainless Steel (Frame, Rollers)
Product Description

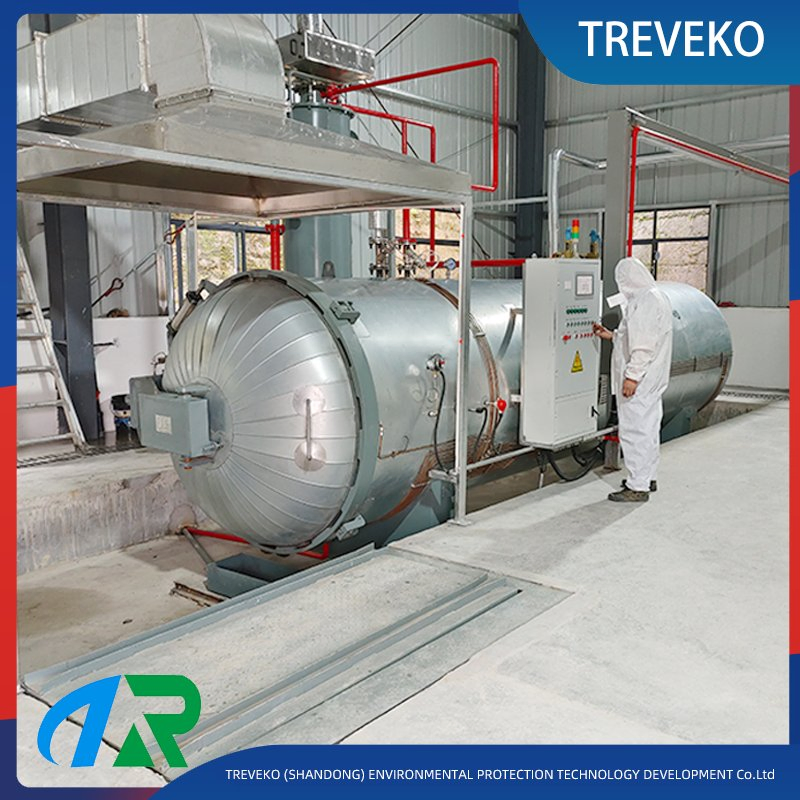

System Overview & Core Process: This Medical Waste High-Temperature Steam Sterilization System is a complete emergency disposal solution with a design capacity of 3.2 tons per day.

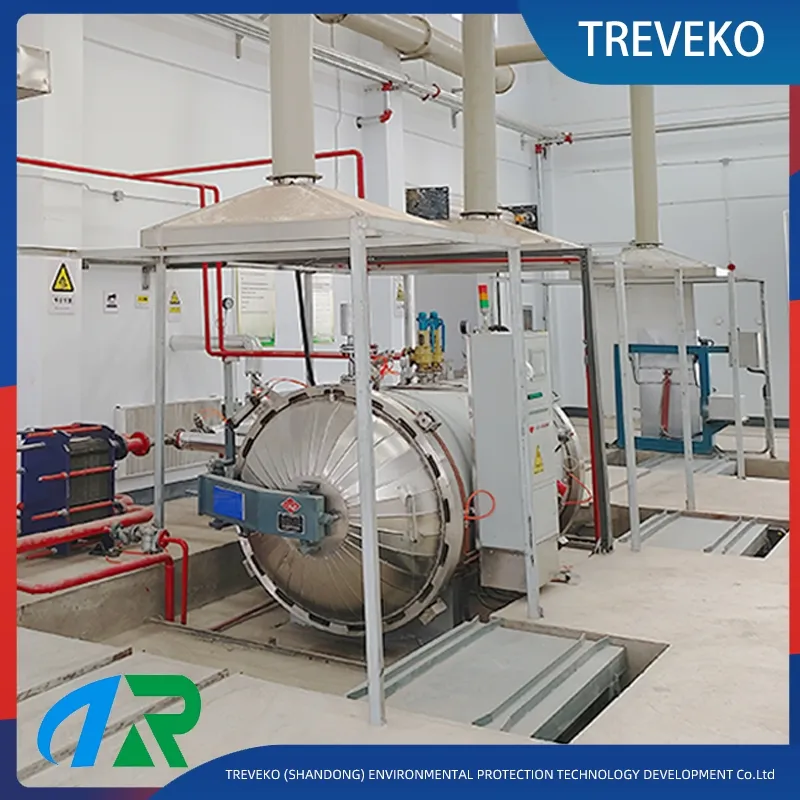

Medical Waste Sterilization Equipment

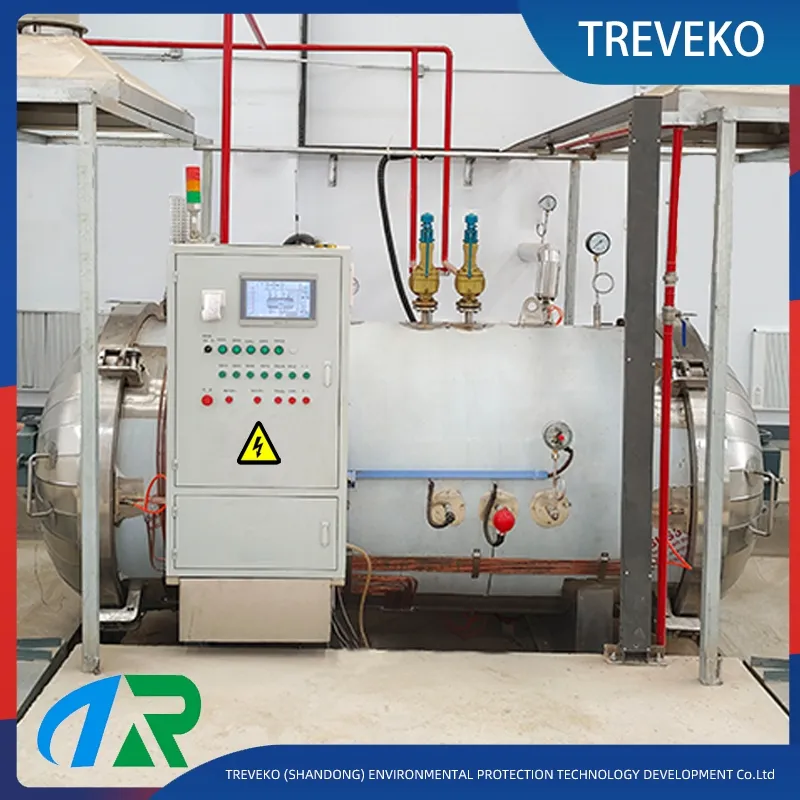

Steam Sterilization Processing

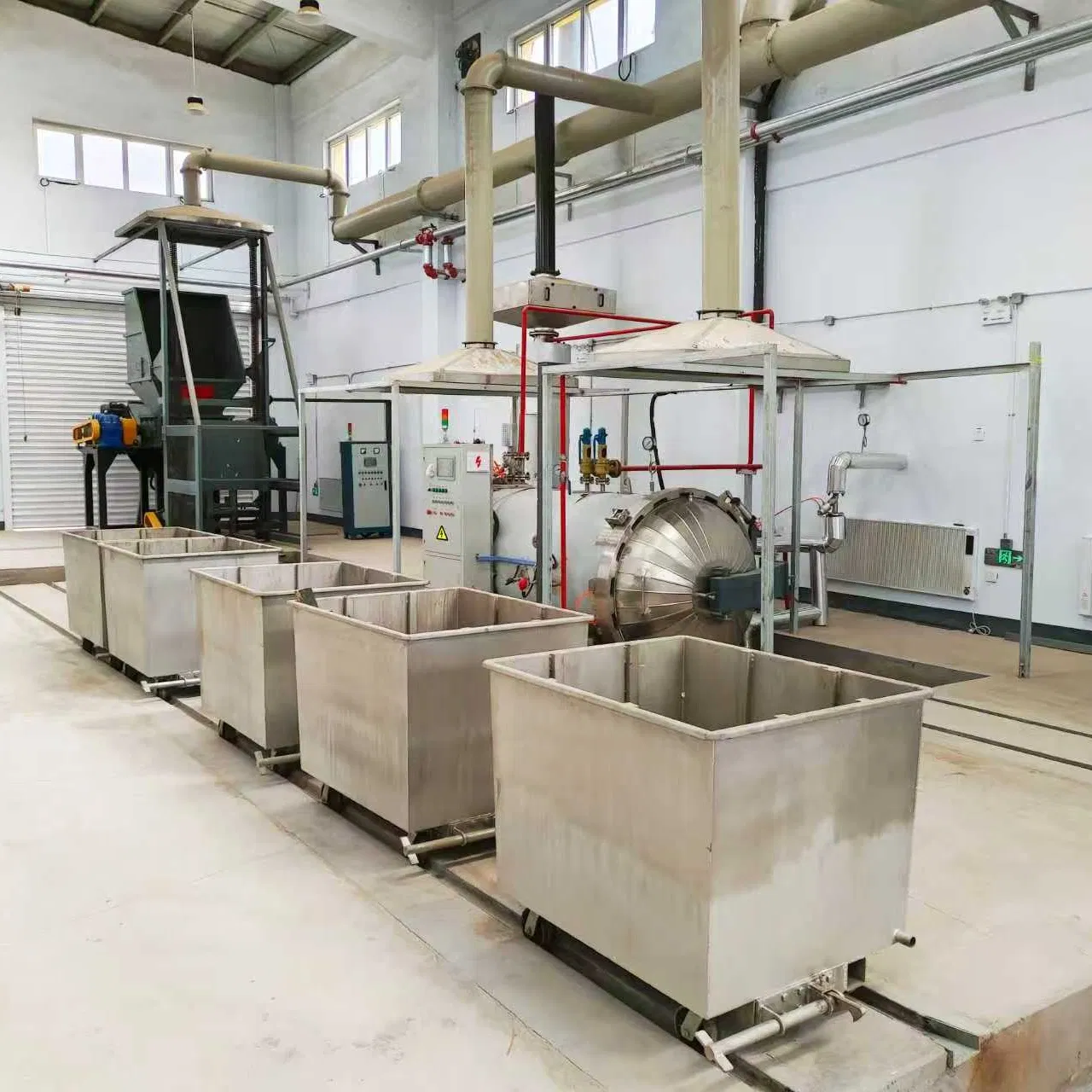

(1) Loading & Sterilization: Waste is loaded into dedicated stainless-steel sterilization carts and automatically transferred into a horizontal cylindrical sterilizer (≥1700mm dia. x ≥4500mm length).

(2) High-Temperature Treatment: The vessel operates at ≥0.22 MPa and ≥135°C for ≥45 minutes, utilizing pre-vacuum and post-vacuum cycles for effective air removal, sterilization, and drying.

(3) Shredding & Disposal: Sterilized waste is automatically conveyed to a dual-shaft shredder (2x18.5KW) for irreversible size reduction, transforming it into ordinary municipal solid waste for final disposal.

Key Features
  • Complete Line Configuration: Includes the main sterilizer, automated cart transfer system, heavy-duty shredder, and auxiliary systems (steam boiler, wastewater treatment).
  • Automated & Safe Operation: Central PLC system provides fully automatic control with real-time process monitoring and safety interlocks.
  • Environmental Compliance: Equipped with exhaust gas treatment (scrubbing, UV, carbon adsorption) and wastewater treatment systems.
  • High-Quality Construction: Major components made from Q345R steel; carts and contact surfaces use 304 stainless steel.
Process Flow
1
Feeding & Loading: Medical waste is loaded into dedicated sterilization carts.
2
Sterilization Cycle: Pre-vacuum phase followed by steam injection (≥135°C, ≥0.22 MPa) for ≥45 minutes. Post-vacuum cooling and drying.
3
Unloading & Transfer: Automated rail system transfers carts to the discharge point.
4
Shredding: Sterilized waste is fed into a dual-shaft shredder for volume reduction.
5
Conveying & Collection: Harmless residue is conveyed for final collection and disposal.
Product Parameters
Model TR-MJG-3.2
Processing capacity ≥3.2T/D
Main material Q345R steel, thickness ≥ 16mm
Sterilizer size ≥1700mm Diameter / ≥4500mm Length
Control System Automatic PLC Control (Manual Override Available)
Other Equipment

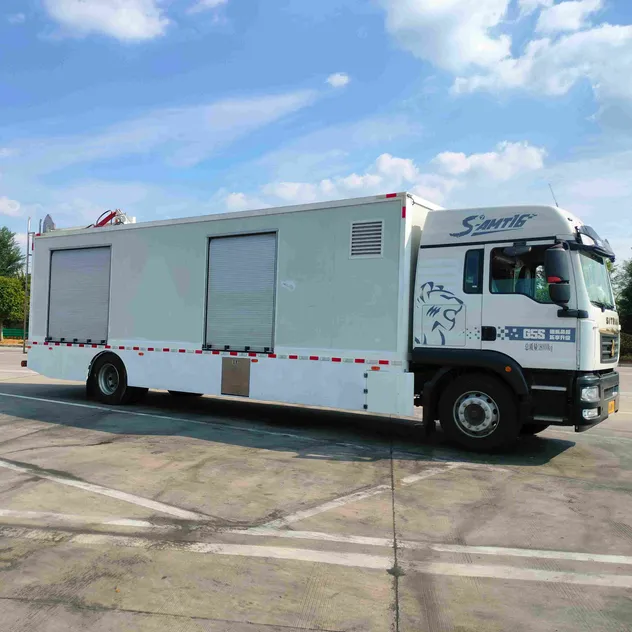

Mobile microwave sterilization

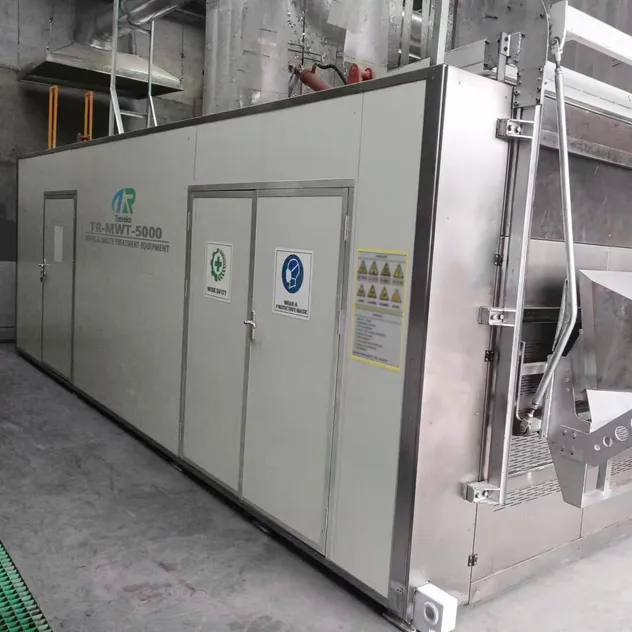

Microwave medical waste treatment

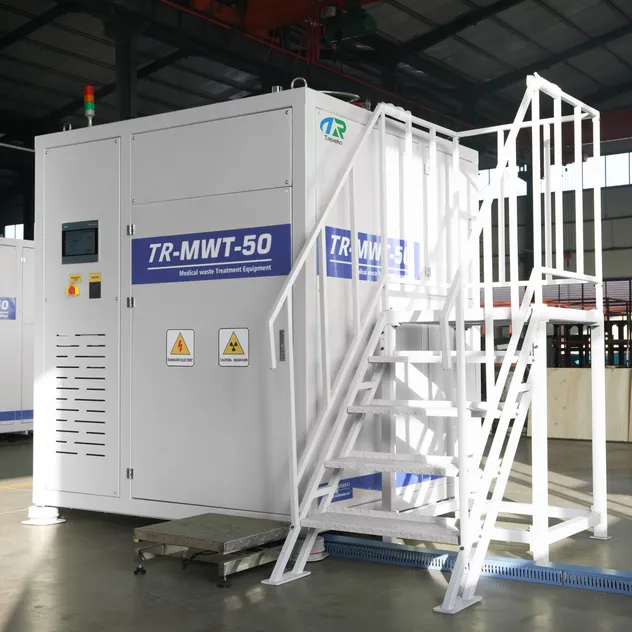

Small microwave treatment

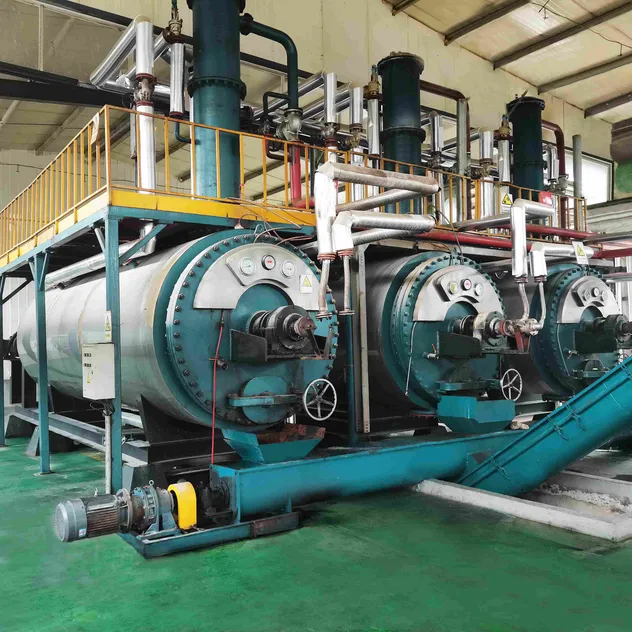

High temperature chemical treatment

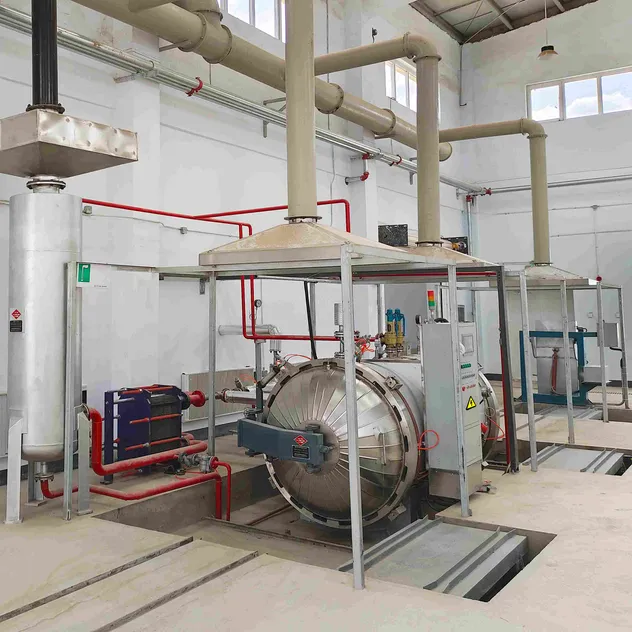

Horizontal sterilization equipment

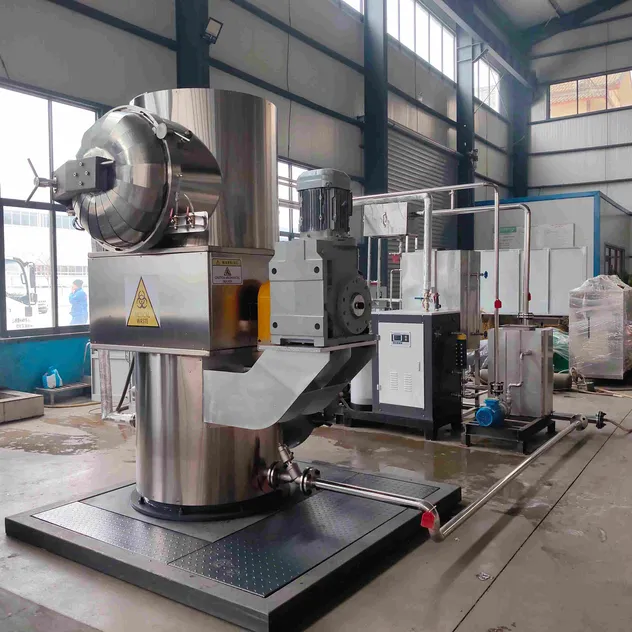

Vertical steam treatment
Site Visits & Gallery
Site visit 1

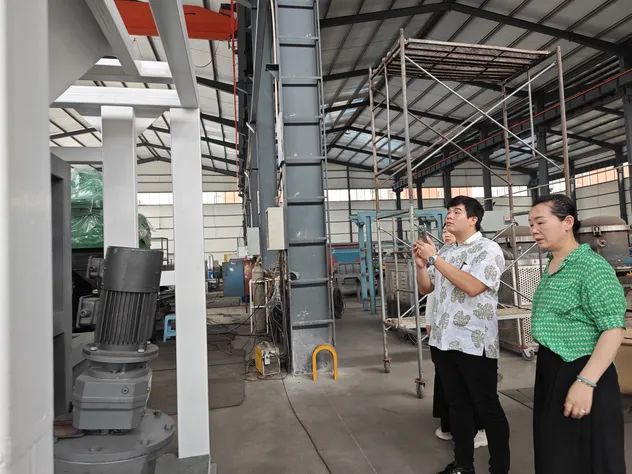

Site visit 2
Site visit 3
Factory view 1
Factory view 2
Factory view 3
Frequently Asked Questions
Q1. Are you a manufacturing factory or a trading company?
We are a professional manufacturing factory since the year 2014, specializing in integrated environmental protection technology and high-end intelligent manufacturing.
Q2. How can I visit your manufacturing facility?
You are warmly welcome to visit us on-site. Alternatively, we offer online video tours where our sales staff can take you through our manufacturing workshop and work sites in real-time.
Q3. What is the typical delivery time for medical waste disinfection equipment?
For standard models, the delivery time generally ranges from 30 days to 60 days. Please contact us for a specific timeline based on your requirements.
Q4. Does the system comply with environmental emission standards?
Yes, the system is equipped with comprehensive exhaust gas treatment (including scrubbing, UV, and carbon adsorption) and wastewater treatment systems to meet strict environmental standards.
Q5. What is the sterilization temperature and pressure used?
The equipment operates at a sterilization temperature of ≥135°C and a working pressure of ≥0.22 MPa to ensure complete disinfection of contaminated medical waste.
Q6. Can the operation be handled manually if needed?
While the system is controlled by an automatic PLC for safety and precision, a manual override is available for specialized operational requirements.
