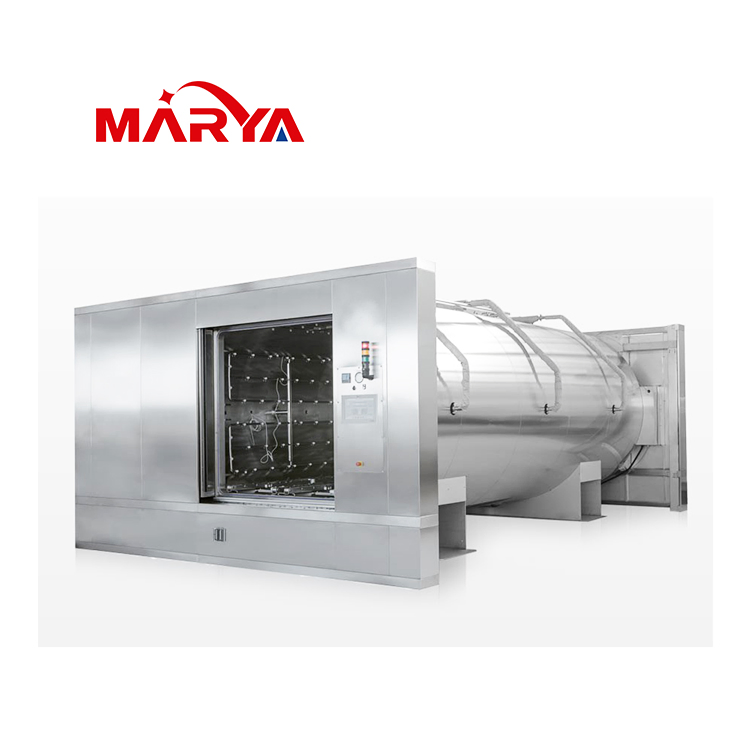

Marya Vhp Sterilization Equipment for Pharmaceutical Cleanroom Space Sterilization and HEPA Filter

Customization: Available
Theory: H2O2 Solution
Type: H2O2 Solution

Product Description

💠 Basic Information
Certification:
CE, FDA, EEC, ISO13485
Electric Tension:
380V
LCD Display:
With LCD Display
Material:
Stainless Steel
Application:
Pharmaceutical, Clean Room, Lab, Hospital
UV Lamp:
1PC/30W
Power Supply:
AC220V, Single Phase, 50Hz
Vaporization Temp:
Less Than 40 Degree
Sterilization Cycle:
Less Than 120 Min
Origin:
China
📘 Product Description

VHP Space Sterilization equipment for Pharmaceutical Cleanroom space sterilization

Laboratory Stainless Steel VHP Sterilizer for space sterilization by integrating vaporization of hydrogen peroxide sterilization on all items exposed surfaces. Using hydrogen peroxide gas rather than the liquid state at room temperature provides a superior ability to kill spores by generating free hydroxyls to attack cells, including lipids, proteins, and DNA.

Main Features:

  • High sterilization efficacy: Bactericidal and viricidal ability can reach 6lg.
  • Environmentally friendly: Decomposition products are only water vapor and oxygen, leaving no toxic residue.
  • Safety: Adopts food-grade hydrogen peroxide solution, safe for humans and the environment.
  • Efficiency: Rapid cycle process with very low operating costs.
  • Compatibility: Excellent material compatibility with cleanroom surfaces and equipment.
📷 Detailed Photos

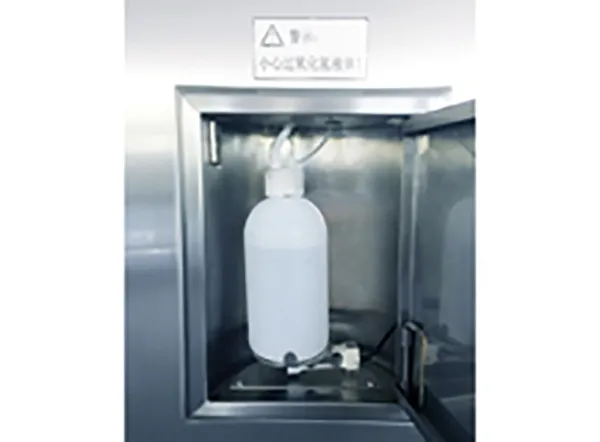

VHP Sterilization Equipment

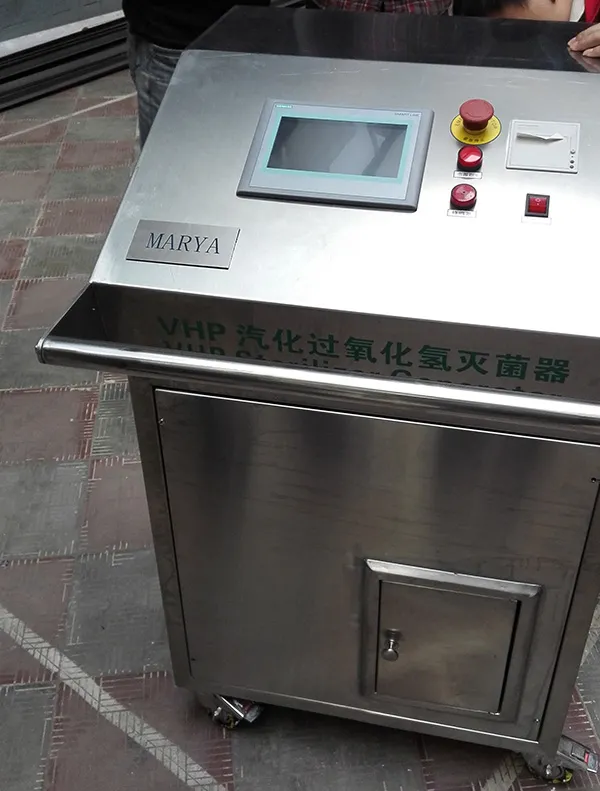

VHP Sterilization Detail

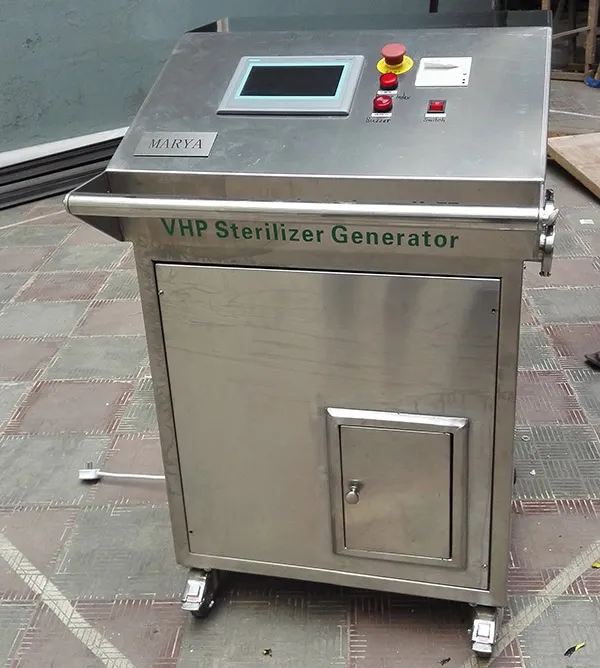

Sterilization Unit

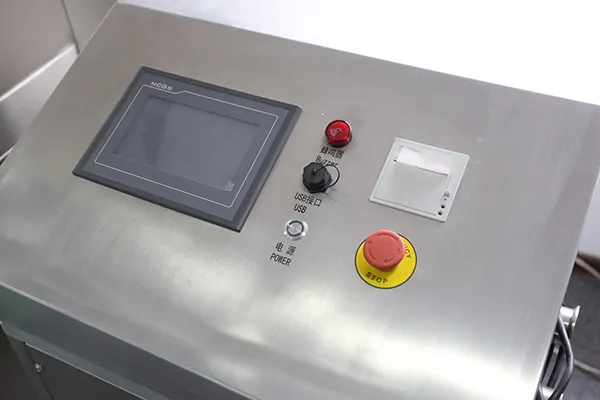

VHP Equipment Back

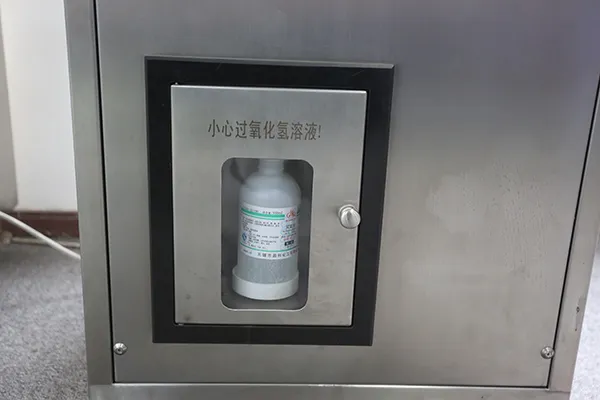

Process Display

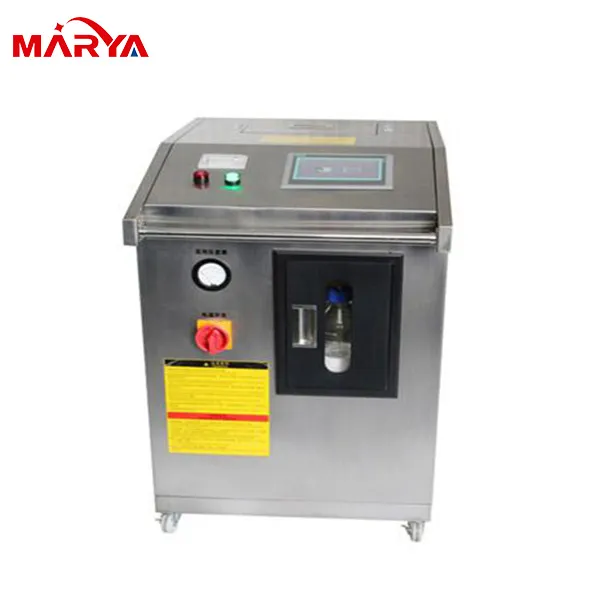

Interface

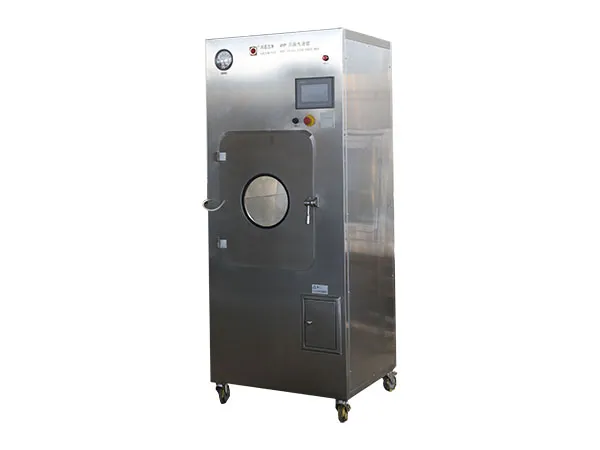

Integrated System
📊 Product Parameters
  • Working Method: Continuous work
  • Bactericide: Food-grade hydrogen peroxide solution (concentration ≥30%)
  • Vaporization Temperature: ≤ 40 ºC
  • Injection Rate: 0 ~ 30 g / min
  • Decontamination Ability: Killing ability of thermophilic fatty spores is 6lg
  • Dimensions: 530x700x1300mm
  • Power: 1.2kw
  • Sterilization Volume: 100m³, 200m³, 300m³ (Optional)
📜 Certifications
Certifications
📦 Packaging & Shipping
Packaging
🏢 Factory & Projects
Factory Overview

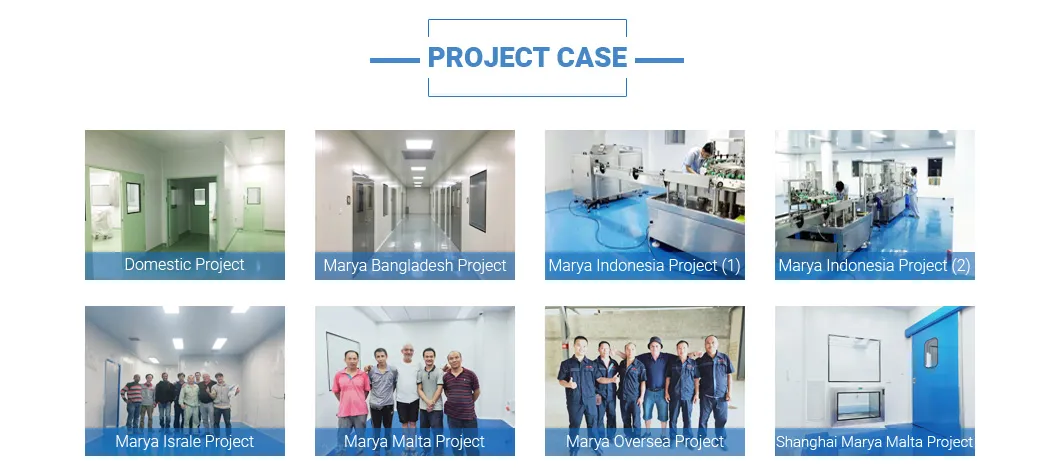

Our Projects

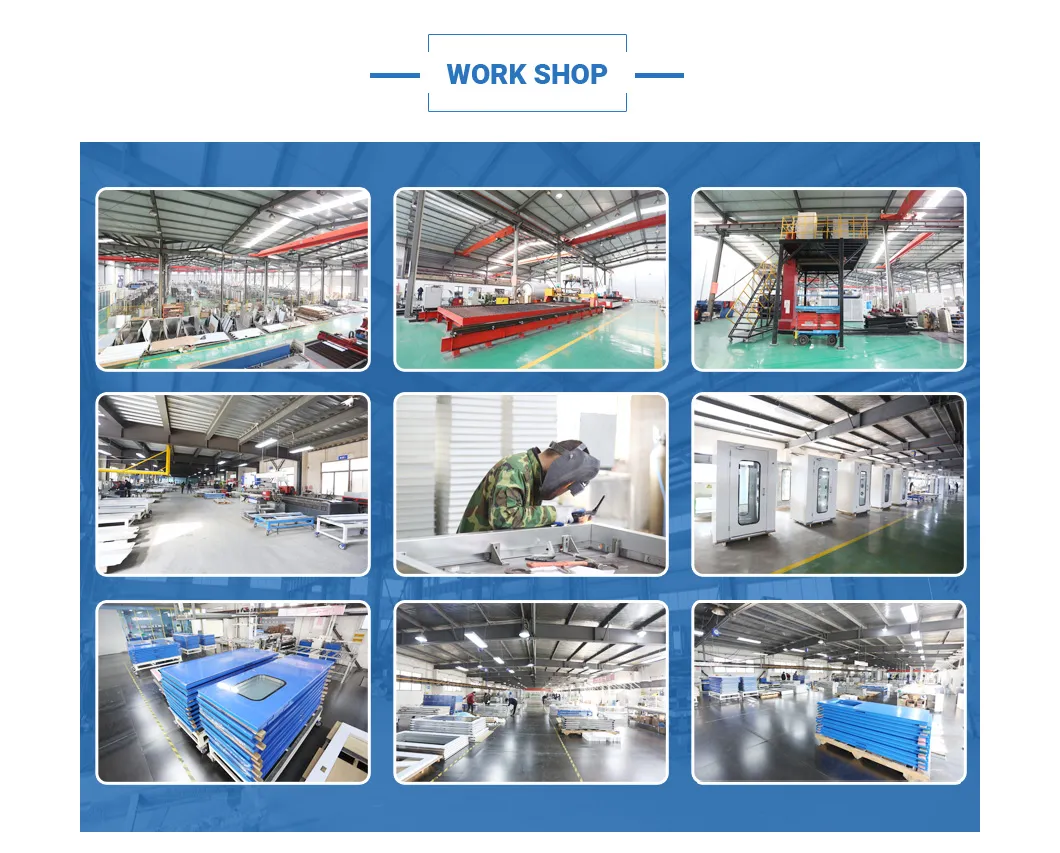

Factory Workshop
❓ Frequently Asked Questions
1. What is the sterilization efficacy of the VHP equipment?
The bactericidal and viricidal ability of our VHP sterilizer can reach 6lg, providing a highly reliable sterilization effect for cleanroom environments.
2. Are there any toxic residues after the sterilization process?
No. The decomposition products of the vaporized hydrogen peroxide are only water vapor and oxygen, ensuring a safe environment without harmful residues.
3. What is the recommended concentration of hydrogen peroxide?
The equipment is designed to use food-grade hydrogen peroxide solution with a mass concentration of 30% or higher.
4. What is the maximum sterilization volume?
We offer optional configurations for sterilization volumes of 100m³, 200m³, and 300m³ to suit different room sizes.
5. Is the equipment compatible with sensitive materials?
Yes, vaporized hydrogen peroxide has excellent material compatibility and is suitable for low-temperature sterilization of various pharmaceutical products and surfaces.
6. How long does a typical sterilization cycle take?
The room temperature sterilization cycle typically takes less than 120 minutes, depending on the volume and specific requirements.
