Customization: Available
Theory: Autoclave
Type: Pressure Steam Sterilization Equipments
Send Inquiry

Product Description

Basic Specifications

Model NO.
STE-45T
Certification
CE, FDA, ISO13485
Electric Tension
220V
LCD Display
With LCD Display
Material
Stainless Steel
Chamber Dimensions
319mm*617mm
Power
2800(220V)
Weight
120kg
Programs
Quick 134°C
Origin
China

Product Overview

Hospital Instrument Multi-purpose Medical High Standard Autoclave STE-45T

This autoclave is a Class B sterilizer in complete compliance with European Standard EN13060. Featuring a larger chamber than standard series, it provides a comprehensive sterilization solution for larger instruments or high-volume loads. It is especially popular for sterilizing dental implant kits and is widely used across medical and laboratory fields.

Efficient

Uses an intelligent system that saves time and energy by providing a fast, complete sterilization cycle with full drying and convenient operation.

Safety

Equipped with an automatic electric door locking system and multi-protection mechanisms for pressure, temperature, and electrical current.

Quietness

Utilizes high-efficiency vacuum pumps from Germany, ensuring quiet operation and superior sterilization results.

Technical Specifications

ModelMedical High Standard Autoclave SET-45T
Chamber Dimensions319mm * 617mm
Power2800W (220V)
Weight120kg
ProgramsQuick 134°C
Tray System3 trays, Tray Size: 240 x 540mm

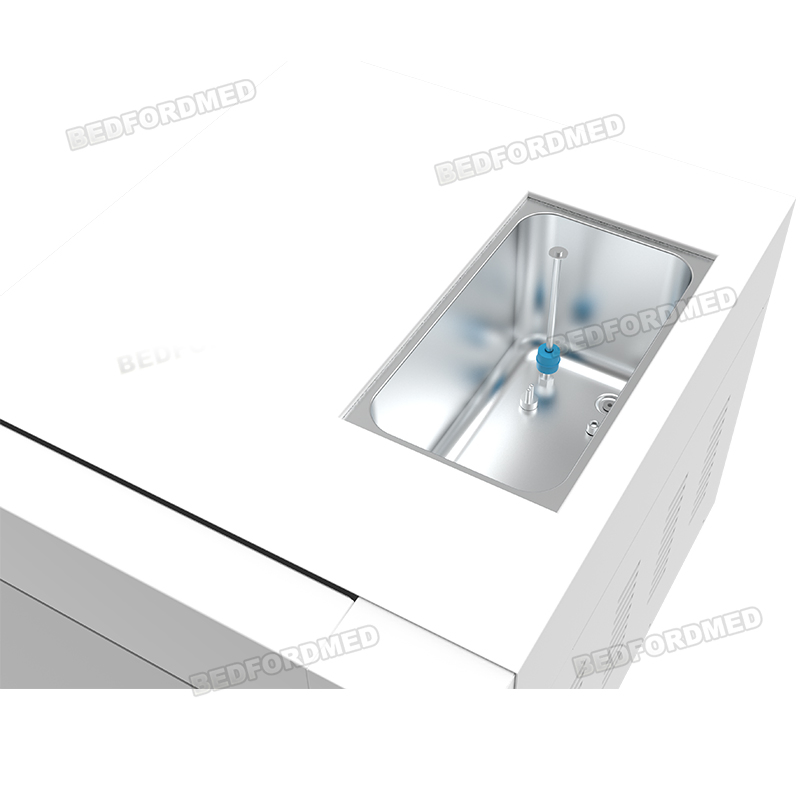

Water Tank8.5 Liters Stainless Steel reserve tank

Advanced Features

  • • Electronic Door: Opened by button press; vacuum-assisted door closing system.
  • • LCD Display: Dynamic graphical interface showing time, temperature, pressure, and process stages in 15 languages.
  • • Data Logging: USB 2.0 interface for automatic cycle recording. Stores last 20 cycles internally.
  • • Maintenance: Pulling-type drain connection for simple water drainage.

Product Visuals

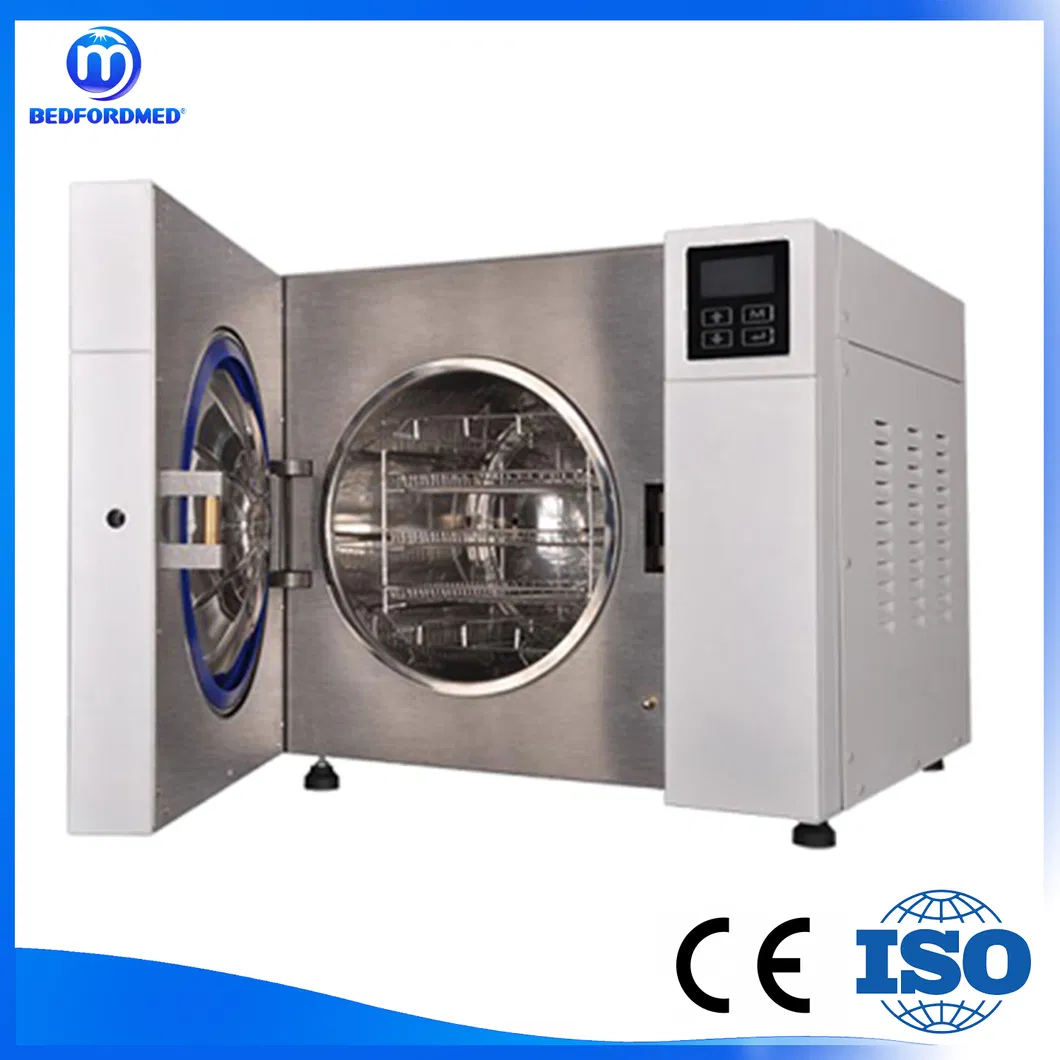

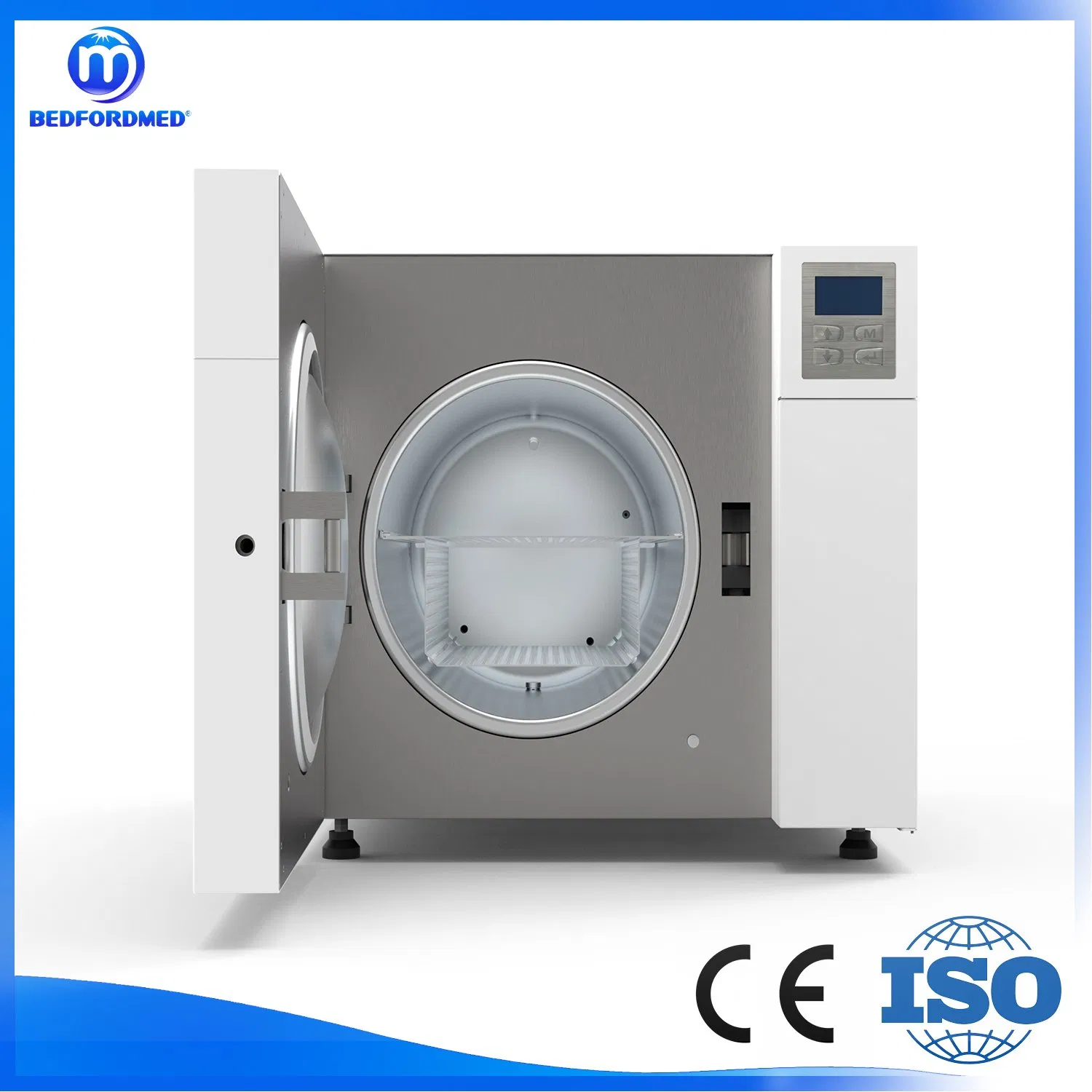

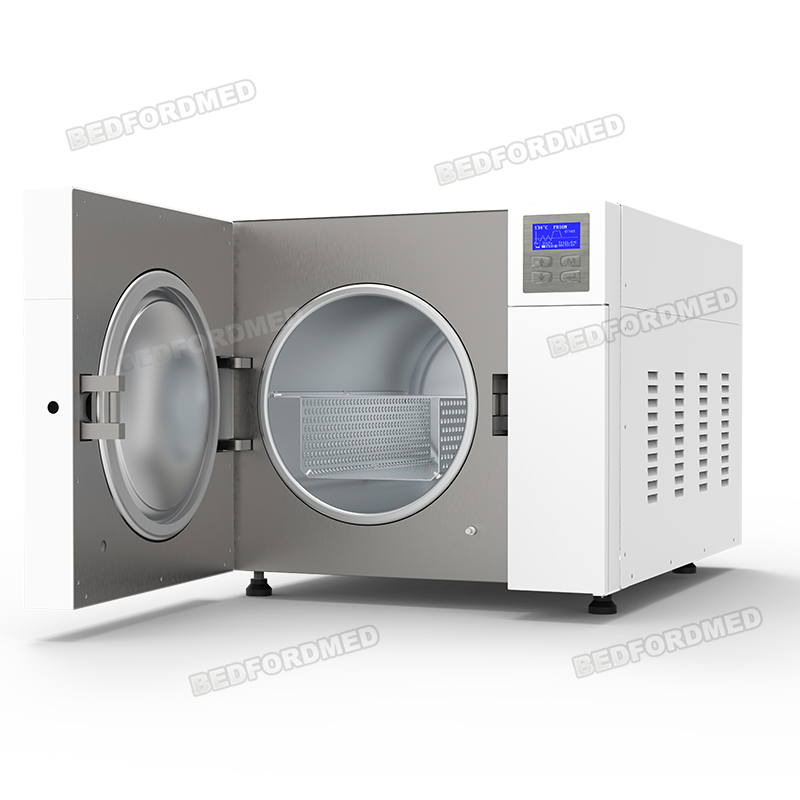

Medical Autoclave Front View

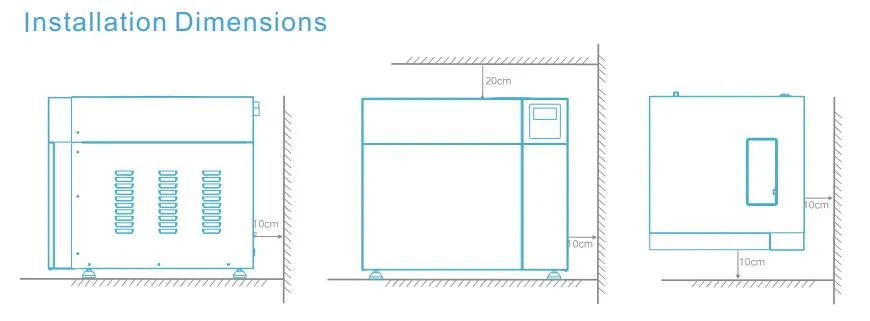

Autoclave Detail 1

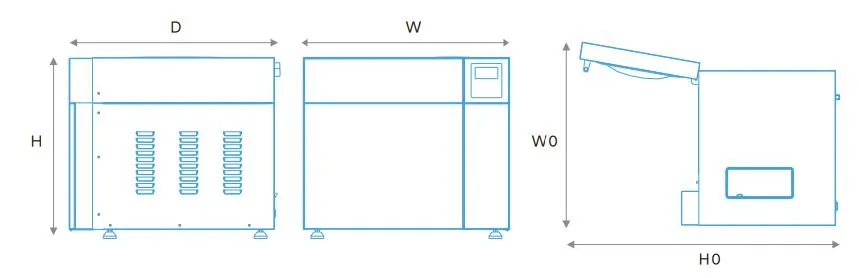

Autoclave Detail 2
Autoclave Detail 3
Autoclave Components
Sterilization Chamber

Frequently Asked Questions

1. What is a Class B sterilization standard?
Class B is the highest level of autoclave sterilization, compliant with EN13060 standards. It uses a fractionated vacuum to remove air, ensuring steam penetrates hollow or porous instruments.
2. How many trays can the STE-45T hold?
The unit comes with a 3-tray rack system, with each tray measuring 240mm x 540mm, ideal for large instrument loads.
3. Can I export the sterilization records?
Yes, the device features a USB 2.0 interface that automatically records cycle data. It also stores the last 20 cycles in its internal memory for manual output.
4. What safety features are included for the door?
It features an electronic door lock that prevents opening during a cycle and ensures a vacuum-tight seal using mechanical and electronic sensors.
5. Is this autoclave suitable for dental implants?
Yes, the T-series is specifically popular for sterilizing dental implant kits and other high-precision medical instruments.
6. What is the capacity of the water tank?
The unit includes a large 8.5-liter stainless steel reservoir, allowing for multiple sterilization cycles before needing a refill.
