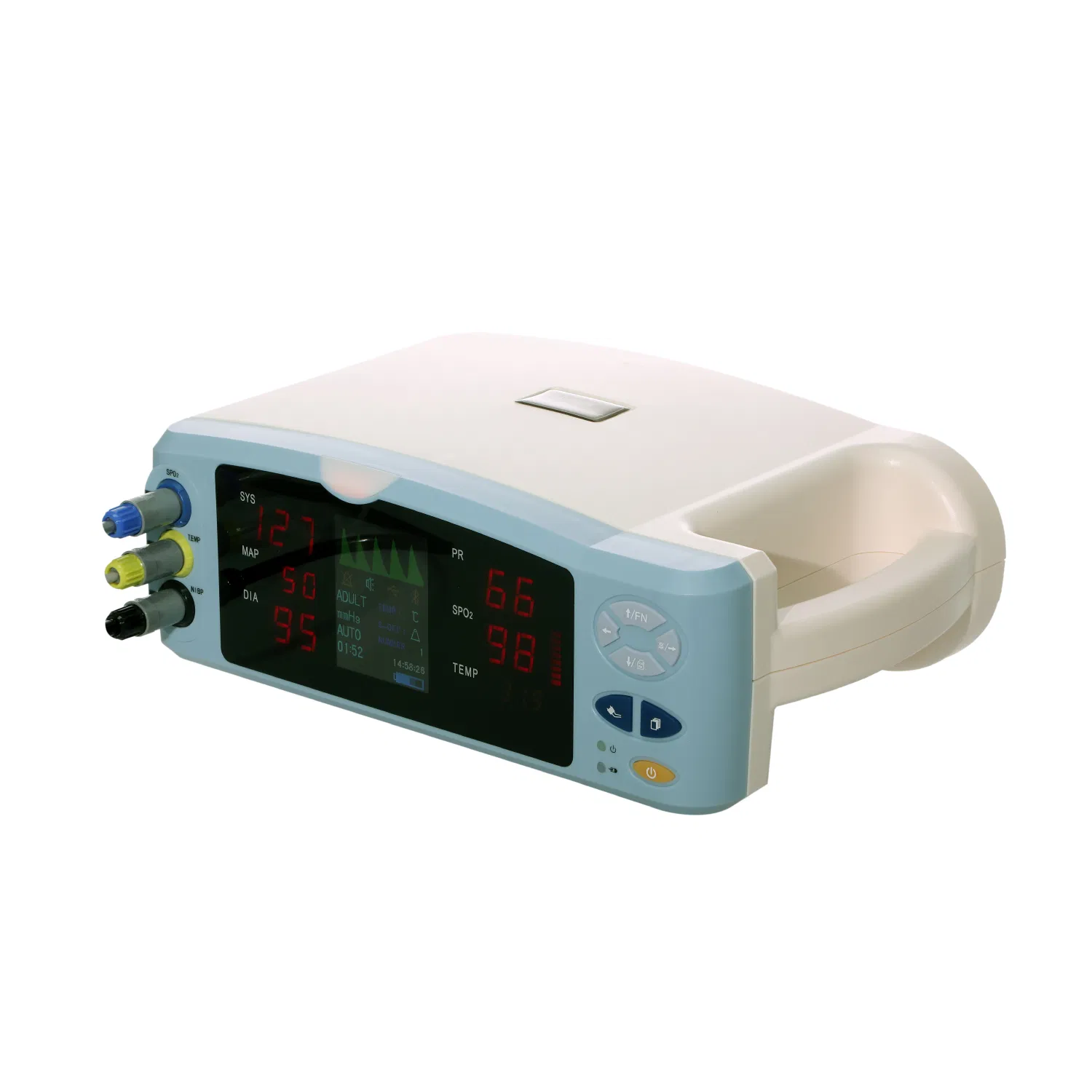

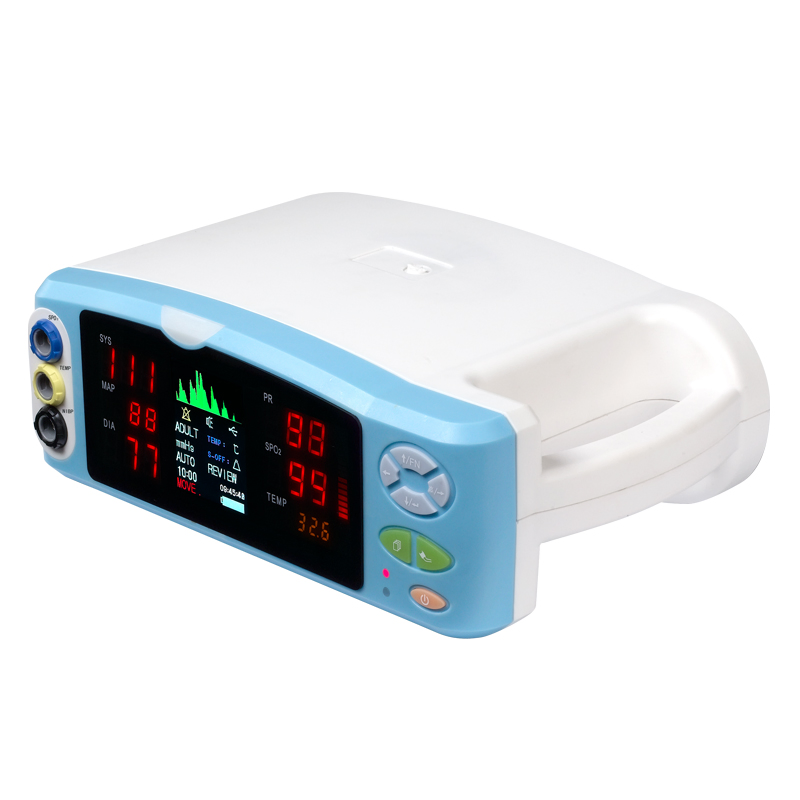

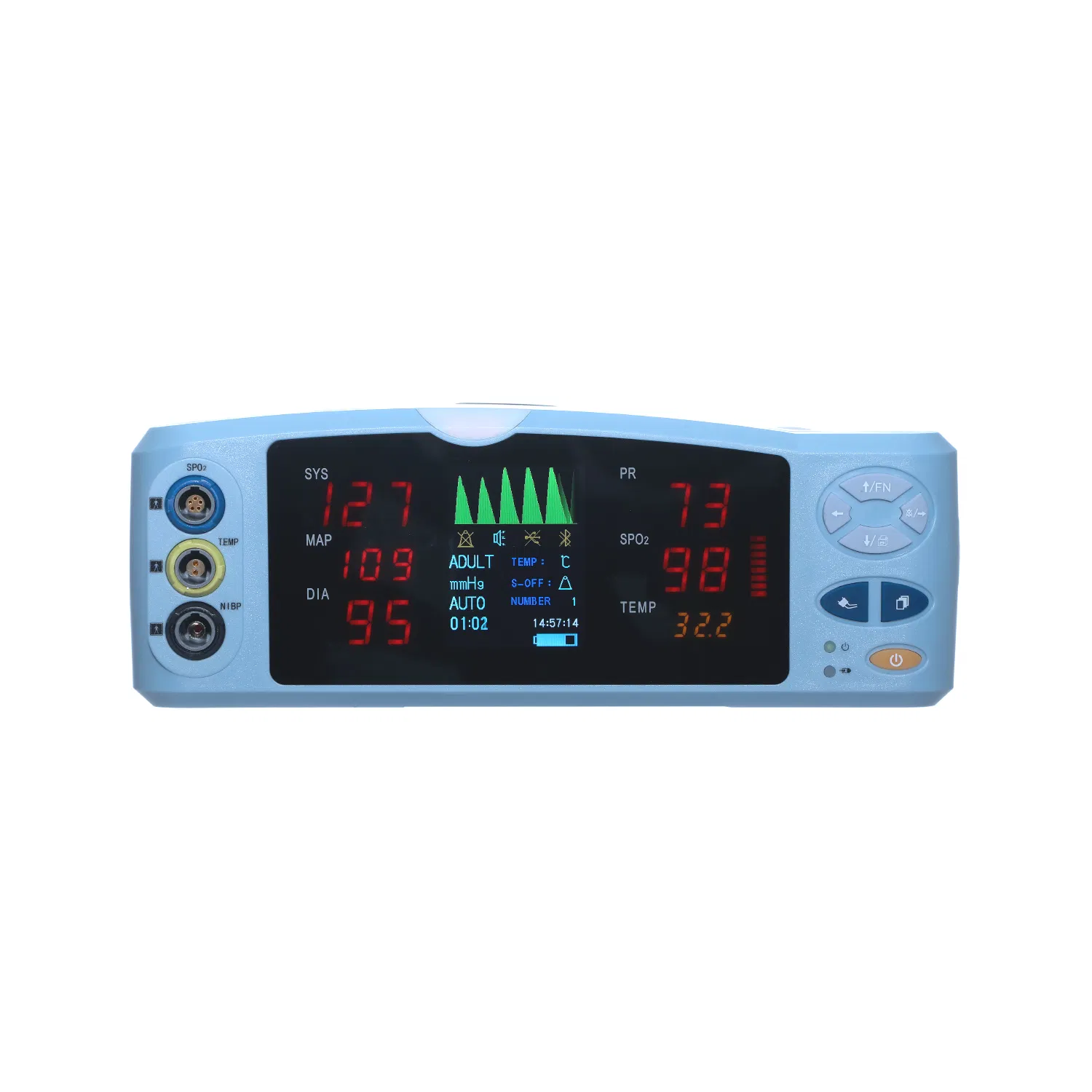

2.8inch Screen Portable Vital Signs Monitoring Devices

1 / 5

2.8inch Screen Portable Vital Signs Monitoring Devices

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Alps PM800A

Certification

ISO13485

Group

All

Product

Vital Sign Monitor

Screen

2.8 Inch Color LCD

Warranty

1 Year

Power Supply

Built-in Battery

After-Sale

Online Technical Support

★

Product Description

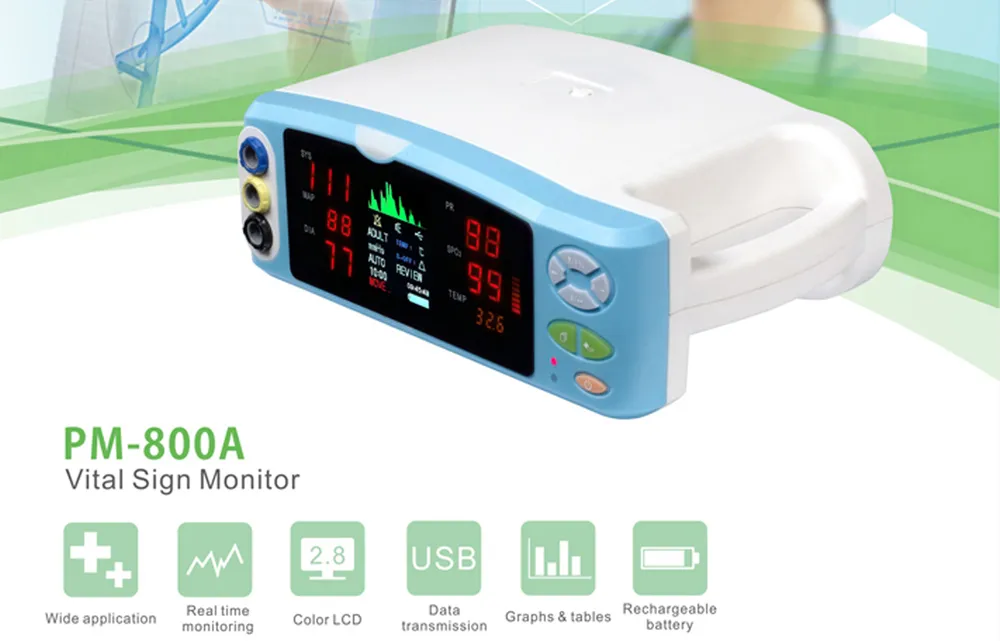

Vital Sign Monitor Features

2.8 inch color LCD to display SpO2 waveform and PR strength
3888 groups storage/review trend data with duration selectable
Audible & visual alarm

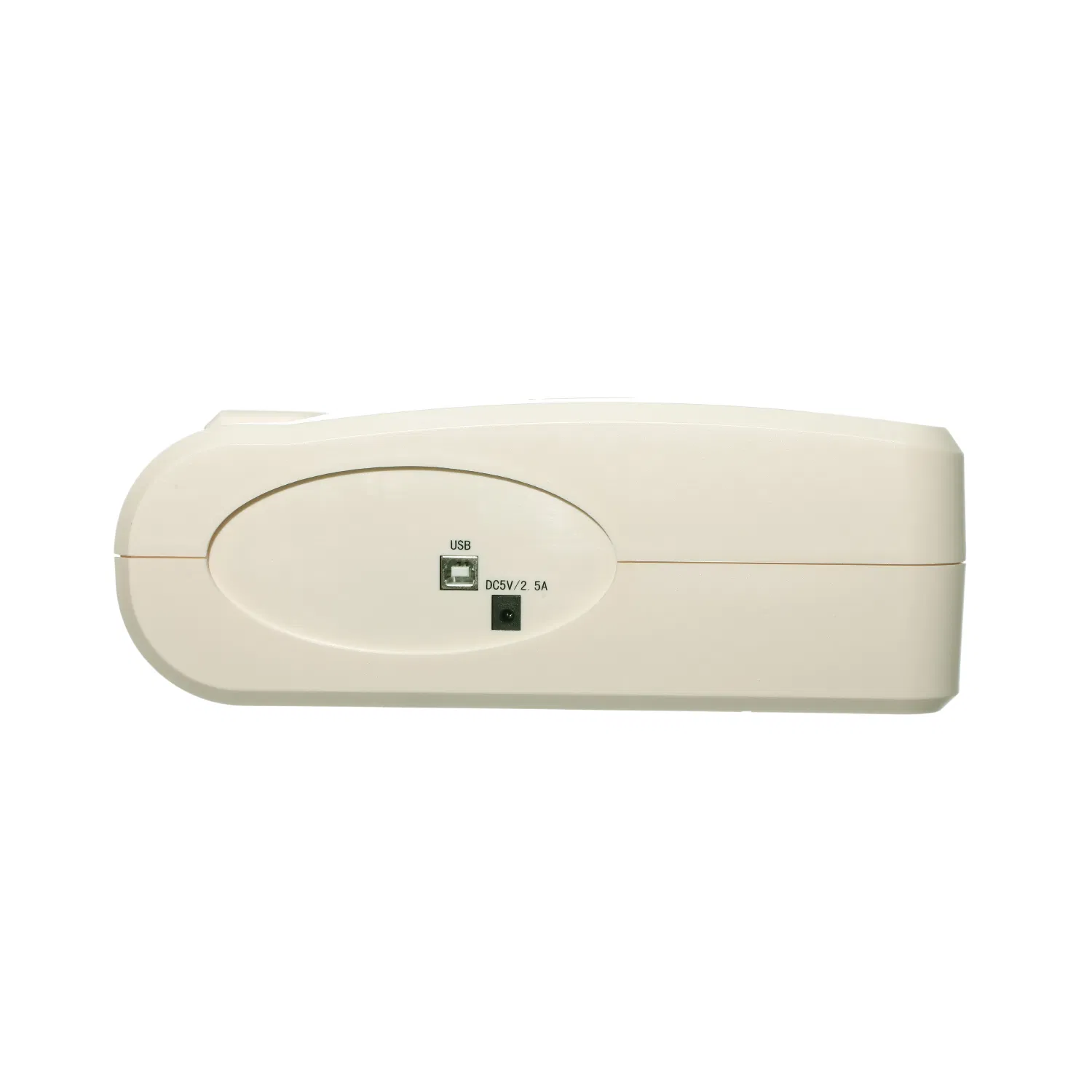

USB interface for PC connection to support tele-monitoring
Built-in rechargeable battery with Max. 5 hour operation time
Automatic power off functionality
Applicable to adult, pediatric and neonate
Low battery capacity indicator

Model Configuration

Standard Configuration: SpO2, PR, NIBP, HR, PLETH

⚙

Product Parameters

1. General Specifications

Size: 205mm×200mm×95mm | Net Weight: 1 kg
Display: 7-segment LEDs and Icons | Power Indicator: Dual-color LED

2. Power Supply

AC Adaptor: Input AC100-240V, Output DC 9V, 800mA
Battery: Lithium-ion rechargeable 5AHr 7.2V. Operating Time: 10 hours (Standard conditions). Recharge Time: 12 hours.

3. Monitoring Parameters

NIBP: Oscillometric method (Manual/Auto/STAT). Interval: 1-60 min. Range: 0 ~ 300 mmHg.
SpO2: Range 35 ~ 99%. Accuracy: ±2% (70-99%).
Pulse Rate: 0 ~ 250bpm. Accuracy: ±1bpm.
Storage: Maximum 800 groups of NIBP and SpO2 data.

4. Printer (Optional)

Type: Thermal micro-printer. Record Width: 57 mm. Real-time and review data printing supported.

📦

Packaging & Shipping

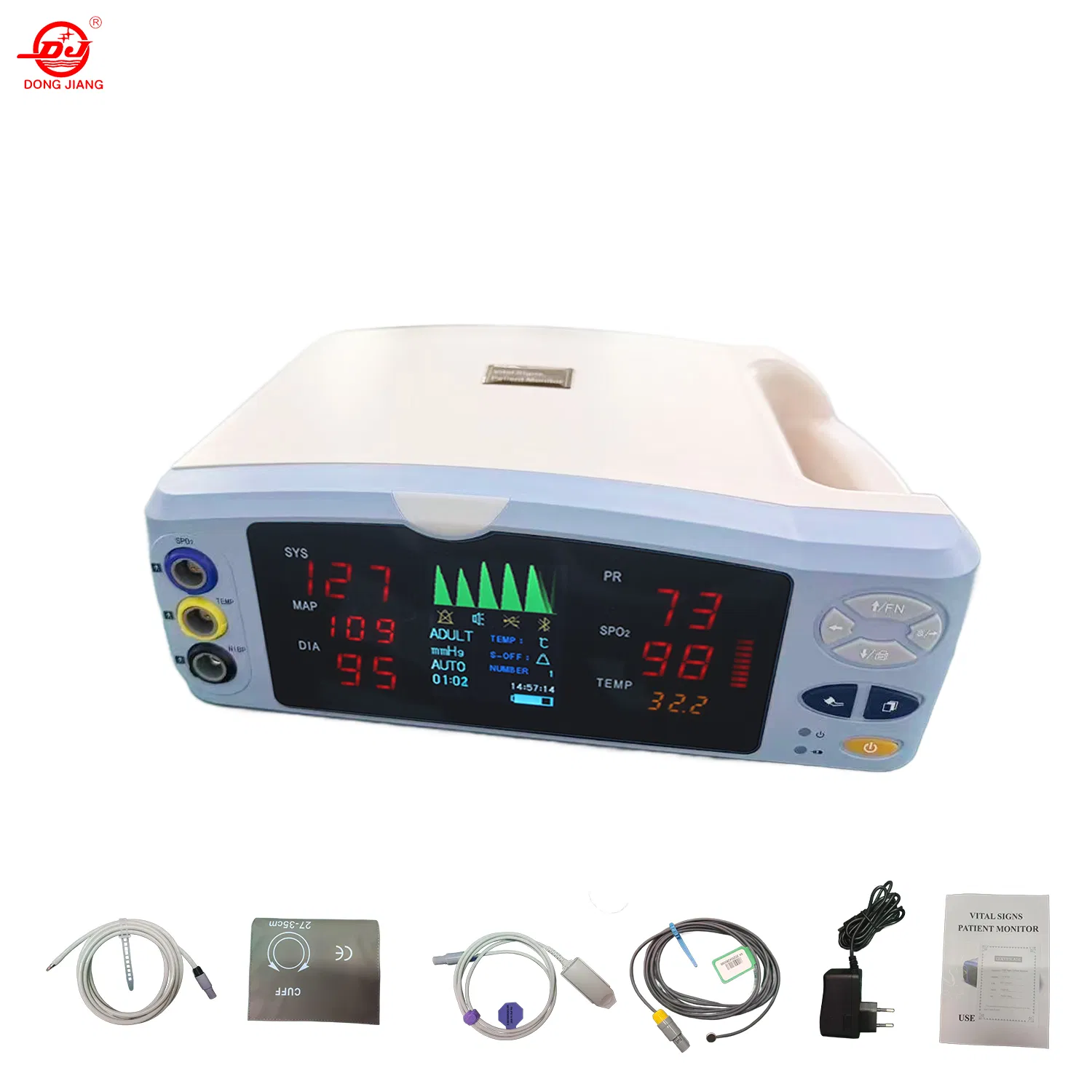

Standard Packing List
Patient monitor main unit	1 pc
Adult finger SpO2 sensor	1 pc
Adult NIBP cuff	1 pc
NIBP extension tube	1 pc
AC power adaptor	1 pc
Operator's manual	1 pc
Selectable Accessories
Child finger SpO2 sensor	Optional
Child NIBP cuff	Optional

🏭

Facility Overview

Frequently Asked Questions

Q1: Which patient groups can use this vital sign monitor? The device is designed for use with adult, pediatric, and neonate patients.

Q2: How long does the battery last on a single charge? The built-in rechargeable battery provides up to 10 hours of operation time under standard testing conditions.

Q3: Does the monitor support data storage for review? Yes, it can store up to 800 groups of NIBP and SpO2 trend data for later review.

Q4: Can the data be transferred to a computer? Yes, the monitor features a USB interface for PC connection to support data management and tele-monitoring.

Q5: What are the primary parameters monitored by the standard configuration? The standard configuration includes SpO2, Pulse Rate (PR), Non-Invasive Blood Pressure (NIBP), Heart Rate (HR), and PLETH.

Q6: Are there alarms for abnormal readings or low battery? Yes, the device includes both audible and visual alarms, as well as a dedicated prompt for low battery capacity.
