Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
1 / 5
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device

Contec Cms6500 Patient Monitoring Remote Patient Monitor Device

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor
Send Inquiry

Product Description

Basic Information
Model NO.
CMS6500
Certification
CE
Product Name
Vital Signs Monitor Patient Monitor with Touch Screen
Display Mode
7'' Color TFT LCD
Multi-Parameter
ECG, SpO2, Pulse Rate, NIBP
ECG Lead Mode
3-Lead or 5-Lead
HR Range
15 ~ 300 Bpm
HS Code
9018193010
Production Capacity
500/Week
Detailed Photos

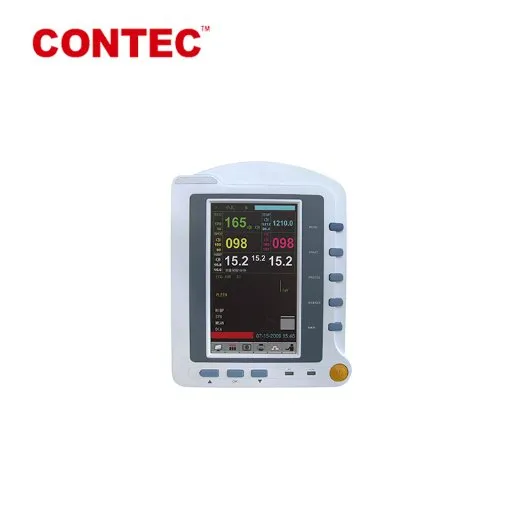

Patient Monitor Device Photo 1

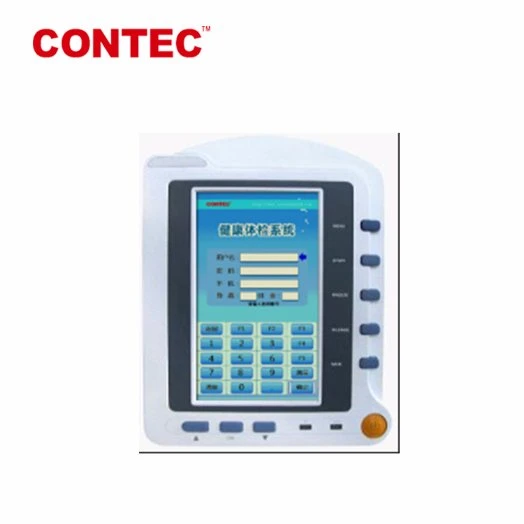

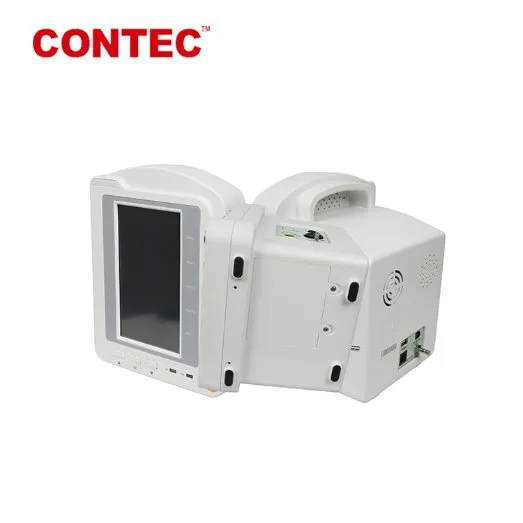

Patient Monitor Device Photo 2
Product Description & Features

Introduction:

CMS6500 is a portable vital signs monitor with a high-resolution touch screen. Designed to ensure monitoring quality and reduce operation risk, it features full-isolation (floating), ECG defibrillation-proof protection, ECG anti-high frequency surgical unit interference, and NIBP dual-overpressure protection.

Key Features:

  • 7'' color TFT LCD with high-resolution display mode.
  • Simple and intuitive operation via touch screen interface.
  • Applicable for adult, pediatric, and neonatal patients for all-round monitoring.
  • Optional settings for waveforms and data display.
  • Storage of 72-hour trend data and review of 40-second holographic waveform.
  • Equipped with anti-high frequency surgical unit and defibrillation-proof technology.
  • Digital SpO2 technology with strong anti-interference and anti-weak filling capability.
  • NIBP review function with storage for up to 400 data points.
  • Flexible network connection modes: Wireless and wired for central station connection.
  • Built-in rechargeable battery for uninterrupted medical monitoring.
  • Standard parameters: ECG, RESP, NIBP, SpO2, TEMP, and PR.
Technical Specifications
ECGLead mode: 3-lead or 5-lead; Waveform: single-channel; Gain: 2.5mm/mV to 20mm/mV; Scan speed: 12.5mm/s to 50 mm/s
HRMeasurement and alarm range: 15~350 bpm; Accuracy: ±1 % or ±1 bpm; Arrhythmia analysis and Pacemaker detection included
RESPMethod: R-F(RA-LL) Impedance; Range: 0~150 rpm; Apnea alarm: 10~40s
NIBPMethod: Oscillometry; Modes: Manual/AUTO/Continuous; Over-pressure protection for Adult, Pediatric, and Neonatal modes
SpO2Measurement range: 0 ~ 100%; Resolution: 1%; Accuracy: 70%~100% (±2%)
PRMeasurement range: 30 ~ 250 bpm; Accuracy: ±2 bpm or ±2%
TEMPSingle-channel; Range: 0 ~ 50ºC; Resolution: 0.1 ºC
Power SupplyAdapter: 9V DC; AC: 100 ~ 240V, 50/60 Hz; Maximal input power: 150VA
Accessories & Physical Characteristics

Standard Accessories:

  • Adult fingertip SpO2 probe & extension cable
  • Adult NIBP cuff & extension tube
  • ECG lead cable & electrodes
  • Temperature probe
  • Power cord & adapter
  • User Manual

Physical Characteristic:

  • Dimension: 192 mm(L) × 162 mm(W) × 243 mm(H)
  • Weight: 2.0 Kg
Product Range
  • Telemedicine products
  • Pulse oximeter & Patient Monitoring
  • ECG machine / Holter ECG / Stress test ECG
  • EEG & Ultrasound Imaging
  • Pocket fetal doppler & fetal monitor
  • Blood pressure Monitor (ABPM)
  • Spirometer & Infusion/syringe Pump
  • Digital Stethoscope & In-Vitro Diagnostics
  • Veterinary products

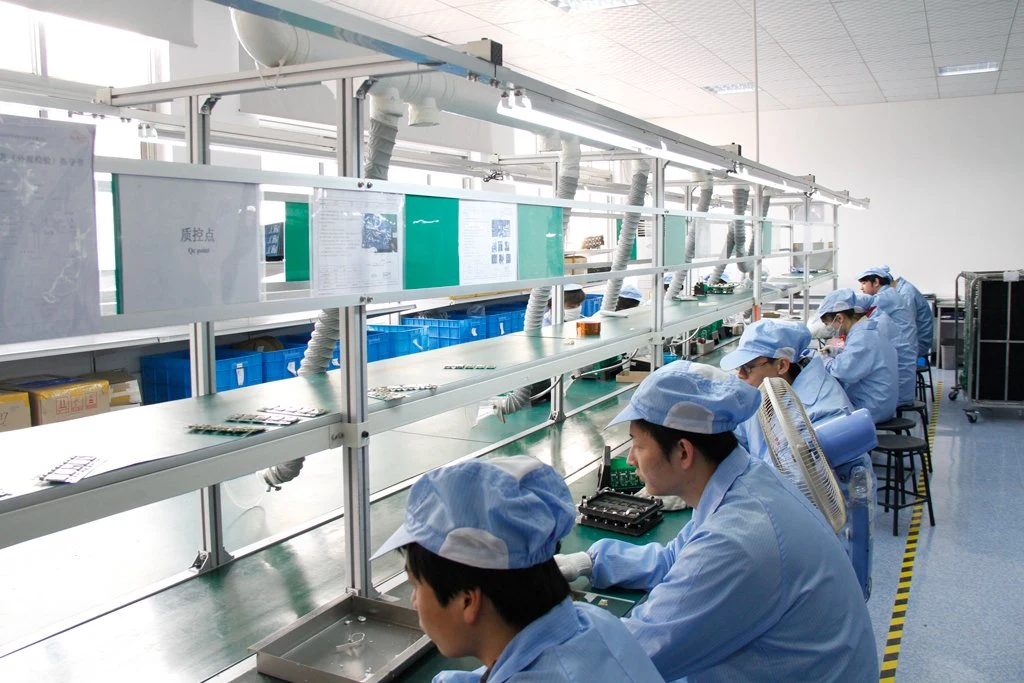

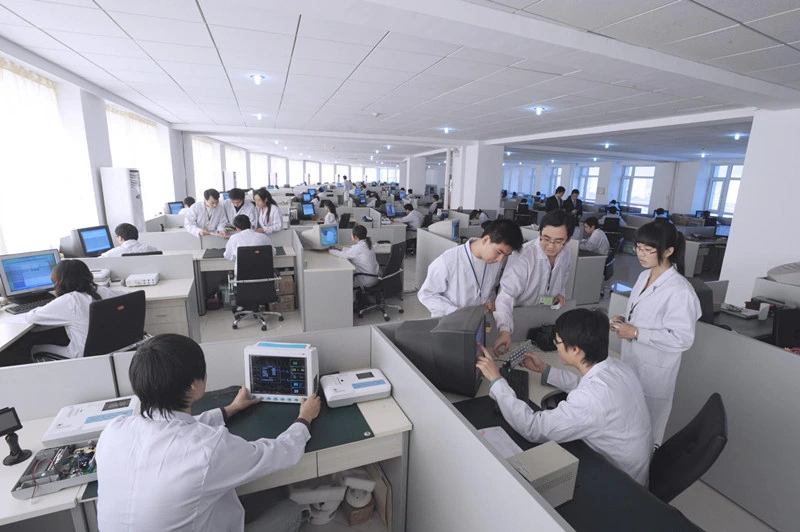

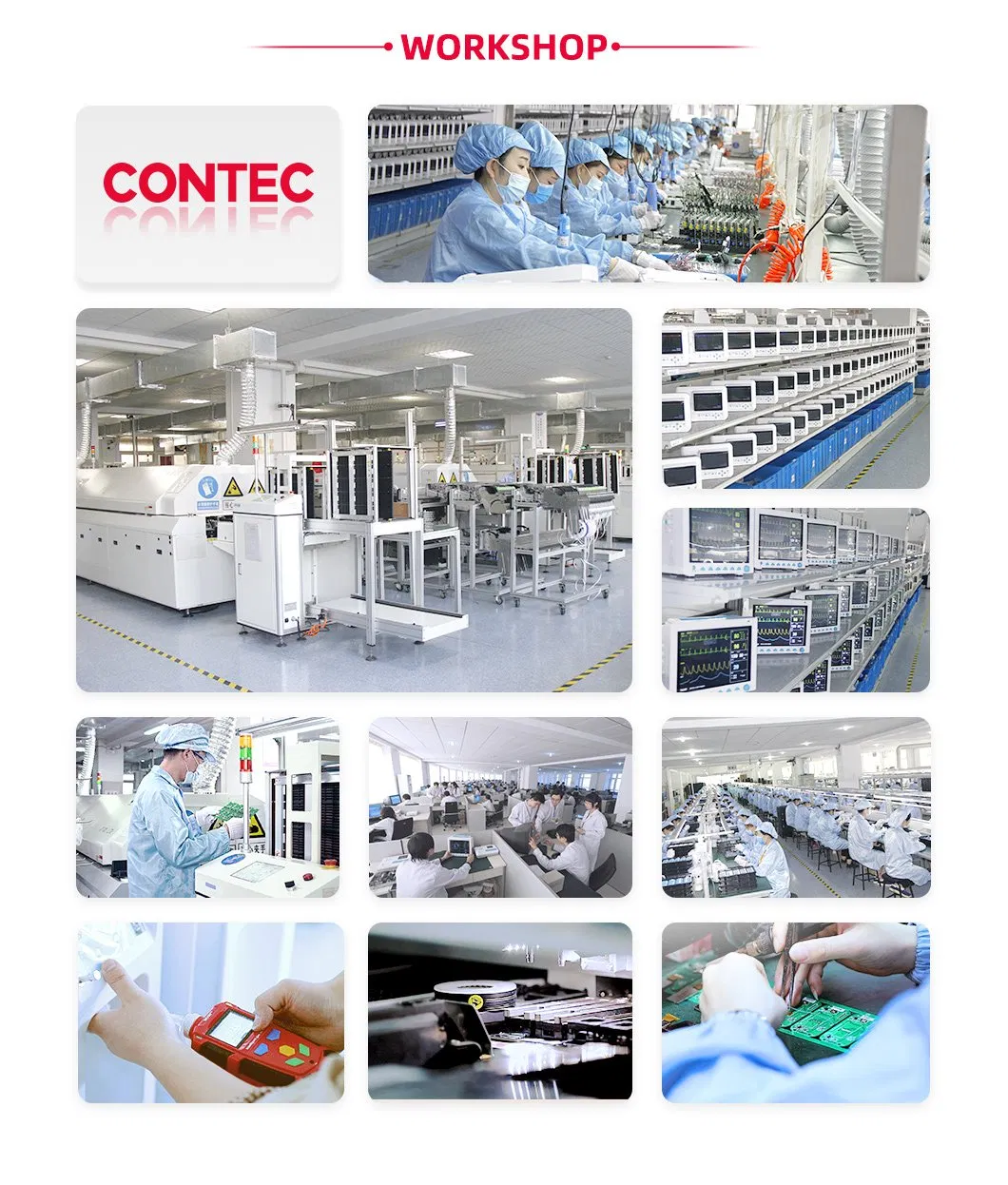

Production & Quality Showcase
Frequently Asked Questions
What patient groups is the CMS6500 suitable for?
The device is designed for all-round monitoring and is applicable for adult, pediatric, and neonatal patients.
What are the primary vital signs monitored by this device?
The standard parameters include ECG, RESP (Respiration), NIBP (Non-invasive Blood Pressure), SpO2 (Oxygen Saturation), TEMP (Temperature), and PR (Pulse Rate).
Does the monitor support data storage for long-term observation?
Yes, it can store up to 72 hours of trend data and includes an NIBP review function that stores up to 400 NIBP data points.
Is the CMS6500 portable for emergency or mobile use?
Yes, it is highly portable with a compact dimension (192mm x 162mm x 243mm), weighs only 2.0 Kg, and features a built-in rechargeable battery for uninterrupted use.
What kind of display does the monitor use?
It features a 7-inch high-resolution color TFT LCD with touch screen functionality for easy and shortcut operations.
Can this device be connected to a central monitoring station?
Yes, the device supports both wired and wireless network connection modes to link with central stations or other bed observations.
