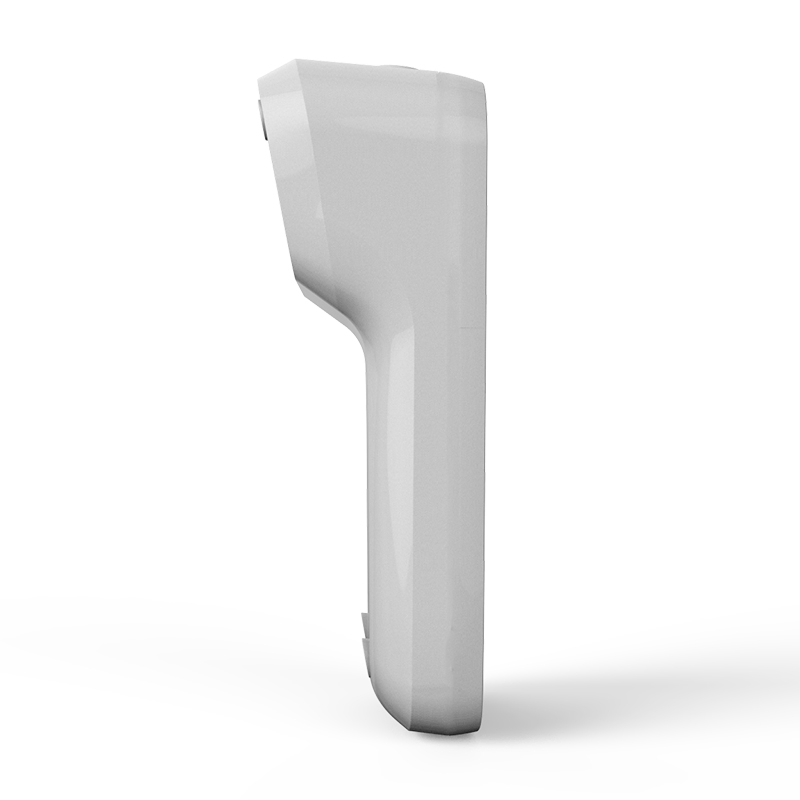

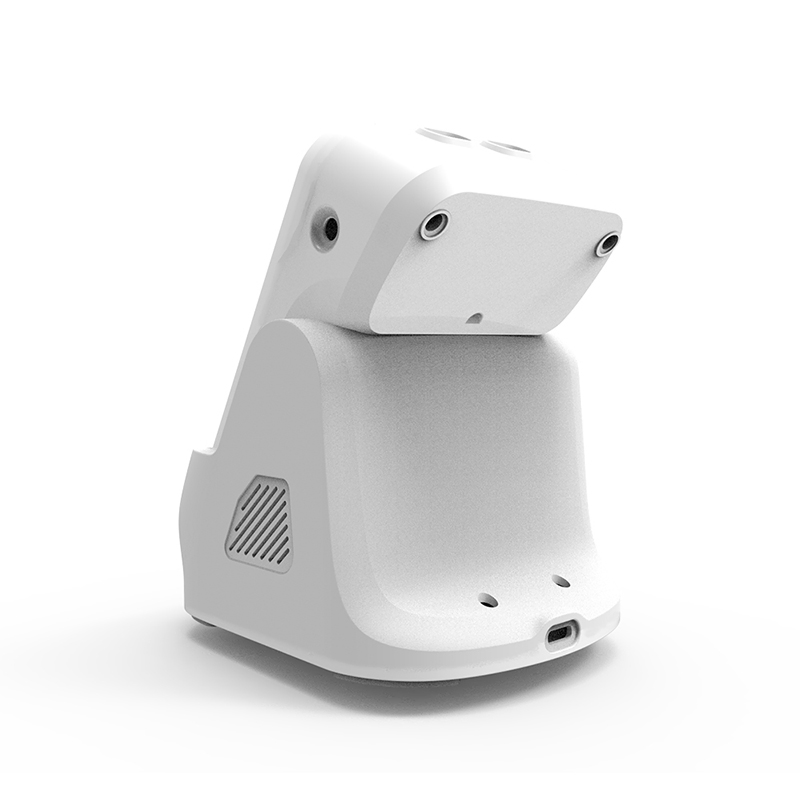

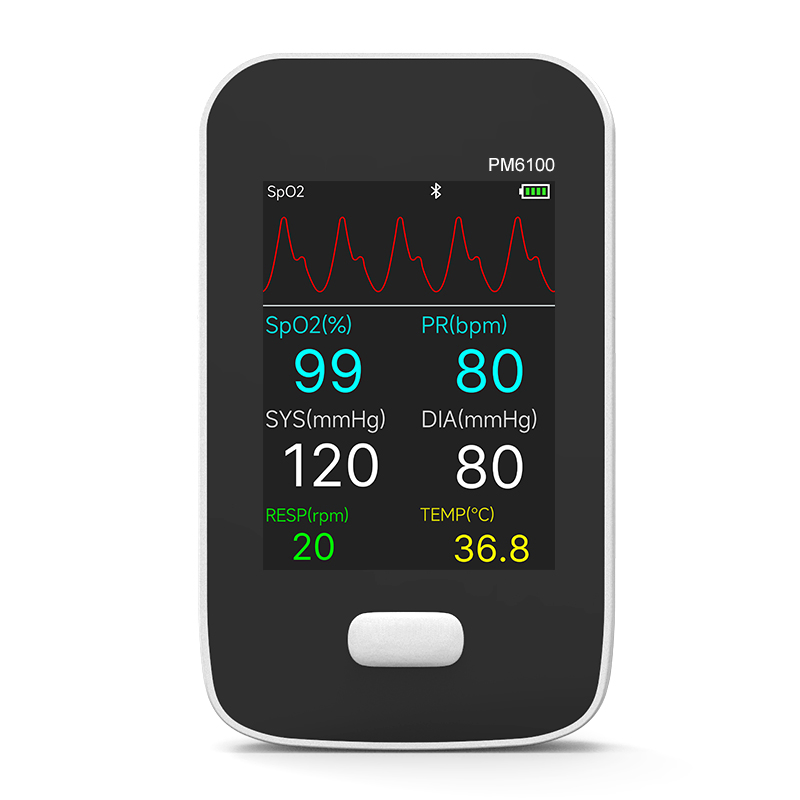

The Multi-parameter patient monitor is certified with CE0123, ISO13485, and ROHS. The PM6100 is designed to monitor essential physiological signals including Heart Rate (HR), Non-invasive Blood Pressure (NIBP), SpO2, Pulse Rate (PR), Body Temperature (TEMP), and Respiration Rate (RESP). This device ensures accurate signal capture, verified through extensive clinical testing.
Applicable to: Adults, the elderly, and children.
Usage Scenarios: Ideal for family health management, ambulance services, and outdoor first aid.

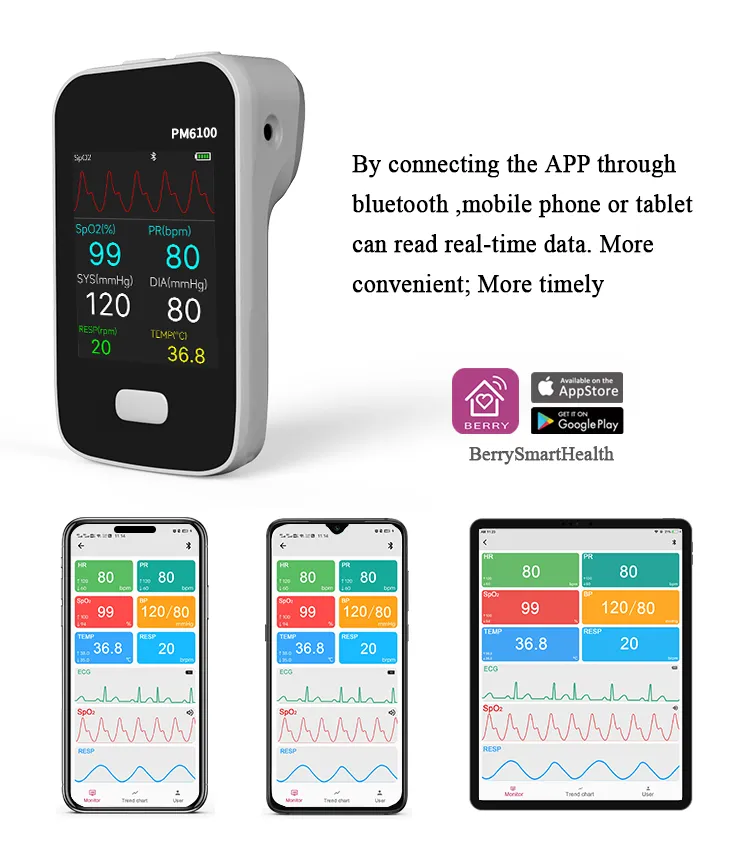

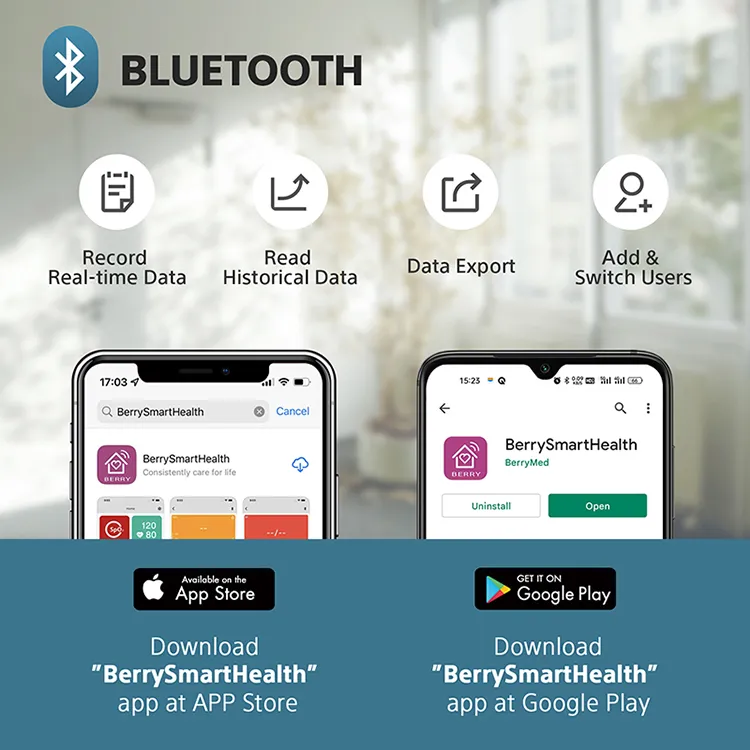

Connect to the "Berry Smart Health" app via Bluetooth on mobile phones or tablets for real-time data monitoring. Available on the App Store and Google Play.

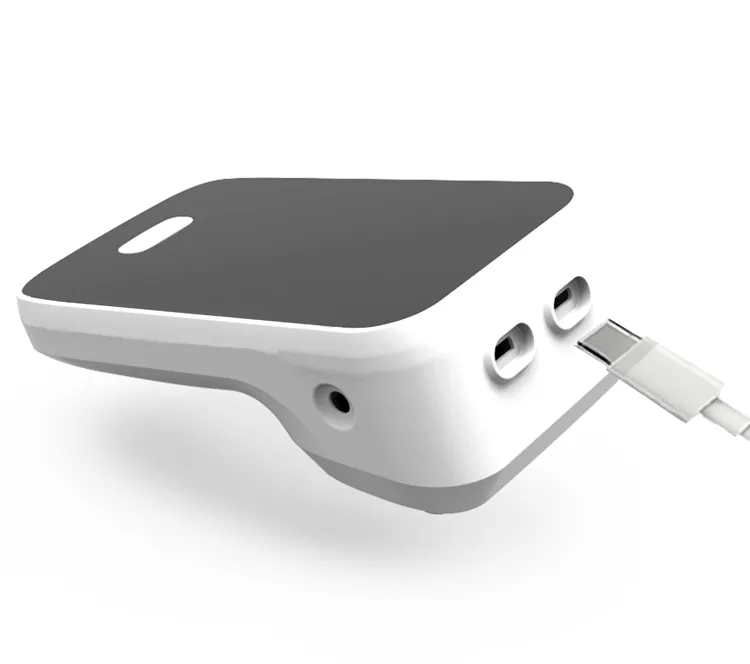

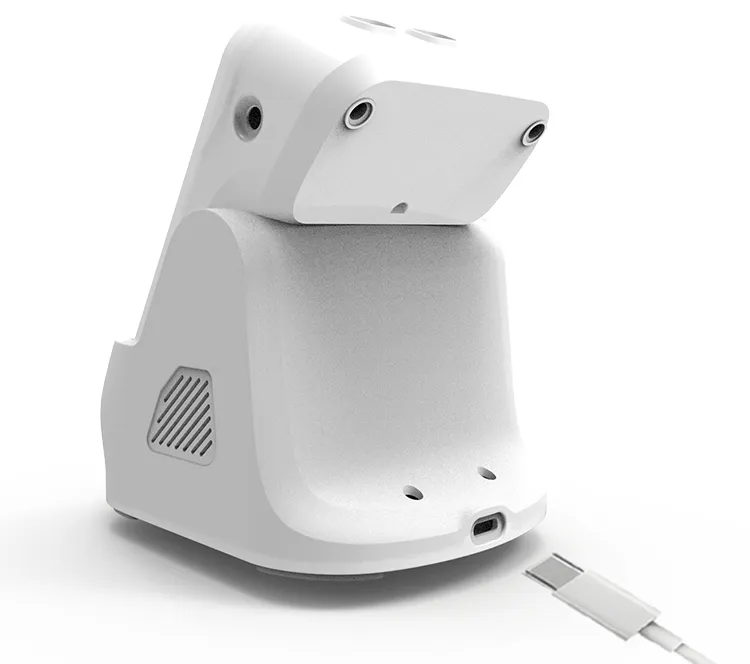

The device supports Type-C interface charging and can be operated while charging.

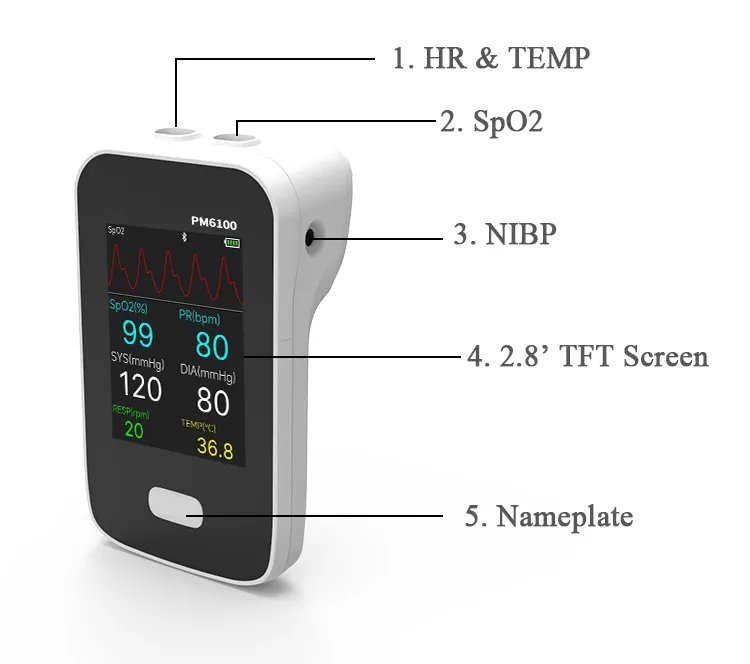

| No. | Name | Purpose |
|---|---|---|
| 1 | HR & TEMP | Connecting lead cables and charging |
| 2 | SpO2 | Connecting SpO2 sensor |
| 3 | NIBP | Connecting NIBP cuff |

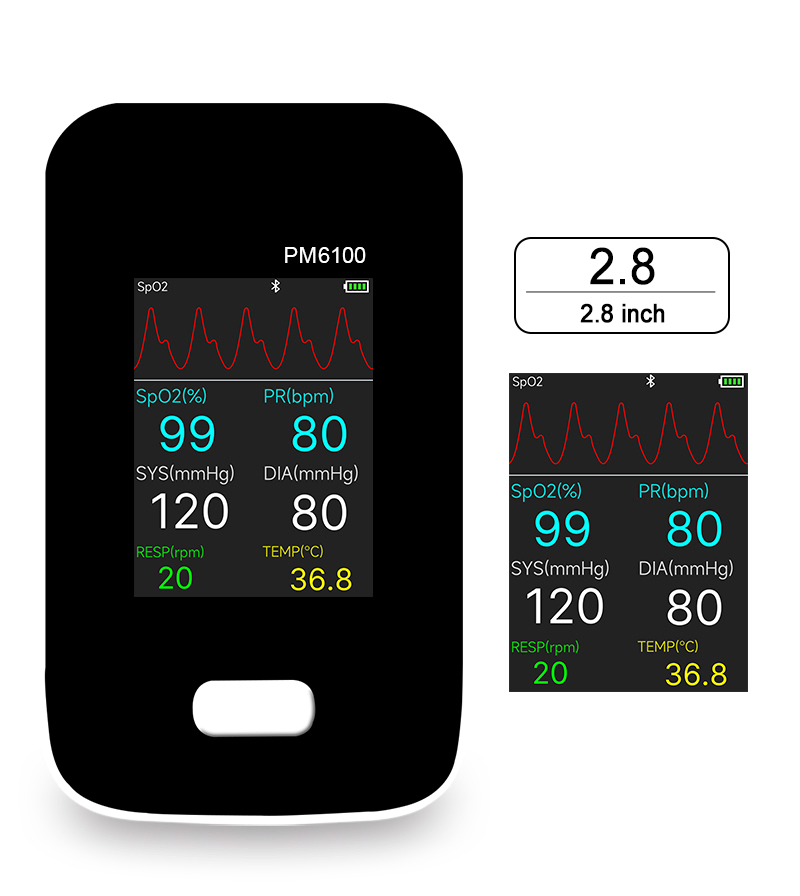

| 4 | TFT Screen | Real-time display of monitoring results and waveforms |
| 5 | Button | Power control and functional operations |
| Display: 2.8 inches colorized TFT-LCD | HR Range: 25~250bpm (±2bpm accuracy) |
| Temp Range: 25~45ºC (±0.2ºC accuracy) | RESP Range: 5~100brpm (±2brpm accuracy) |
| SpO2 Range: 35~100% (±2% for 80-100%) | PR Range: 25~250bpm |
| NIBP (Systolic): 60~230mmHg | NIBP (Diastolic): 40~130mmHg |
| Operating Temp: +5ºC ~ +40ºC | Operating Humidity: 15% - 85% |
