Customization: Available
Warranty: 18-Month for Main Unit
Application: Multiparameter Patient Monitor Simulator
Send Inquiry

Product Description

📊

Basic Information

Model NO.
MS400
Certification
CE
Voltage Output
220V
Current Output
1A
LCD Display
3.5" color TFT
Product Name
Medical Multiparameter Patient Monitor Simulator
Simulate Paramater
12-Lead, ECG, Resp, Temp, 2/4-Channel IBP
Weight
1.4kg
Production Capacity
100/Week
HS Code
9018193010
📝

Product Description

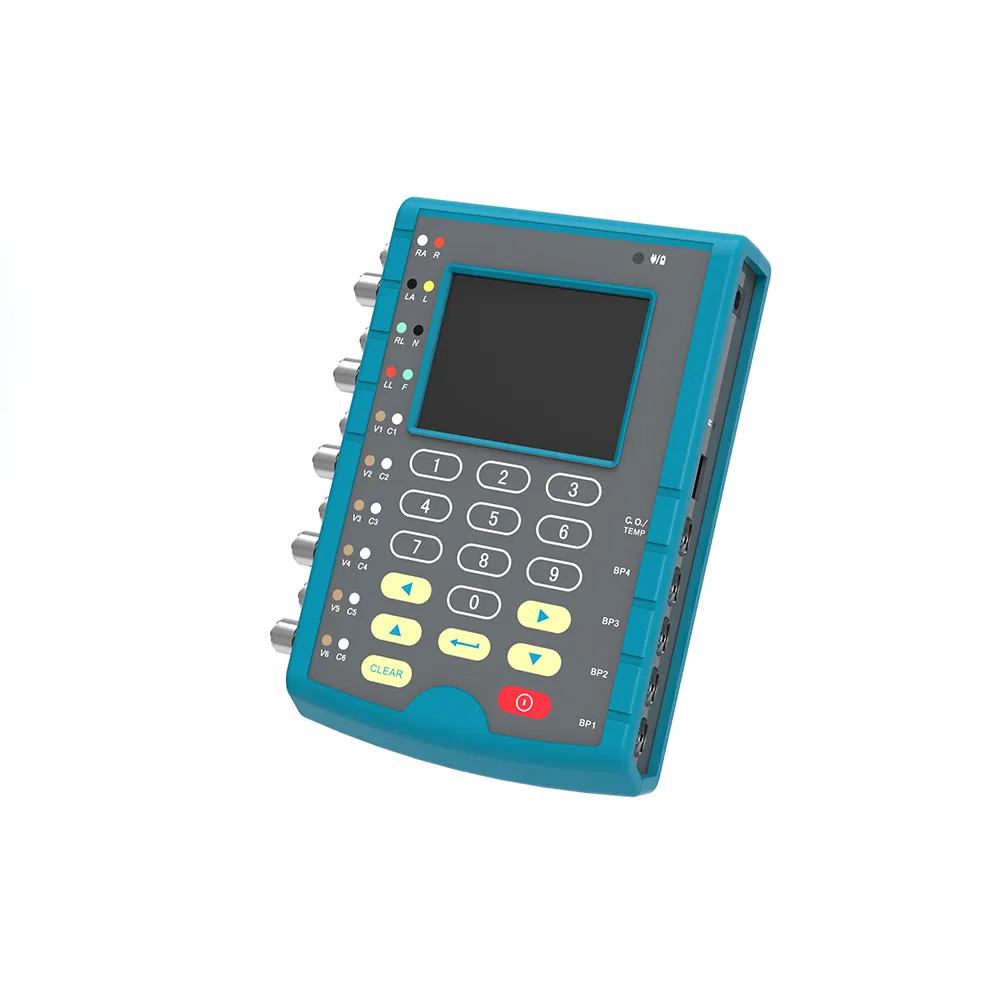

Medical Multiparameter Patient Monitor Simulator-MS400

The MS400 features a compact design and lightweight build. This multi-parameter simulator accurately simulates 12-lead ECG, Respiration, Temperature, and 2-channel or 4-channel IBP, allowing for comprehensive testing wherever the monitor is deployed.

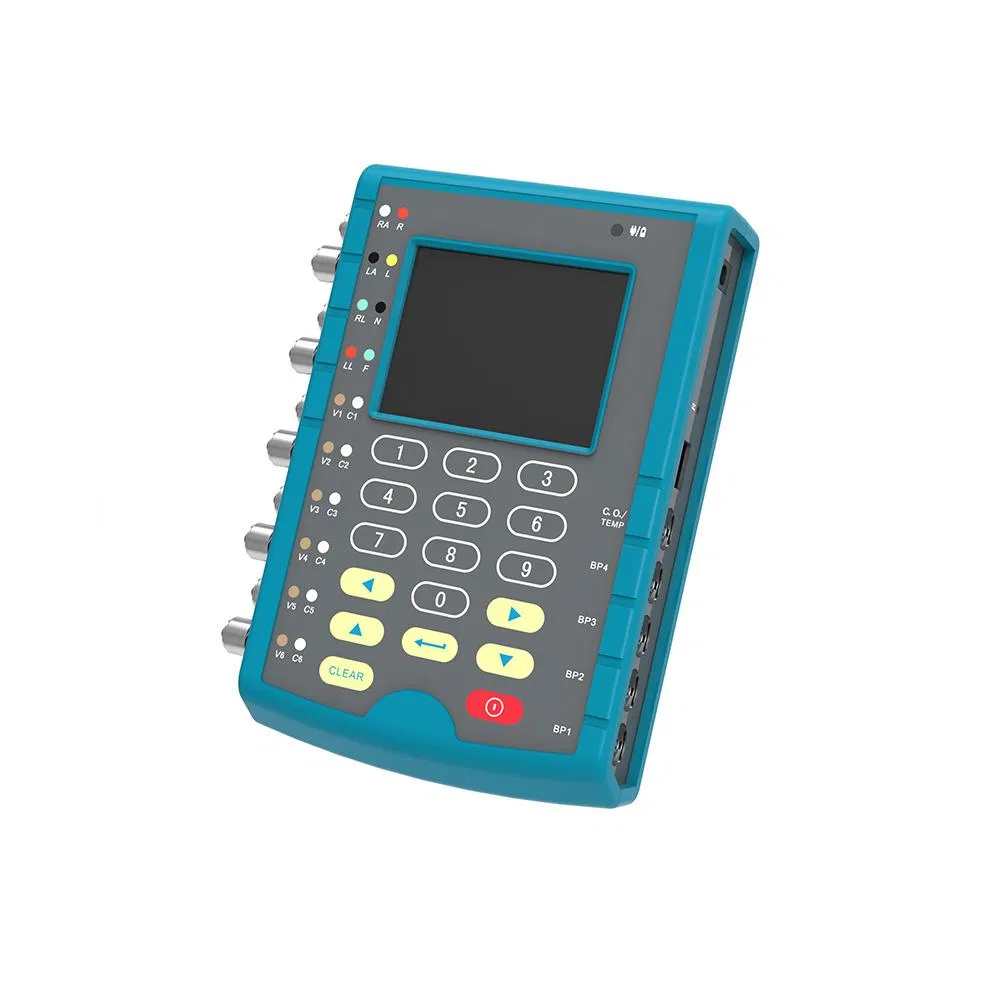

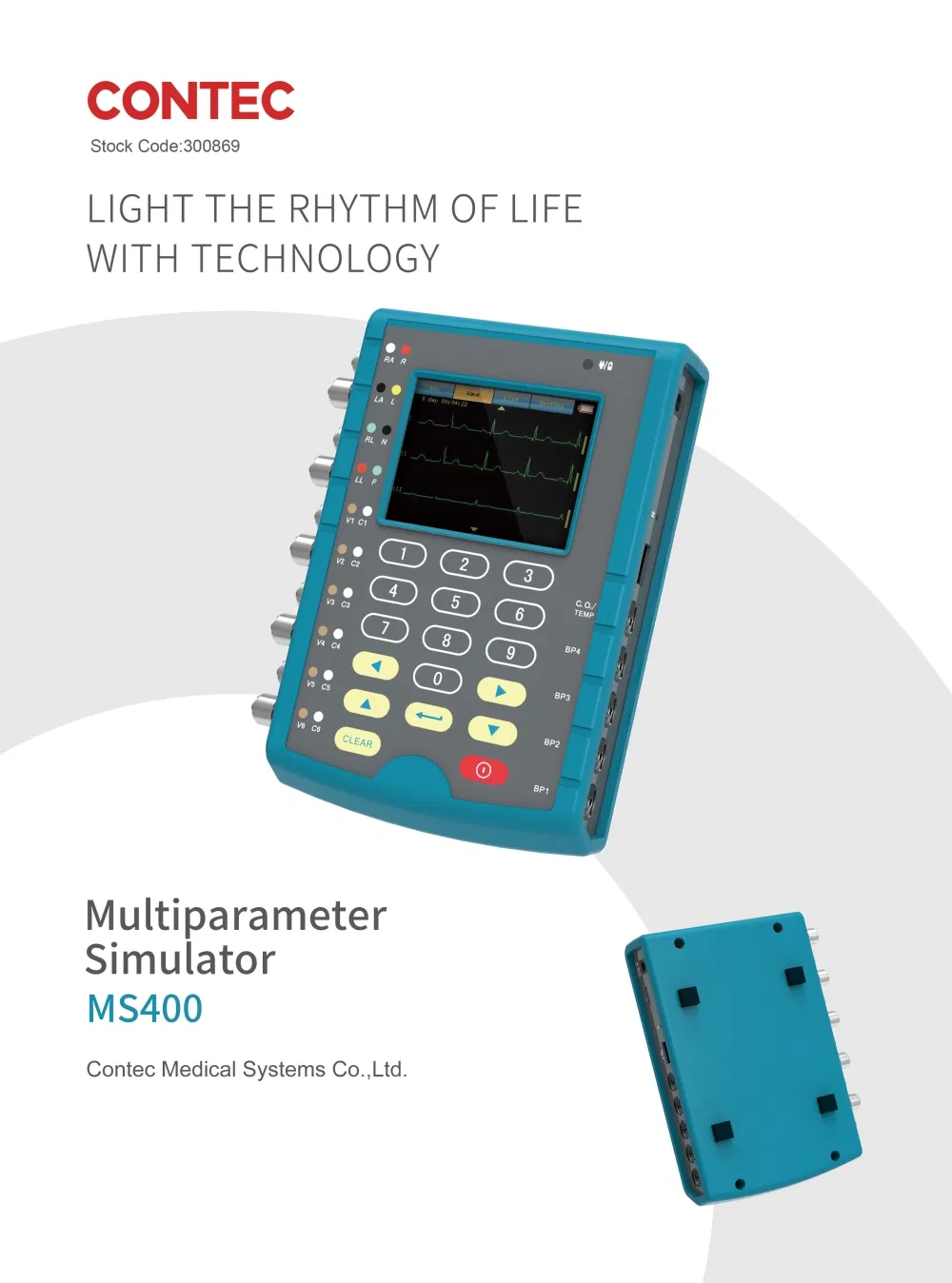

Patient Monitor Simulator MS400 Front View

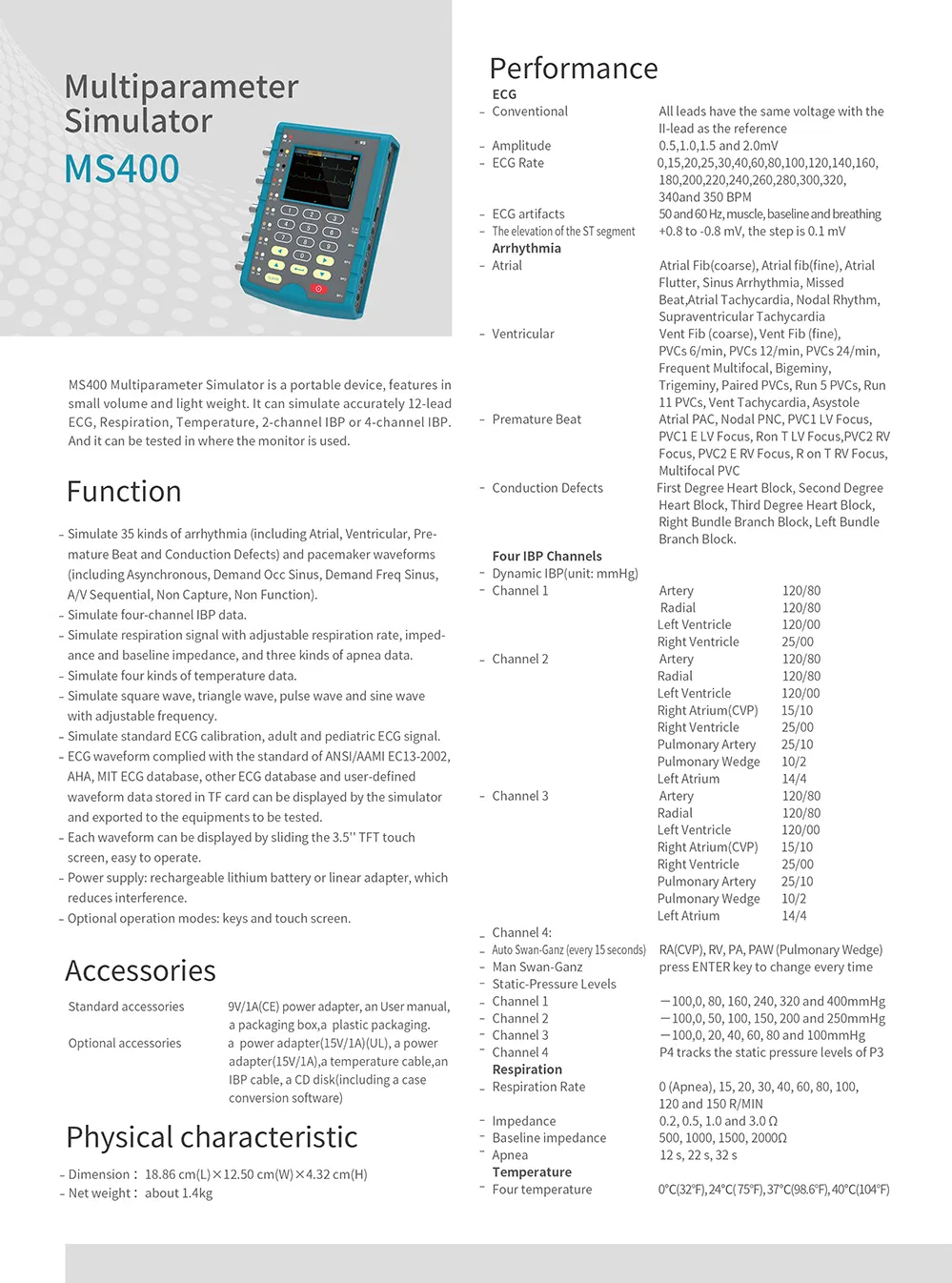

Patient Monitor Simulator MS400 Interface

Key Features

  • Simulate 35 kinds of arrhythmia (Atrial, Ventricular, Premature Beat, and Conduction Defects) and various pacemaker waveforms.
  • Simulate four-channel IBP data and four types of temperature data.
  • Simulate respiration signals with adjustable rates, impedance, and apnea data (three types).
  • Simulate standard ECG calibration, adult, and pediatric ECG signals.
  • Waveforms comply with ANSI/AAMI EC13-2002, AHA, MIT ECG databases.
  • Support for user-defined waveform data stored via TF card.
  • 3.5'' TFT touch screen for easy navigation and waveform display.
  • Dual power supply: Rechargeable lithium battery or linear adapter for reduced interference.
⚙️

Technical Parameters

Parameter Specifications
ECG Amplitude: 0.5, 1.0, 1.5, 2.0mV; Rate: 15 to 350 BPM; ST Segment elevation: +0.8 to -0.8 mV.
Arrhythmia Atrial (Fib, Flutter, Tachycardia), Ventricular (Fib, PVCs, Tachycardia, Asystole), Premature Beats, and Conduction Defects.
IBP Dynamic IBP unit: mmHg. Supports Artery, Radial, Left/Right Ventricle, CVP, Pulmonary Artery, and Pulmonary Wedge.
Respiration Rate: 0 (Apnea) to 150 R/MIN; Impedance: 0.2 to 3.0 Ω; Baseline: 500 to 2000Ω.
Temperature Four levels: 0ºC(32°F), 24ºC(75°F), 37ºC(98.6°F), 40ºC(104°F).
📦

Physical Characteristics & Accessories

Standard Accessories: 9V/1A power adapter, User manual, Packaging box.

Physical Dimensions: 18.86 cm(L) × 12.50 cm(W) × 4.32 cm(H) | Net Weight: Approx. 1.4kg

Product Display 1

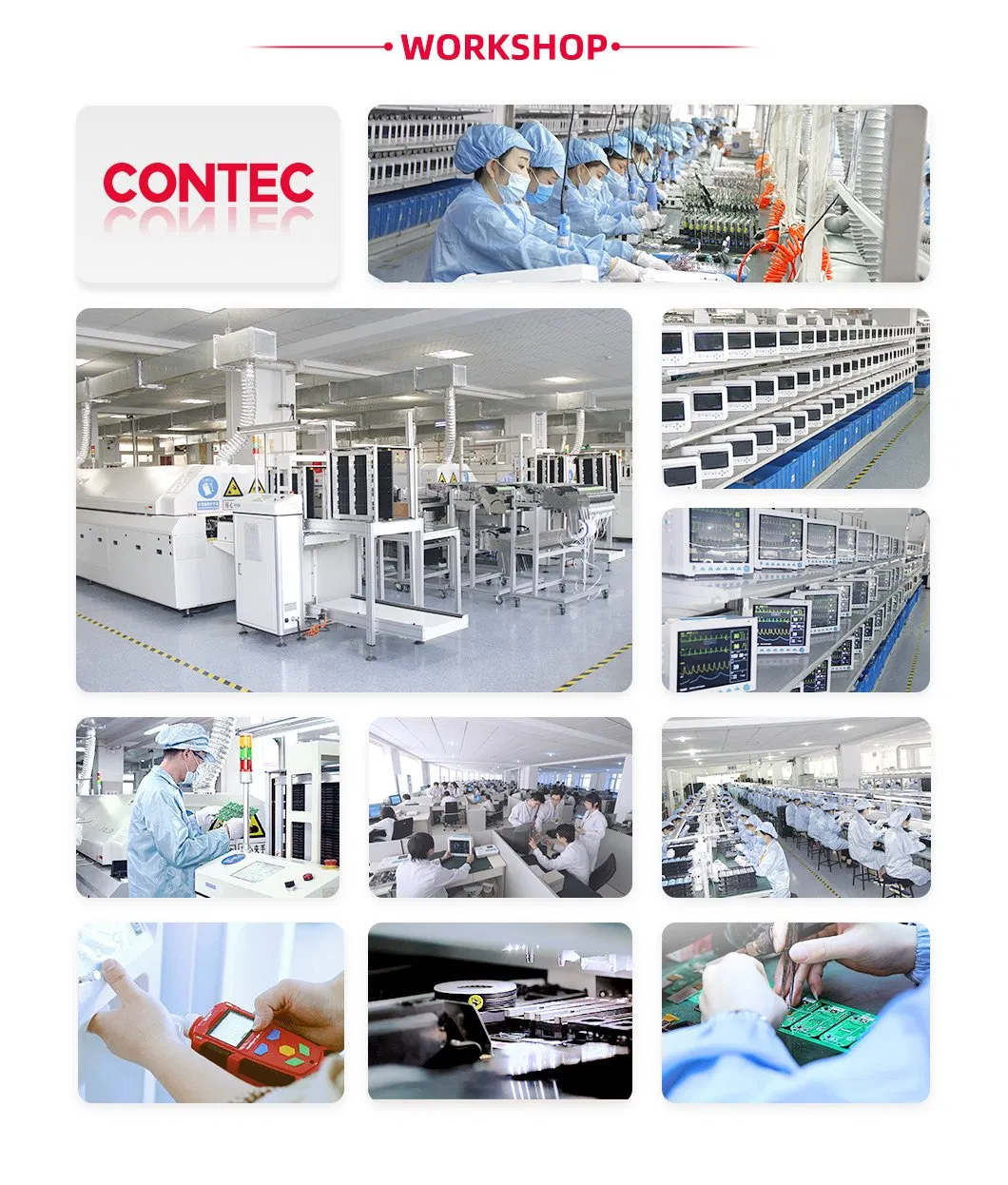

Product Display 2
Product Display 3
Manufacturing 1
Manufacturing 2

Frequently Asked Questions

What parameters can the MS400 simulate for patient monitors?
The MS400 can accurately simulate 12-lead ECG, Respiration, Temperature, and 2 or 4-channel IBP (Invasive Blood Pressure).
How many types of arrhythmias can this device simulate?
It supports the simulation of 35 different kinds of arrhythmias, including Atrial, Ventricular, Premature Beat, and Conduction Defects.
Does the simulator support custom waveforms?
Yes, user-defined waveform data can be stored in a TF card and displayed by the simulator or exported to the equipment being tested.
What kind of display and operation does it have?
The device features a 3.5-inch color TFT touch screen and can be operated via both the touch screen and physical keys.
How is the MS400 powered?
It is powered by a rechargeable lithium battery or a linear adapter, which helps minimize electronic interference during testing.
Is the simulator portable for on-site testing?
Yes, with a net weight of approximately 1.4kg and a compact form factor, it is highly portable and suitable for testing wherever monitors are used.
