Durable Sleep Tracking Device for Hypopnea and Sahs Patients

1 / 5

Durable Sleep Tracking Device for Hypopnea and Sahs Patients

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.sleep fairy-a9

CertificationCE, ISO13485, Free Sale Certification

GroupMiddle-aged and Old

Channel9 Channels

PackagePortable Bag with Outer Carton

Specification0.9kgs included packing

OriginChina

HS Code90181990

Capacity1000sets/Month

Product Description

What is Sleep monitor?

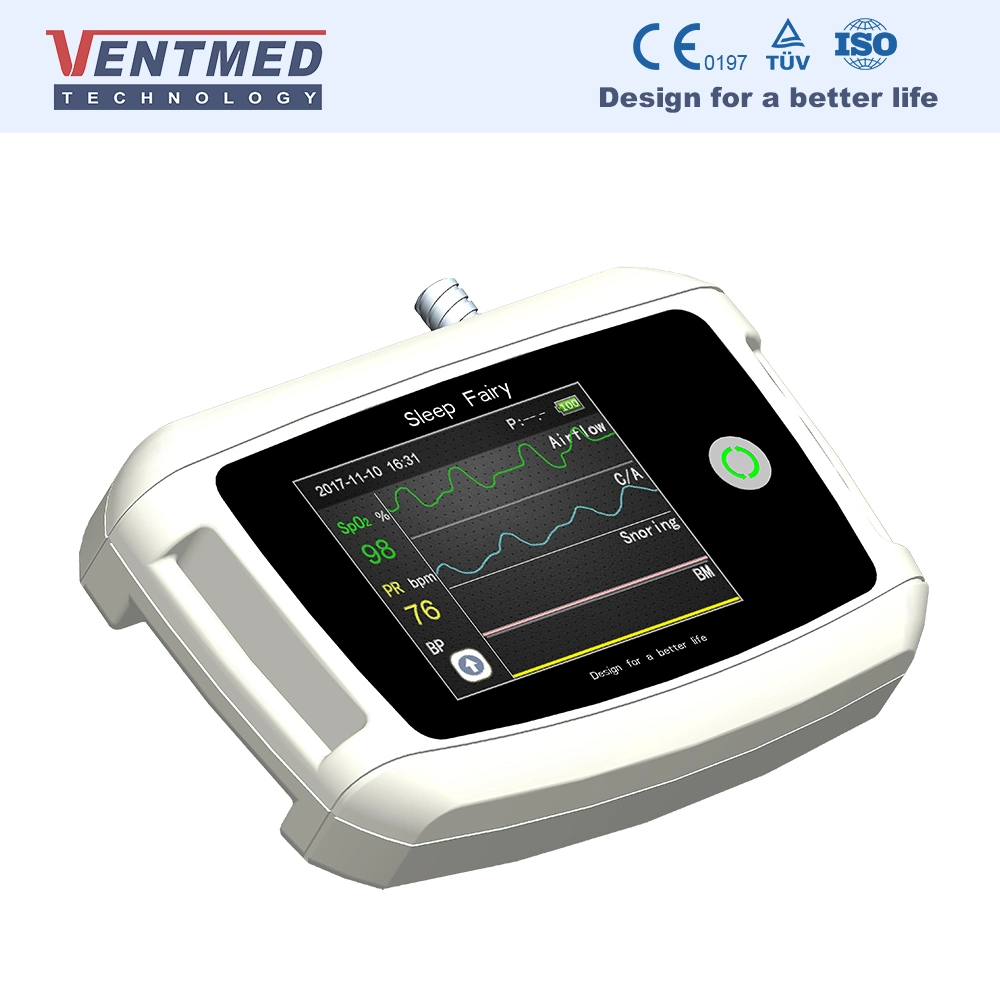

The sleep monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea. It is suitable for clinic, hospital, sleep centers, and home usage, especially for screening Sleep Apnea Syndrome (SAS). It provides multiple monitor recordings and reports for sleep physicians to provide professional treatment proposals and therapy pressure titration.

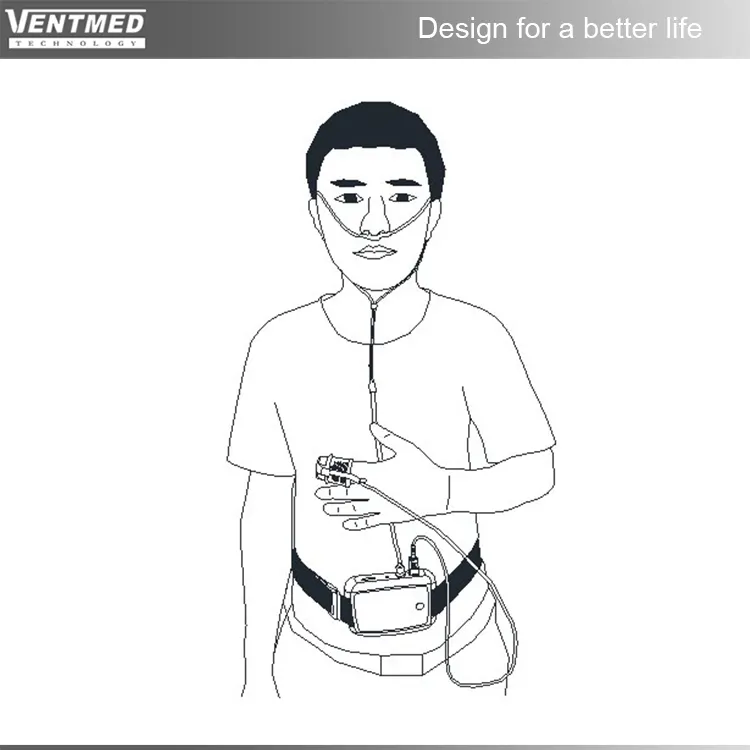

Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep, and improves patient acceptance of test protocols. This device meets all American Academy of Sleep Medicine (AASM) requirements.

Product Structure

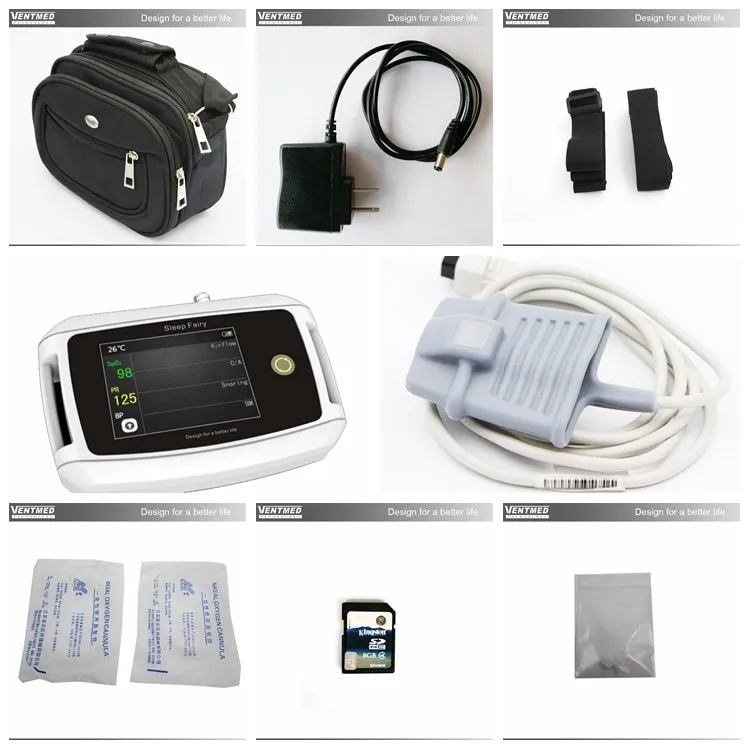

The delivery parts include:

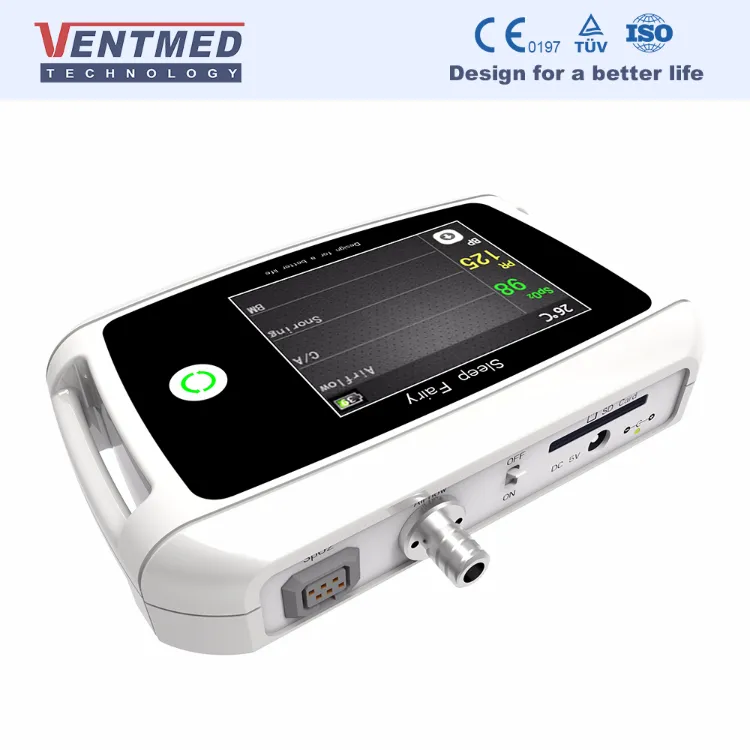

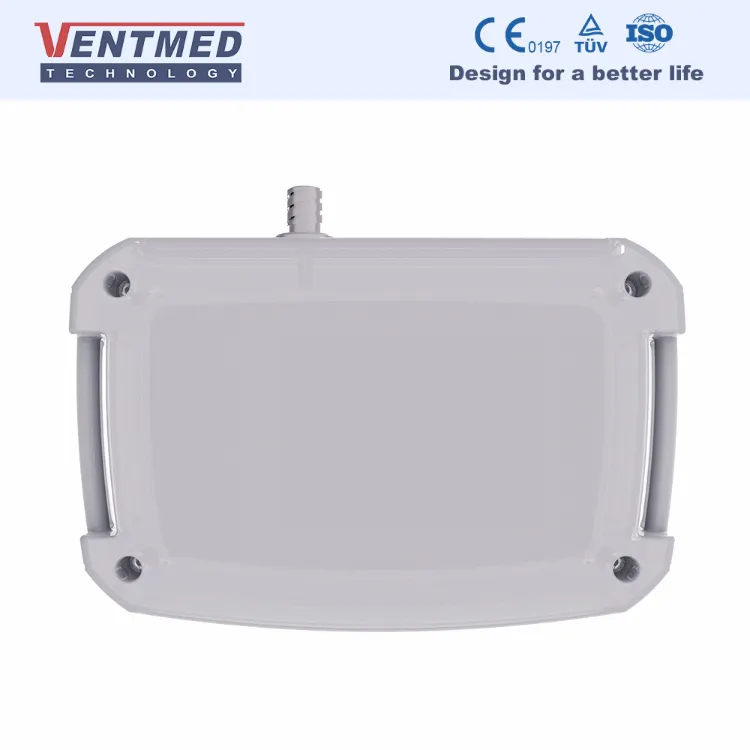

1 pc sleep monitor device host

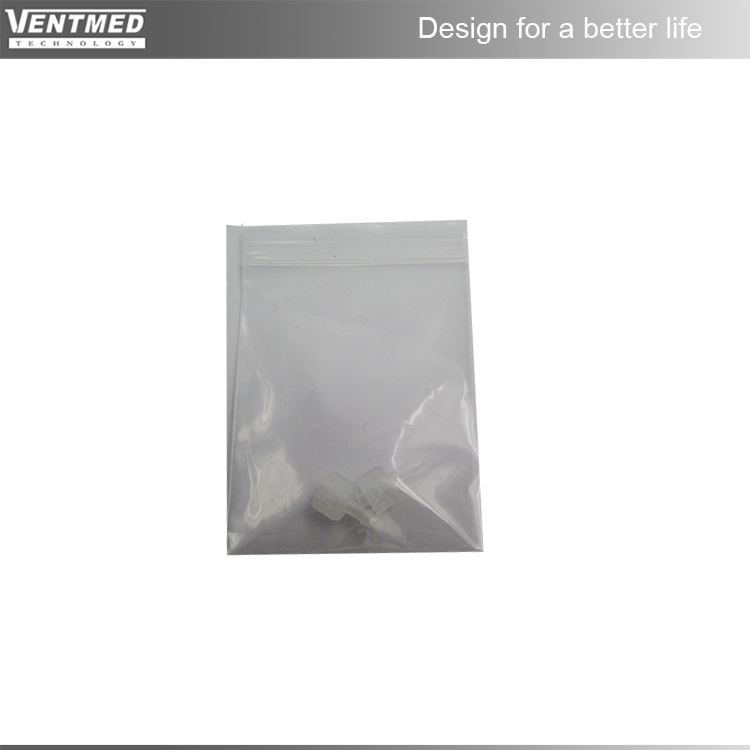

2 pcs Luer Connector (Spare parts)
1 pcs SpO2 sensor

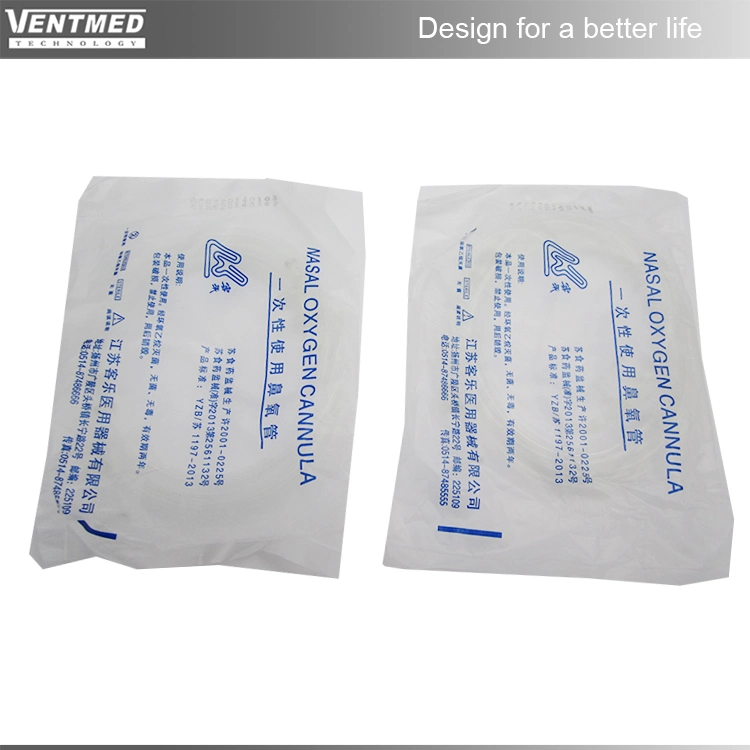

2 pcs Nasal Oxygen Cannula
2 pcs fixing band

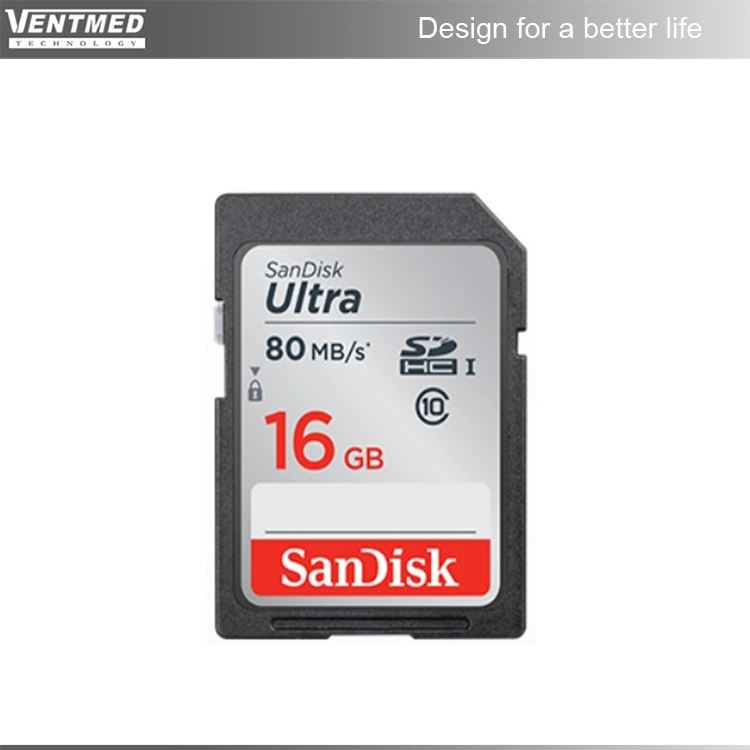

1 pcs SD card
1 pcs SD card reader

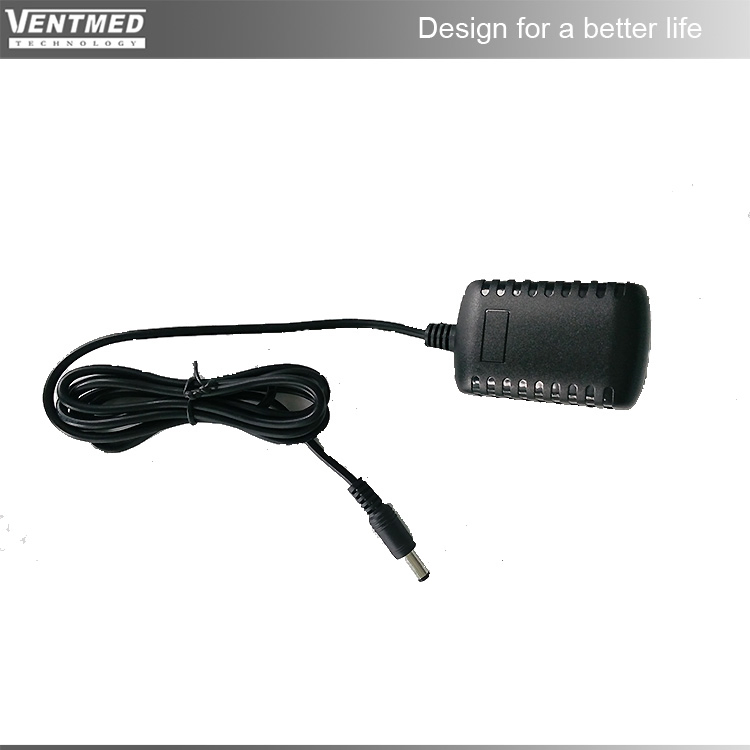

1 pcs Charger
1 pcs Carrying bag

Technical Specifications

9 Channels: Air flow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure

Data Sampling: Rate 50-200Hz / AD : 12Bit

Storage: 8G SD Card, over 8000 hours data

SpO2 Range: 70% - 100%

Pulse Rate: 30 - 240 bpm

Battery: 2500mAh Lithium (30 hours continuous)

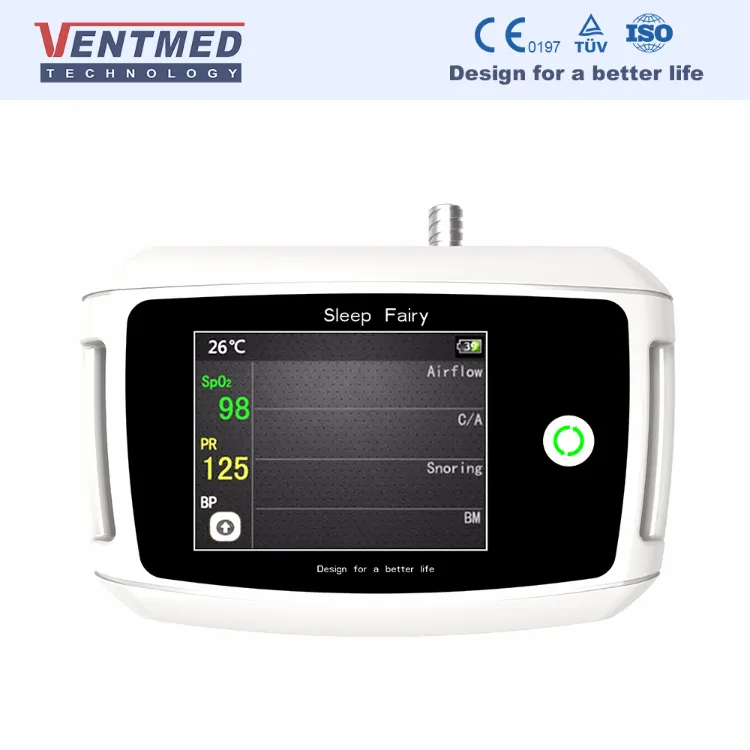

Screen: 2.8 inch TFT, 320 x 240

Net Weight: 176g (with battery)

Key Features

Compact, light and convenient for portable use.
Innovative 3D sensor built-in; no extra sensors needed for body movement/position/respiratory effort.
Extremely easy to operate with a one-switch design.
Reliably provides extensive, detailed, and accurate sleep clinical data.

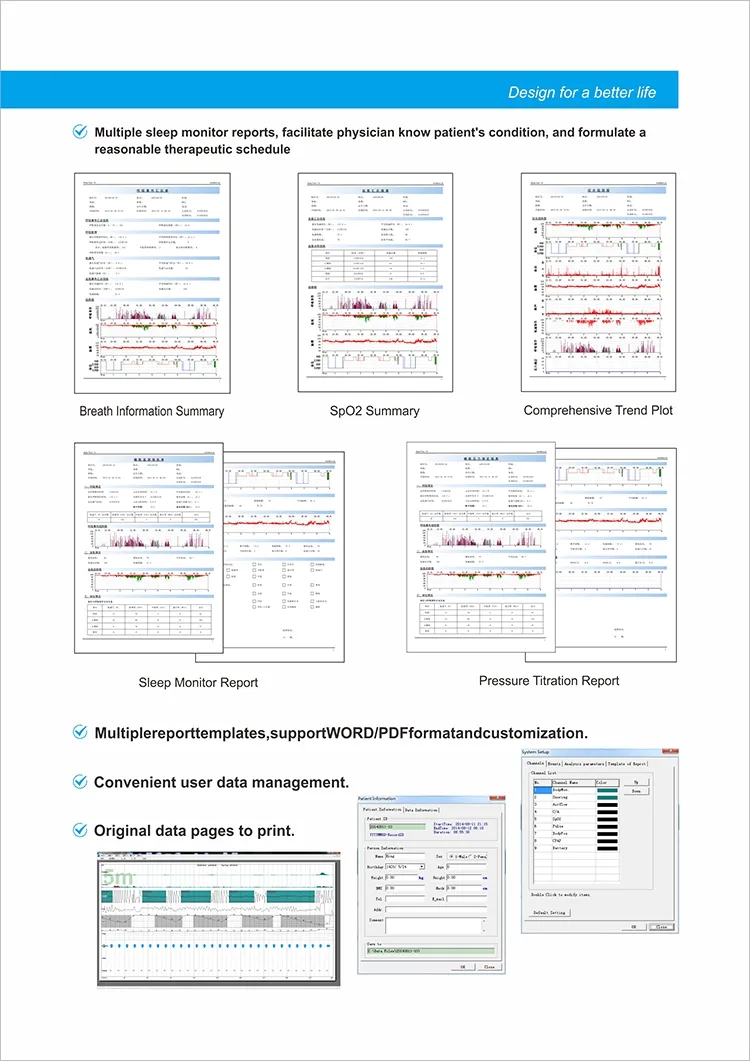

Sophisticated scoring and diagnostic report software included.
Can link to any CPAP device to titrate patient's pressure.
SD storage data allows for image display and printed test reports.

Professional Advantages

Dedicated professional research and development team.
Specialized experience in breathing and sleep therapy monitoring.

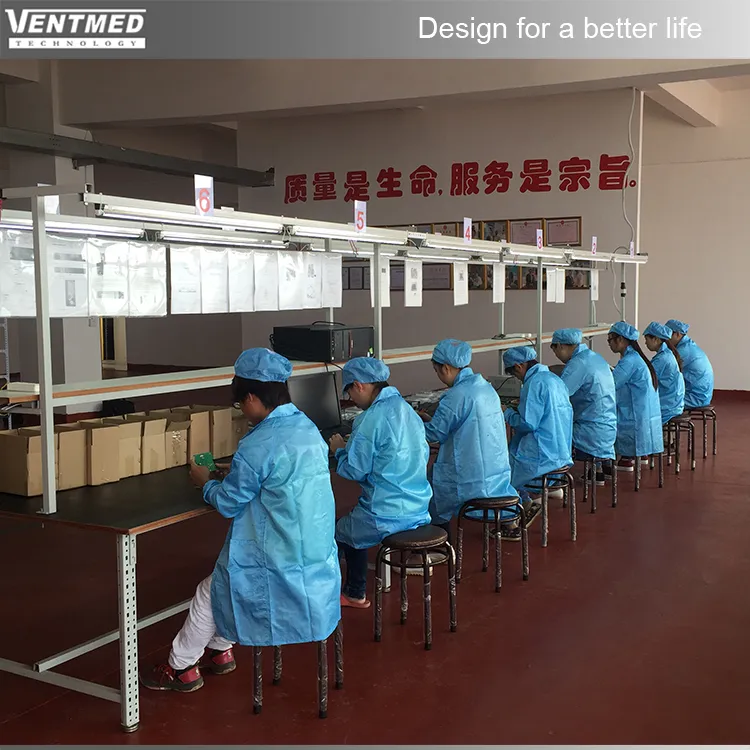

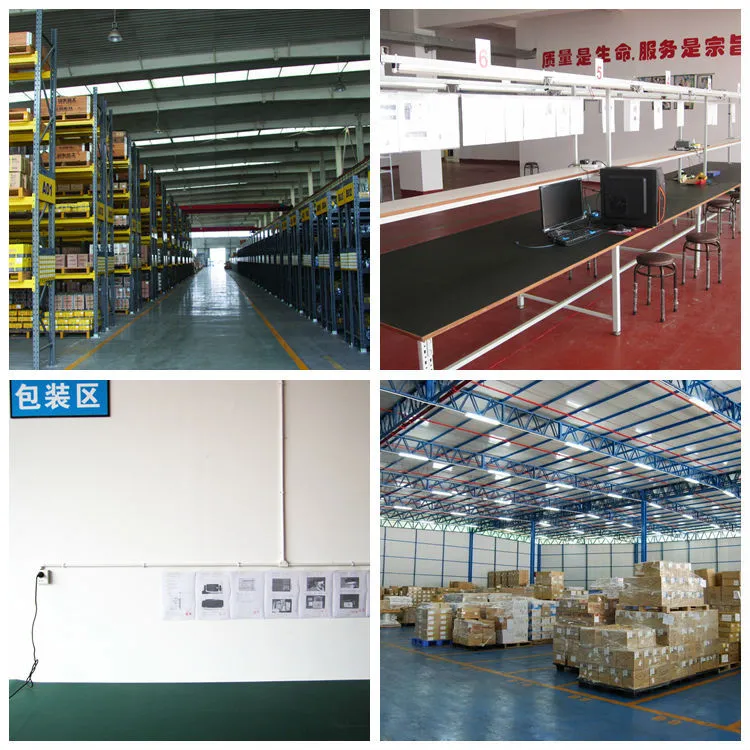

High-quality manufacturing with strict quality assurance.
Comprehensive market support and competitive product positioning.

Frequently Asked Questions

Q1: Can this device be used for home sleep testing? A: Yes, it is specifically designed for convenient home use, allowing patients to be tested in a natural sleep environment without an observer.

Q2: What vital signs does the 9-channel system monitor? A: It monitors Air flow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, and CPAP Pressure.

Q3: How long does the battery last for continuous monitoring? A: The integrated 2500mAh rechargeable lithium battery supports up to 30 hours of continuous monitoring.

Q4: Does the device require multiple sensors for body position? A: No, it features an innovative built-in 3D sensor that handles body movement, position, and respiratory effort without extra external sensors.

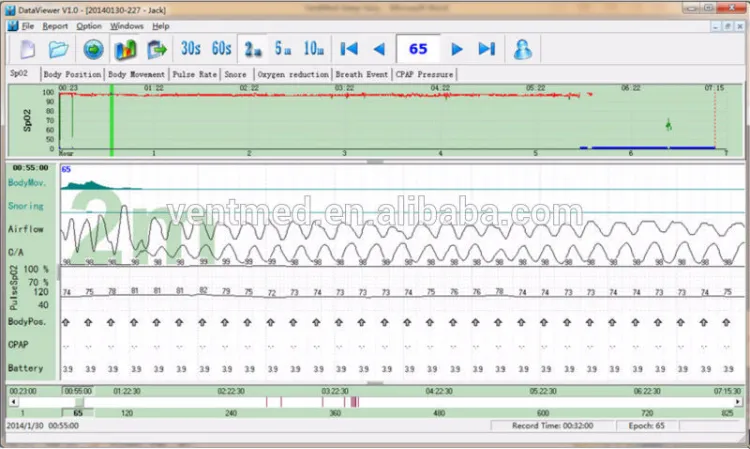

Q5: How can I view the sleep diagnostic reports? A: Data is stored on an SD card which can be read by the included software on a computer to generate, browse, and print detailed clinical reports.

Q6: Is it compatible with other respiratory therapy devices? A: Yes, it can be linked to CPAP devices to help titrate and determine the appropriate therapy pressure for patients.
