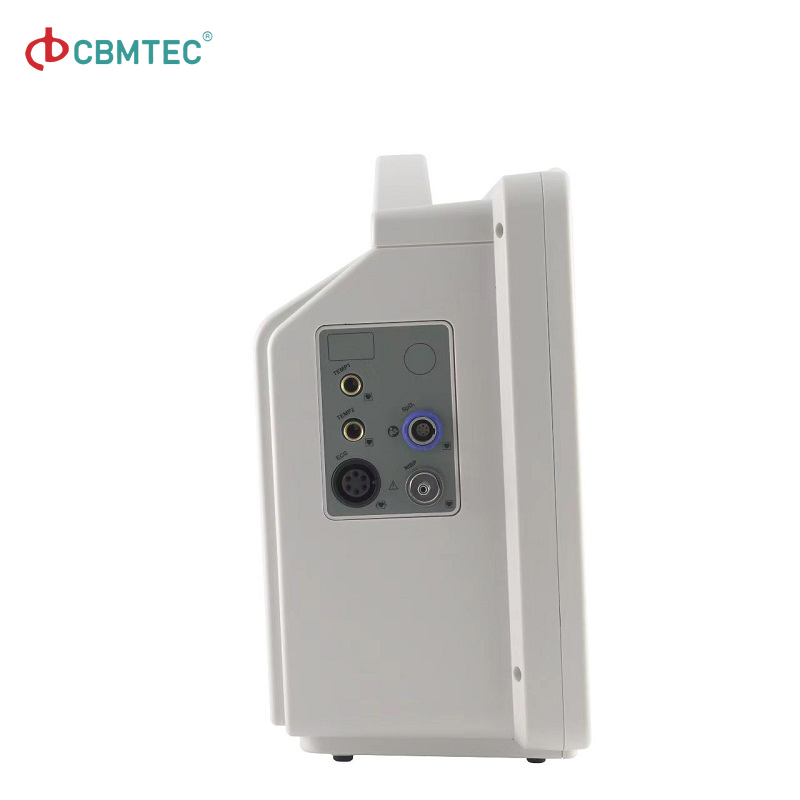

2. Cbmcare Remote Health Monitoring Device with Customized Specifications

1 / 5

2. Cbmcare Remote Health Monitoring Device with Customized Specifications

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Certification

ISO13485, FSC

Group

Adults, Children and Newborns

LCD Display

Colorful TFT LCD Display

Purpose

for Oxygen Breathing

Item Name

Patient Monitor

Transport Package

Ctns(OEM)

HS Code

9019200000

Production Capacity

20000sets/Month

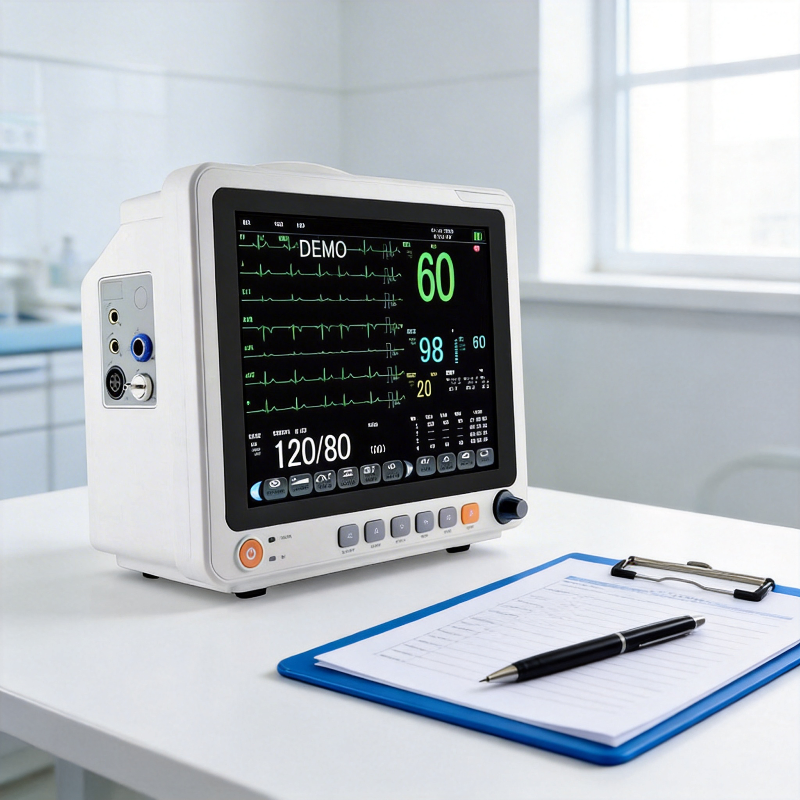

Medical Multi-Parameter TFT LCD Patient Monitor

Key Specifications

High brightness 12.1-inch colorful TFT LCD display with big font screen options.
Seven-channel synchronous ECG display.
Built-in li-ion battery with up to 240 minutes standby time.

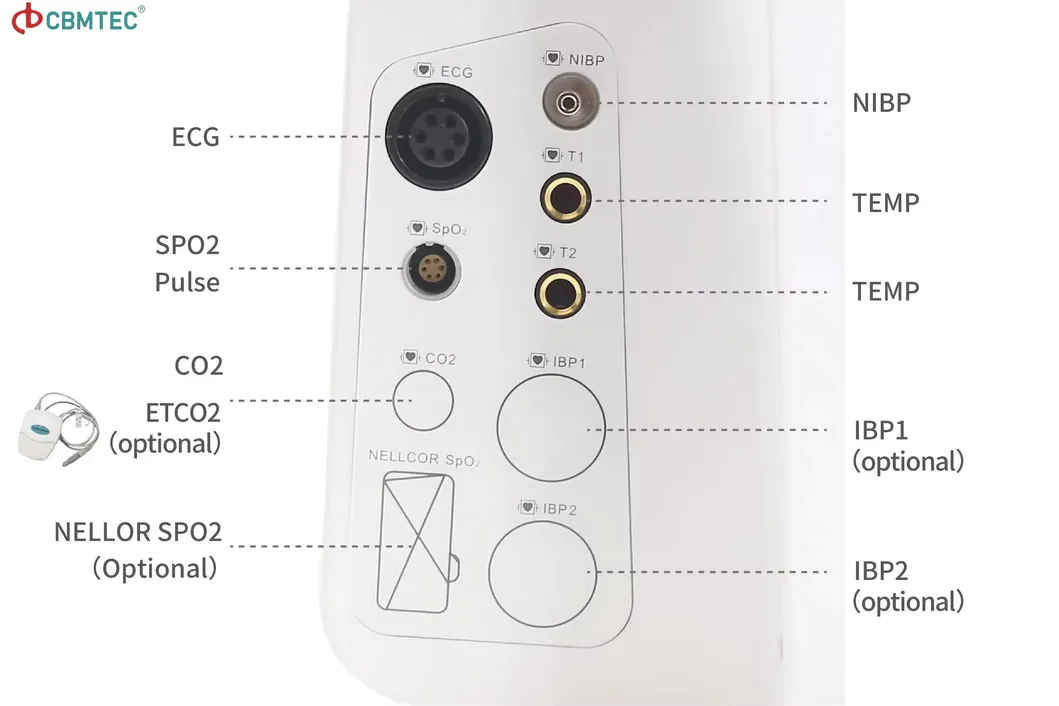

Standard parameters: ECG, HR/PR, SPO2, NIBP, RESP, TEMP.
Full digital SpO2 technology for excellent performance in low perfusion.

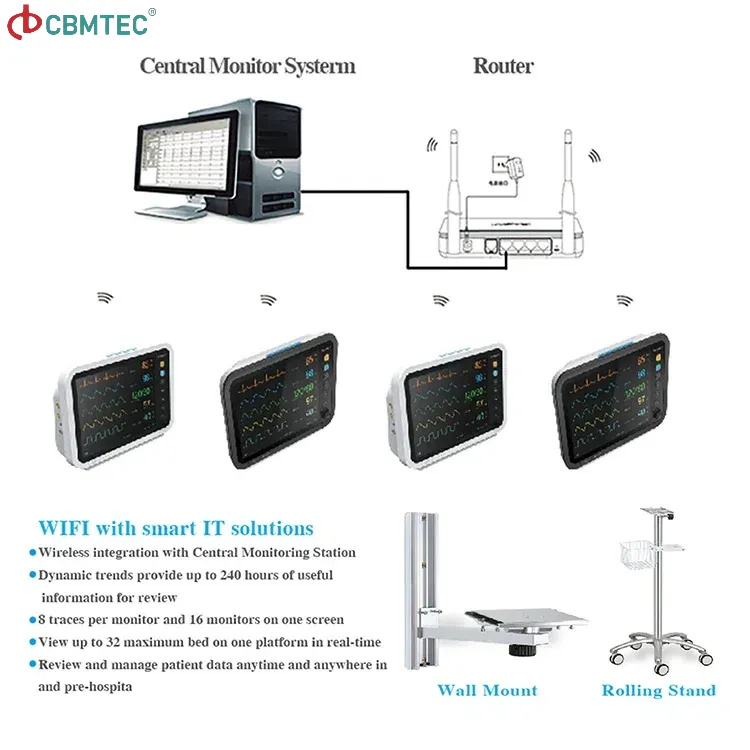

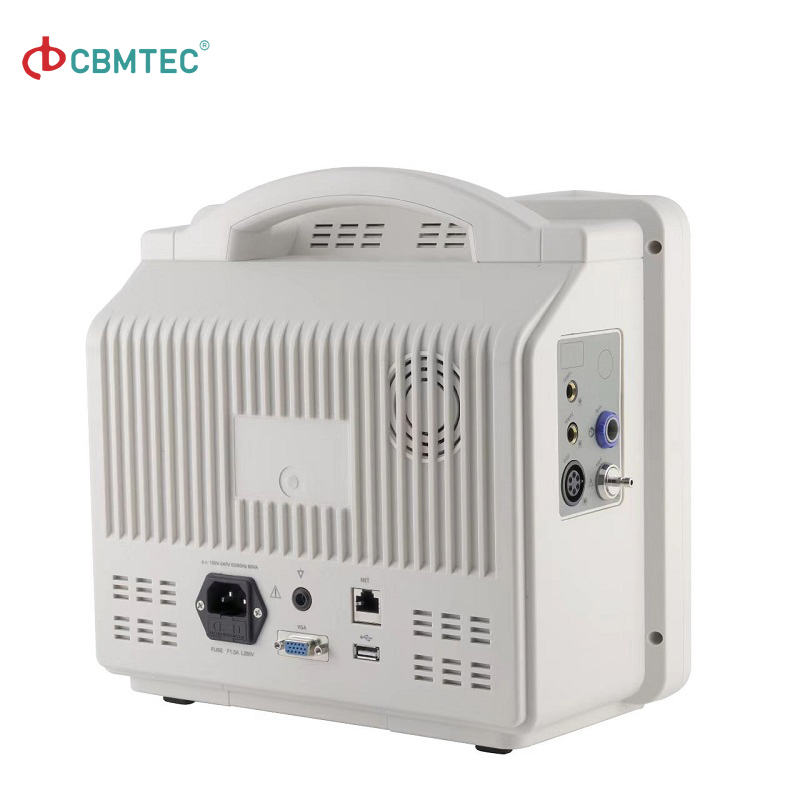

USB data export (PDF supported) and WIFI module compatibility.
Dual over-pressure protection for NIBP to ensure patient safety.
Comprehensive 3-level alarm system (audible, visible, and on-screen).
Large storage: 43,200 trend items, 2,000 data items, and 200 alarm groups.
Advanced analysis: Pacemaker, ST segment, arrhythmia, and drug concentration.
Specialized 15-350BP heart rate measurement design for newborns.
Supports 16 international languages including English, Spanish, French, and German.

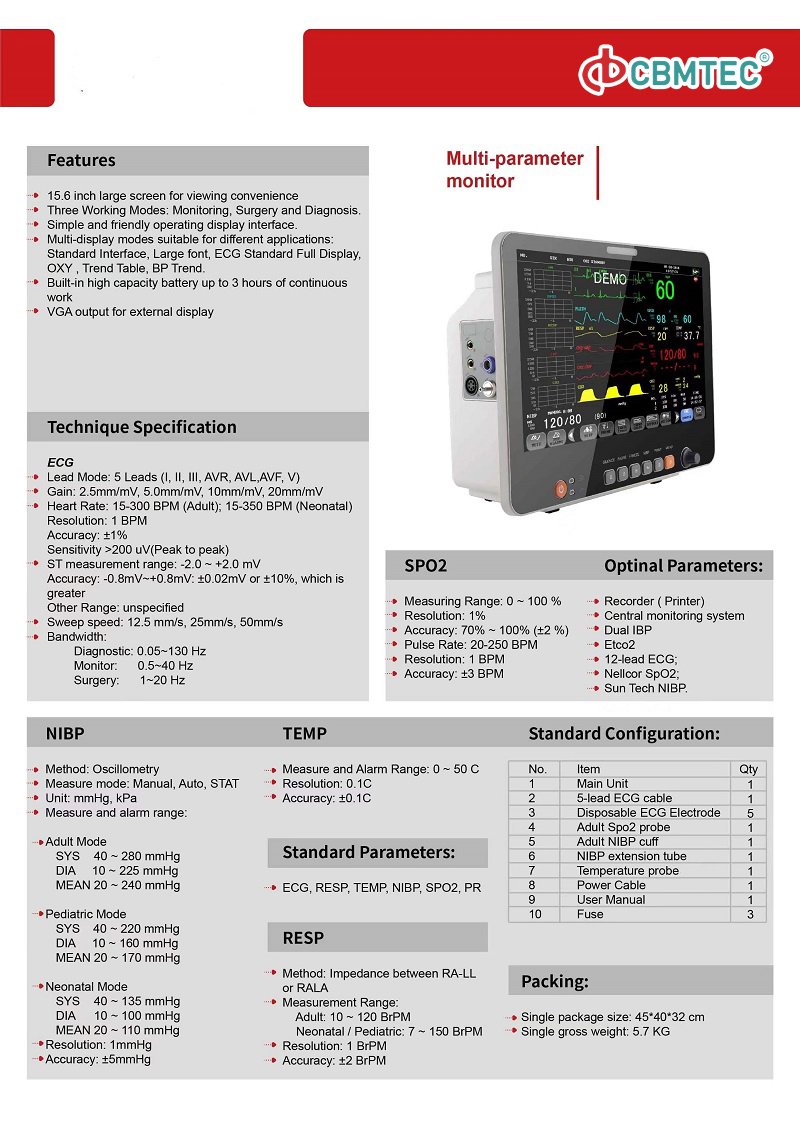

Parameter	Technical Specifications	Parameter	Technical Specifications
ECG	Mode: I, II, III, AVR, AVL, AVF, V1-6; Gain: ×0.25 to ×2; Range: 0.5 Hz - 100 Hz; ST Detection: -2.0mV to +2.0mV.	NIBP	Oscillography; Manual/Auto; Units: mmHg/kPa; Range: SYS 60-250 mmHg, DIA 40-220 mmHg.
SPO2	Range: 0-100%; Accuracy: 1%; Pulse frequency: 20-250 bpm; Response: 1s.	TEMP	Thermostat probe; Range: 20°C - 45°C; Accuracy: ±0.1°C; Resolution: 0.1%.
RESP	Range: 0-60 rpm; Accuracy: ±1rpm; Multiple gain options available.	Printer	Optional; Dual channel thermal recorder; Real-time or event-triggered.

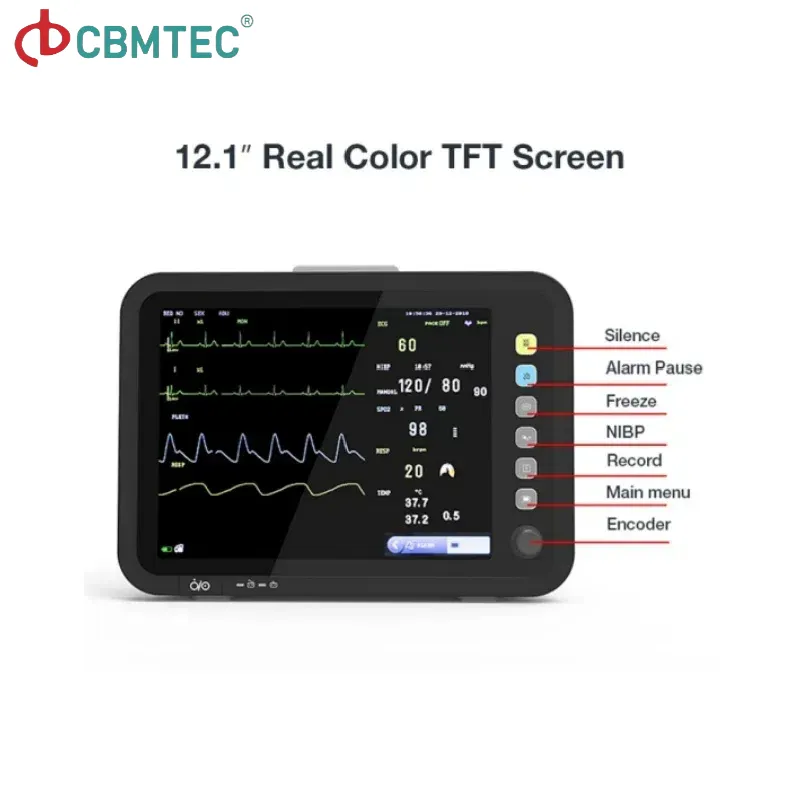

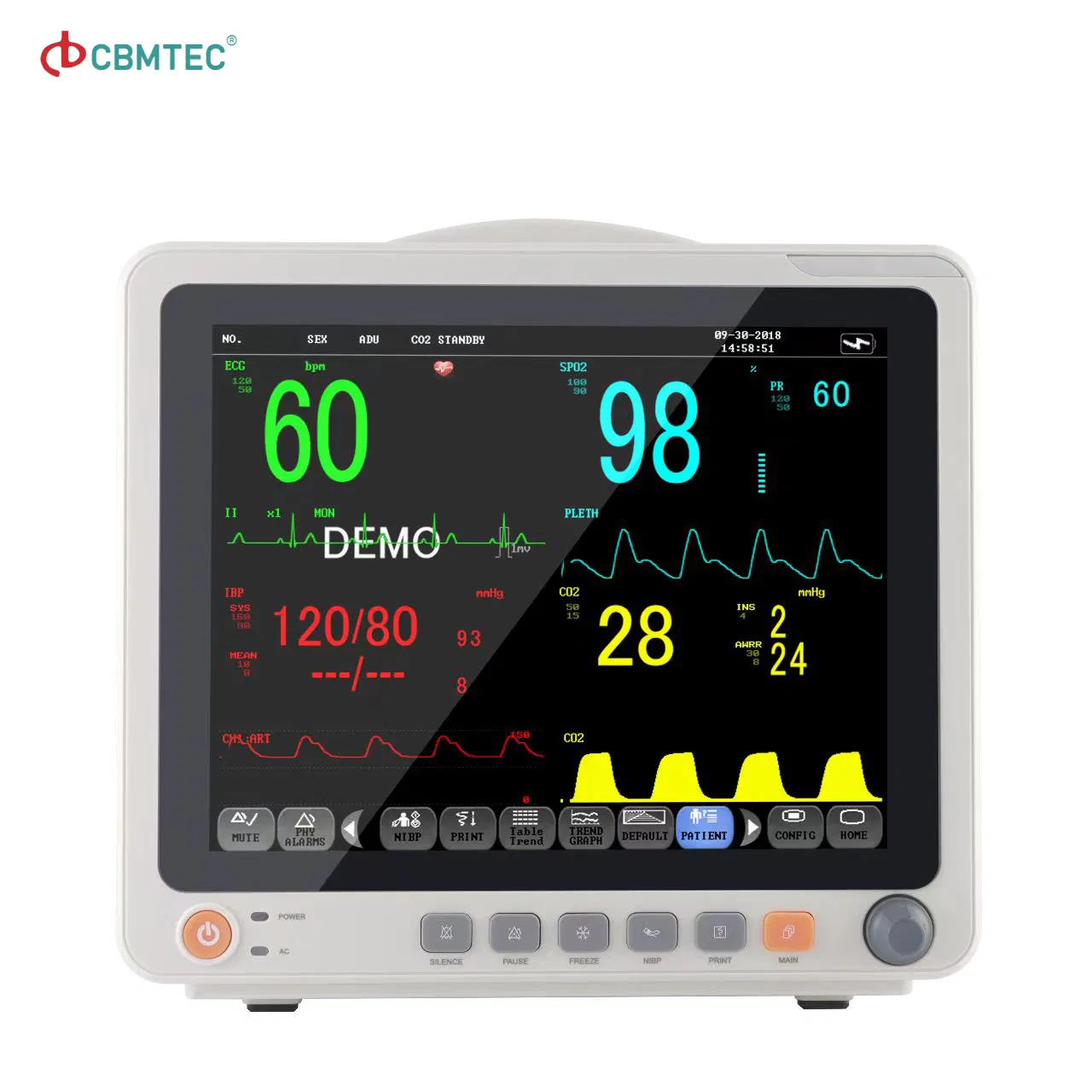

Screen Details: 12.1 inch high brightness color LCD touch screen. Capable of displaying more than 8 parameter waveforms simultaneously.

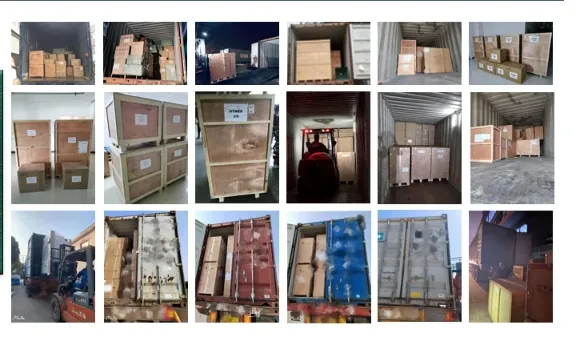

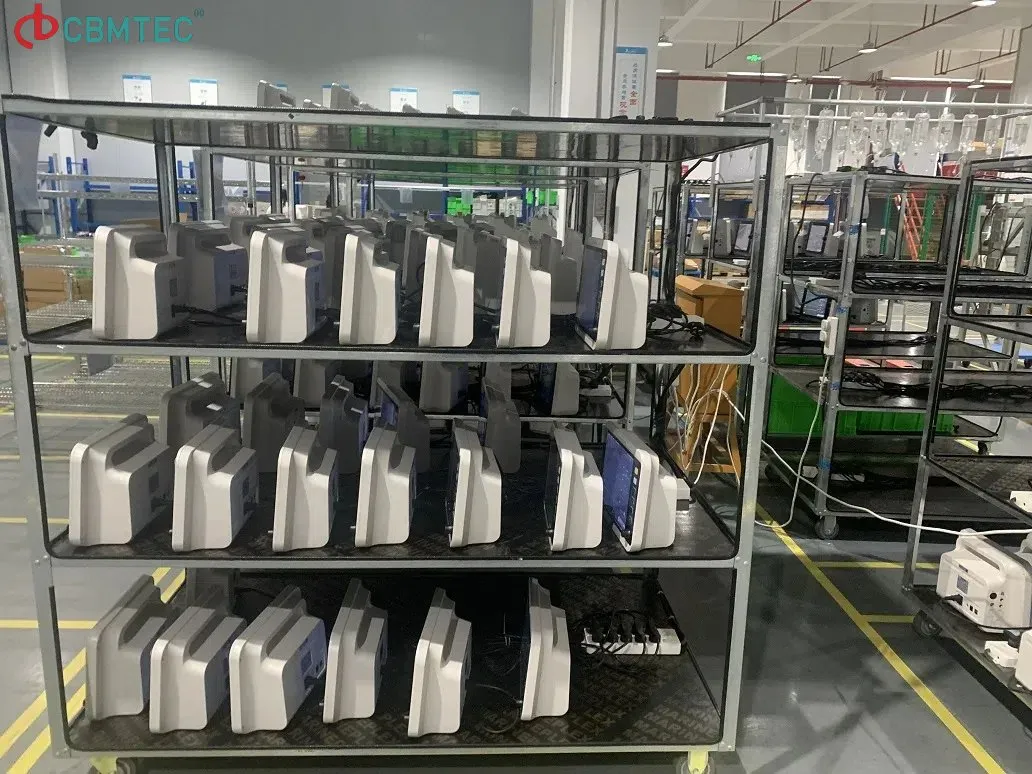

Warehouse & Facilities

Exhibition Gallery

Our Advantages

Professional Manufacturer: Equipped with advanced medical gas machines and punch equipment.
Large Capacity: Production capability exceeding 50,000 units per month.
Quality Control: Adhering to ISO13485 Management systems with 100% factory testing.
Diverse Series: Wide range of models meeting different international standards.
Flexible Orders: Low M.O.Q. starting from 50 pieces.
Expertise: Over 15 years of international export experience.

Frequently Asked Questions

1. What patient groups can this monitor be used for? This patient monitor is designed for use with adults, children, and newborns, featuring specialized measurement settings for different age groups.

2. How long does the battery last during transport? The built-in high-capacity li-ion battery provides up to 240 minutes of standby time, making it ideal for moving patients within medical facilities.

3. Can the monitoring data be exported for medical records? Yes, the device supports USB data export to computers and can generate reports in PDF format for easy integration into digital medical records.

4. What parameters are monitored as standard? The standard configuration includes ECG, Heart Rate/Pulse Rate (HR/PR), SpO2, Non-Invasive Blood Pressure (NIBP), Respiration (RESP), and Temperature (TEMP).

5. Does the monitor include safety alarms? Yes, it features a comprehensive 3-level alarm system including audible sounds, visible light signals, and on-screen messages for both physiological and technical alerts.

6. Is the screen easy to read in high-light environments? The device uses a 12.1-inch high-brightness colorful TFT LCD display, ensuring all 8 parameter waveforms and data are clearly visible.
