Infusion Set for Single Use: Intended for human body infusion use under gravity feed, usually used together with intravenous needles and hypodermic needles. Designed for single use only.
💡 Short Description:
⚙️ Product Details:

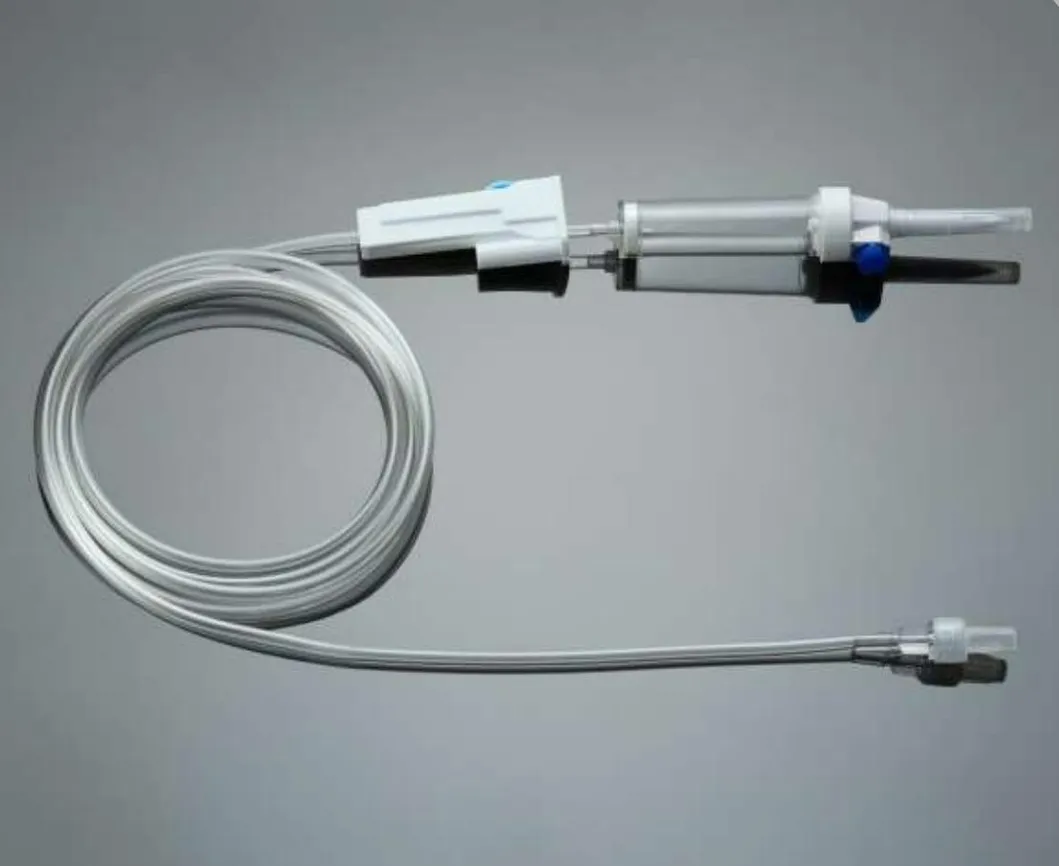

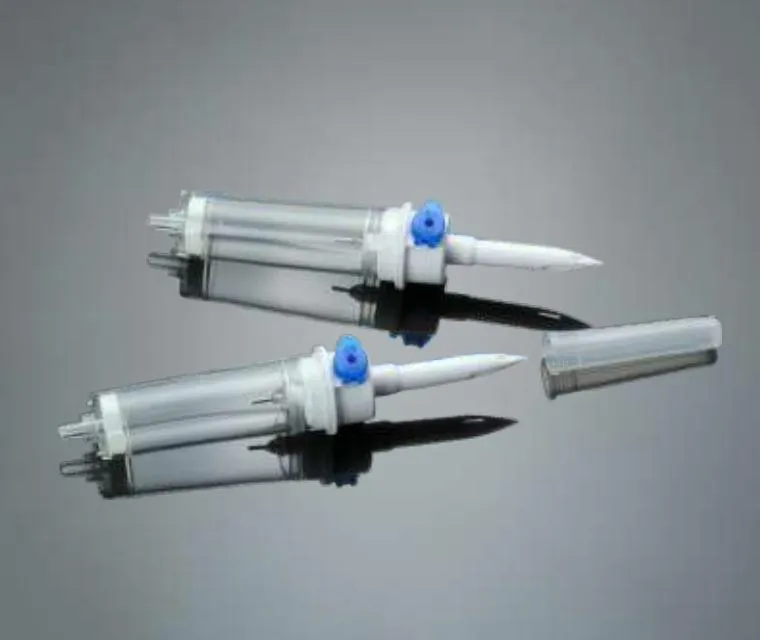

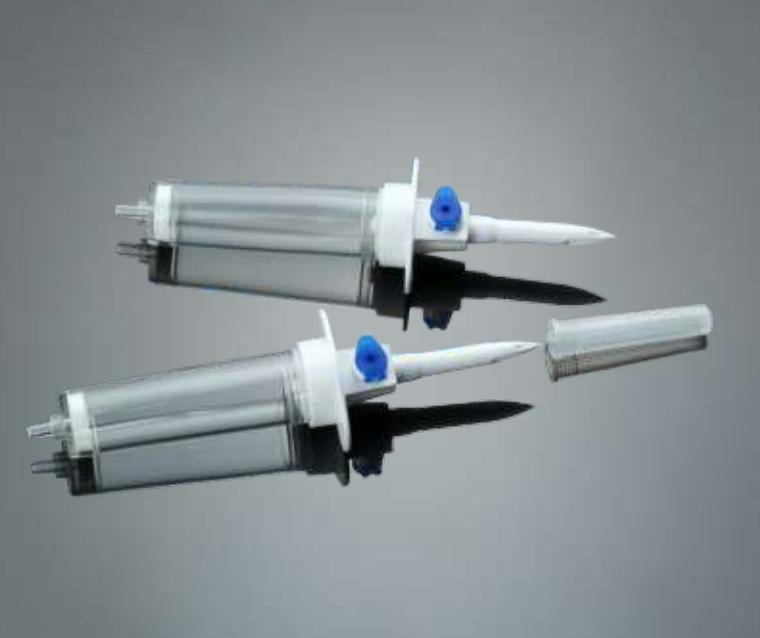

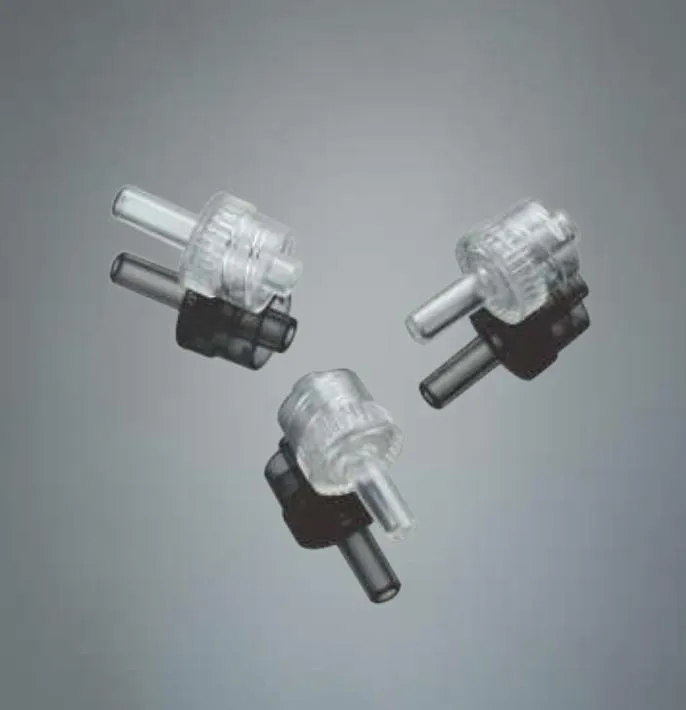

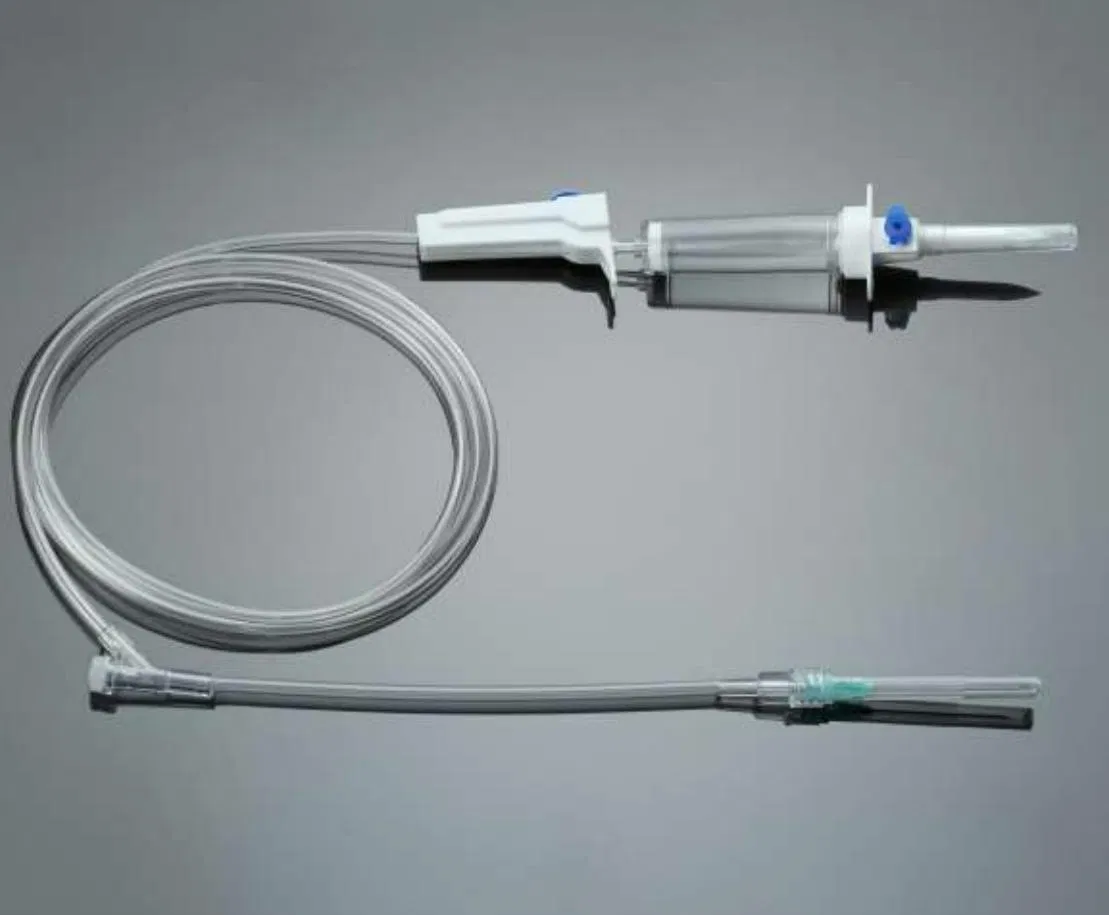

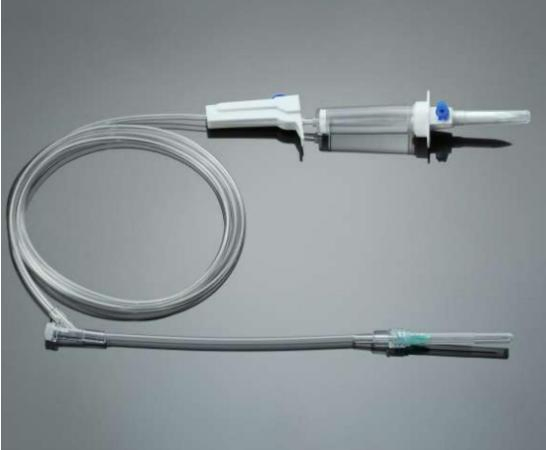

The Infusion Set for Single Use is composed of a piercing device, air filter, outer conical fitting, drip chamber, tube, fluid regulator, medicine injection component, and medicine filter. The tube is manufactured with medical-grade soft PVC by extrusion molding. The piercing device, outer conical fitting, and hub are manufactured with ABS. The flux regulator is made from medical-grade PE. Both the tube and drip chamber are designed with high transparency for clear monitoring.
| Test Item | Standard Performance Specifications |
|---|---|
| Micro particle contamination | In 200ml elusion fluid, 15-25um particles ≤ 1 pc/ml, >25um particles ≤ 0.5 pcs/ml. |
| Airproof | No air leakage under standard testing conditions. |
| Connection intensity | Shall endure not less than 15N static pull for 15s. |
| Piercing device | Can pierce unpierced piston with no scrap falling. |
| Air inlet device | Equipped with air filter, filtration rate of >0.5um particles ≥ 90%. |
| Soft tube | Transparent; length ≥ 1250mm; wall thickness ≥ 0.4mm; external diameter ≥ 2.5mm. |
| Medicine filter | Filtration rate not less than 80%. |
| Drip chamber & tube | Drip tube to exit distance ≥ 40mm; flow rate 20 drops or 60 drops of distilled water = 1ml±0.1ml. |

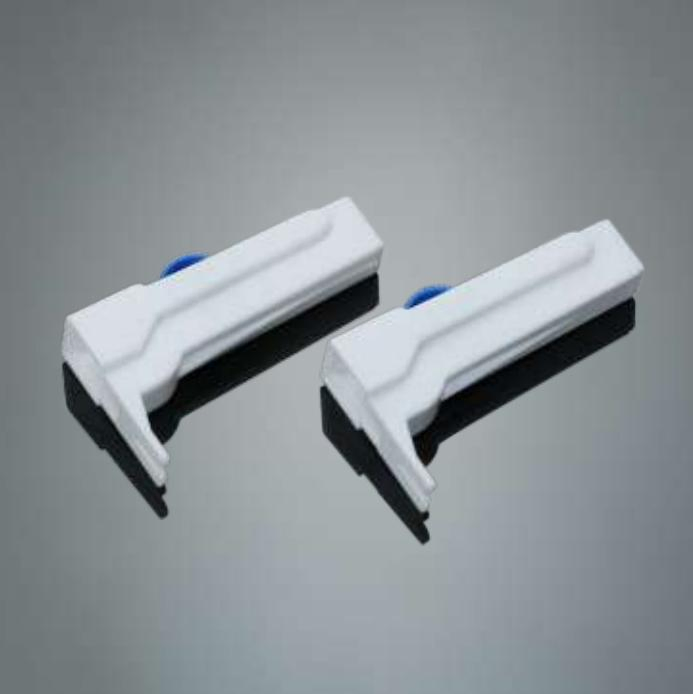

| Flow regulator | Adjustment travel route not less than 30mm. |
| Infusion flow rate | Under 1m static pressure, output of NaCl solution in 10min (20 drops/min tube) ≥ 1000ml. |
