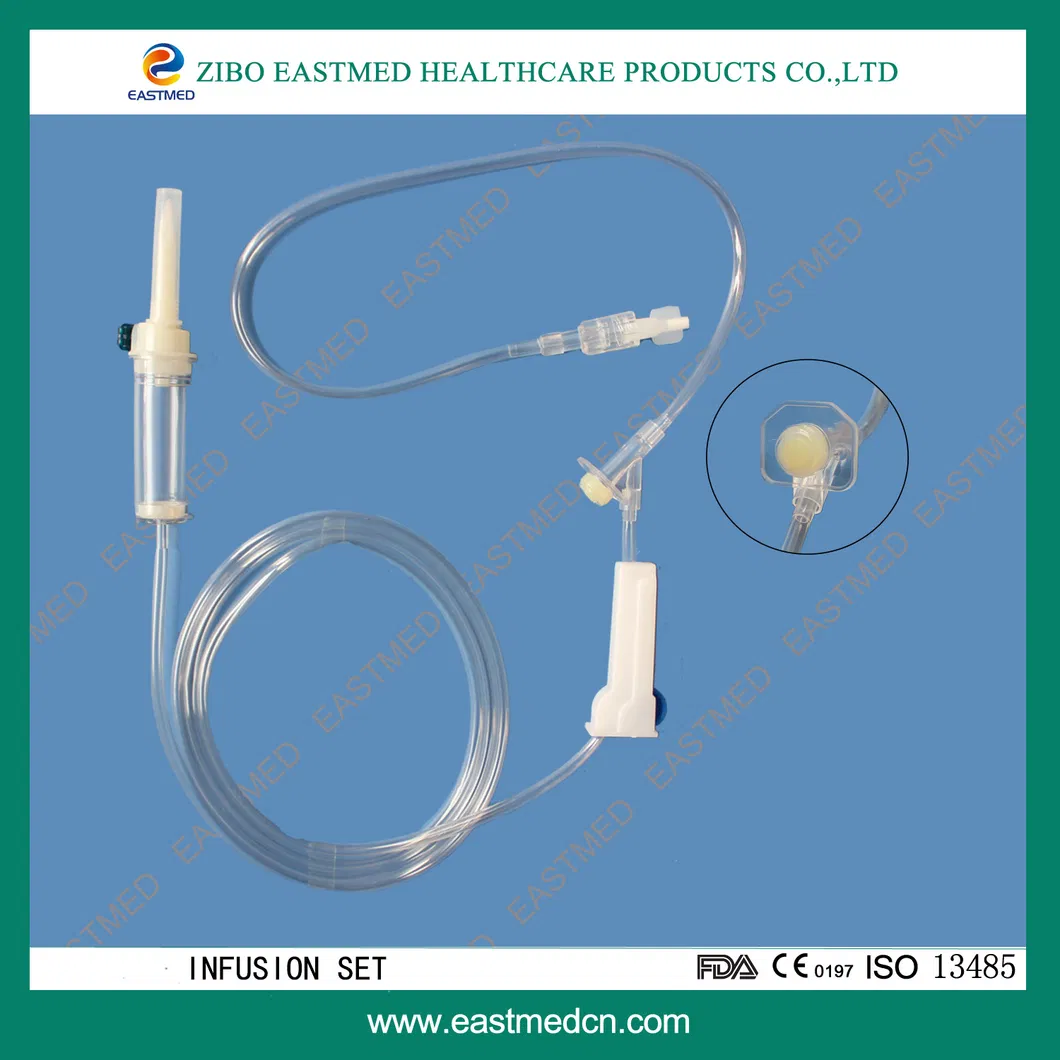

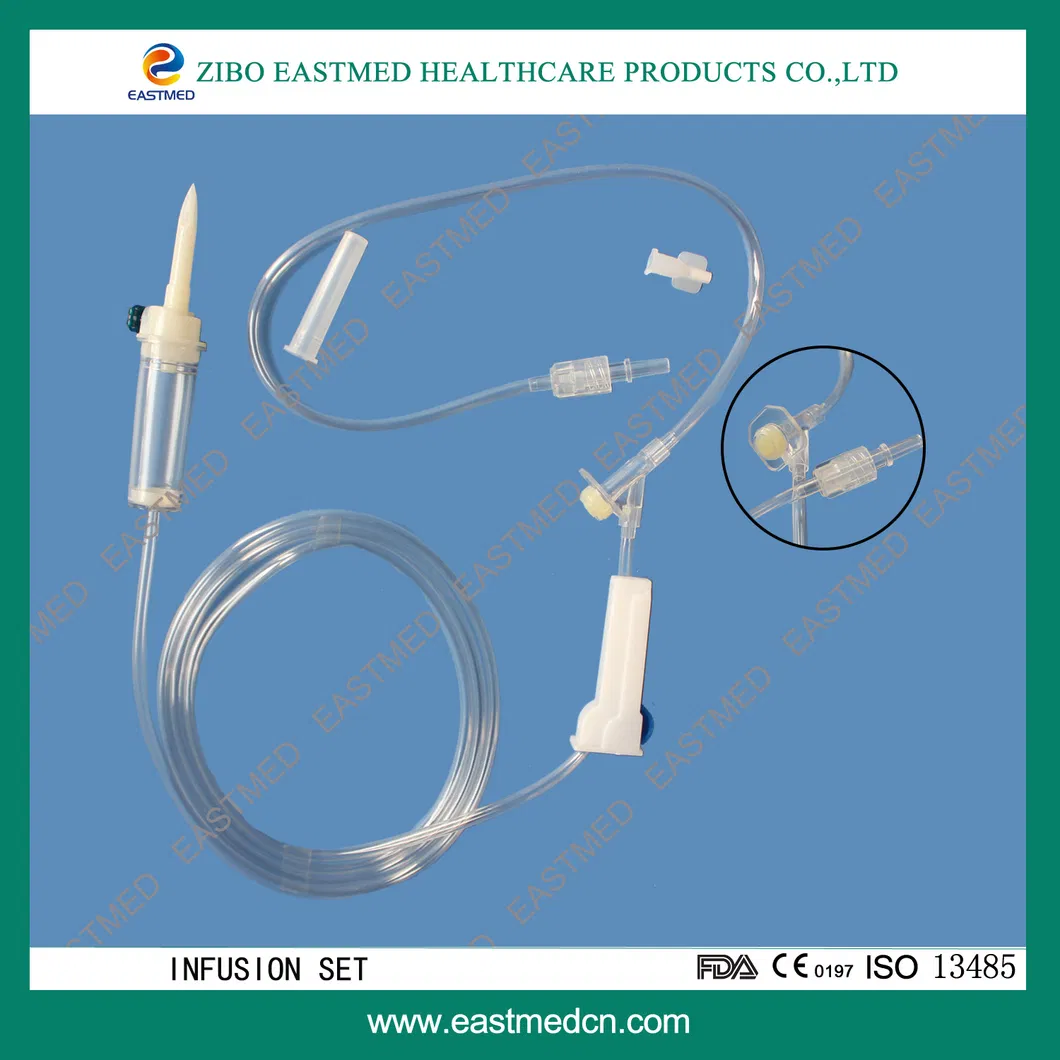

Detailed Components:
Piercing Device: Made of medical grade white ABS, with or without air inlet, 3 or 4 holes size according to ISO8536-4 standard.
Protective Cap: Made of PP or PE.
Drip Chamber: Made of soft PVC, size according to ISO8536-4 standards (4.5cm - 7cm in length).
Fluid Filter: Support made of ABS or PE, nylon net with 15 micron mesh size.
Air Inlet: Cap made of red, white, or blue PP.
Water-repellent Filter: PP support, hydrophobic filtering paper (Acrylic resin and nylon).
Flow Regulator: Made of PP or ABS, available in normal/small/horned/large shapes.
Injection Site: Latex, rubber, or synthetic rubber cone; Y-site made of hard transparent PVC.
Soft Tubing: Medical grade PVC, diameter 3x4mm, 150cm or 180cm length (adjustable).
Terminal Connector: PE or PVC, Luer Lock or Luer Slip options.
Specifications & Applications:
- Suited for hard containers and soft bags (without air inlet type).
- Sterile, non-toxic, and pyrogen-free (Sterilized by EOG).

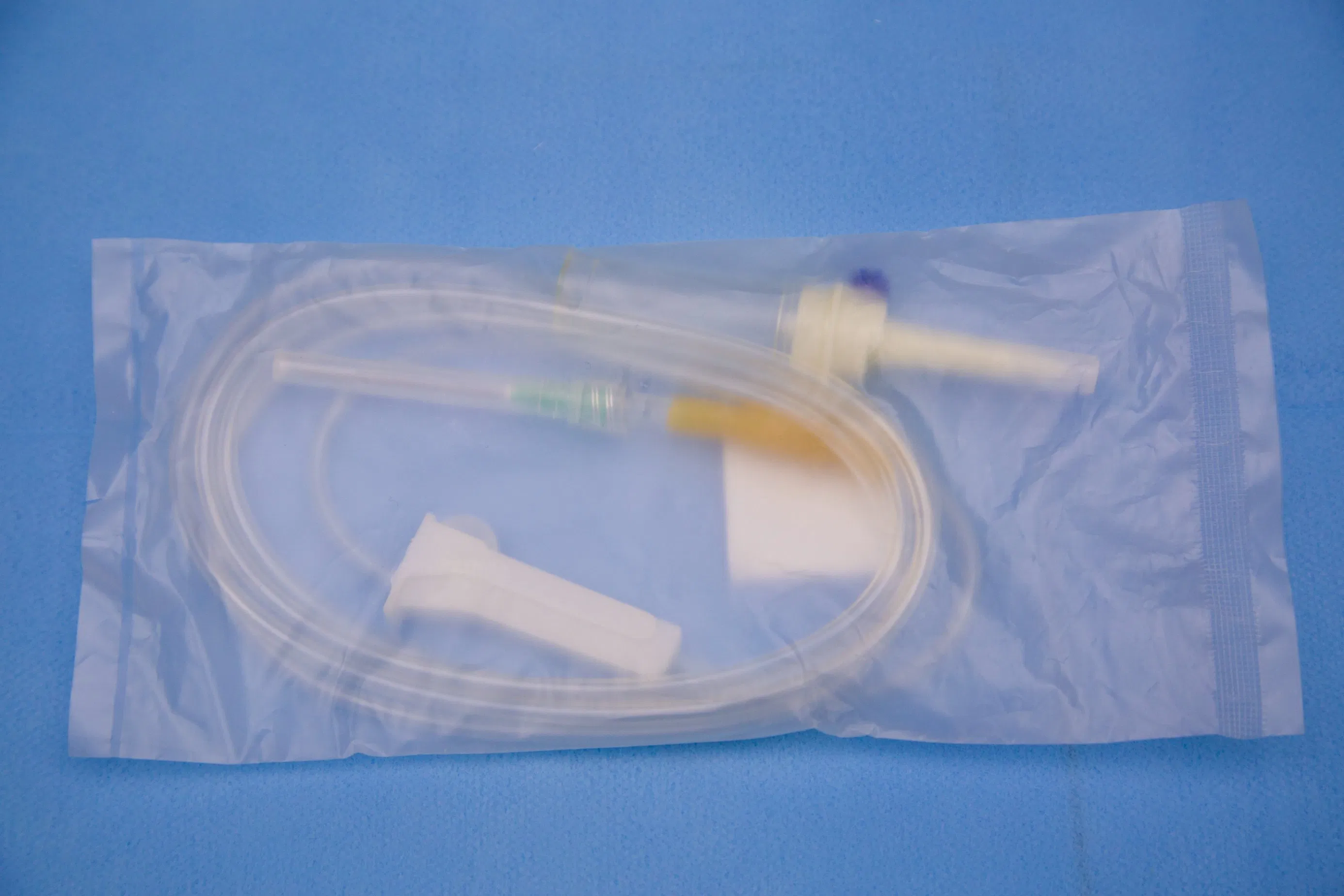

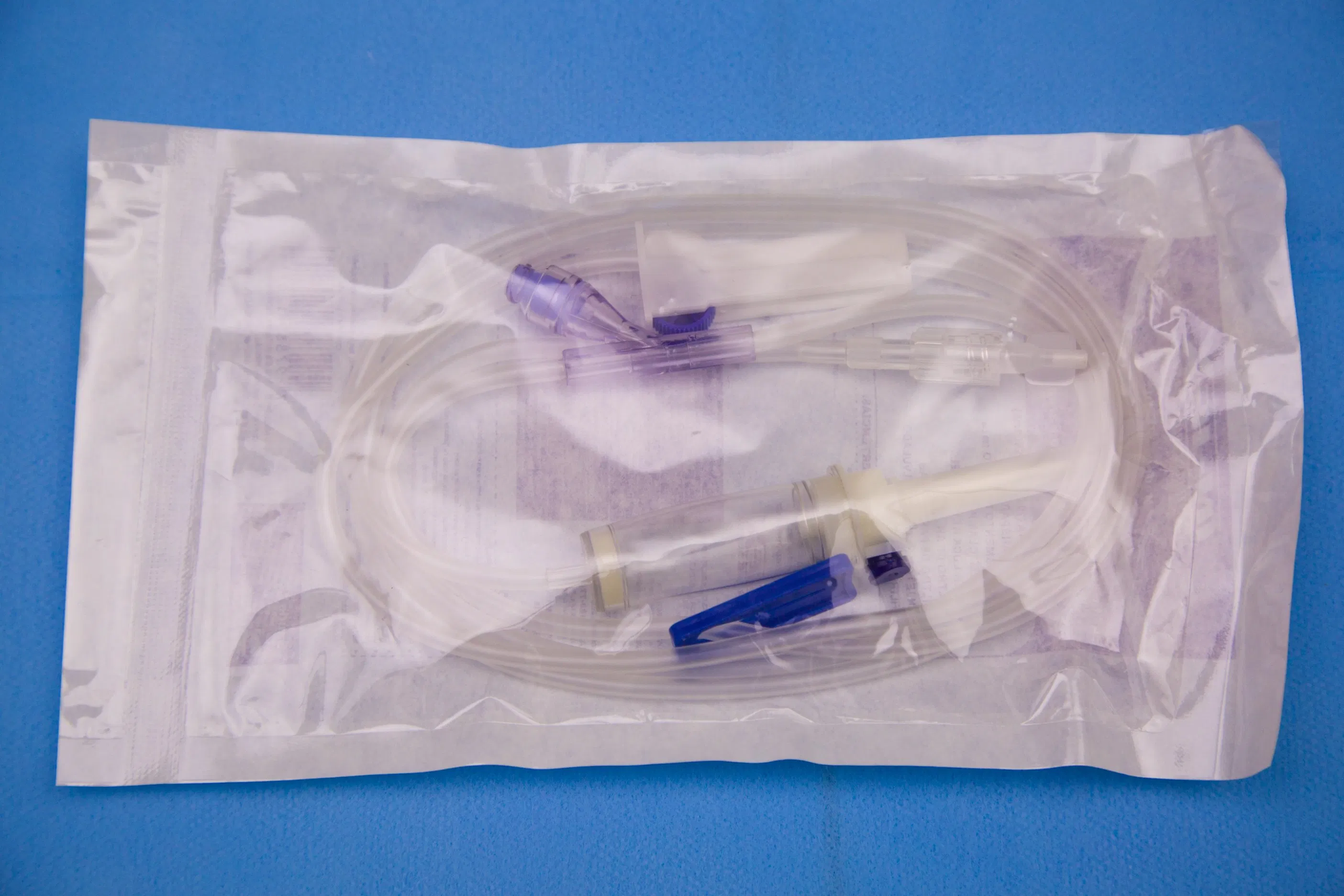

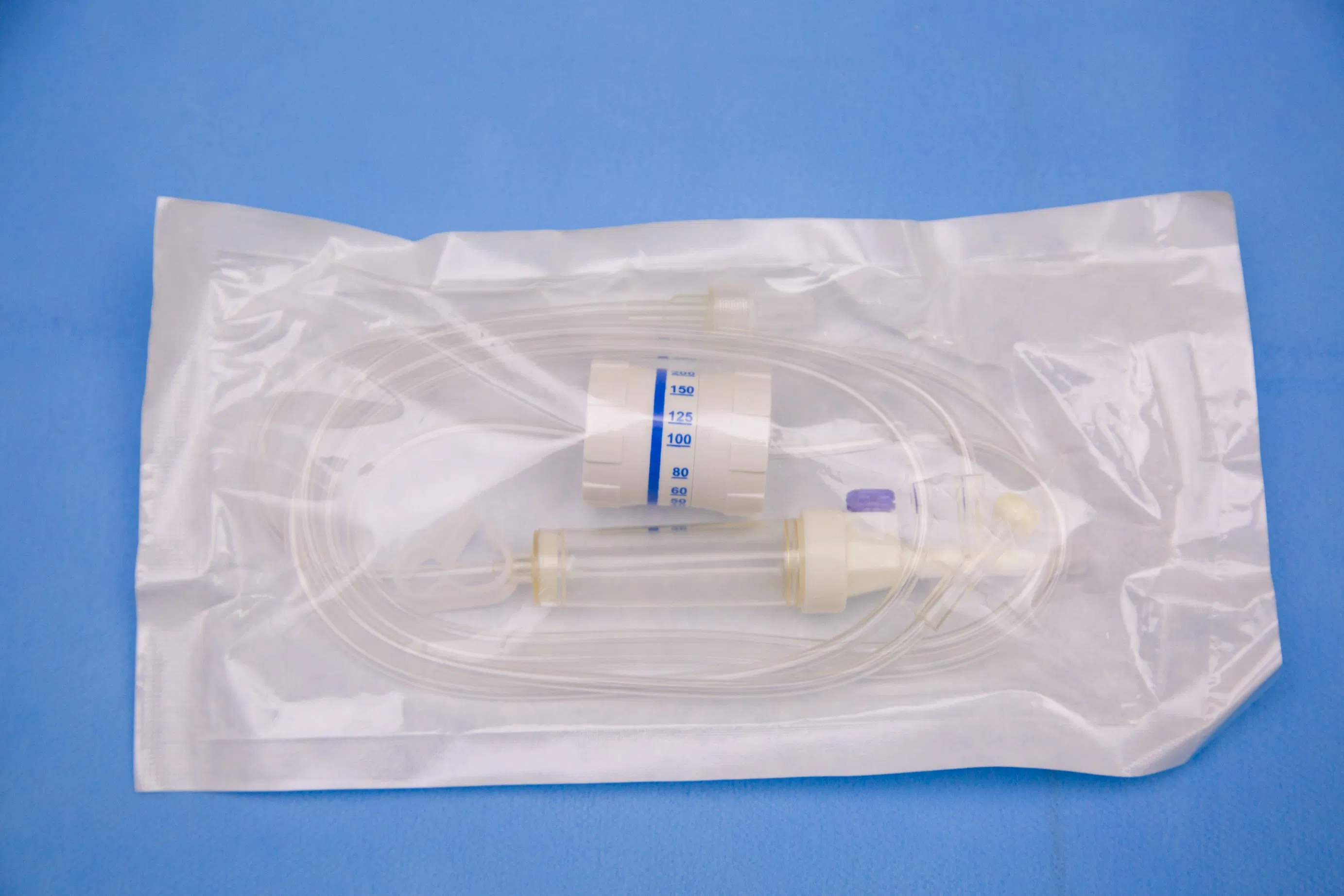

Packing: Individual package, 25 PCS per paper box, 20 bags per carton. Volume depends on component selection.
Frequently Asked Questions
1. How is the infusion set sterilized?
The DM018 infusion set is sterilized using Ethylene Oxide (EO), ensuring it is sterile, non-toxic, and pyrogen-free.
2. What standards does the drip chamber follow?
The drip chamber and piercing devices are manufactured according to the ISO8536-4 international standard.
3. What is the length and material of the tubing?
The tubing is made of medical-grade soft PVC with a diameter of 3x4mm. Standard lengths are 150cm or 180cm, but can be adjusted to requirements.
4. Can I customize the logo on the packaging?
Yes, the product supports logo printing and trademarking according to specific customer requirements.
5. What is the quality guarantee period for this product?
This infusion set comes with a 5-year quality guarantee period from the date of manufacture.
6. Is it compatible with both hard and soft containers?
Yes, these sets are designed to be compatible with both hard containers and soft bags (specifically the type without an air inlet).
