🔹 Basic Information
Model NO.
Ventilator System NLF-200C
LCD Display
With LCD Display
G.W. / N.W.
90kg / 57.2kg
Packing Size
L670*W700*H1410mm
📋 Product Description & Application

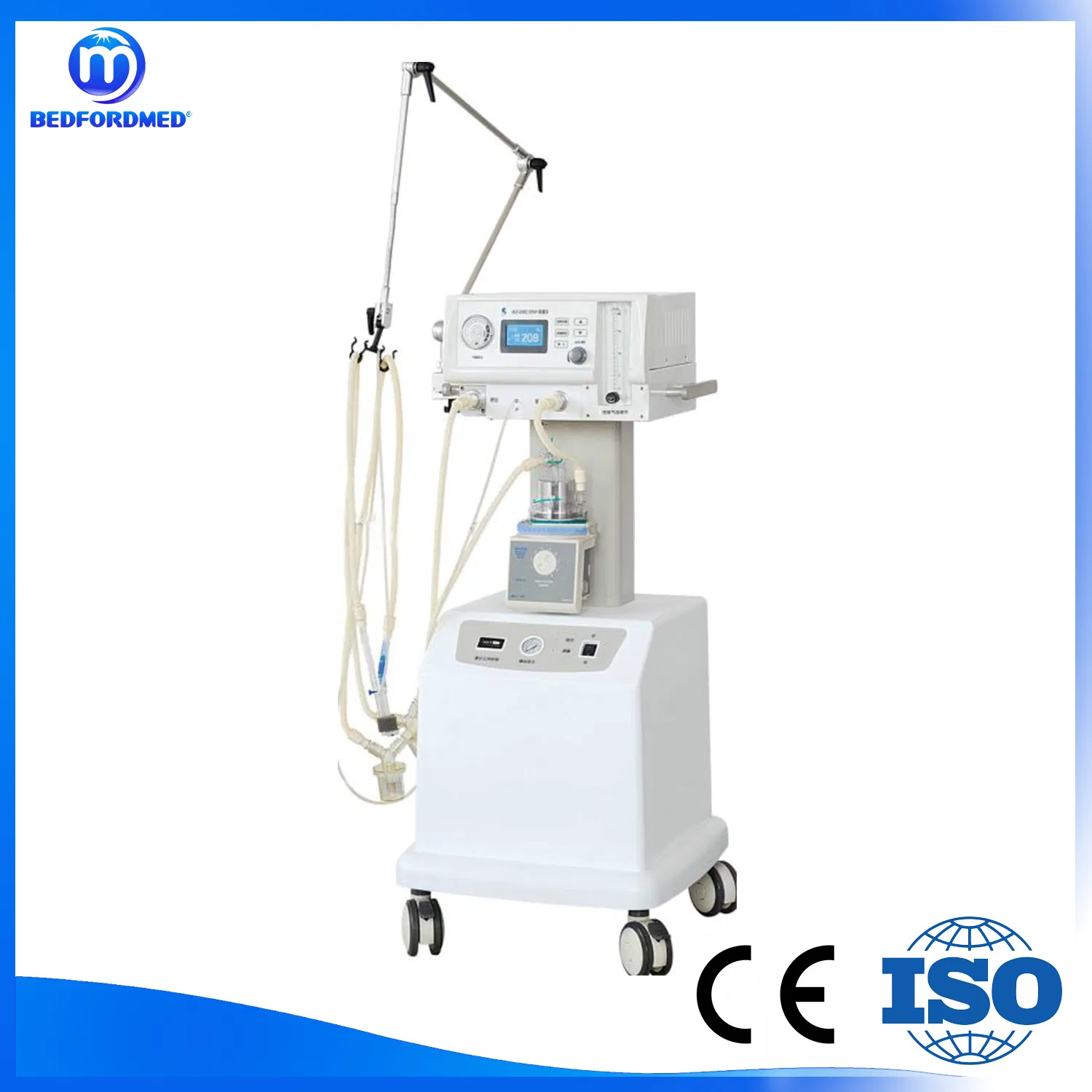

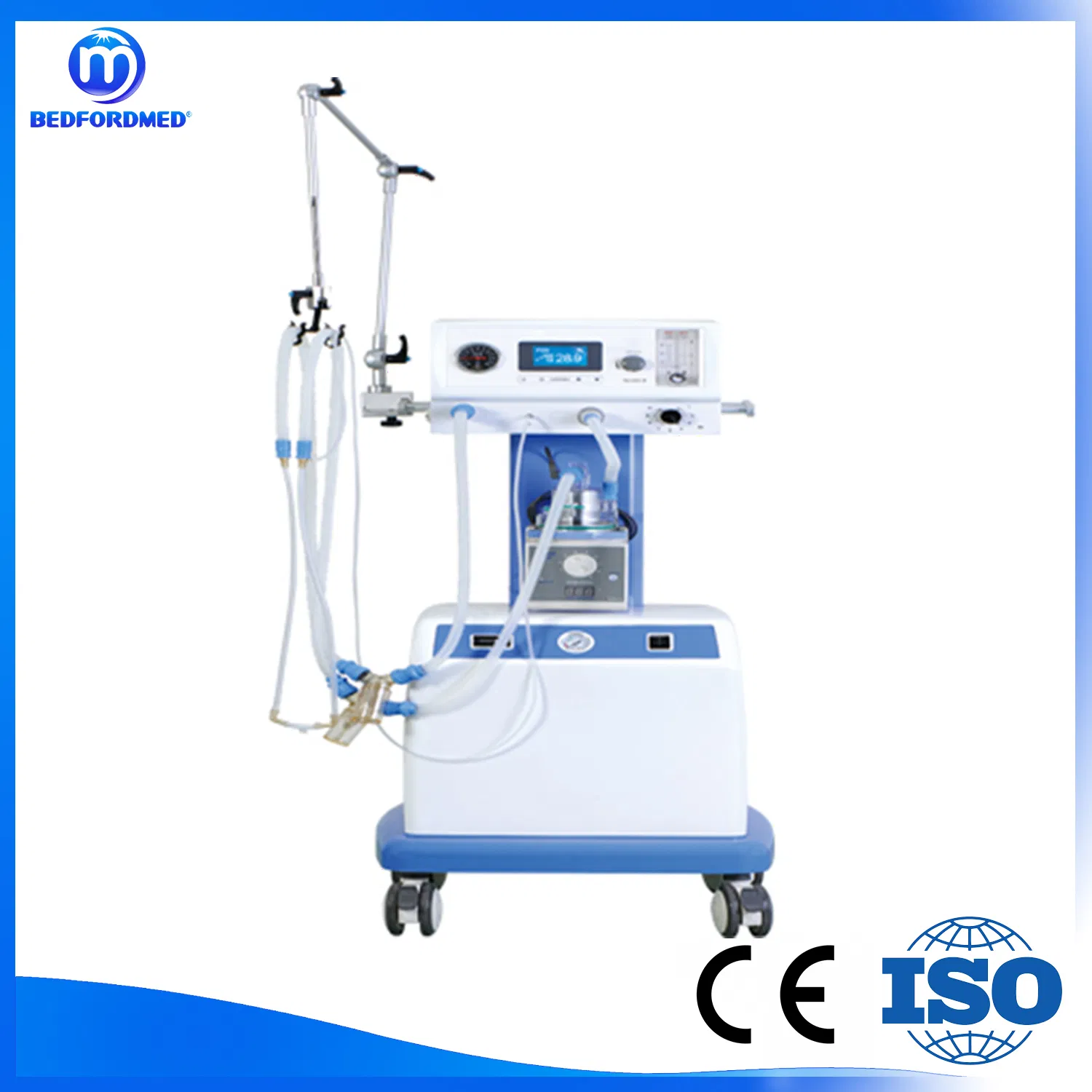

The CPAP System NLF-200C is specifically designed for newborn babies with stronger spontaneous breath and slight respiratory failure. It is widely applied in pediatric clinics for NCPAP oxygen uptake.
Performance and Features
✓
CPAP ventilation mode maintains spontaneous breath and reduces breathing work for newborns.
✓
Delivers Air/O2 mixture with adjusted O2 concentration and continuous positive pressure.
✓
Equipped with a built-in oxygen/air blender for stable concentration adjustment.
✓
Real-time O2 concentration monitoring with high-quality oxygen sensor and alarms.
✓
Advanced pressure monitoring system and reliable CPAP control valve.
✓

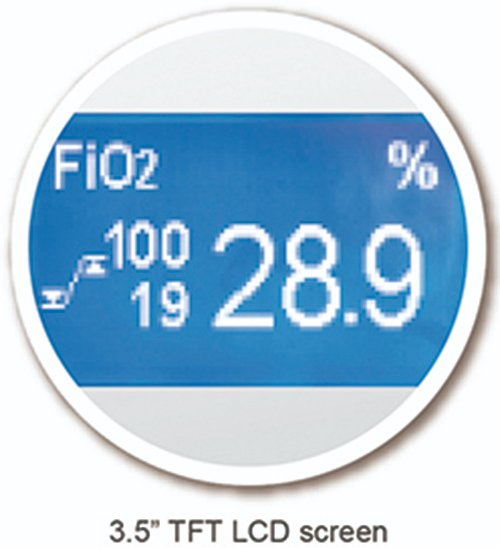

Integrated 3'' display for clear parameter viewing.
⚙️ Technical Parameters
Adjusting Parameters
● Inhaled O2 concentration: 21% ~ 100%
● CPAP: 0 cmH2O ~ 15 cmH2O
● Continuous flow: 2 L/min ~ 20 L/min
Monitoring Parameters
● Monitoring O2 concentration: 15% ~ 100%
● Monitoring CPAP: 0 cmH2O ~ 60 cmH2O
● Monitoring flow: 2 L/min ~ 20 L/min
Alarm & Protection
⚠️ AC power cut-off alarm
⚠️ Low air/oxygen input pressure alarm
⚠️ Unbalanced pressure alarm
⚠️ High/Low oxygen concentration alarms
⚠️ Pressure limit protection
❓ Frequently Asked Questions
What is the primary use of the NLF-200C CPAP system?
It is used for newborn babies with spontaneous breath and slight respiratory failure, commonly applied in pediatric clinics for oxygen therapy.
Does the system provide real-time monitoring?
Yes, it features a 3'' display and a high-quality sensor to monitor real-time oxygen concentration, CPAP levels, and continuous flow.
What are the power supply requirements?
The system supports 100-240V at 50/60Hz. If used with an air compressor, the power consumption is approximately 900VA.
How does the NLF-200C ensure patient safety?
It includes multiple safety features such as AC power cut-off alarms, pressure limit protection, and alarms for unbalanced air/oxygen input.
What is the range for oxygen concentration adjustment?
The inhaled oxygen concentration can be adjusted from 21% to 100%, and monitored from 15% to 100%.
What are the dimensions and weight of the unit?
The net weight is 57.2kg, and the wooden case packing size is L670*W700*H1410mm.
