Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
1 / 5
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator

Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator

Customization: Available
Type: Anaesthesia Machine
Kind: Surgical
Send Inquiry

Product Description

Medical Equipment Anesthesia System for ICU & Emergency Hospital Ventilator

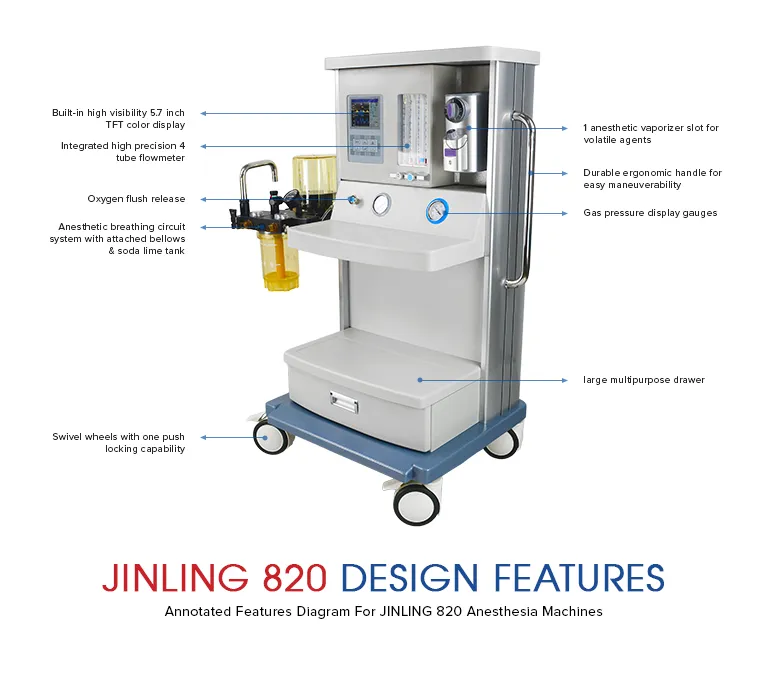

Anesthesia System Ventilator Main View
Basic Information
Model NO.
JINLING 820
Certification
CE, ISO13485, ISO9001
Group
Adult and Children
LCD Display
With LCD Display
Ventilation Mode
A/C, IPPV(VCV), SIPPV(VCV), IMV, SIMV, Manual
Tidal Volume
50-1500ml
(I:E) Ratio
8:1-1:10
Respiratory Rate
1-99bpm
Trademark
JINLING
Origin
China
Capacity
500 Units
HS Code
9018907010
Key Features
  • Operating Modes: Pneumatically driven & electronically controlled; supports closed, semi-closed, and semi-open systems.

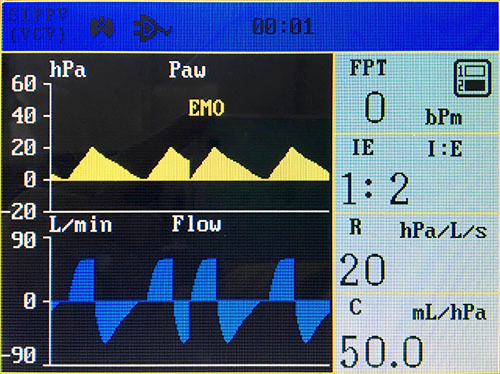

  • Advanced Display: Built-in 5.7 inch TFT display shows Pressure-Time and Frequency-Time waveforms with instant touch-button cycling.
  • Metallic Modular Circuit: Integrated modular respiratory circuit ensures perfect gas sealing under high-temperature disinfection.
  • High Precision Control: Equipped with electronic pressure differential flow sensors and imported respiratory control valves.
  • Vaporizer System: Features self-compensating functionality; supports Enflurane, Isoflurane, and Sevoflurane (Halothane optional).
  • Safety Interlocking: High precision four-tube flowmeter with oxygen-nitrous oxide interlocking ensures O2 output is never below 21%.
  • Intelligent Monitoring: Automated self-checking during startup and automatic self-calibrating sensors.
  • Power Reliability: Automatically converts to backup power mode during AC power outages.
  • Comprehensive Alarms: Audible/visual alarms for tidal volume, airway pressure, asphyxia, power failure, and oxygen failure.
Technical Specifications
ModelJINLING 820
Display5.7 inch TFT display
Flowmeter RangeO₂: 0.1-10L/min; N₂O: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, IMV, SIMV, MANUAL
Back-up Power SupplyAt least 4 hours
Tidal VolumeAdjustable: 50-1500ml; Display: 0-2000ml
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10 (Supports inverse ratio ventilation)
PEEP Range0-20cmH₂O (Electronically controlled)
Inspiratory Pressure Trigger-10 to 10cmH₂O (Electronically controlled)
SIGH1 sigh breath in every 80-120 breaths
Vaporizer Concentration0-5%
Product Detail Gallery
Anesthesia System Component Detail 1
Anesthesia System Component Detail 2
Frequently Asked Questions
Who is the intended patient group for the JINLING 820?
The JINLING 820 anesthesia system is designed for use with both adult and pediatric patients.
How long does the backup battery last during a power failure?
The system is equipped with an internal backup power supply that provides at least 4 hours of operation during AC power outages.
What ventilation modes are available on this device?
It supports multiple modes including IPPV, SIPPV, VCV, IMV, SIMV, and Manual ventilation to meet various clinical needs.
Can the respiratory circuit be sterilized?
Yes, it features a standard integrated metallic modular respiratory circuit that can withstand high-temperature disinfection for easy cleaning and maintenance.
What safety mechanisms are in place for gas delivery?
The system includes a high-precision four-tube flowmeter with an interlocking oxygen-nitrous oxide supply, ensuring that oxygen concentration never falls below 21%.
What parameters are monitored by the alarm system?
The system features audible and visual alarms for tidal volume, airway pressure, asphyxia, power failure, and oxygen failure.
