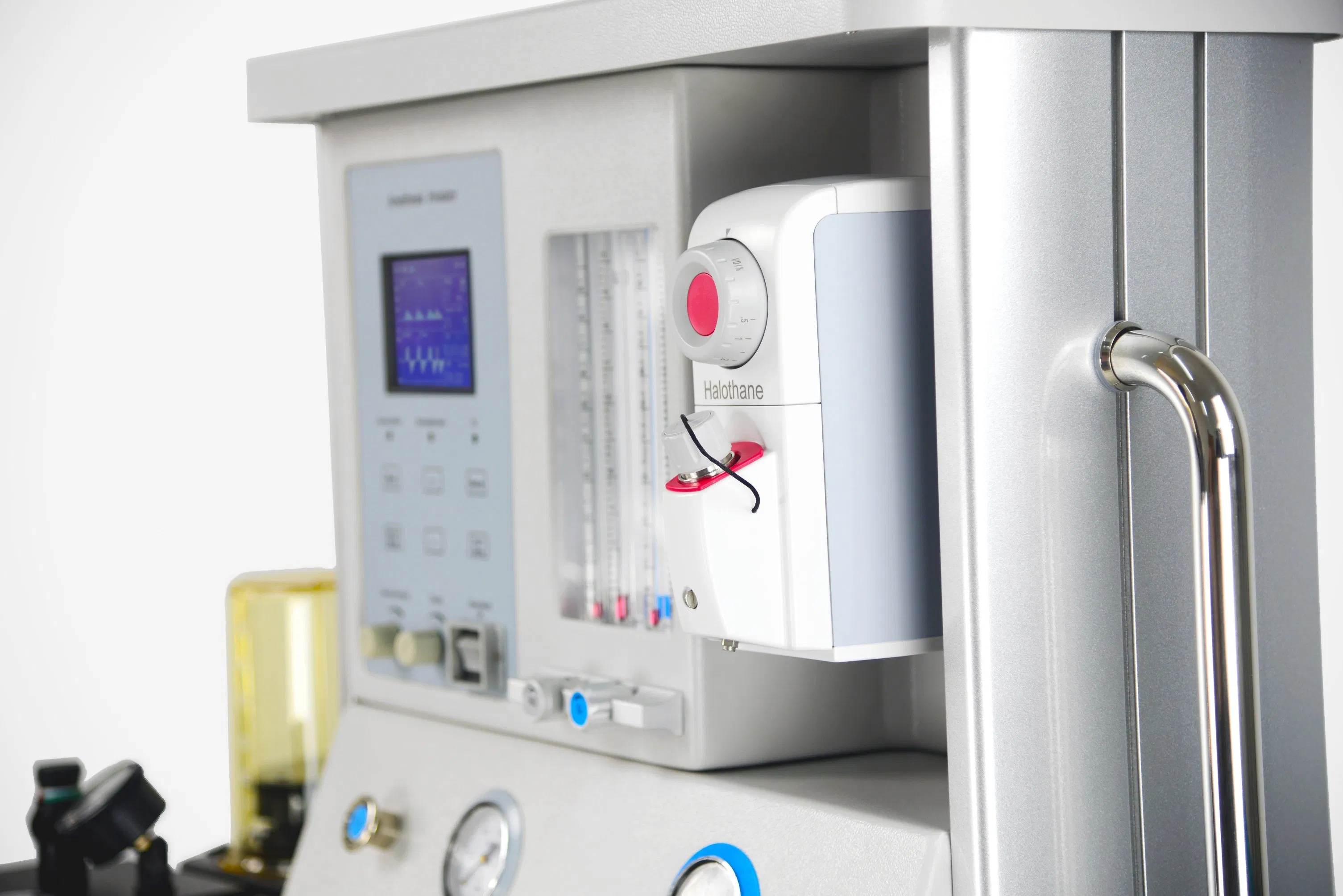

China General Anesthesia Unit Emergency Medical Supply Hospital Anesthetic Equipment with Electronic Gas Mixer
China General Anesthesia Unit Emergency Medical Supply Hospital Anesthetic Equipment with Electronic Gas Mixer
China General Anesthesia Unit Emergency Medical Supply Hospital Anesthetic Equipment with Electronic Gas Mixer
China General Anesthesia Unit Emergency Medical Supply Hospital Anesthetic Equipment with Electronic Gas Mixer
China General Anesthesia Unit Emergency Medical Supply Hospital Anesthetic Equipment with Electronic Gas Mixer
1 / 5
China General Anesthesia Unit Emergency Medical Supply Hospital Anesthetic Equipment with Electronic Gas Mixer
China General Anesthesia Unit Emergency Medical Supply Hospital Anesthetic Equipment with Electronic Gas Mixer
China General Anesthesia Unit Emergency Medical Supply Hospital Anesthetic Equipment with Electronic Gas Mixer
China General Anesthesia Unit Emergency Medical Supply Hospital Anesthetic Equipment with Electronic Gas Mixer
China General Anesthesia Unit Emergency Medical Supply Hospital Anesthetic Equipment with Electronic Gas Mixer

China General Anesthesia Unit Emergency Medical Supply Hospital Anesthetic Equipment with Electronic Gas Mixer

Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

Basic Info.
Model NO.JINLING 01B
CertificationCE, ISO13485
GroupAdult
LCD DisplayWith LCD Display
Ventilation ModeA/C, IPPV, SIPPV, Manual, IMV, SIMV
Tidal Volume50-1500ml
(I:E) Ratio4:1~1:10
Respiratory Rate1~99 Bpm
Display Size5.4 Inch TFT Display
SIMV Rate1-20bpm
OriginChina
HS Code9018907010

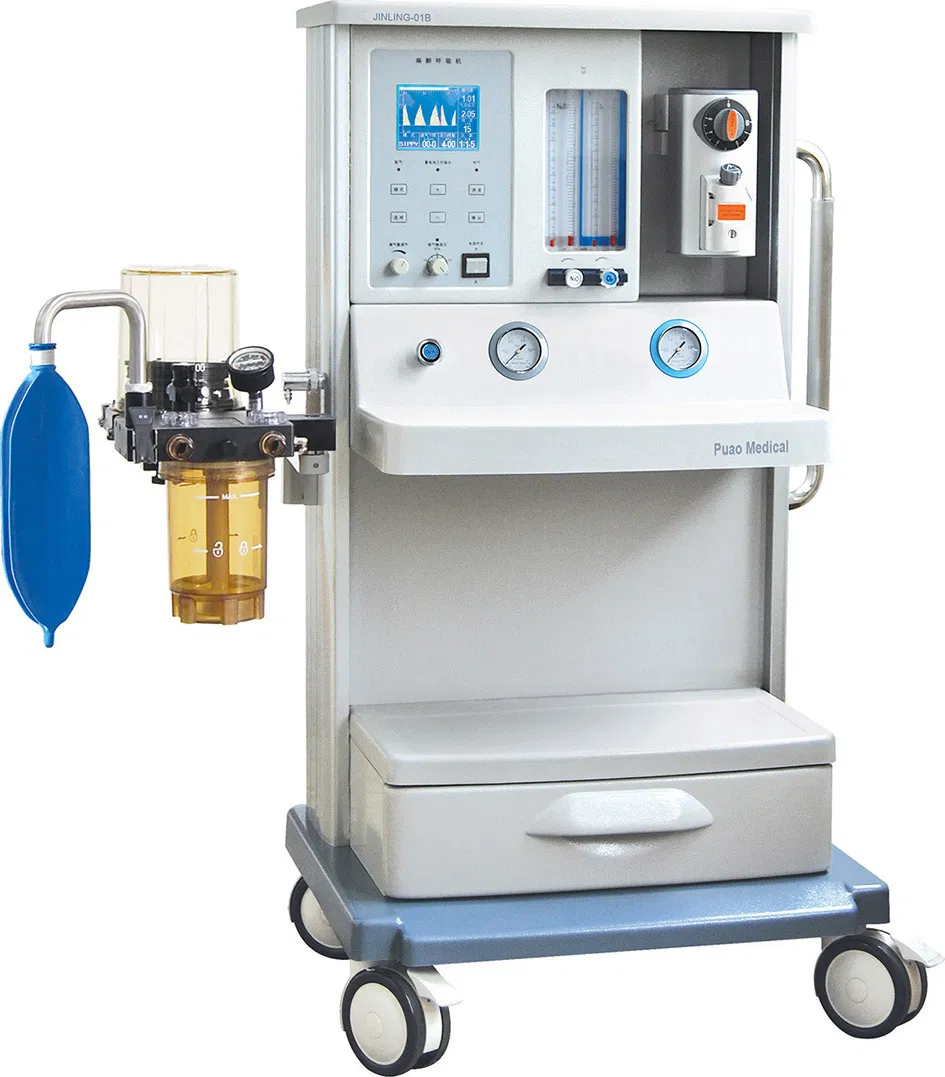

China General Anesthesia unit Emergency Medical Supply Hospital Anesthetic Equipment With Electronic Gas Mixer
General Anesthesia Unit
Hospital Anesthetic Equipment

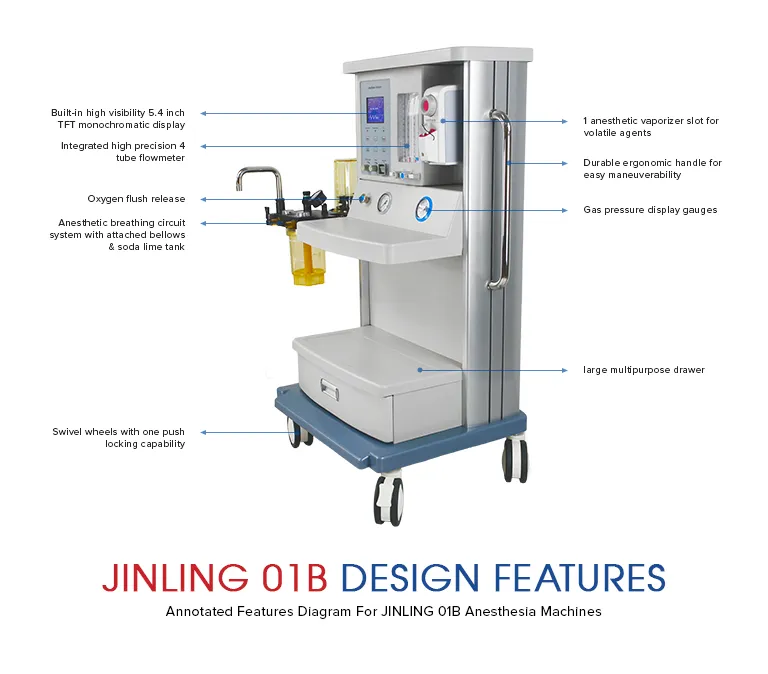

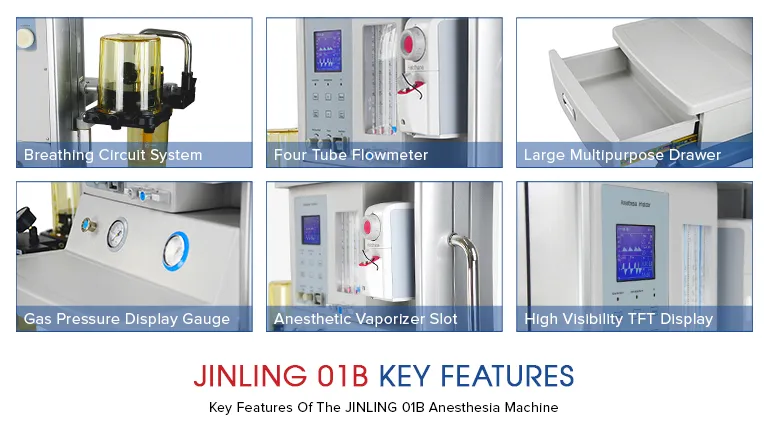

Core Features
  • Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
  • Anesthesia Ventilator: Built-in 5.4 inch TFT display, displaying Pressure-Time and Frequency-Time waveforms
  • Integrated metallic modular respiratory circuit: High temperature disinfection compatible, easy to clean
  • Equipped with electronic pressure differential flow sensor and imported respiratory control valve

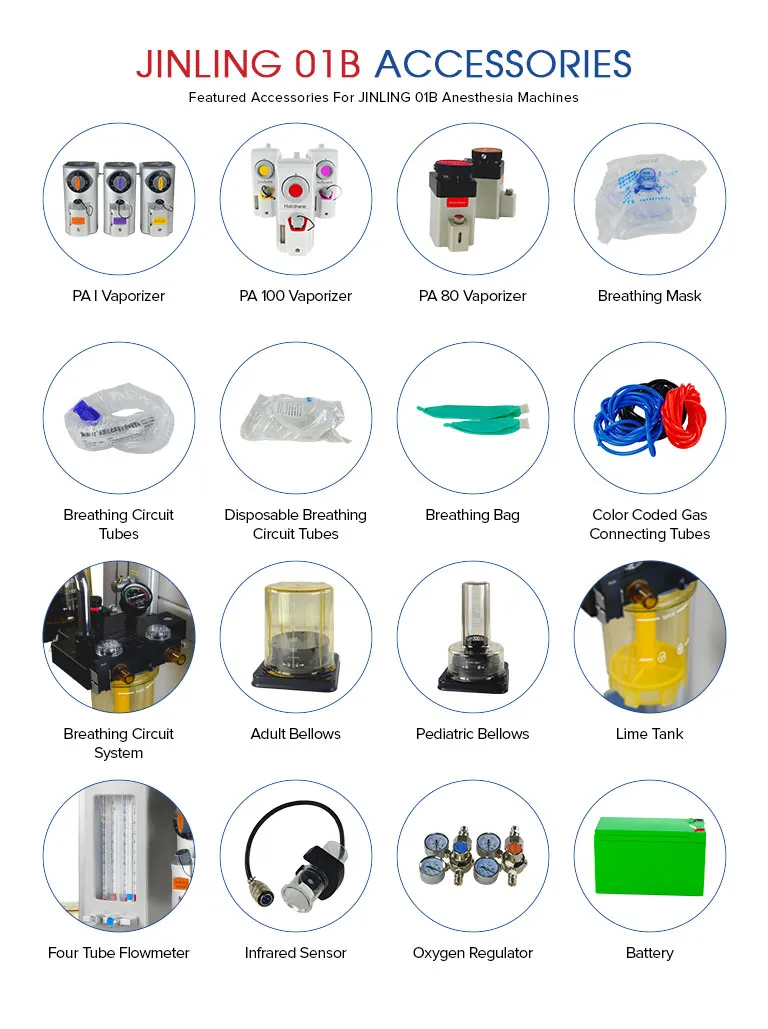

  • Vaporizer: Enflurane, Isoflurane and Sevoflurane options with self-compensating functionality

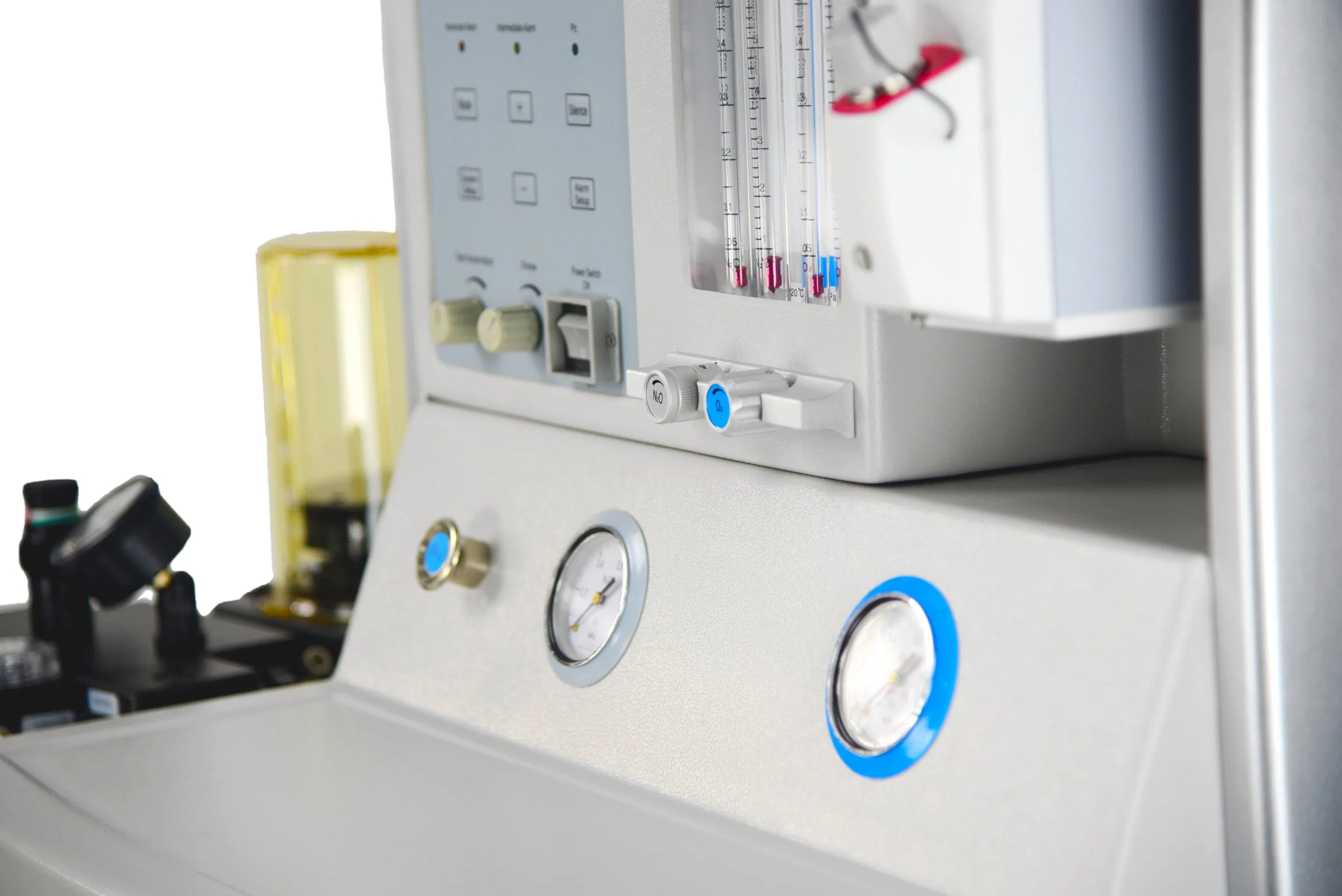

  • High precision four tube flowmeter with interlocking O2-N2O supply (min 21% oxygen)
  • Power Failure Support: Automatically converts to backup power mode during AC outages

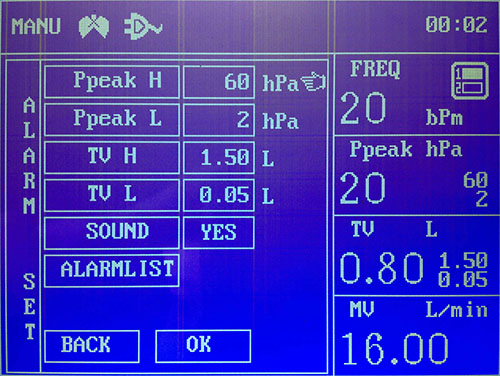

  • Advanced Alarm System: Audible/visual alarms for tidal volume, airway pressure, asphyxia, and power failure
  • International rotating Na-lime tank: PPSU material, temperature resistant to 134°C
Anesthesia Specifications
Technical Specifications
ModelJINLING-01B advanced model
Display5.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min | N2O: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, IMV, SIMV, MANUAL
Back-up Power SupplyAt least 4 hours
Tidal VolumeAdjustable: 50-1500ml (Display: 0-2000ml)
Respiratory Rate1-99bpm
I:E Ratio4:1-1:10 (Supports inverse ratio)
O2 Supply Flow Rate25~75L/min
Inspiratory Pressure Trigger-10-10cmH2O (Electronically controlled)
SIGH Function1 sigh breath in every 80-120 breaths
Vaporizer Range0-5% (Double PA-I type slot)
Equipment Detail 1
Equipment Detail 2
Frequently Asked Questions (FAQ)
Q: What is the adjustable range for Tidal Volume on the JINLING 01B? A: The adjustable tidal volume range is from 50ml to 1500ml, making it suitable for a wide range of adult patients.
Q: Does this anesthesia unit work during power outages? A: Yes, it features an automatic power failure support function with a backup battery that provides at least 4 hours of operation.
Q: What safety features are included for oxygen supply? A: The unit is fitted with an interlocking oxygen-nitrous oxide supply system that guarantees the oxygen output is never lower than 21%.
Q: Can the respiratory circuit be disinfected? A: Yes, it uses a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection and easy cleaning.
Q: What ventilation modes does the equipment support? A: It supports several modes including IPPV, SIPPV, IMV, SIMV, and MANUAL ventilation.
Q: What information does the TFT display provide? A: The 5.4 inch TFT display shows real-time Pressure-Time and Frequency-Time waveforms, which can be cycled with a touch of a button.
