Basic Info.
Certification
CE, ISO13485
LCD Display
With LCD Display
Ventilation Mode
A/C, IPPV, SIPPV, Manual
Pressure Trigger
-10-10CMH2o
Vaporizer Concentration
0-5%
Transport Package
Cartons for Export
Specification
0.93 CBM; 95 KGS
Product Description

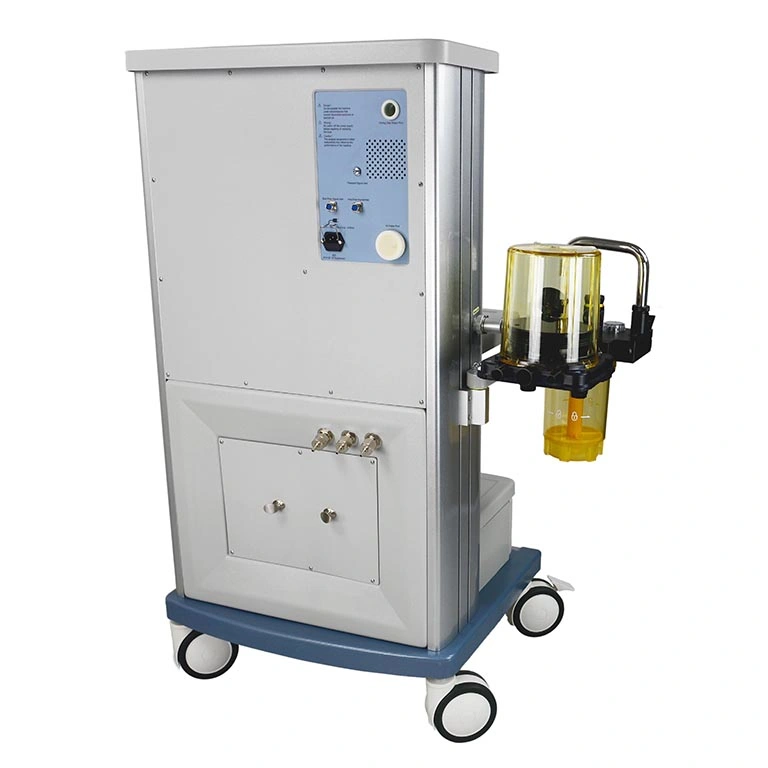

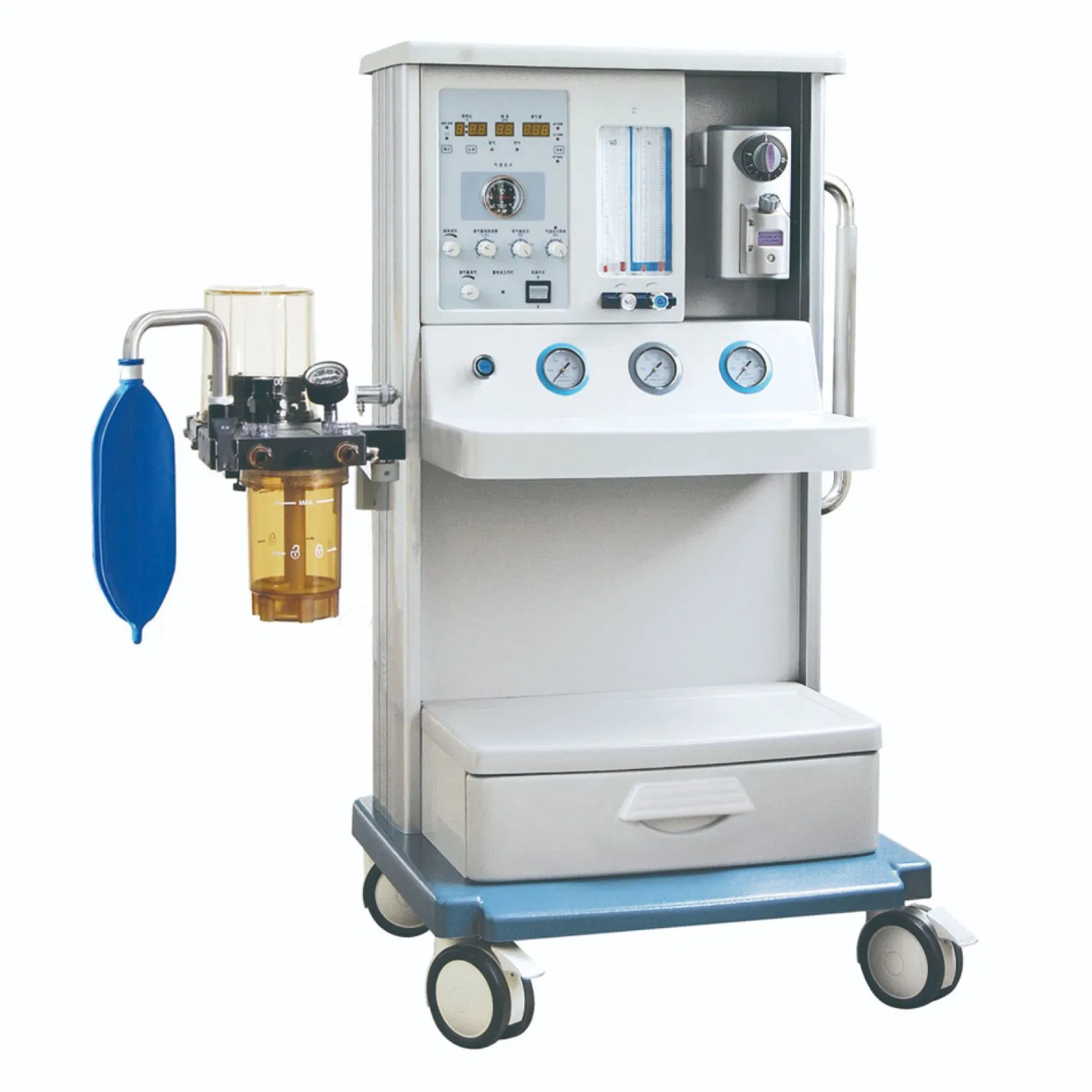

Anesthesia system of ICU & Emergency JINLING 01 Hospital ventilator medical equipment
Common Features
- Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open

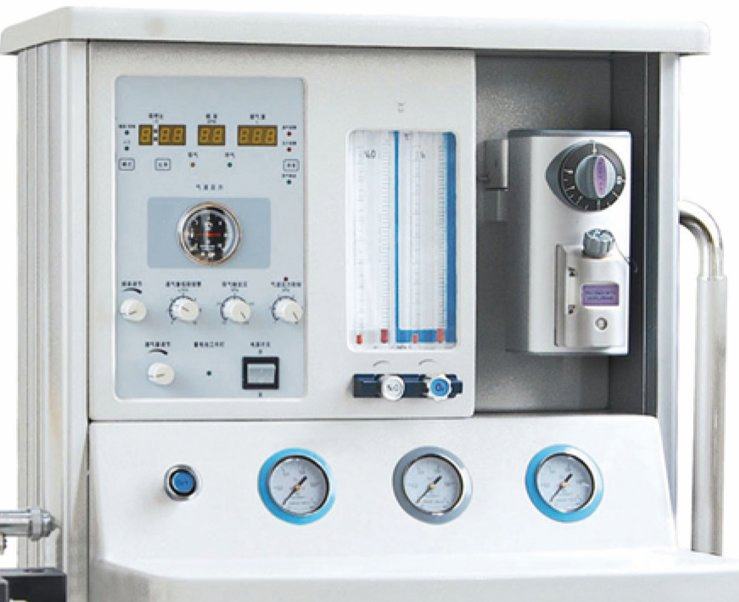

- Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
- Integrated Circuit: Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection
- Flowmeter: High precision two tube flowmeter with interlocking O2-N2O supply, guarantees O2 output ≥ 21%
- Power Safety: Automatically converts to backup power mode during AC power outages
- Design: Fully metallic frame, precise construction, automated self-checking and self-calibrating sensor
- Alarms: Audible and visual alarms for tidal volume, airway pressure, power failure, and oxygen failure
- Flow Sensor: Infrared turbine flow sensor for precise and stable gas flow measurement

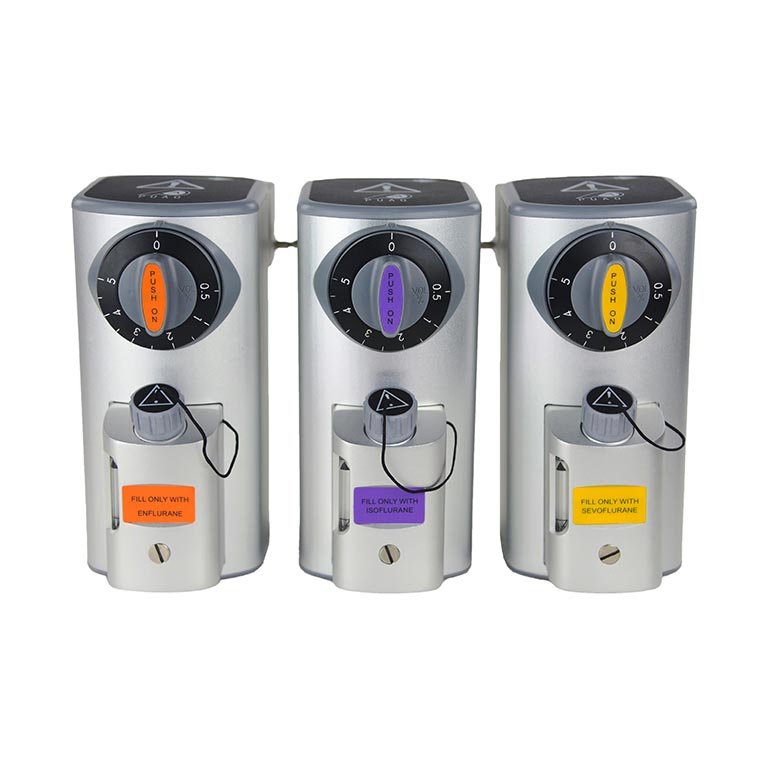

- Vaporizer: Local assembly of imported components; Enflurane, Isoflurane, Sevoflurane (Halothane optional)
- CO2 Absorber: Advanced rotating Na-lime tank, PPSU material resistant to 134°C, one-hand operation
- Patient Model: Multi-parameter Patient Model (Optional)
Technical Specifications
| Model |
JINLING-01 (Standard) |
JINLING-01 (Advanced) |
| Display |
LED |
| Flowmeter Range |
O2: 0.1-10L/min | N2O: 0.1-10L/min |
| Ventilation Mode |
IPPV, SIPPV, MANUAL |
| Back-up Power Supply |
At least 4 hours |
| Tidal Volume |
Range: 50-1500ml (Display: 0-2000ml) |
| Respiratory Rate |
4-40bpm |
| I:E Ratio |
1:1.5-1:3.0 |
| Inspiratory Trigger |
-10-10cmH2O |
| Vaporizer Range |
0-5% |
| Vaporizer Slots |
Single PA-80 type slot |
Double PA-80 type slots |
Frequently Asked Questions
What are the primary ventilation modes of the JINLING 01?
The system supports multiple modes including IPPV, SIPPV, and Manual ventilation to accommodate different surgical requirements.
Does the machine support emergency power outages?
Yes, it features an automatic backup power function that provides at least 4 hours of continuous operation during AC power failures.
Is the respiratory circuit easy to disinfect?
The machine uses a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection (up to 134°C), ensuring superior gas sealing and hygiene.
What safety features ensure the correct oxygen supply?
It is equipped with a high-precision flowmeter and an interlocking O2-N2O supply system, guaranteeing that the oxygen concentration never drops below 21%.
What is the difference between the Standard and Advanced models?
The primary difference lies in the vaporizer capacity; the Standard model features a single vaporizer slot, while the Advanced model is equipped with double slots.

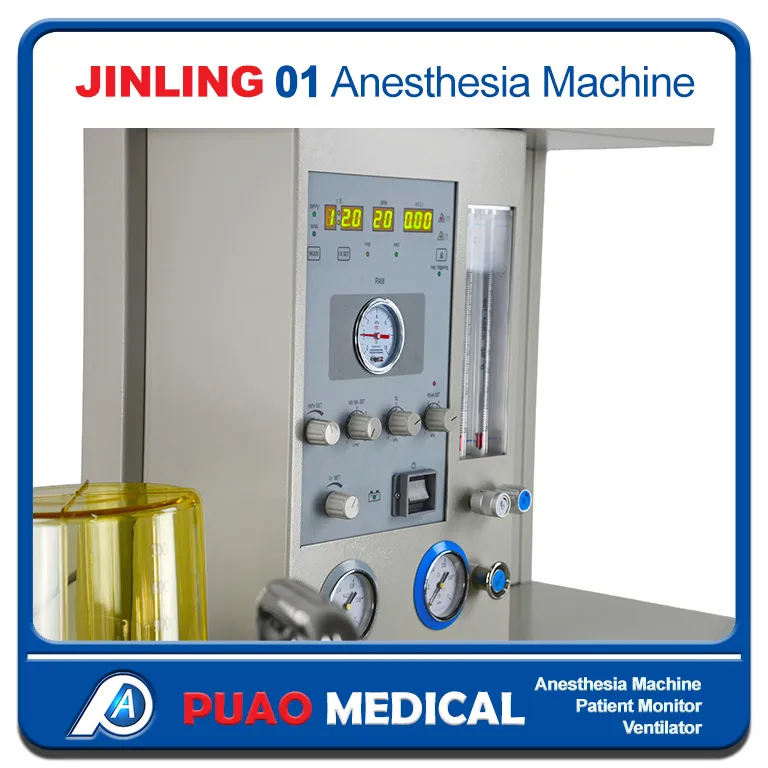

What parameters are monitored via the LED display?
The high-visibility LED display provides real-time alphanumeric data for tidal volume, airway pressure, and various critical alarms.
