📊 Basic Specification
Model NO.:TR-HMT-8000
Condition:New
Certification:CE
Automation:Automatic
Screw:Twin-Screw
Treatment:Steam
Tank Volume:12m³
Water Output:≥500kg/H
Steam Generator:180kw×2
Material:Q345r
Specification:12000*1500*2200mm
Capacity:5 sets Per Month
⚙️ Product Description

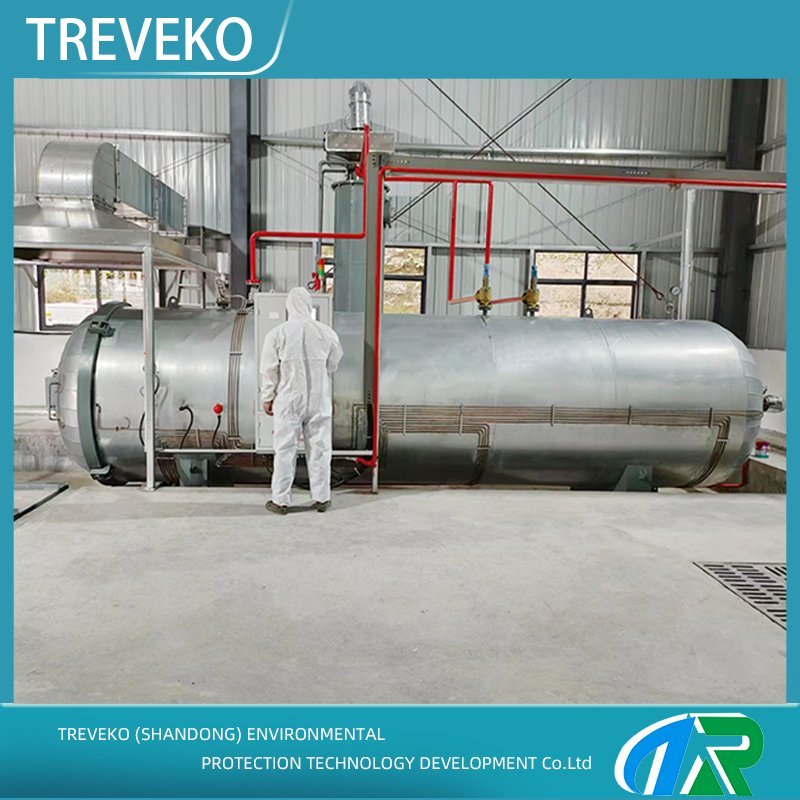

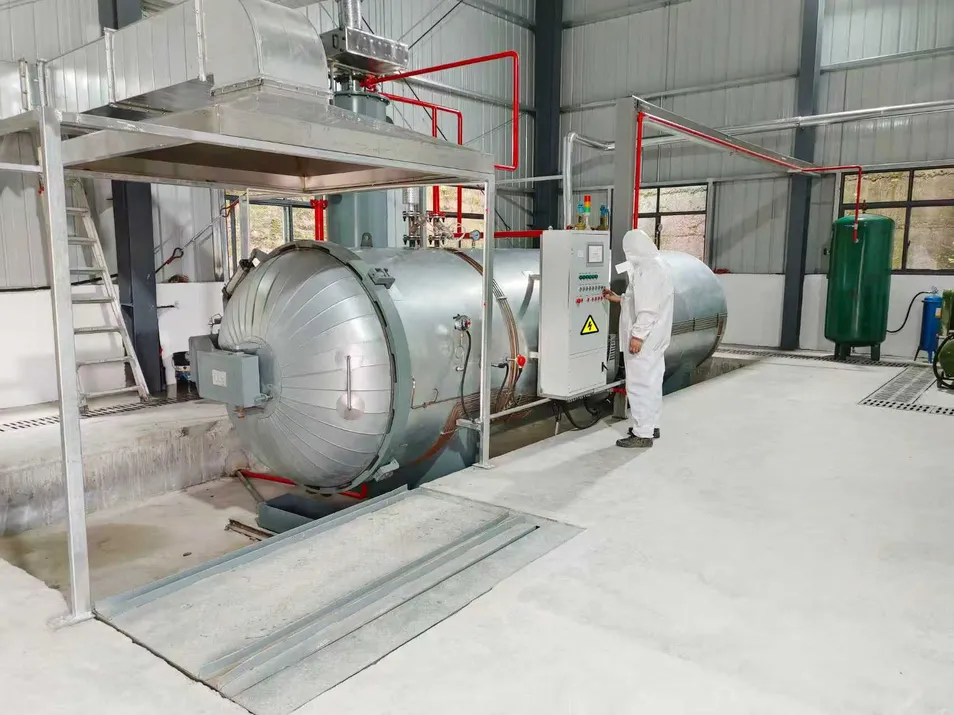

Saturated steam sterilization, compliant and controllable
The equipment utilizes high-pressure saturated steam sterilization technology, strictly adhering to high-temperature steam disinfection standards. Based on a horizontal, sealed tank structure, it ensures that high-pressure saturated steam evenly fills the tank's interior, deeply penetrating medical waste. This forces rapid denaturation and coagulation of microbial proteins, achieving a killing rate of over 99.99% for pathogenic microorganisms such as E. coli, Staphylococcus aureus, and hepatitis B virus.
It is capable of processing various types of solid medical waste (water content ≤80%), including disposable syringes, laboratory consumables, and animal medical waste. The tank uses thickened pressure-resistant materials and precision sealing technology to eliminate secondary pollution risks.
🔧 Main Components of the Equipment

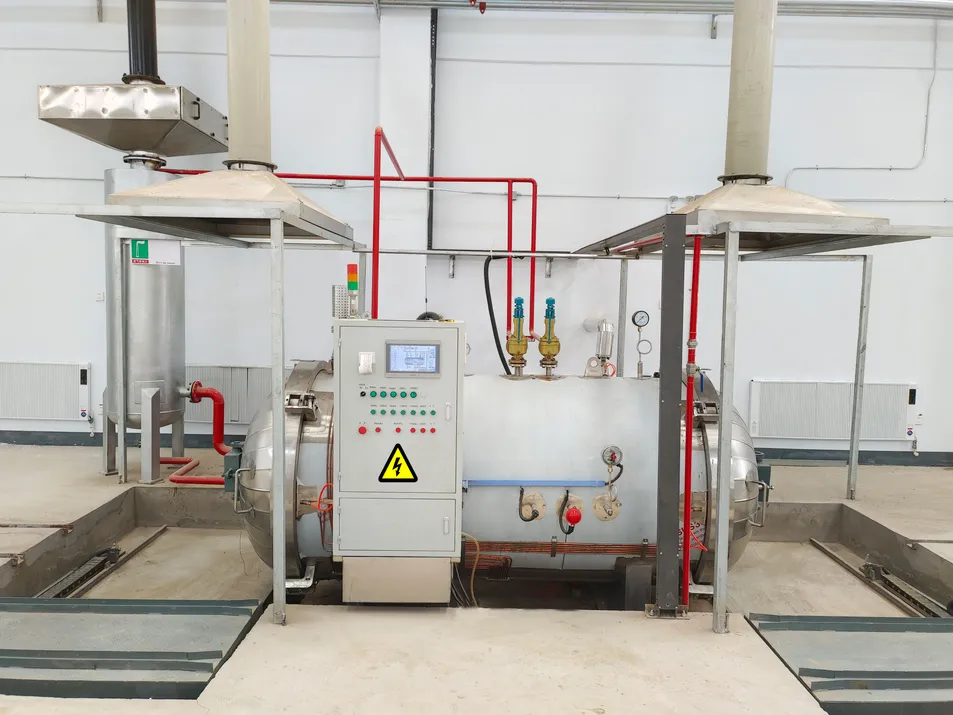

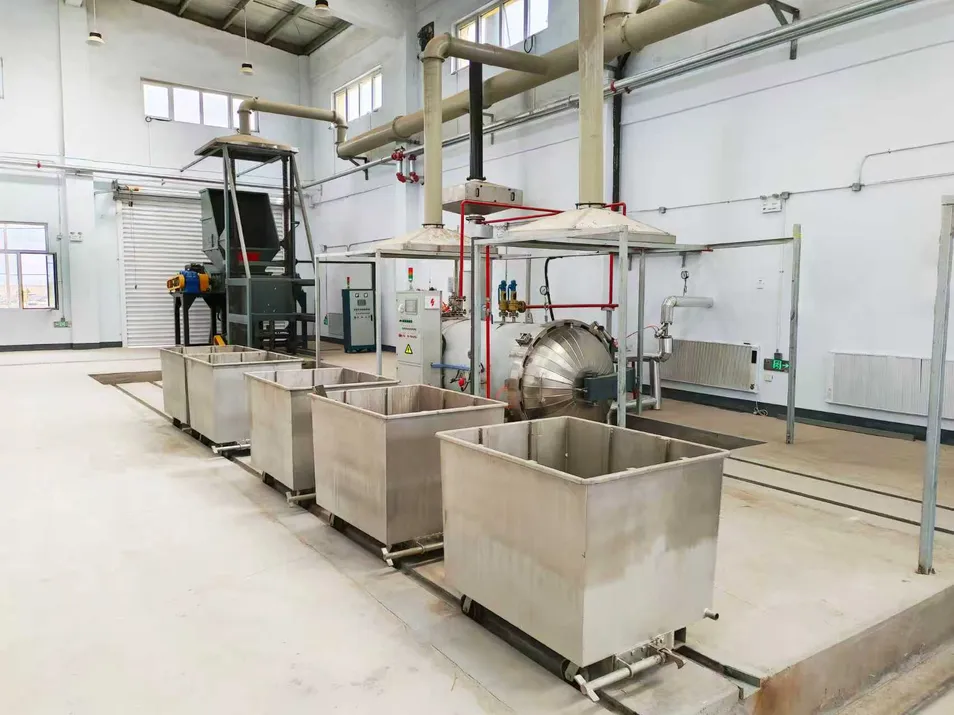

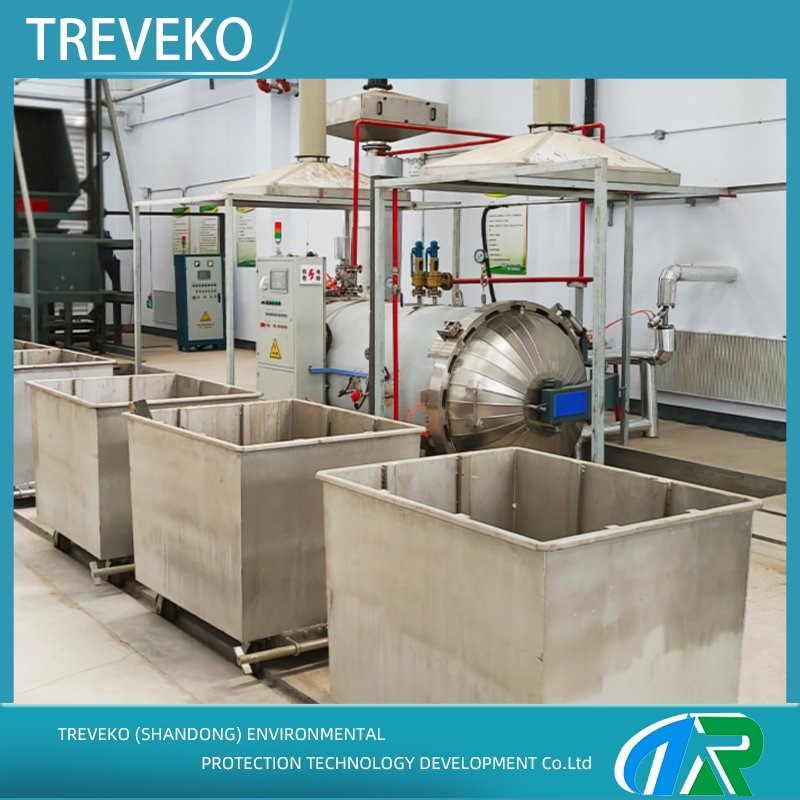

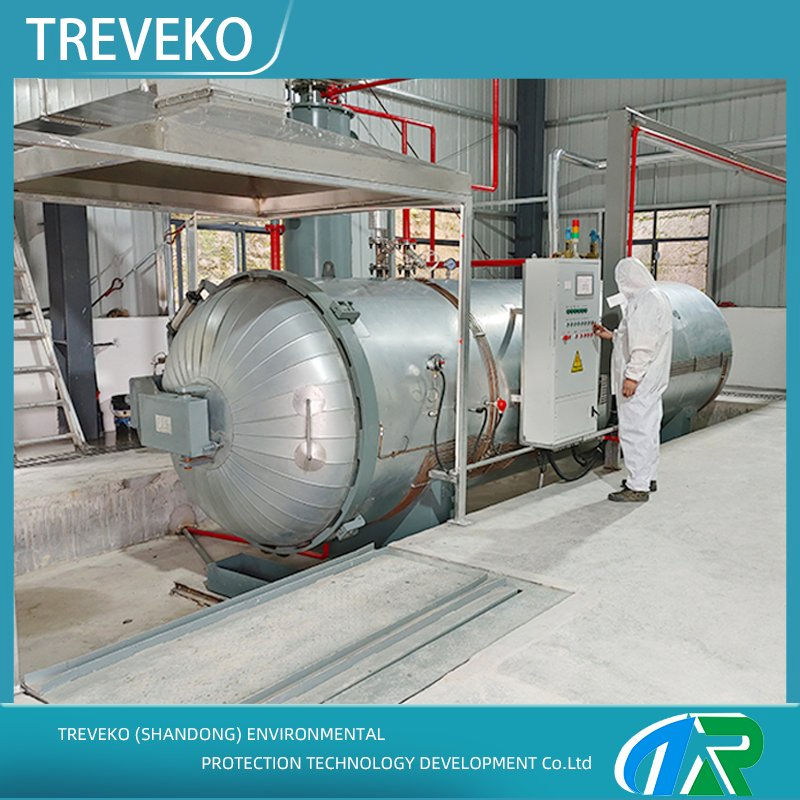

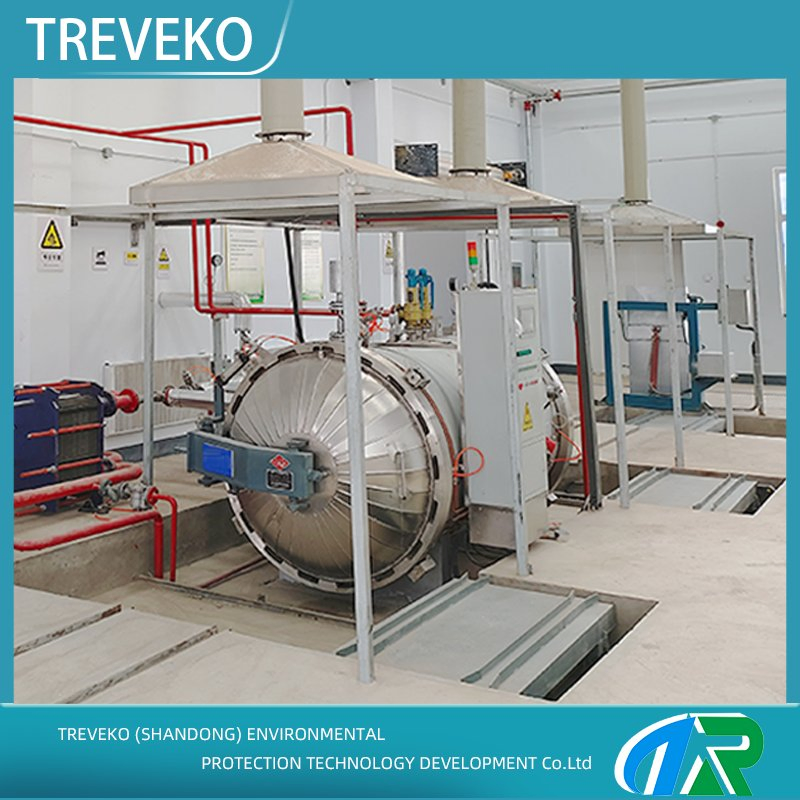

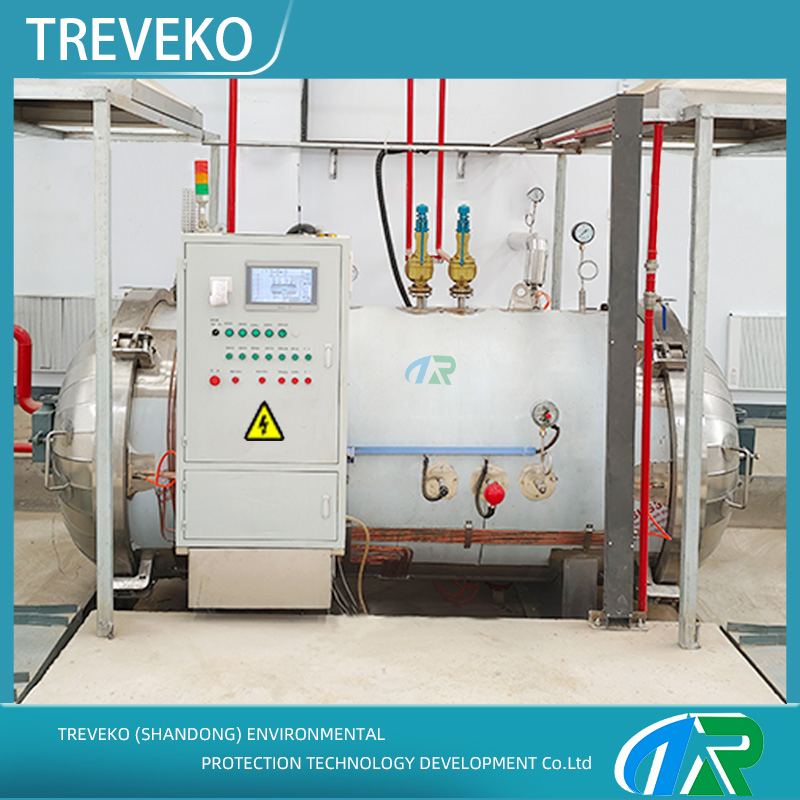

The complete system includes: Sterilizer body (high-pressure tank), 2 transfer carts, air compressor, water purifier/softener, electric steam generator, induced draft fan, photo-oxidation equipment, pipeline circulation pump, and PLC electrical control cabinet.
📋 Technical Parameters
| System Unit |
Project |
2.5T Type |
5T Type |
8T Type |
| Sterilization Tank |
Volume |
2.5m³ |
10m³ |
12m³ |
| Material |
SUS316 / Q345R, Design pressure 0.8 MPa |
| Water Softener |
Power |
0.1KW |
0.2KW |
0.2KW |
| Output |
≥200KG/h |
≥500KG/h |
≥500KG/h |
| Steam Generator |
Power |
72KW×2 |
180KW×2 |
180KW×2 |
| Evaporation |
100kg/h |
250kg/h |
250kg/h |
| Air Compressor |
Power |
7.5kw |
7.5kw |
7.5kw |
| Exhaust Fan |
Power |
7.5KW |
7.5KW |
7.5KW |
⭐ Equipment Characteristics
- High Automation: Full PLC control system monitors temperature, pressure, and time without manual intervention.
- Durable Construction: Made of thickened 304 stainless steel with precision sealing, resistant to corrosion from bodily fluids and chemicals.
- Eco-Friendly Treatment: Exhaust gas is treated via pre-filters, HEPA filters, and photocatalytic oxidation to remove odors and VOCs.
- Space Efficiency: Horizontal layout optimized for medium and large-scale facilities, reducing vertical height requirements.
📦 Packing & Delivery
1. We utilize industry-standard moisture-proof and rust-proof materials. Large equipment is secured with wooden pallets and stretch film, while precision instruments are vacuum-sealed with internal cushioning.
2. Our logistics support full truckload and LTL delivery services, including customized labeling and full logistics tracking to ensure safe arrival at your site.
❓ Frequently Asked Questions
Q1: Does sterilized medical waste have an odor?
The high-temperature steam sterilization process effectively removes odors from the waste, leaving no noticeable odor after sterilization.
Q2: Can the equipment be customized?
Yes, we support customization of core parameters such as processing capacity, overall size, and control systems to meet specific requirements.
Q3: What waste materials can be processed?
It processes solid medical waste with water content ≤80%, including syringes, dressings, lab consumables, and animal medical waste.
Q4: What is the warranty period?
We provide a 1-year warranty and free repair services if quality problems emerge within the warranty period.
Q5: How is the exhaust gas handled?
Exhaust gas is treated through a pre-filter, a high-efficiency filter, and a photocatalytic oxidation device to ensure harmless emission.
Q6: What are the steam requirements?
The system requires saturated steam at a temperature ≥170℃ and pressure ≥0.7Mpa for effective sterilization.
