Containerized Medical Wastewater Treatment Equipment for Emergency Isolation Areas Sewage Treatment Plant

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

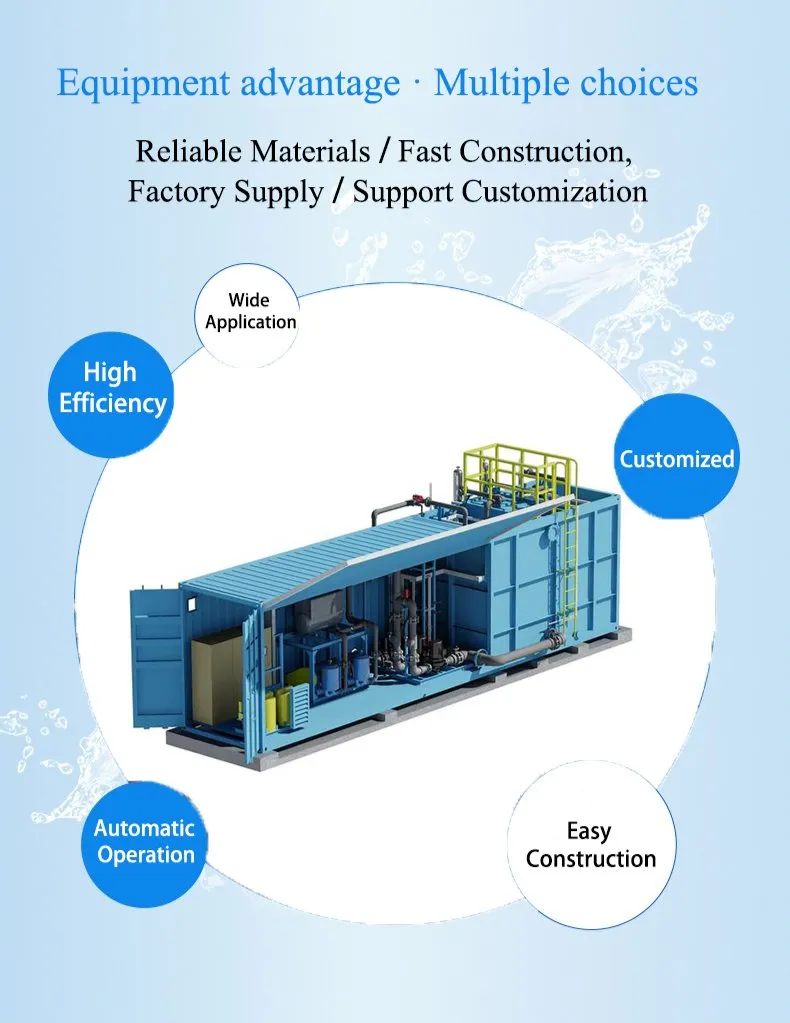

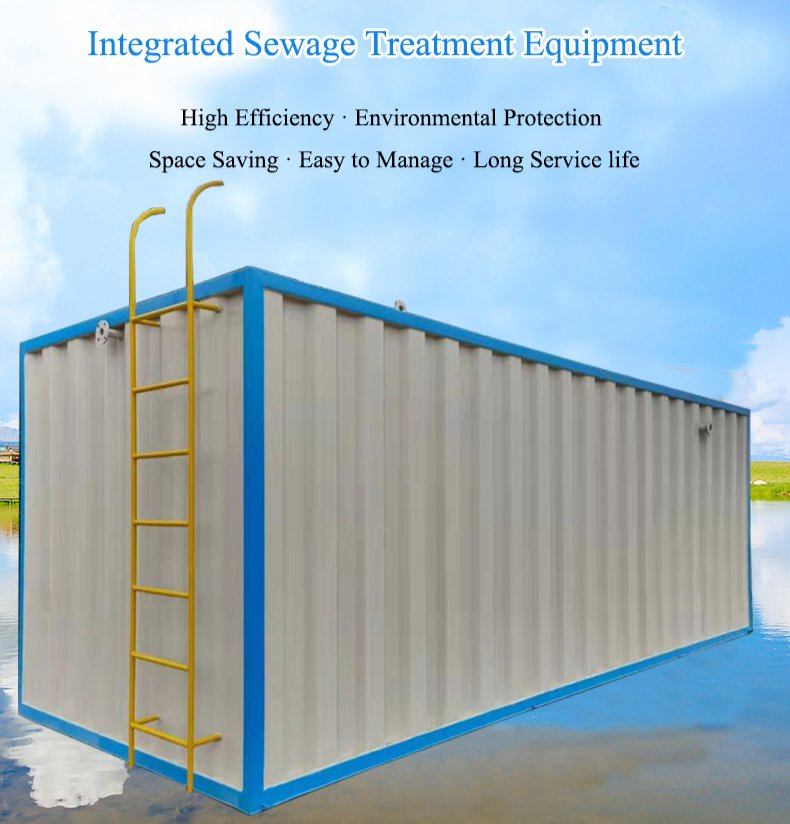

Integrated Sewage Treatment Plant

Combining multiple treatment functions—such as primary sedimentation, biological reaction, MBBR processing, secondary clarification, MBR membrane filtration, and final disinfection—into a single compact system.

📋 Basic Info.

Model NO.

NS-104

Type

Sewage Treatment

Method

Biological Treatment

Material

Carbon Steel, Stainless Steel, Fiberglass

Installation

Above Ground, Underground, Mobile

Process

A2o, Mbbr, Mbr, SBR

Service Life

30 Years

Capacity

10-5000m³ Per Day

⚙️ Specification & Overview

Treatment Scope: Domestic, hospital, breeding, slaughter, industry, highway, car wash, food factory, and chemical industry wastewater.

Placement: Flexible design allows for both ground-level and underground installation.

Control System: Full PLC automatic control requiring minimal manual intervention.

💡 Key Features

🌱

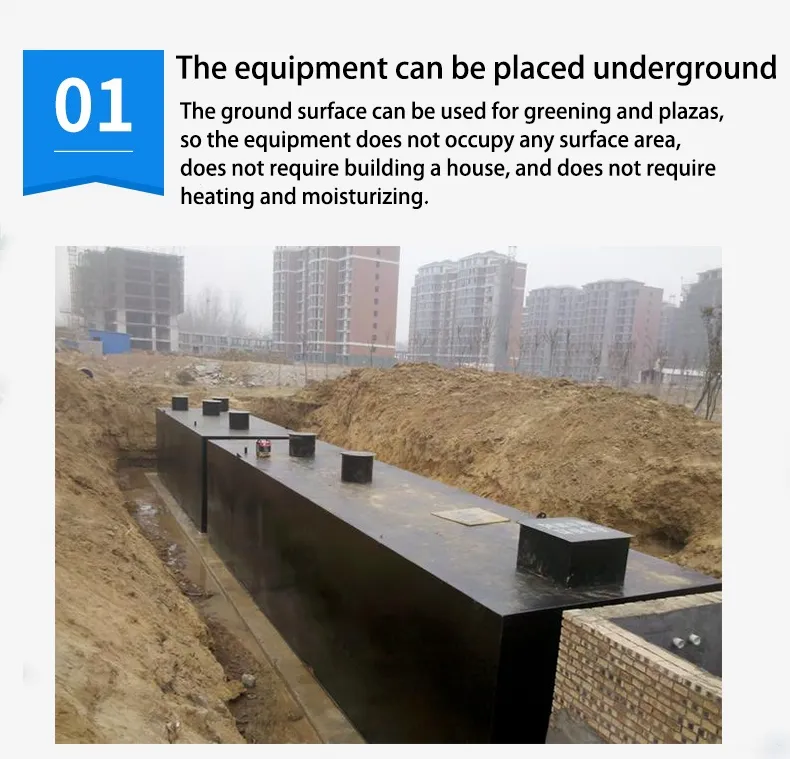

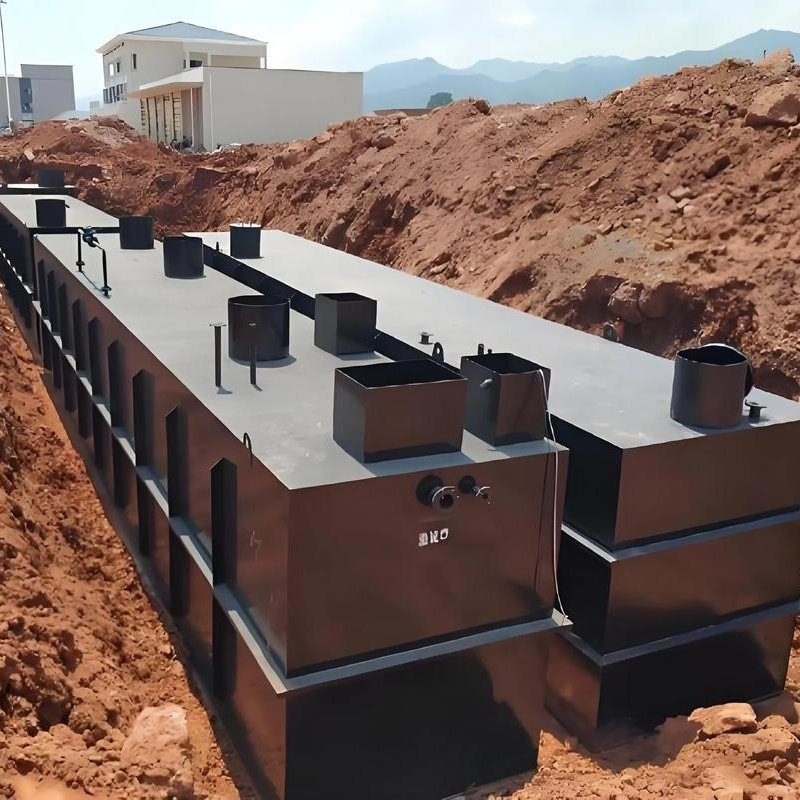

Underground Placement: The ground surface can be used for greening or plazas. The equipment does not require extra building construction or heating/moisturizing.

🔇

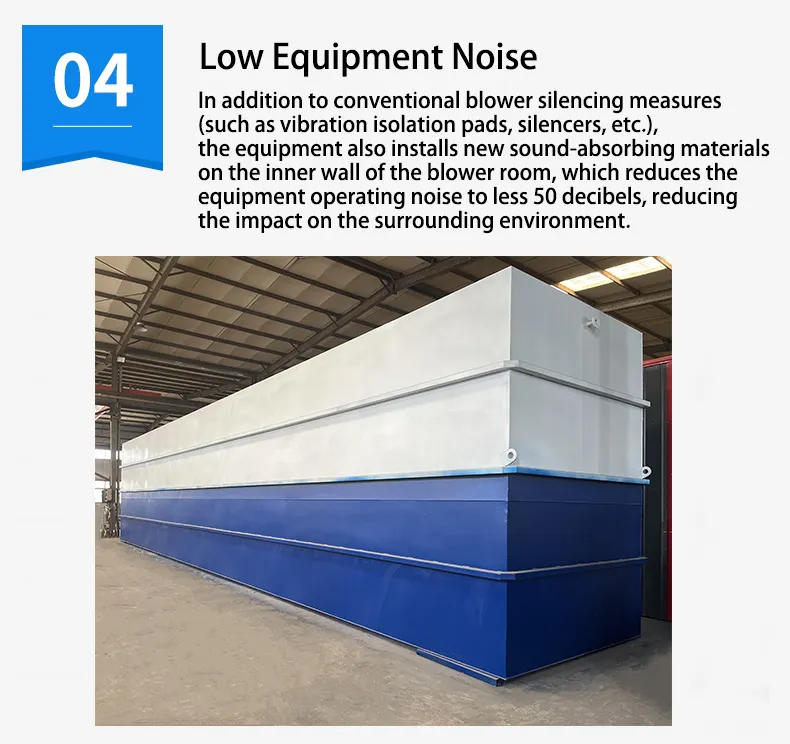

Low Noise Operation: Adopts advanced noise reduction measures to keep operating noise below 50 decibels, minimizing environmental impact.

⚡

High Reliability: Equipped with an automatic electrical control system and damage alarm system. Only monthly or quarterly maintenance is required.

📊 Technical Parameters

Item		NS-1	NS-2	NS-3	NS-4	NS-5	NS-6	NS-7	NS-8
Capacity (m3/h)		1	3	5	7.5	10	15	20	30
Settling Tank (m3)		1.8	5.5	9	14	18	27	36	50
Contact Oxidation (m3)		5	14.5	24	36	44	63	83	130
Blower	Power (kw)	0.4	0.75	1.5	2.2	2.2	3.7	5.5	-
Pump	Power (kw)	1.0	1.0	1.0	1.0	1.0	1.6	1.6	1.6

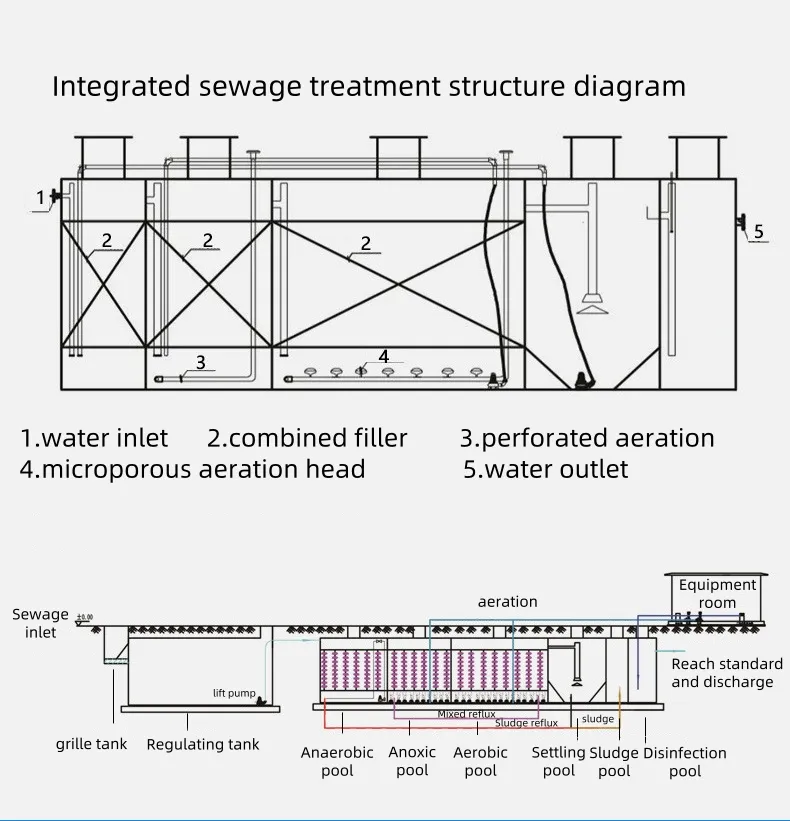

🌊 Sewage Treatment Process

The system follows a typical biological process for maximum efficiency:

Screening: Removal of large solids.
Regulating Tank: Flow and quality balancing.
Biological Stages: Anaerobic (decomposition), Anoxic (denitrification), and Aerobic (microbial degradation).
Sedimentation: Solid-liquid separation.
Disinfection: Elimination of pathogenic microorganisms.

🌍 Wide Range of Applications

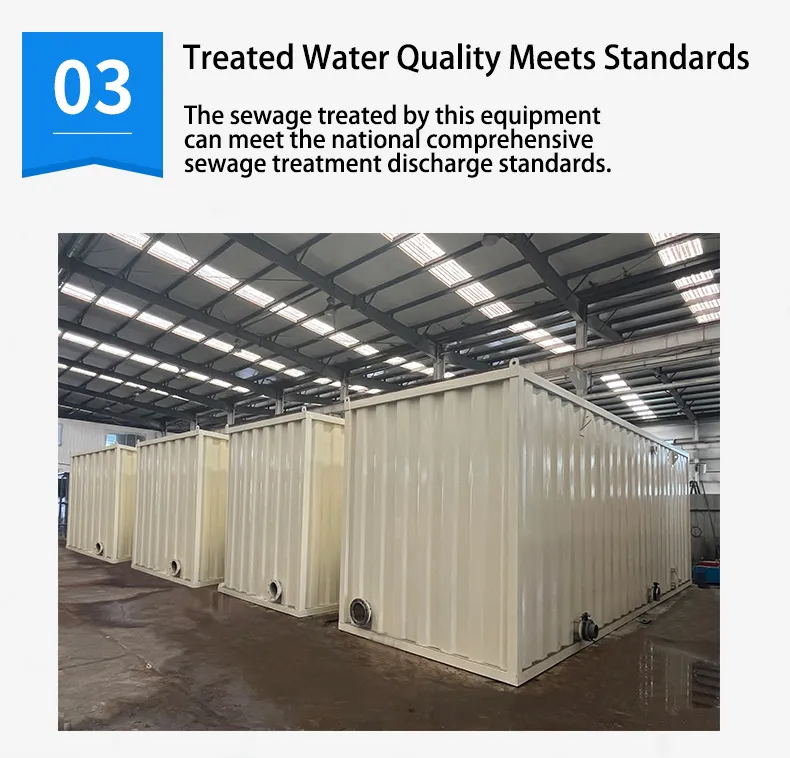

Our equipment is engineered for diverse industries, ensuring emissions meet national discharge standards.

Hotels, Hospitals, and Residential Communities.
Chemical Industrial Parks and Mining Areas.
Livestock Breeding and Food Processing Plants.
Schools, Scenic Spots, and Construction Sites.

🏢 Professional Enterprise Profile

Founded in 2018, our enterprise operates a 10,000-square-meter production plant. We specialize in wastewater treatment, water purification, and environmental protection equipment. With over 80 employees, including 20 specialized engineers, we deliver technology-driven solutions worldwide.

❓ FAQ

Q: How can I purchase your products? A: Submit an inquiry, and our sales manager will promptly respond to understand your project details and provide a professional quote.

Q: Where is your production base? A: Our factory is located in a major port city, allowing for efficient shipping to your designated international port.

Q: Do you offer OEM and ODM services? A: Yes. We can customize products and logos according to your specific project requirements.

Q: What is the typical delivery time? A: Depending on the order quantity and customization needs, delivery generally takes three to four weeks.

Q: What is the warranty period for the equipment? A: We provide a one-year warranty starting from the receipt of the goods.

Q: How is the installation handled? A: We provide detailed installation instructions and video support. If necessary, technicians can be sent to assist with on-site setup.
