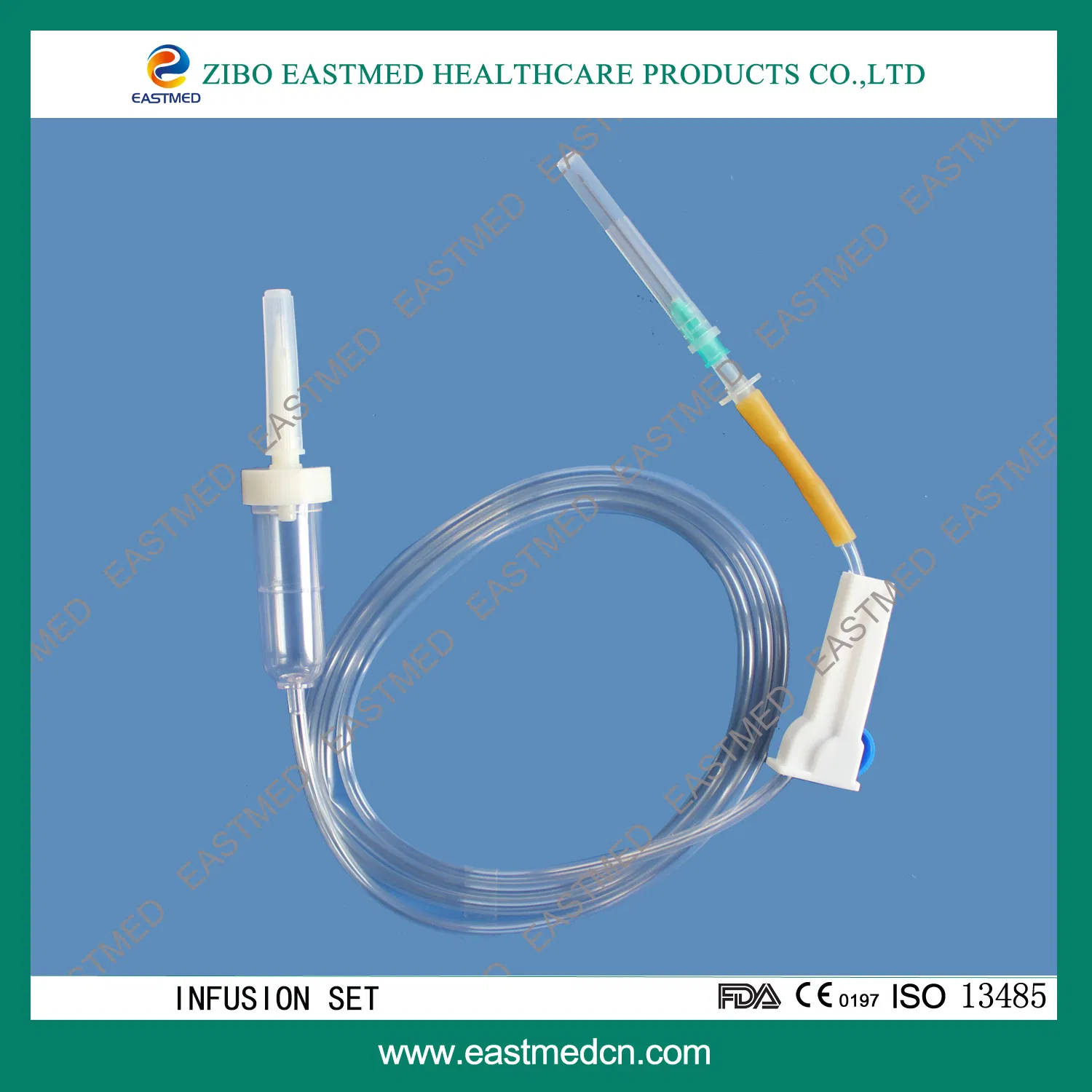

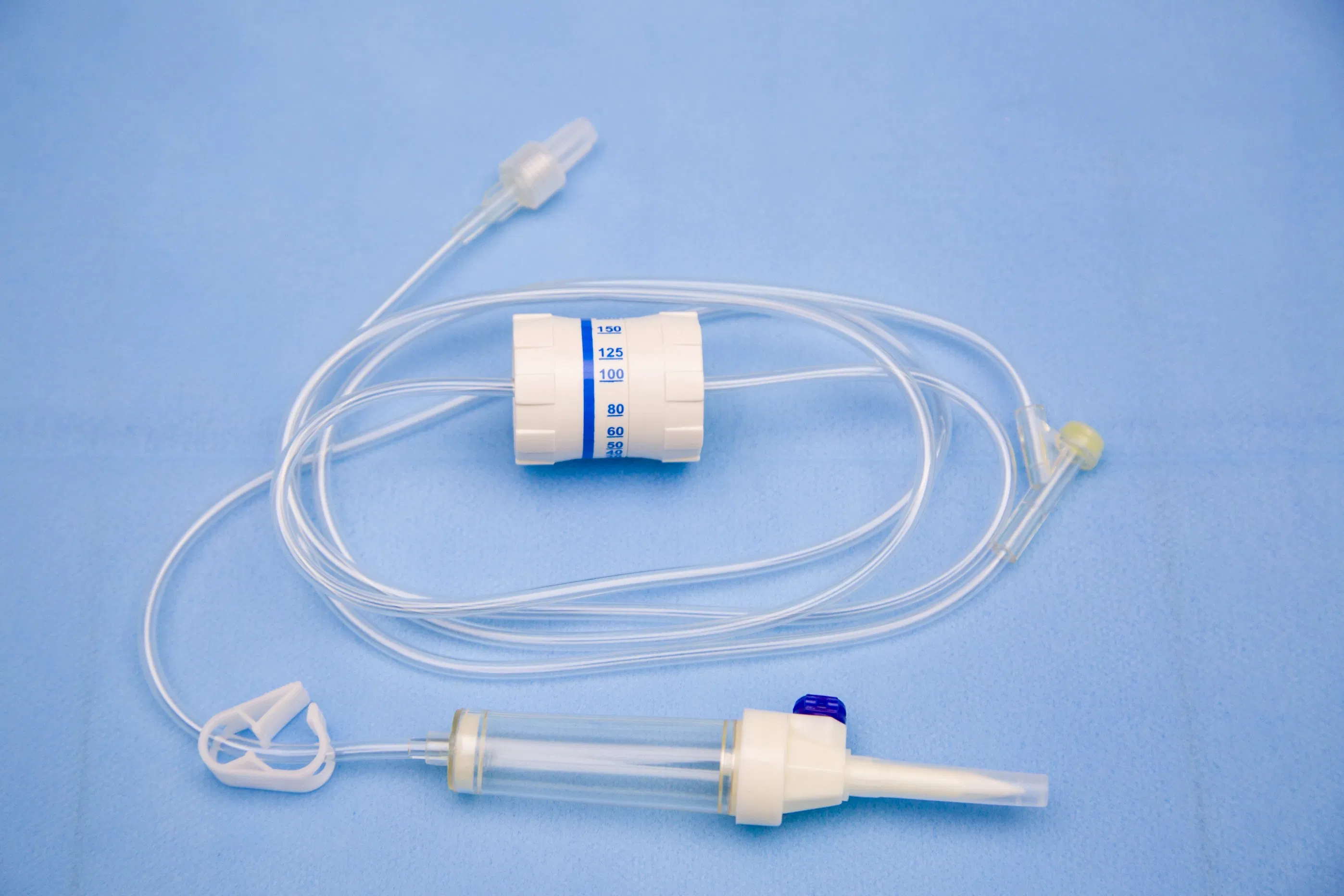

Components List
- Piercing device: Made of medical grade white ABS, with or without air inlet, 3 or 4 holes size according to ISO8536-4 standard.
- Protective cap: Made of PP or PE.
- Drip chamber: Made of soft PVC, size according to ISO8536-4 standards, 4.5cm--7cm in length.
- Fluid filter: Support is made of ABS or PE, nylon net, mesh size: 15 micron.
- Air inlet: Cap is made of red, white, or blue PP.
- Water-repellent filter: PP support, hydrophobic filtering paper, made of acrylic resin and nylon.
- Flow regulator: Made of PP or ABS, normal shape, small size or horned shape, large size.

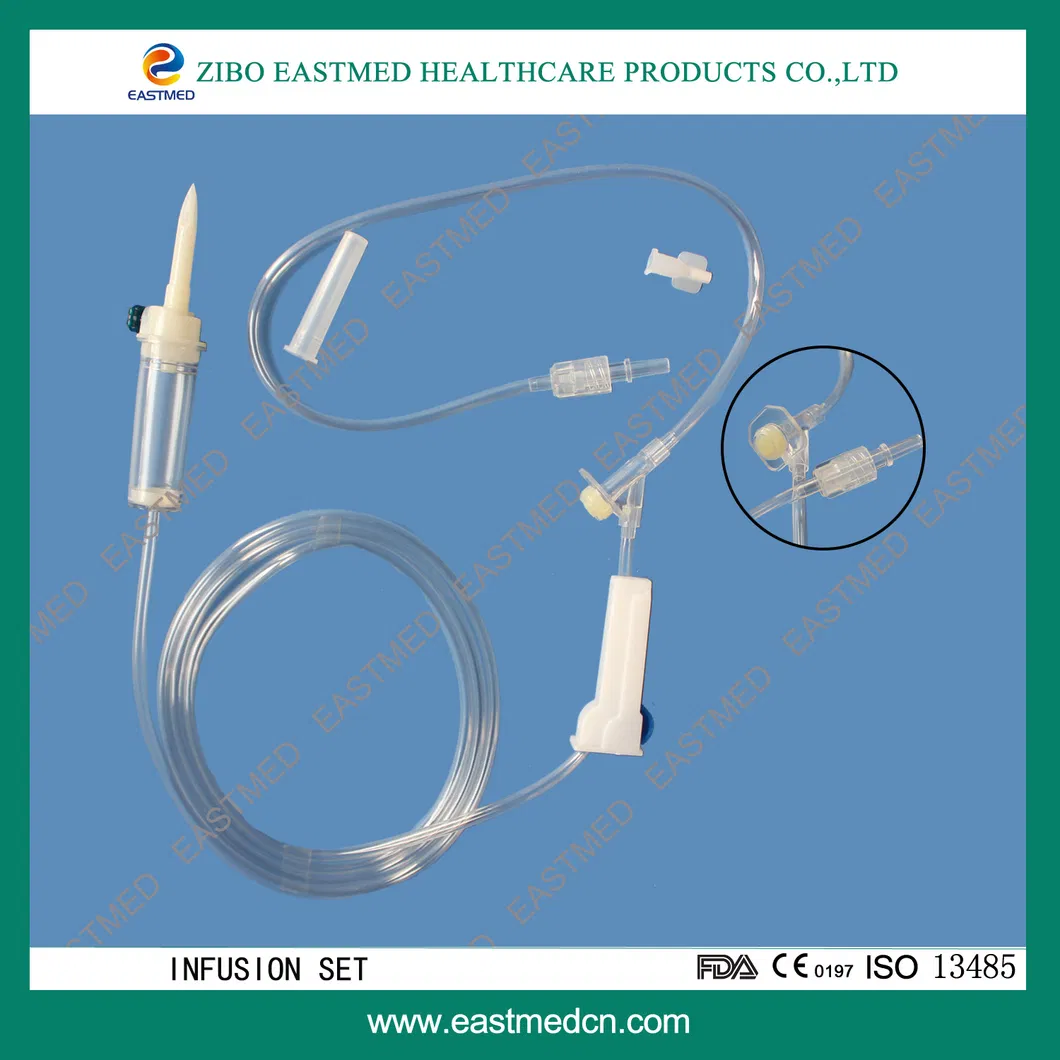

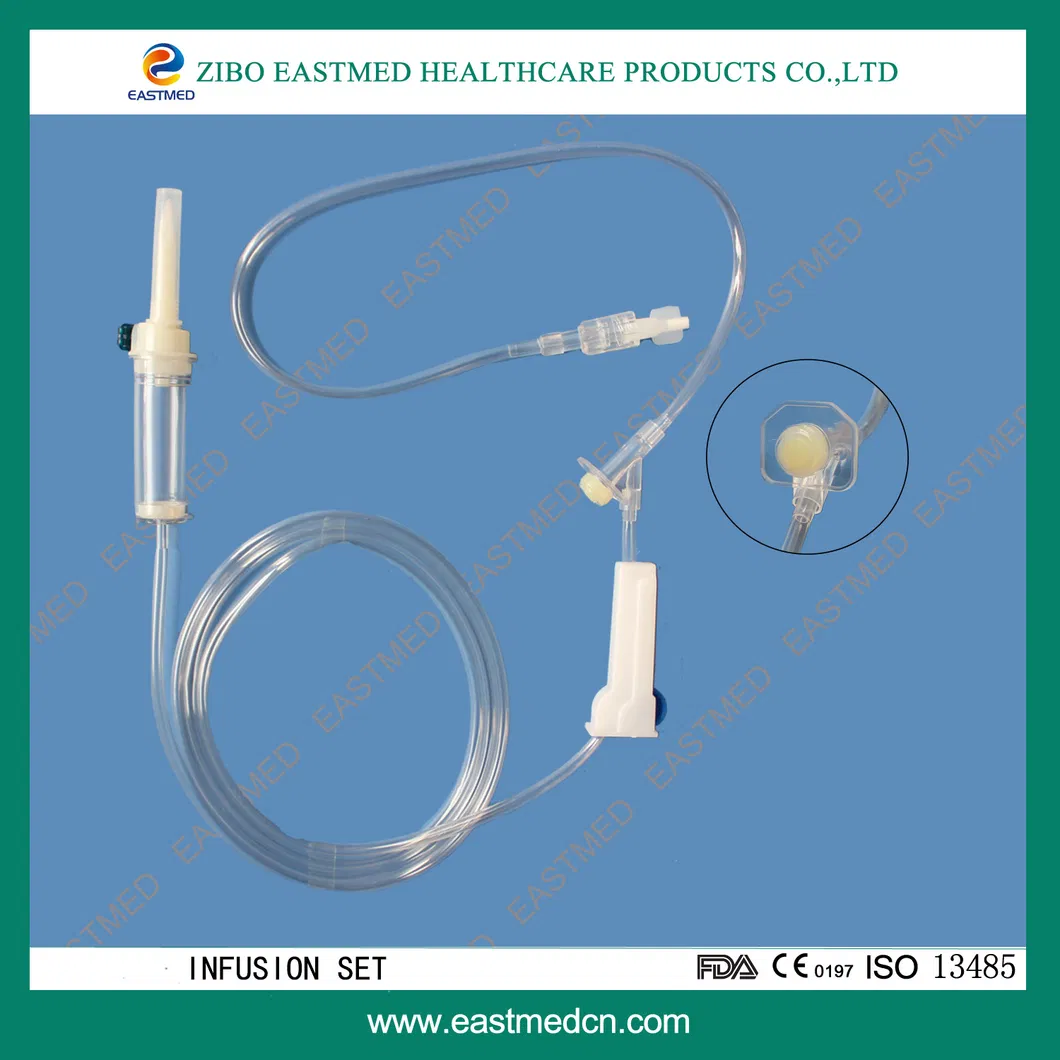

- Injection site: Latex cone, rubber cone, synthetic rubber cone, Y site (made of hard transparent PVC + natural or synthetic rubber).
- Soft tubing: Made of soft medical grade PVC, diameter 3X4mm, 150cm and 180cm in length, or adjustable.
- Terminal connector: Made of PE, PVC, luer lock or luer slip.
- Components assembly: By gluing with solvent cyclohexanone.
Specifications & Suitability
These units are suited to hard containers and soft bags (without air inlet type). They are sterile, non-toxic, and pyrogen-free, sterilized by EOG.
Packing Information

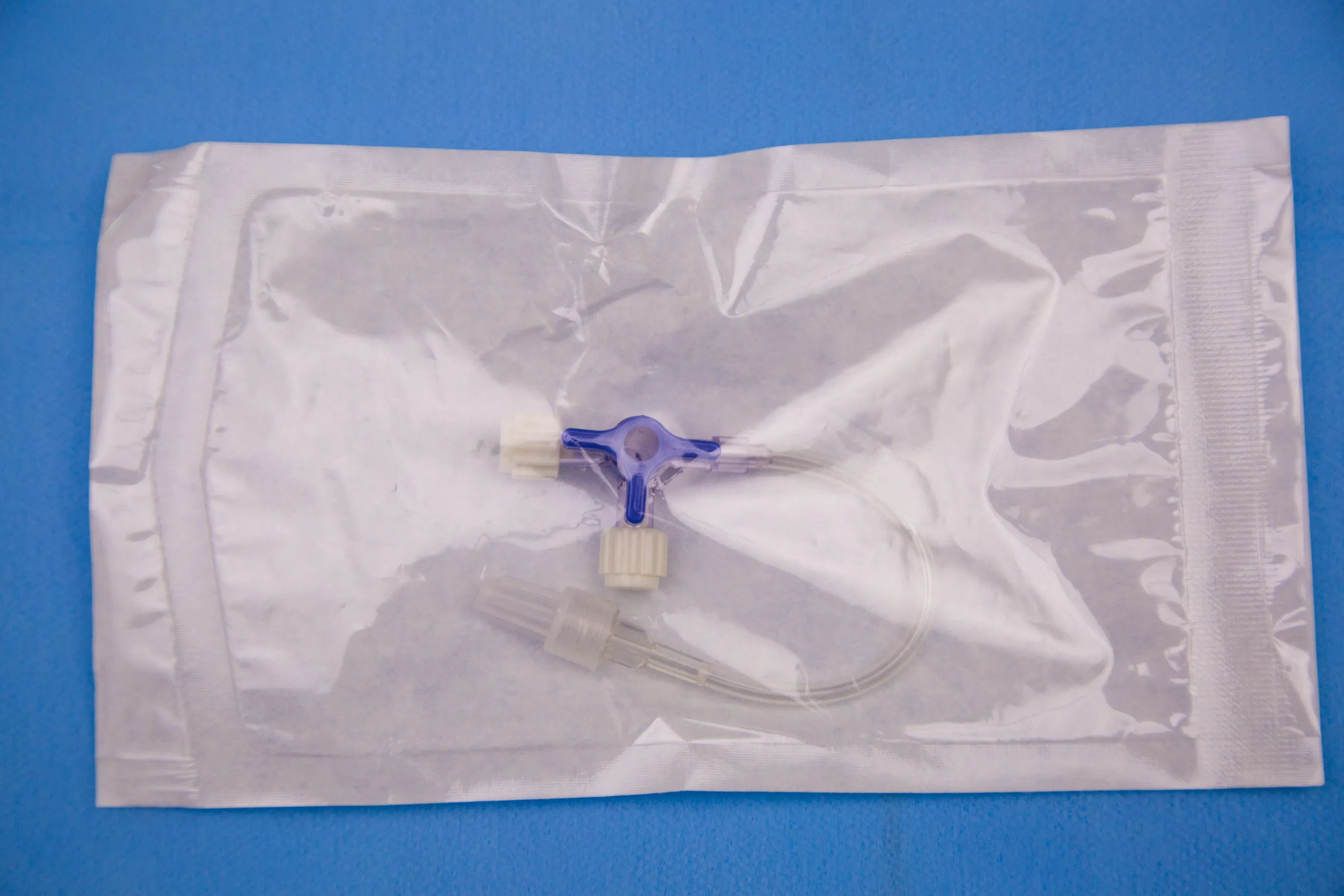

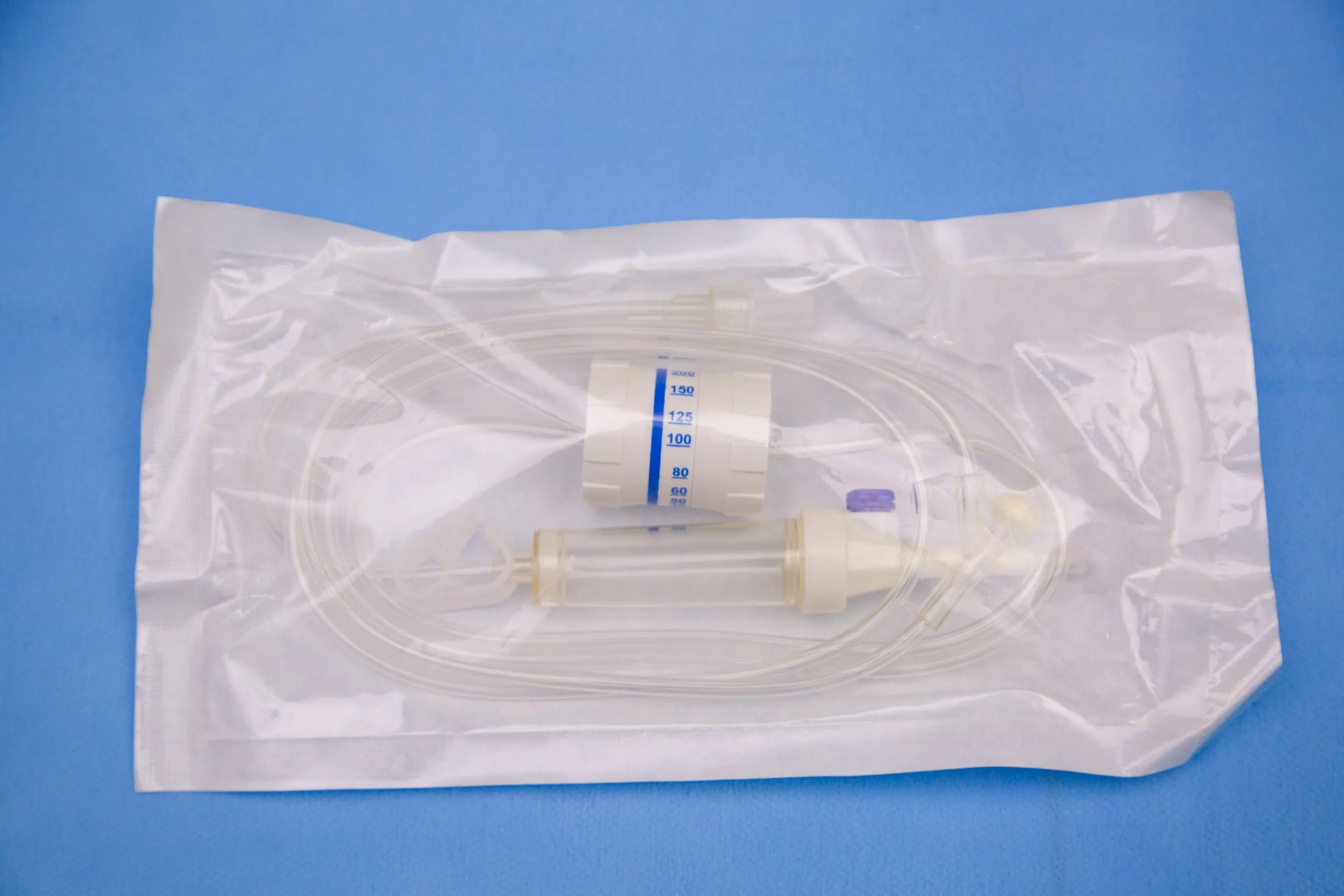

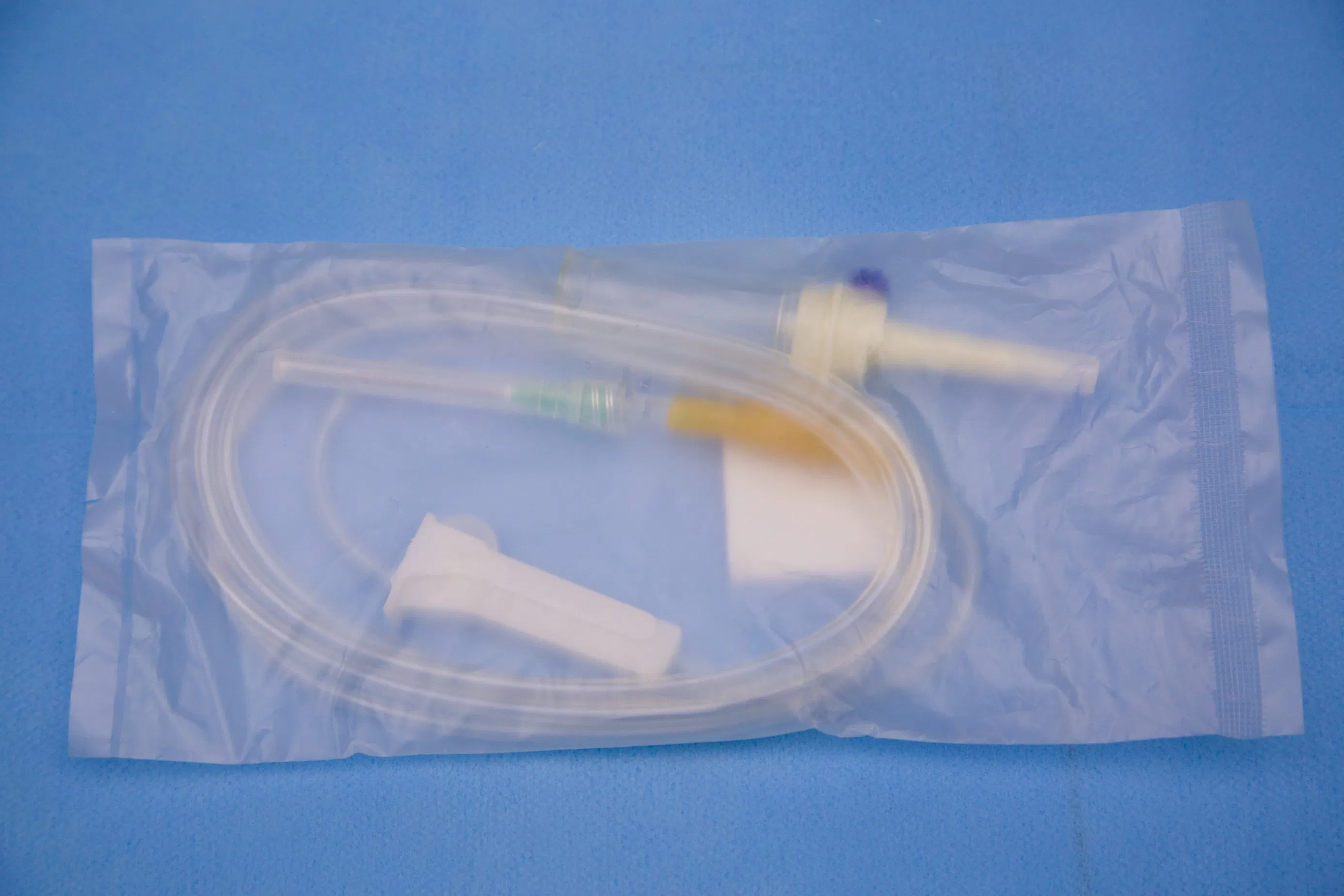

1PC/Individual package, 25PCS/MID paper box, 20 bags/CTN. Carton size changes according to the specific volume of products (volume depends on chamber size, tube length, and different components).
?
Frequently Asked Questions
How is the infusion set sterilized?
The products are sterilized using Ethylene Oxide (EOG), ensuring they are sterile, non-toxic, and pyrogen-free.
What is the quality guarantee period for this model?
The DM018 model comes with a 5-year quality guarantee period from the date of production.
Can the tube length be customized?
Yes, while standard lengths are 150cm and 180cm, the length can be adjusted according to specific requirements.
Are these infusion sets compatible with soft bags?
Yes, they are suited for both hard containers and soft bags (specifically the type without an air inlet).
What standards do the components follow?
Key components like the piercing device and drip chamber are manufactured according to the ISO8536-4 standard.
What materials are used for the injection site?
The injection site can be configured with a latex cone, rubber cone, synthetic rubber cone, or a Y-site made of hard transparent PVC.
