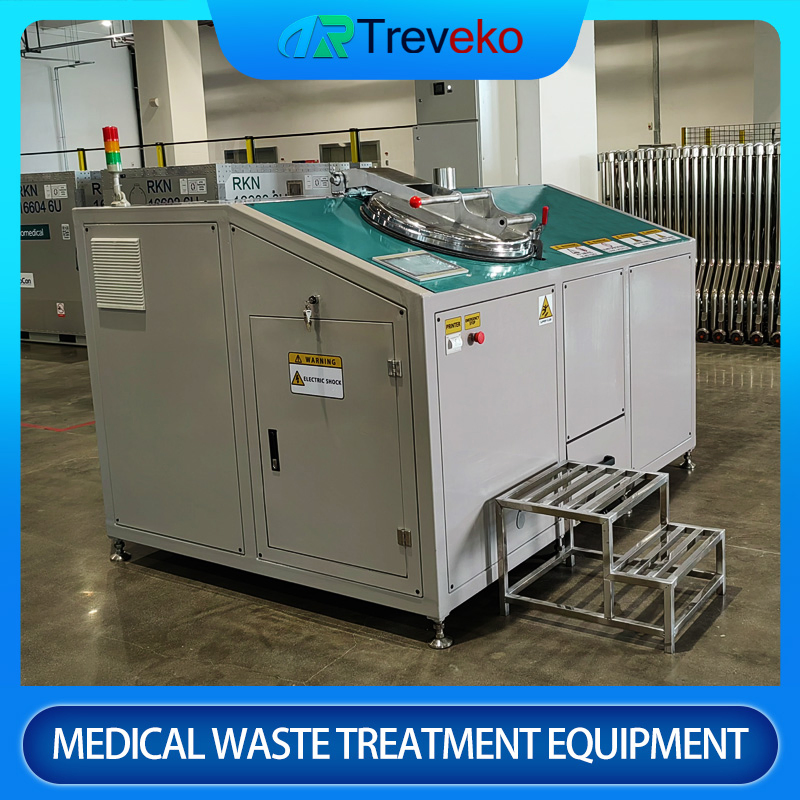

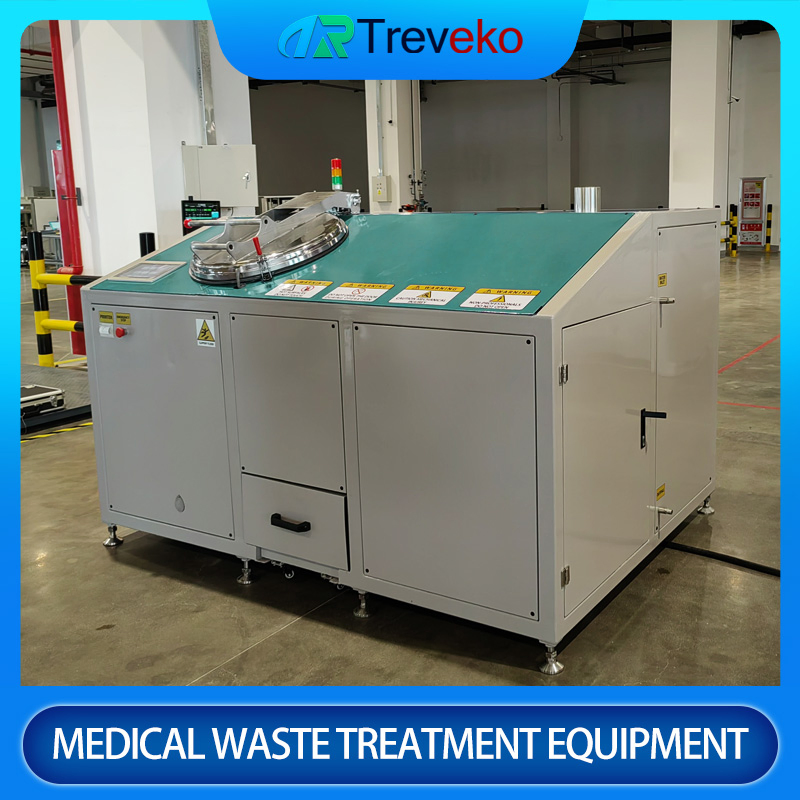

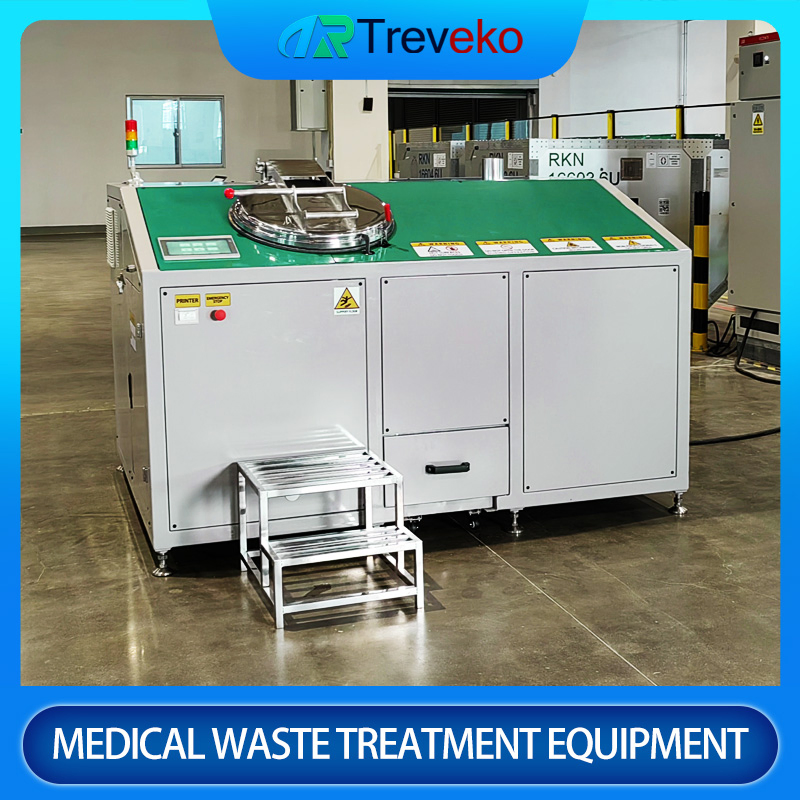

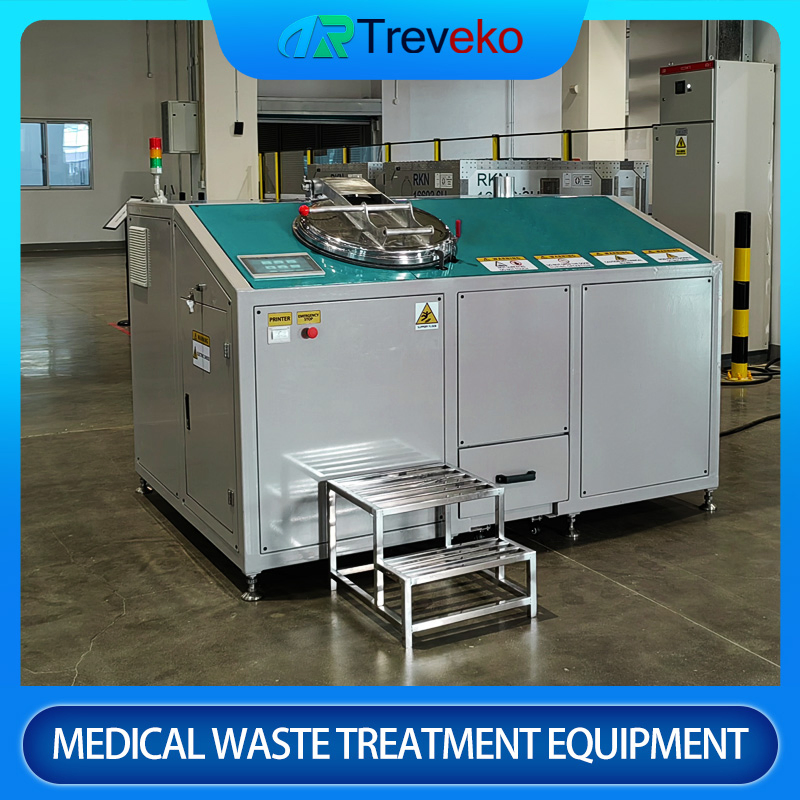

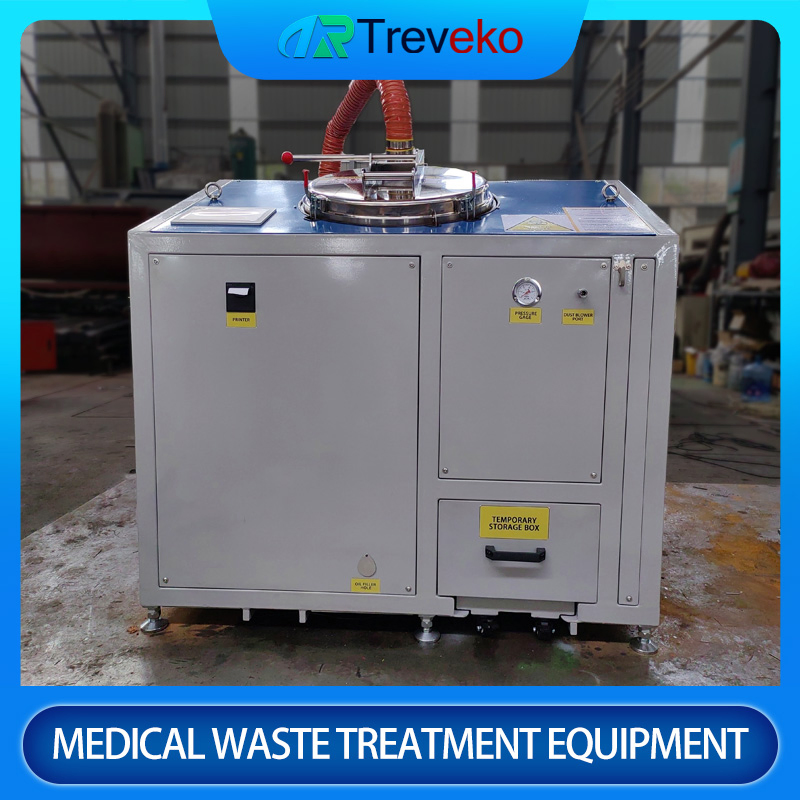

Precision Control Microwave Disinfection Equipment for Clinical and Lab Medical Waste Sterilizing

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
TR-MWT-20
Condition
New
Certification
ISO, CE
Automation
Automatic
Screw
Twin-Screw
Treatment
Microwave and Steam
Total Power
22.5kw
Throughput (Kg/H)
20
Bio-Indicator Efficacy
>99.99% Kill Rate
Volume Reduction
Vol: 80%, Wt: 20%
Product Description

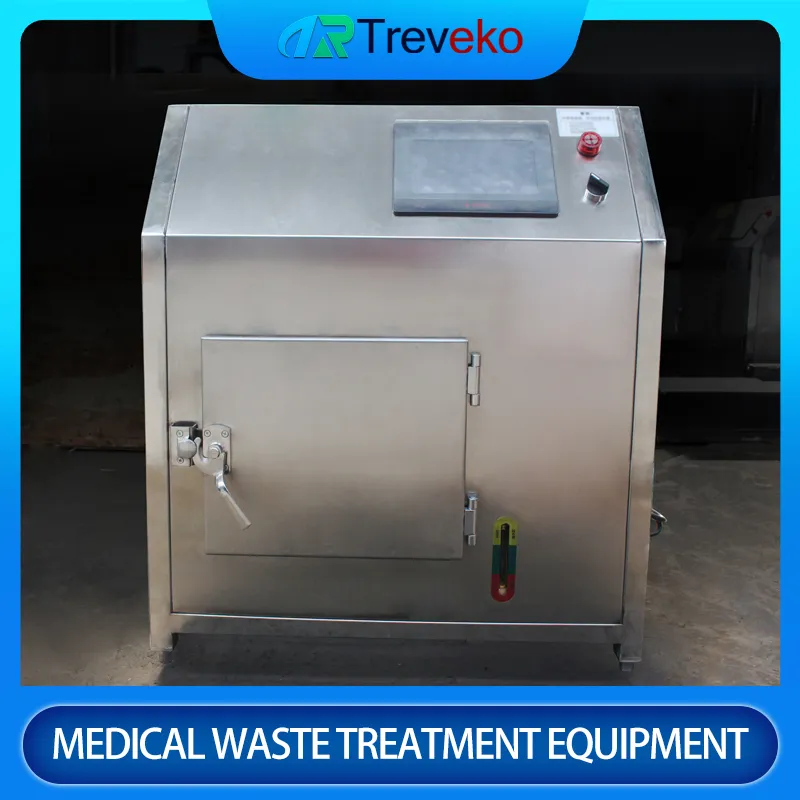

Microwave Disinfection Equipment
This equipment is specifically designed for the small to medium-sized medical waste disposal needs of outpatient clinics, private clinics, and community health service centers.
It is a compact and efficient solution that integrates disinfection, pulverization, and harmless treatment for medical waste such as used syringes, dressing swabs, and soiled gauze.
It effectively eliminates the risk of infection from pathogens, fully complies with national medical waste management regulations, and significantly reduces the cost of off-site waste transportation.
Product Features

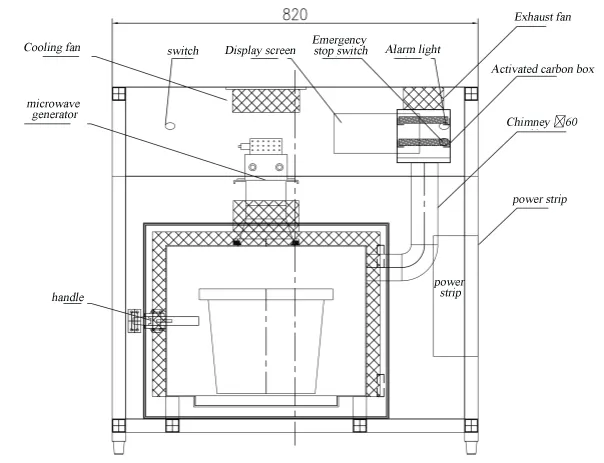

Feature 1

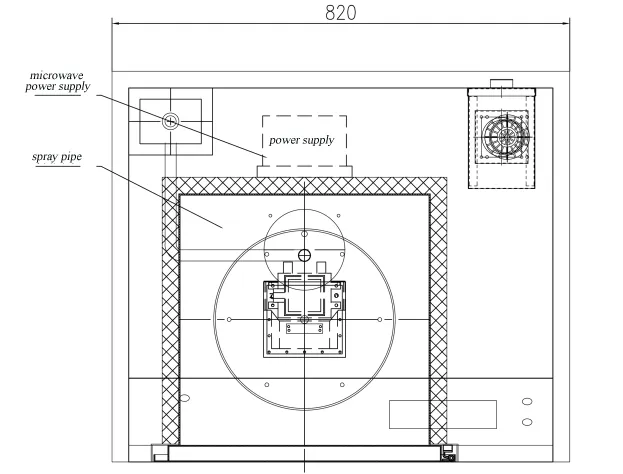

Feature 2
Compact & Flexible: Perfectly adapts to limited space conditions with a small footprint and high adaptability.
Intelligent Control: Equipped with an intelligent temperature and time control system to ensure complete removal of pathogens while saving energy.
Simple Operation: One-button start-up interface allows for immediate use without professional training.
Technical Parameters
Model TR-MWT-2 TR-MWT-10 TR-MWT-20 TR-MWT-50 TR-MWT-100
Silo Volume 10L 40L 100L 250L 500L
Crushing Power - - 15kW 37kW 55kW
Microwave Generator 1.5kw*1 1.5kw*2 1.5kw*2 1.5kw*2 1.5kw*3
Kill Rate >99.99% (Bacillus subtilis var. niger)
Processing Capacity 2 kg/h 4 kg/h 20 kg/h 50 kg/h 100 kg/h
Process Flow

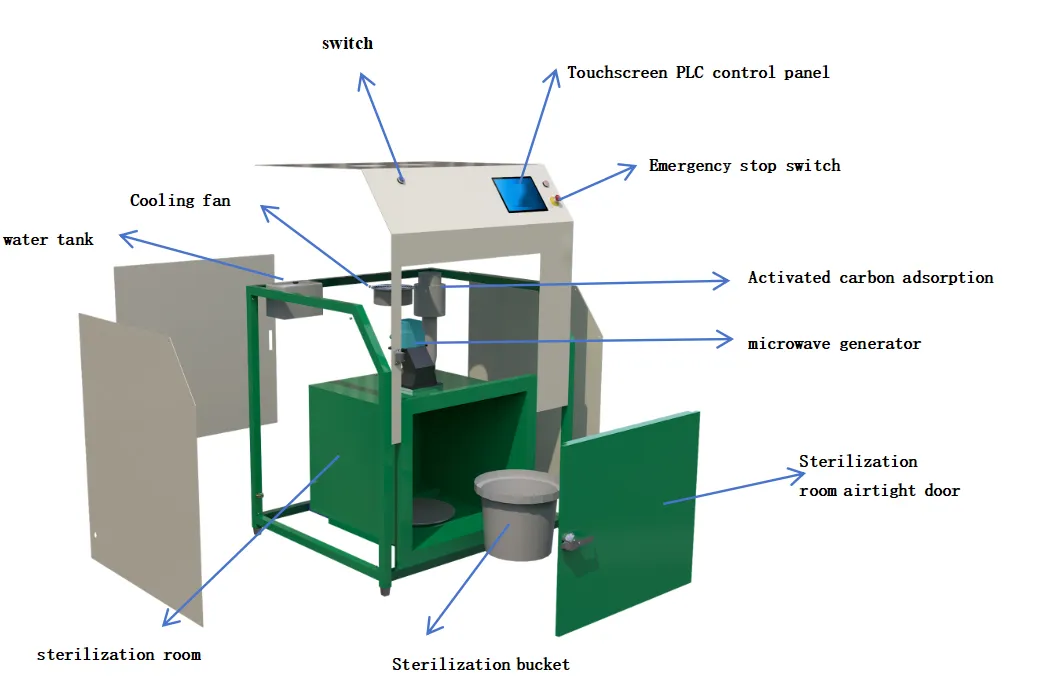

Process Flow Diagram

1. Collected medical waste is placed into the sterilization chamber. Microwaves and high-temperature steam rapidly heat the waste, achieving rapid sterilization.

2. Exhaust gas is filtered through activated carbon via a negative pressure ventilation system to remove odors and VOCs, meeting emission standards.

Company Profile

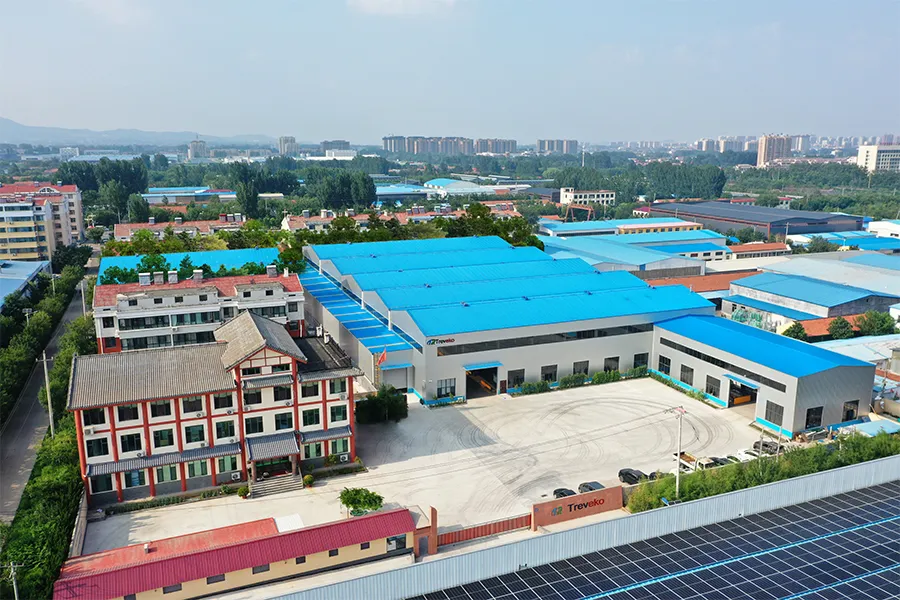

Company Facility

The company is an innovative technology enterprise committed to becoming an industry pioneer in environmental protection technology and high-end intelligent manufacturing. We focus on ecological environment governance and sustainable development, driving the industry towards intelligence and resource utilization through disruptive technological innovation.

We have built a complete value chain ecosystem, encompassing R&D, intelligent manufacturing, and digital operation services. We strictly adhere to international quality standards to ensure superior quality at every stage.

Customer Visit
Customer Visit 1
Customer Visit 2
Customer Visit 3
Customer Visit 4
Customer Visit 5
Customer Visit 6
Frequently Asked Questions
Are you a factory or a trading company?
Yes, we have our own professional manufacturing factory specializing in environmental protection equipment.
Can the equipment be customized to meet specific requirements?
Yes. We support customization of core parameters such as processing capacity, overall size, and control systems to fit your facility's needs.
What is the sterilization efficacy of the microwave system?
The equipment achieves a spore-killing rate of over 99.99% for Bacillus subtilis var. niger, ensuring complete disinfection.
How is the exhaust gas handled during the process?
Exhaust gas is treated through a negative pressure system with activated carbon filtration to effectively remove odors and pollutants.
What is the warranty period for this equipment?
We provide a 1-year warranty and offer free repair services for any quality problems that emerge within the warranty period.
Is the disinfection process traceable?
Yes, the control system allows for a traceable process where records can be printed out or stored on an SD card for compliance.
