Classification: Urine Sediment Analysis System
Type: Urine Analyzer
Certification: ISO13485
Send Inquiry

Product Description

Basic Information
Model NO.:CCL-U1800
Warranty:1 Year
Package:Standard Export Package
Specification:Standard
Origin:China
Capacity:500 units/Month

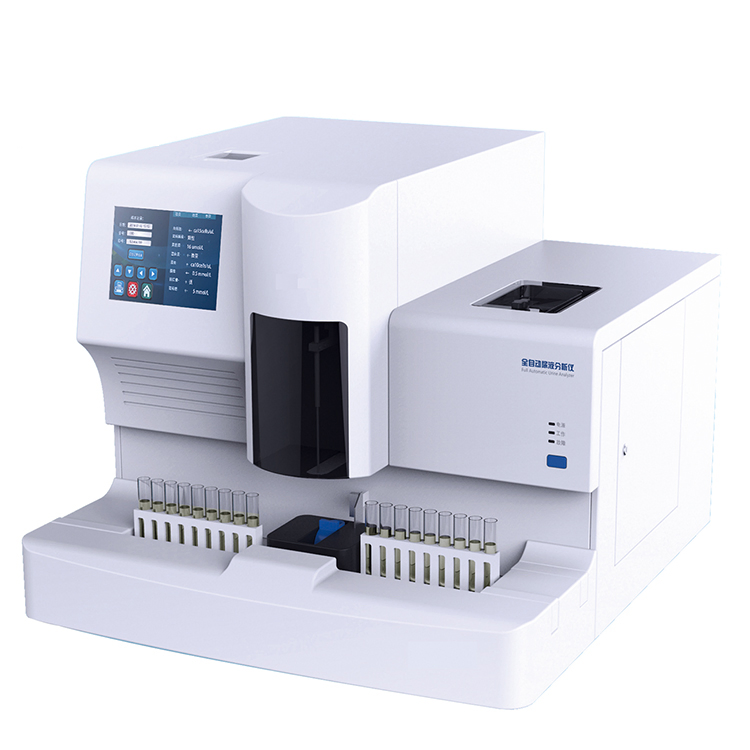

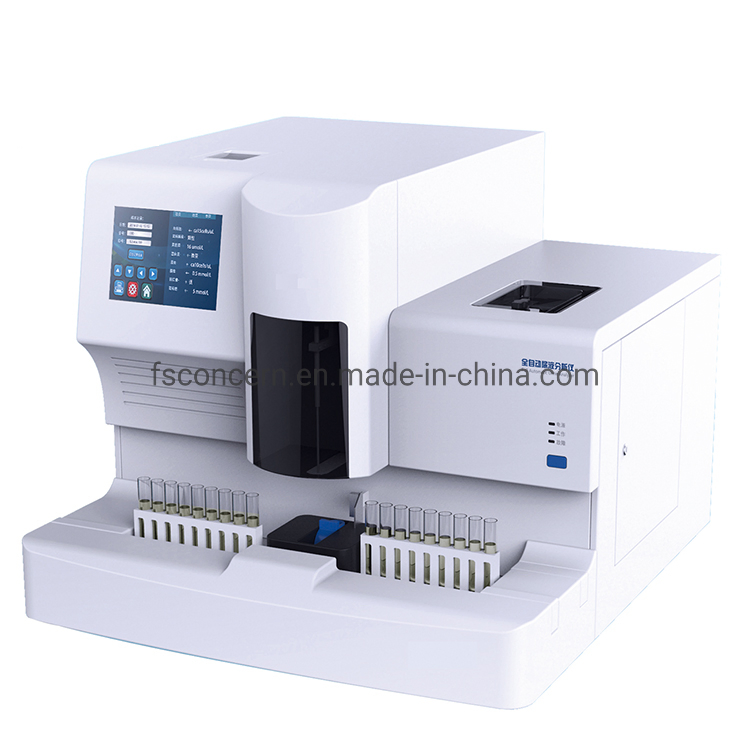

Hospital Lab High Accuracy Instrument Automatic Clinical Urine Detection Equipment

Model: CCL-U1800

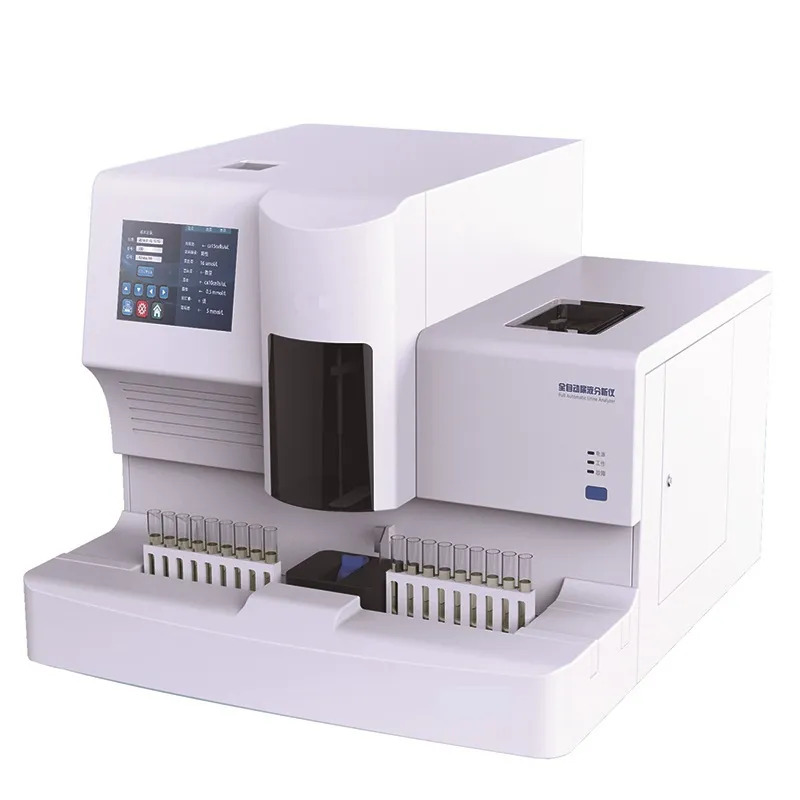

Automatic Clinical Urine Detection Equipment
Description

This full automatic urine analyzer is a high accuracy instrument for clinical detection of urine which uses microprocessor technology and photoelectric technology research. It is operated by a color touch screen which has a high intelligent degree and provides accurate results.

Technical Specifications
Performance

Test Speed: 240 strips/hour
Data Storage: 10,000 test records

Environment

Temp: 15ºC ~ 35ºC
Humidity: ≤80%
Altitude: ≤2000 m

Output & Link

Interface: RS-232, Parallel Port
Barcode: Linkable reader
BPS: 4800 to 14400

Physical Spec

Weight: 60 Kg
Dimensions: 697mm * 557mm * 752mm
Power: 250 VA

Product Features
8-inch color touch LCD screen with menu operation interface.
New cold light sourcing technology for high sensitivity and stability.
Automatic identification of sample position and information.
Accommodates up to 200 urine strips and 120 samples.
Emergency insertion function for priority sample processing.
Accurate quantitative sampling to avoid cross-pollution.
Technical Standards
Item Technical Standard
PrincipleReflection photometer determine color changes and calculate concentration
Wavelength520nm / 565nm / 620nm / 670nm
Reaction time60 seconds
Processing speed240 reports/hour
Capacity of strips200 pieces
Sample volume2ml (Required), 0.9ml (Used)
Display8 inch color touch screen
Data storage10,000 test reports
Packaging & Delivery
Supply Ability:100 sets per month
Packaging:1 Set/carton, 697*557*752mm, ~60kg
Lead Time:3-15 days depending on order size
Urine Analyzer View 1 Urine Analyzer Details Urine Analyzer View 2
One-Stop Medical Solutions
Department Solutions X-Ray Room: Machine, Processor, Film, Cassette, Lead Protections
Ultrasound: B/W 2D, 2/3/4D Color Ultrasound
Laboratory: Chemistry, Hematology, ELISA Reader, Centrifuge, Urine Analyzer
Operation Room: Anesthesia, Ventilator, Operating Lamp/Table, Patient Monitor
Frequently Asked Questions (FAQ)
1. What is the testing speed of the CCL-U1800 urine analyzer?
The instrument can process up to 240 strips per hour, making it highly efficient for hospital labs.
2. Does the device support automated system connections?
Yes, it features a standard RS-232 interface, allowing it to be connected to LIS (Laboratory Information System) and HIS (Hospital Information System).
3. How many test results can be stored in the memory?
The internal flash memory can store up to 10,000 test records, which are saved simultaneously as testing progresses.
4. What type of urine test strips are compatible?
It is compatible with 8A, 10A, 11A, 12A, 13A, and 14A urine test strips.
5. Does the analyzer require sample pretreatment?
No, samples do not need centrifugation or pretreatment. The instrument tests automatically once the sample rack is placed inside.
6. Is the screen easy to operate for medical staff?
Yes, it features an 8-inch color touch LCD screen with an intuitive menu interface for convenient operation.
