Physiotherapy Equipment Elderly Care Products Upper and Lower Limbs Rehabilitation Bike

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
SL4
Theory
Motion Relearning
Certification
ISO13485
LCD Display
With LCD Display
Application
Hospital, Rehab Centers
Modes
Active, Passive, Assissted, Resistance
Programs
Standard, Relaxing, Coordination
Training Duration
1-120min
Torque
1-10nm
Voltage
AC220V/50Hz
Product Description

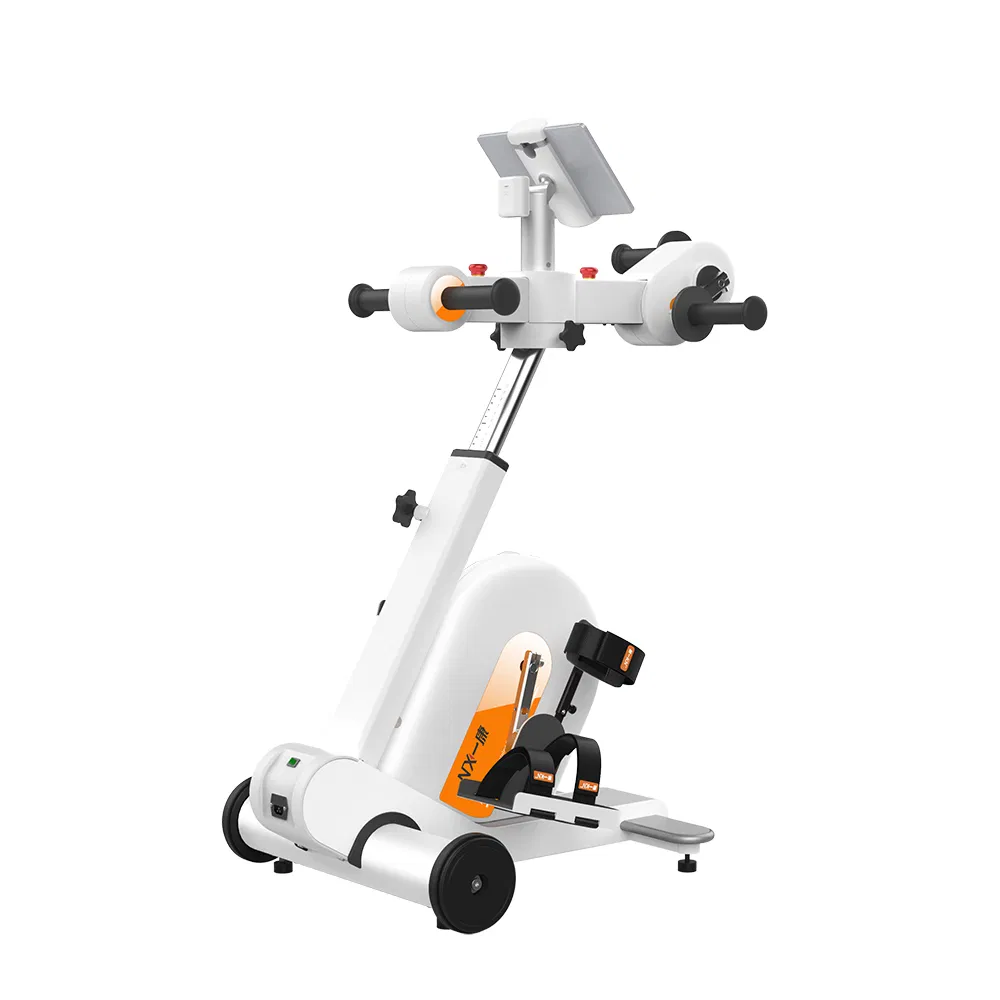

Active Passive Training Bike SL4
Active Passive Training Bike SL4

Rehab bike SL4 is a kinesiotherapy device with intelligent programs. SL4 can enable passive, assist, and active (resistance) training on patients' upper and lower limbs through the control and feedback of the program. The bike can help to improve the function of limb joints and muscles and promote the recovery of limb neuromuscular control function.

Technical Specifications
Product NameActive Passive Training Bike
ModelSL4
ApplicationHospitals, Rehabilitation Centers
VoltageAC 220V 50Hz
Power250VA
ModesActive, Passive, Assisted, Resistance
Duration1-120 min
Maximum Rev.61-150 r/min
Torque1-10Nm
Resistance0-20Nm
Applications

Suitable for dysfunction of upper and lower limbs due to stroke, brain trauma, spinal cord injury, cerebral palsy, Parkinson's syndrome, multiple sclerosis and other neurological diseases, sports injury and orthopedic diseases.

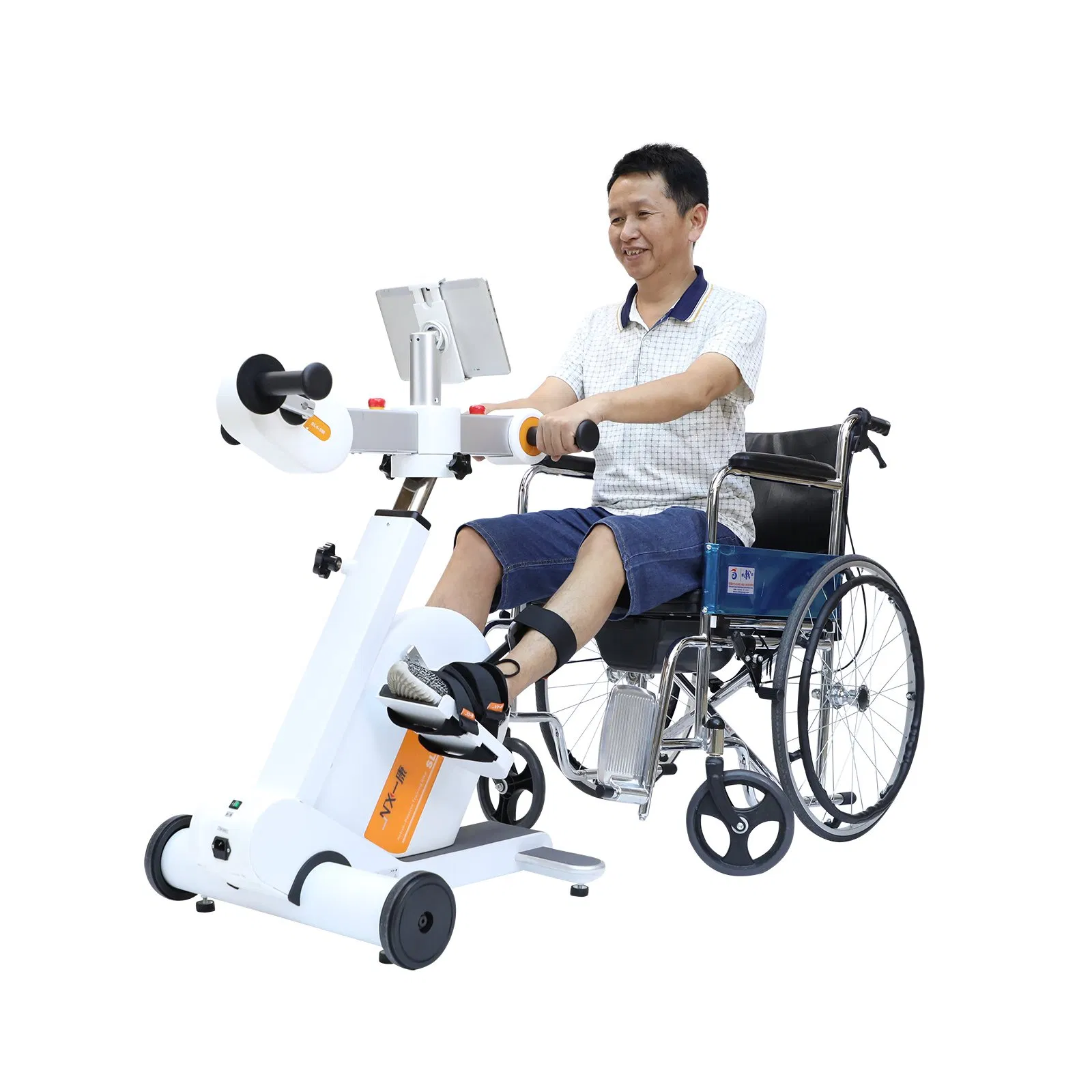

Application of Rehab Bike
Key Features
1
Training Modes: Active, passive, active-passive and assist modes.
2
Programs: Standard, symmetrical game, spring game, relaxation, strength and endurance, and coordination programs.
3
Automatic Detection: The training bike will monitor the strength of patients and shift modes accordingly.
4
Training Analysis: Automatically analyzes training time, mileage, power, and energy consumption.
5
Spasm Protection: Detects spasms automatically and initiates safety programs.

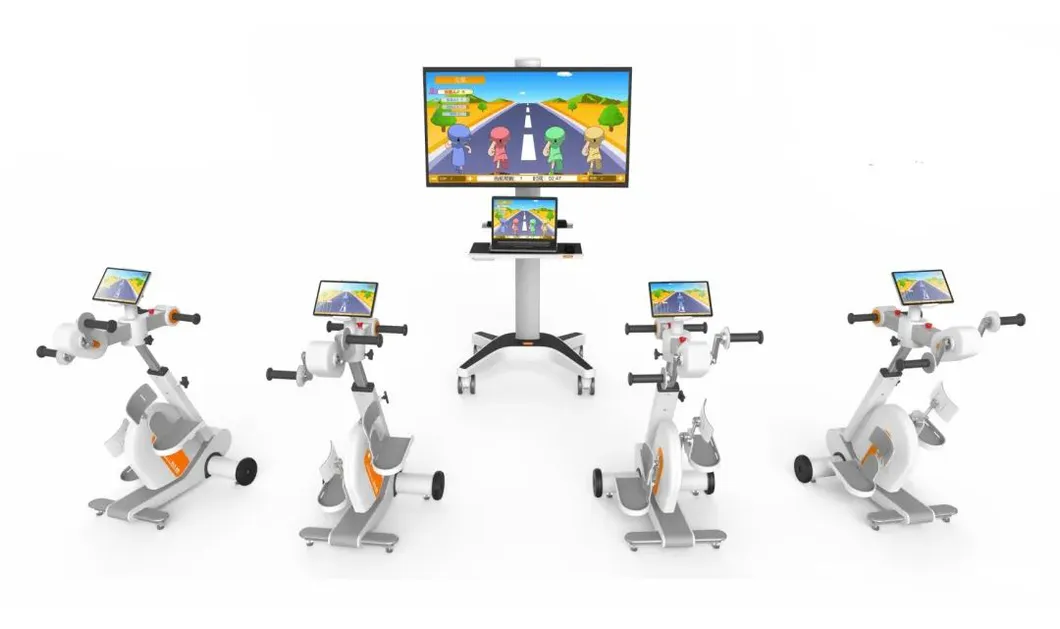

Product Highlights

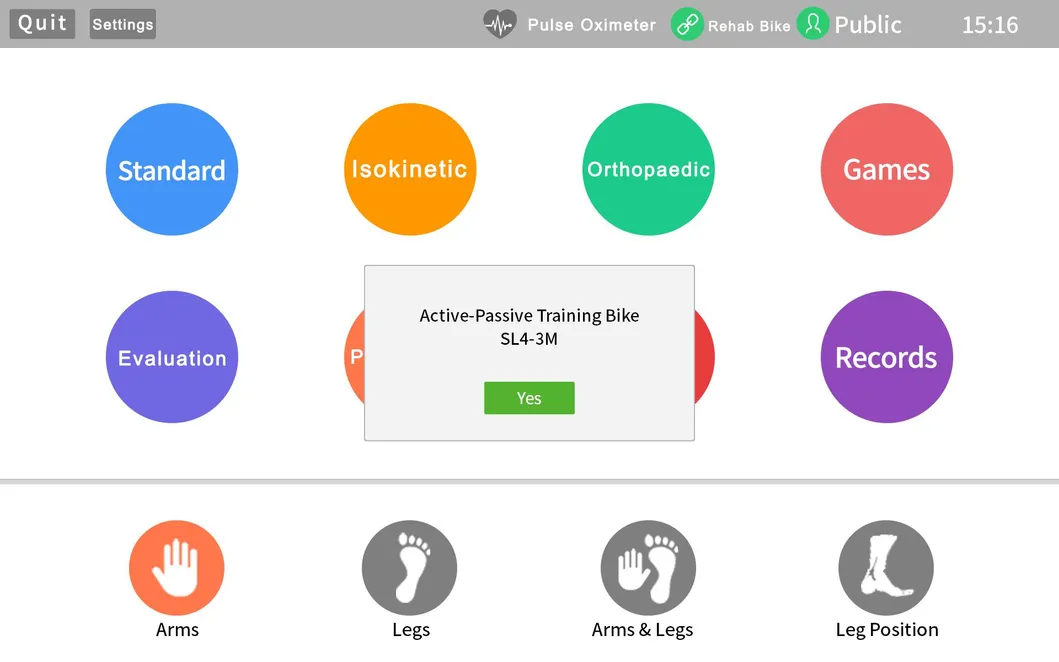

Intelligent Software Interface

The system features 6 built-in training modes applicable to patients with different recovery needs.

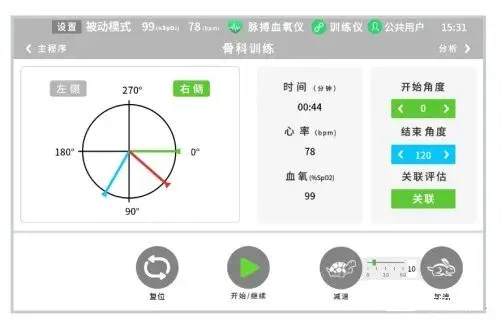

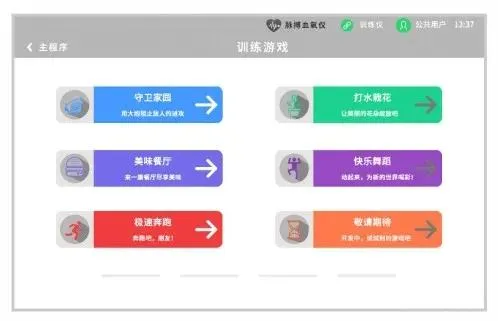

Interface 1 Interface 2
Core Programs

1. Standard Program: Basis of clinical training, including active, passive, and assist modes.

2. Symmetrical Game: Detects muscle strength symmetry and interacts via graphics to complete limb control training.

3. Spring Game: Guides patients to use force on a biased side to achieve coordination through repeated motion.

Professional Manufacturing
Manufacturing

As a leading manufacturer of rehabilitation equipment since 2000, we specialize in physiotherapy equipment and rehabilitation robotics. We offer comprehensive scientific product portfolios and holistic center construction solutions.

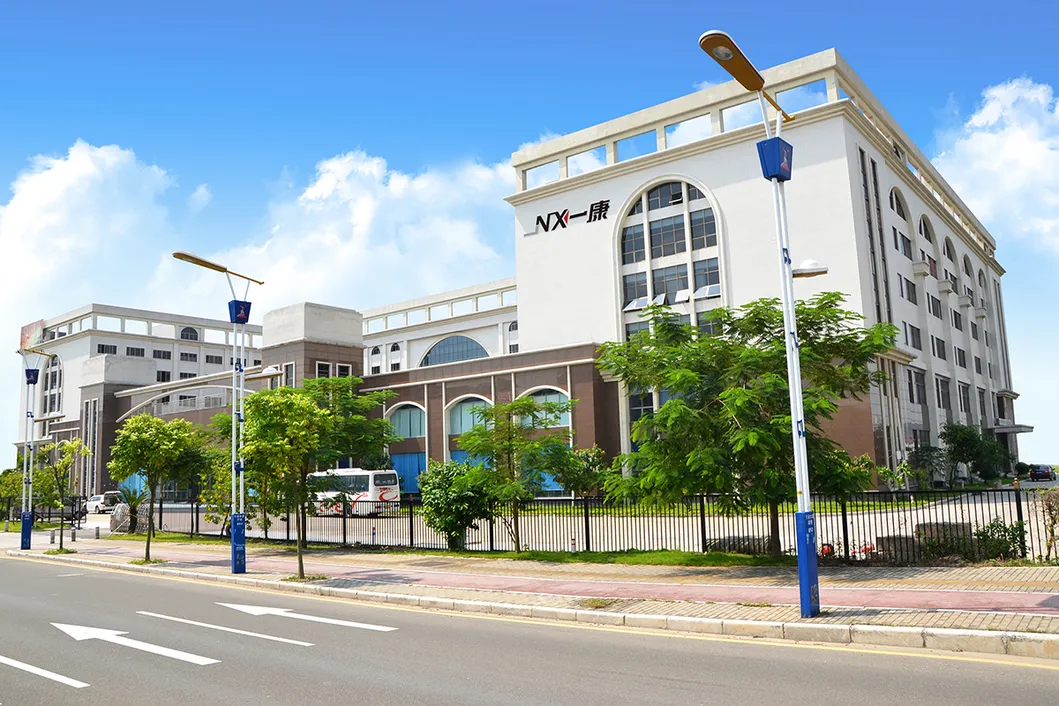

Facility 1 Facility 2
Certifications
Certificates
Frequently Asked Questions
What are the different training modes of the SL4 bike?
The SL4 offers four primary modes: Passive (motor-driven), Assist (motor helps the patient), Active (patient provides the power), and Resistance (adjustable difficulty for strength building).
Who can benefit from using this rehabilitation bike?
It is designed for patients with upper or lower limb dysfunction caused by stroke, brain trauma, spinal cord injuries, Parkinson's, or orthopedic conditions.
How does the Spasm Protection feature work?
The system monitors the motor's feedback. If it detects a sudden muscle spasm from the patient, the motor immediately stops and reverses slightly to ensure patient safety.
Can it be used for both arms and legs?
Yes, the SL4 is an integrated system that supports training for both upper and lower limbs to promote total body recovery.
Does the system provide training reports?
Yes, after each session, the system automatically analyzes and displays data such as total training time, mileage, power output, and energy consumption.
Is the resistance level adjustable?
Yes, in active mode, the resistance can be adjusted from 0 to 20Nm to accommodate the patient's specific recovery stage and strength.
