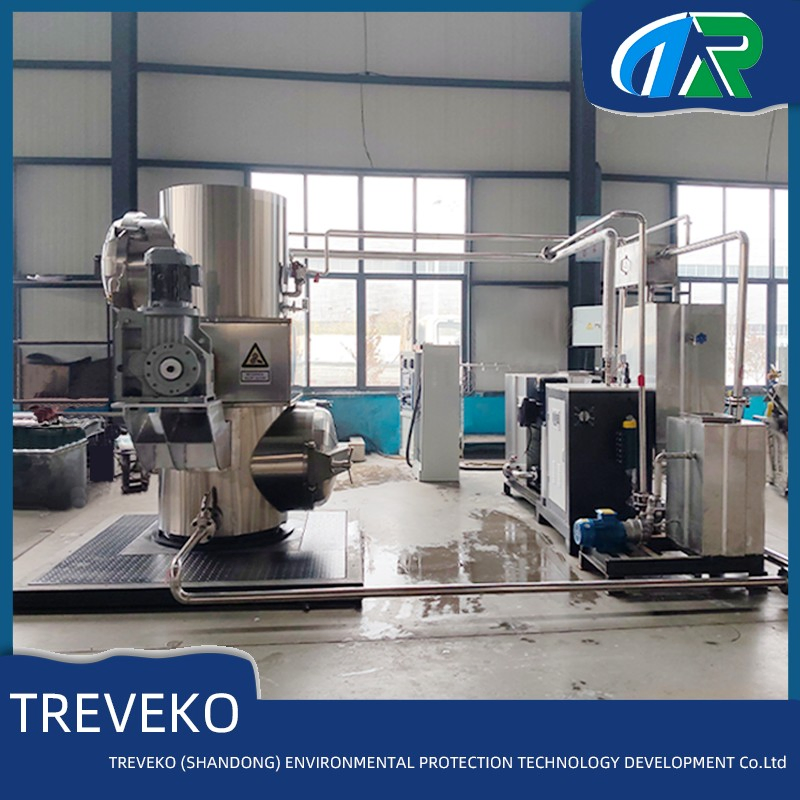

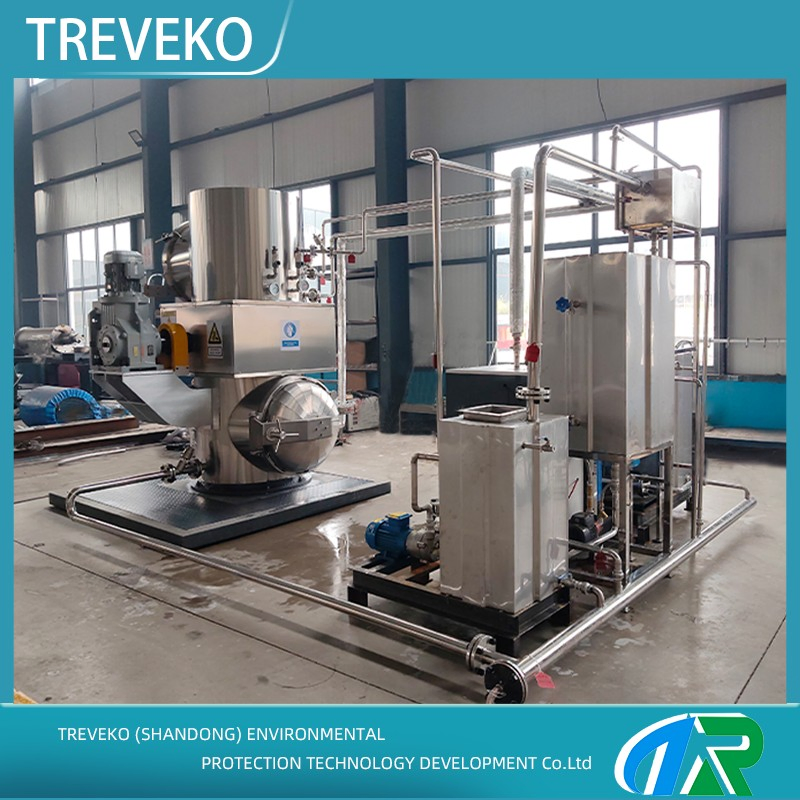

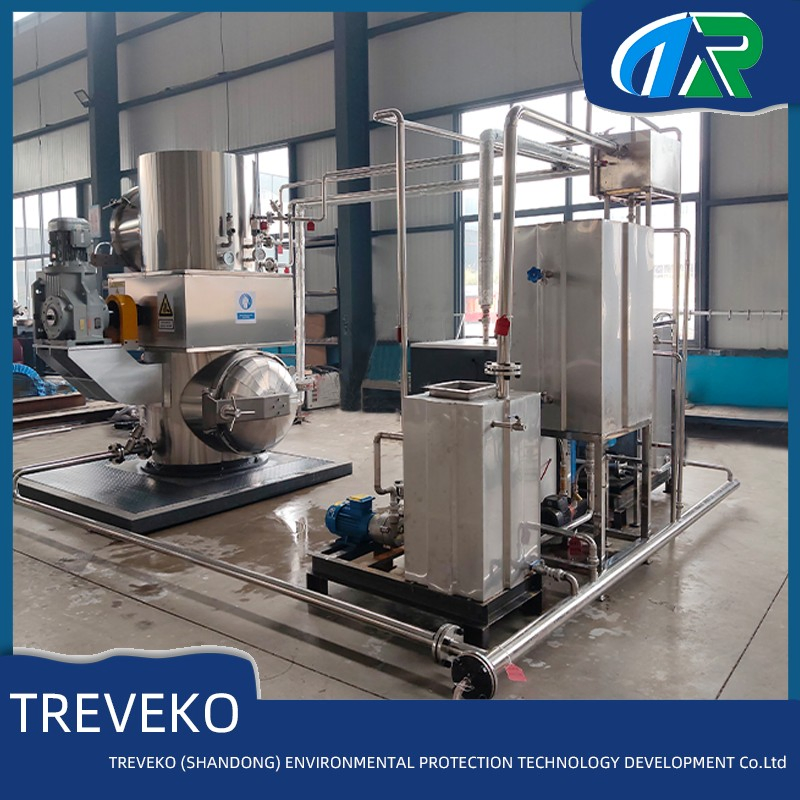

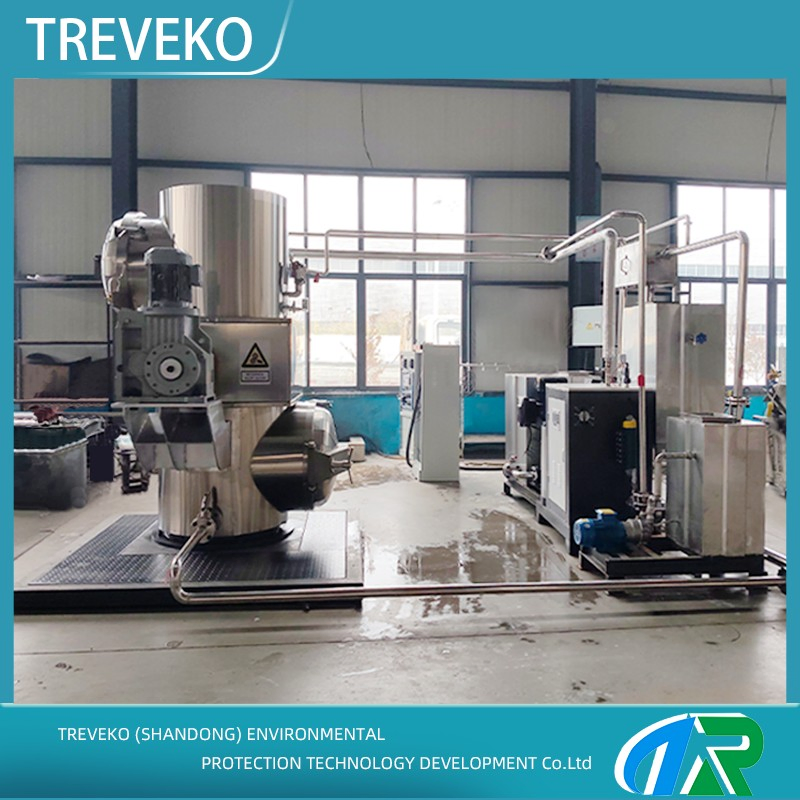

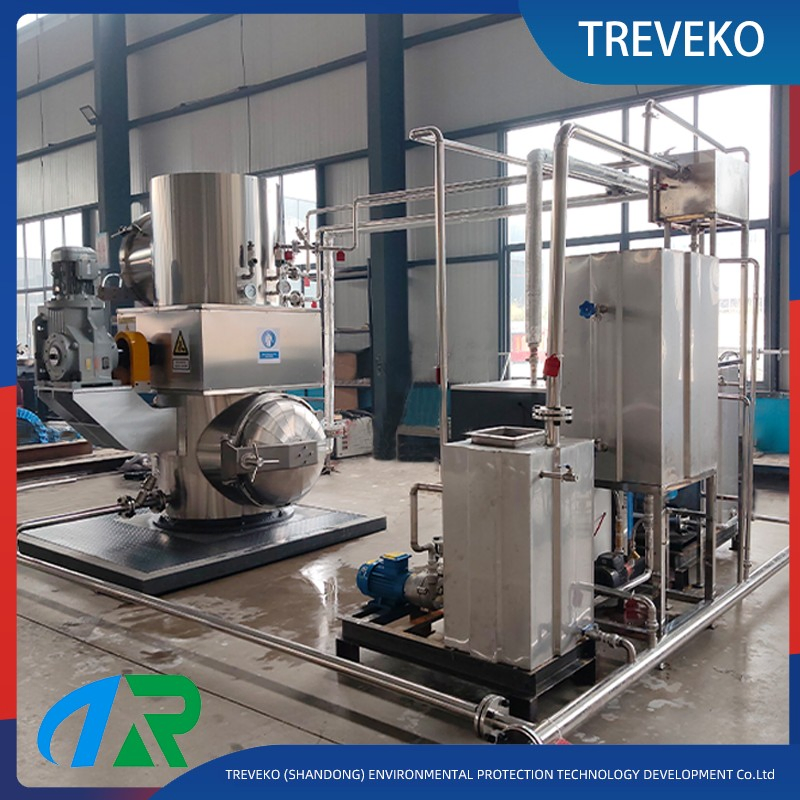

Medical Waste Vertical Steam Sterilization Equipment for Clinical/Laboratory Waste
Medical Waste Vertical Steam Sterilization Equipment for Clinical/Laboratory Waste
Medical Waste Vertical Steam Sterilization Equipment for Clinical/Laboratory Waste
Medical Waste Vertical Steam Sterilization Equipment for Clinical/Laboratory Waste
Medical Waste Vertical Steam Sterilization Equipment for Clinical/Laboratory Waste
1 / 5
Medical Waste Vertical Steam Sterilization Equipment for Clinical/Laboratory Waste
Medical Waste Vertical Steam Sterilization Equipment for Clinical/Laboratory Waste
Medical Waste Vertical Steam Sterilization Equipment for Clinical/Laboratory Waste
Medical Waste Vertical Steam Sterilization Equipment for Clinical/Laboratory Waste
Medical Waste Vertical Steam Sterilization Equipment for Clinical/Laboratory Waste

Medical Waste Vertical Steam Sterilization Equipment for Clinical/Laboratory Waste

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
TR-VMT
Condition
New
Certification
ISO, CE
Automation
Automatic
Screw
Twin-Screw
Treatment
Steam
Processing Capacity
60kg/H
Sterilization Method
High-Temperature Steam
Working Temp
134℃
Volume Reduction
≥ 85%
Weight Reduction
≥ 15%
Motor Power
7.5 Kw
★

Product Overview

The Medical Waste Vertical Steam Sterilizer is an automated, integrated treatment system designed for safe and efficient disposal of infectious and sharp medical waste. Utilizing high-temperature saturated steam under pressure, it ensures thorough sterilization in compliance with WHO standards and Chinese technical specifications (HJ 276–2021).

The system features a fully enclosed process—from sealed feeding and crushing to steam sterilization, cooling, and drying—minimizing operator exposure and environmental impact. Equipped with a PLC-based control interface, it supports both automatic and manual operation, real-time monitoring, and data logging.

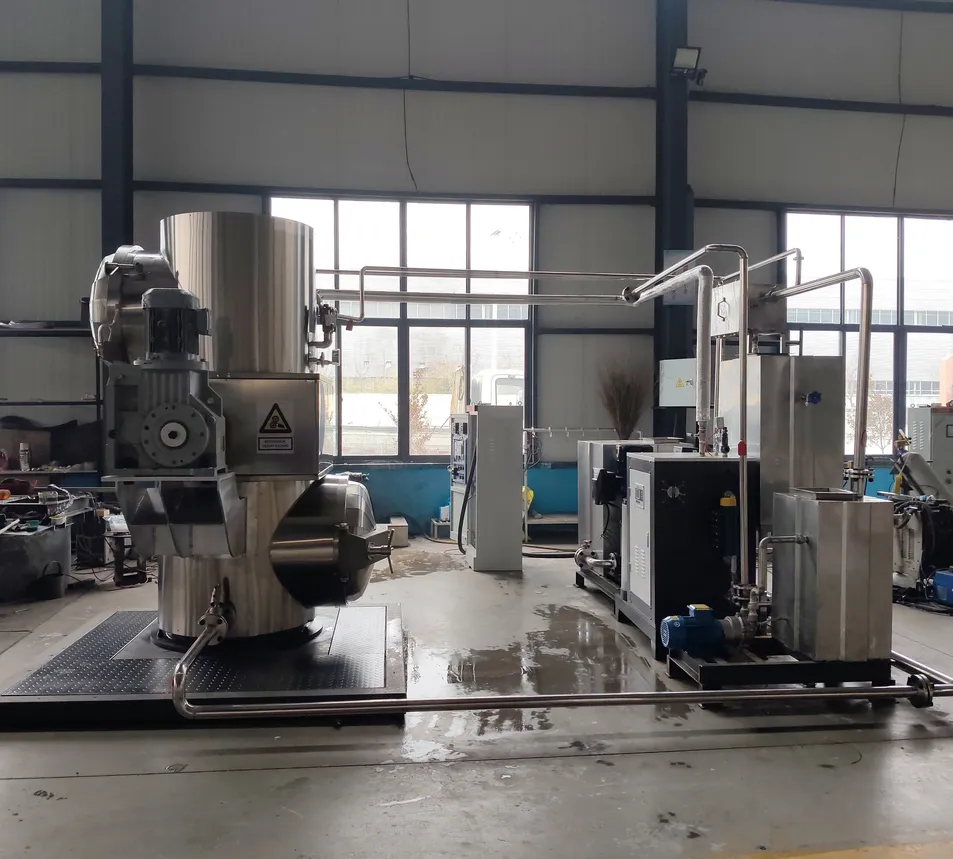

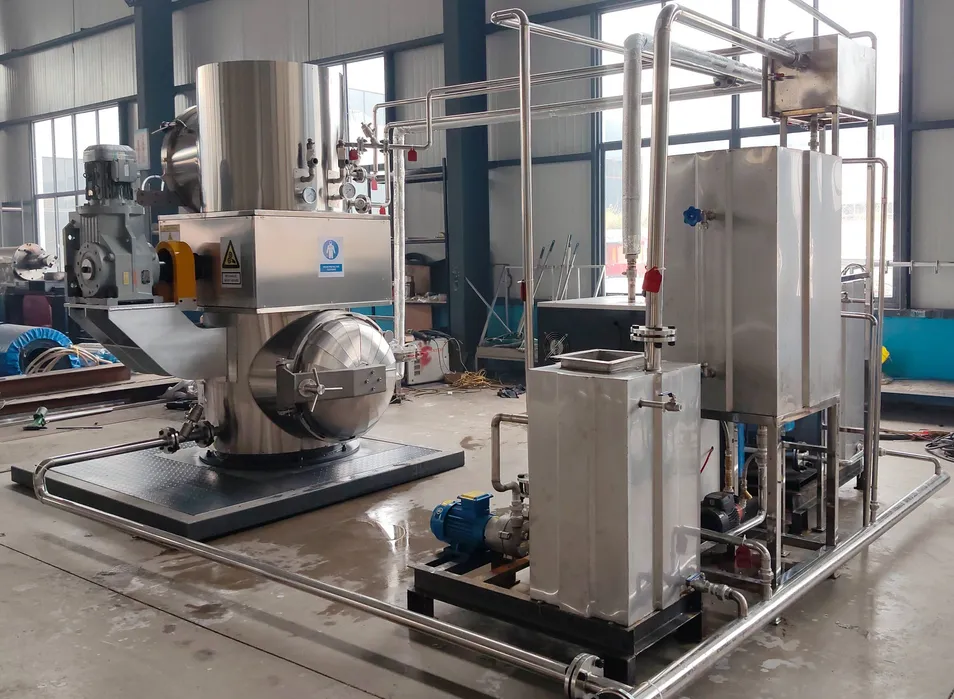

Medical Waste Vertical Steam Sterilization Equipment
✔

Key Features & Advantages

Equipment Features
1. Integrated Sterilization & Shredding: Combines closed crushing, steam sterilization, and vacuum drying in one continuous process, reducing waste volume by ≥85%.
2. Intelligent Control System: PLC-operated with touchscreen interface, allowing programmable cycles, remote monitoring, and fail-safe interlock functions.
3. Compliance & Safety: Meets international regulations; includes safety valves, pressure/temperature sensors, and emergency shutdown protocols.
4. Efficient Resource Use: Steam generator with >97% thermal efficiency and integrated water softening.
5. Compact Vertical Structure: Small footprint and high utilization of vertical space, ideal for medical waste temporary storage rooms.
📋

Technical Specifications

System Unit Item Technical Parameters Notes
Processor Parameters Batch Processing Capacity 25 - 30 kg Per cycle
Sterilization Method High-Temperature Steam Saturated Steam
Volume Reduction Rate ≥85% After shredding
Weight Reduction Rate ≥15% After drying
Vertical Container Volume 420L Stainless steel
Work Pressure 0.3MPa Design: 0.4MPa
Operating Temp 134℃ Design: 152℃
Crushing System Power 7.5kw Twin-screw
Blades D550 Imported Material High strength
⚙

Process Flow

1. The collected medical waste is manually fed into the sterilizer. The shredding system breaks waste into particles, followed by a pre-vacuum method to purge air.
2. High-temperature, high-pressure saturated steam is introduced. After treatment, a vacuum process removes remaining air/moisture. The sterilized waste is then safe for municipal collection.
📷

Customer Visits & Facility

Customer Visit 1 Customer Visit 2 Customer Visit 3
Equipment Display 1 Equipment Display 2 Equipment Display 3
🏢

Manufacturing Excellence

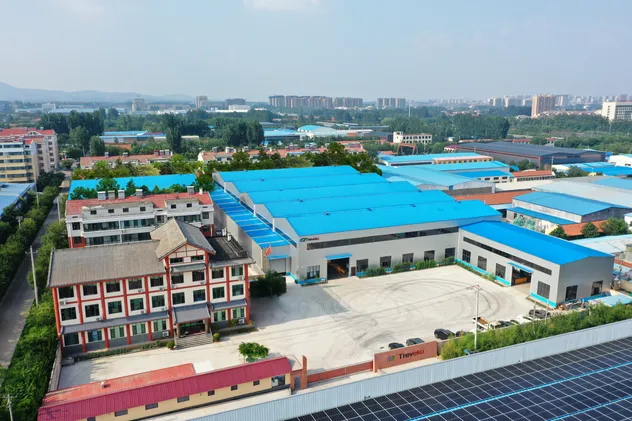

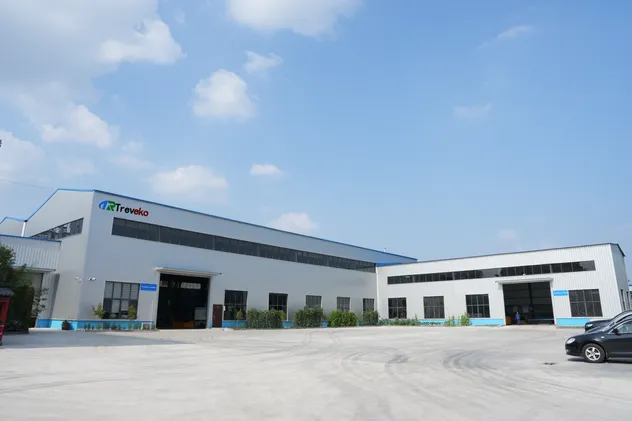

Factory 1 Factory 2 Factory 3

Specializing in environmental technology, we focus on manufacturing protection equipment and providing solid waste treatment solutions. Our expertise delivers innovative and sustainable products for ecological management, ensuring all equipment meets strict national and international standards.

?

Frequently Asked Questions

What types of medical waste can this equipment handle?
It is designed for the safe disposal of infectious waste and sharp medical waste, utilizing high-temperature steam sterilization.
How much can the waste volume be reduced?
The system effectively reduces waste volume by ≥85% and weight by ≥15% through its integrated shredding and drying process.
Is the operation fully automatic?
Yes, the system is PLC-controlled with a touchscreen interface, supporting one-button start-up and automated cycles.
What is the sterilization temperature?
The equipment operates at a sterilization temperature of 134°C using high-pressure saturated steam.
Does it require a separate processing area?
No, its vertical design and small footprint allow it to be placed in confined areas like temporary storage rooms.
What safety features are included?
It includes a door interlock device, triple alarm system for over-temperature/pressure, and emergency shutdown protocols.
