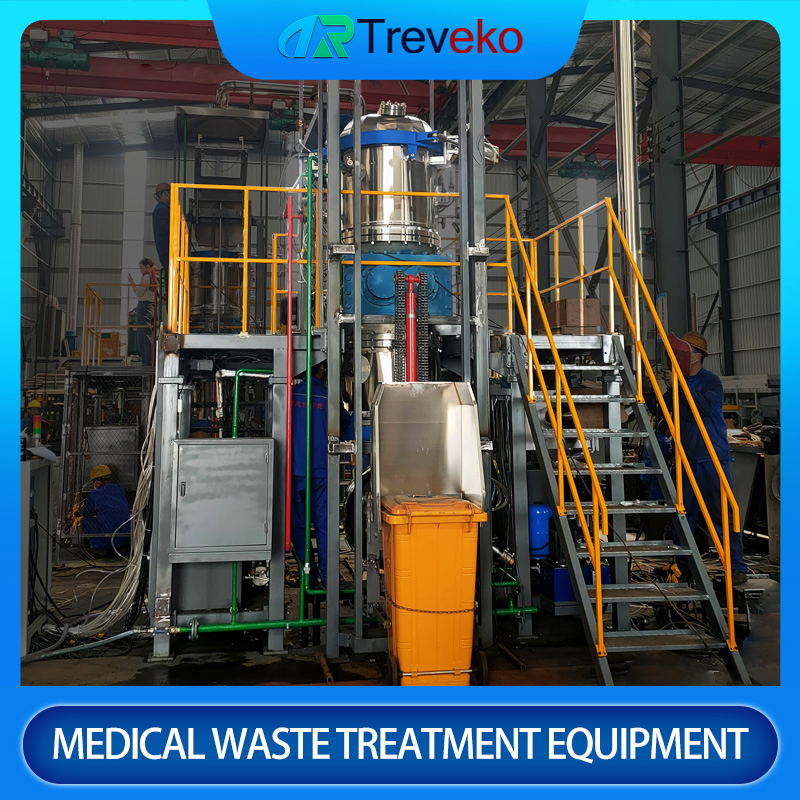

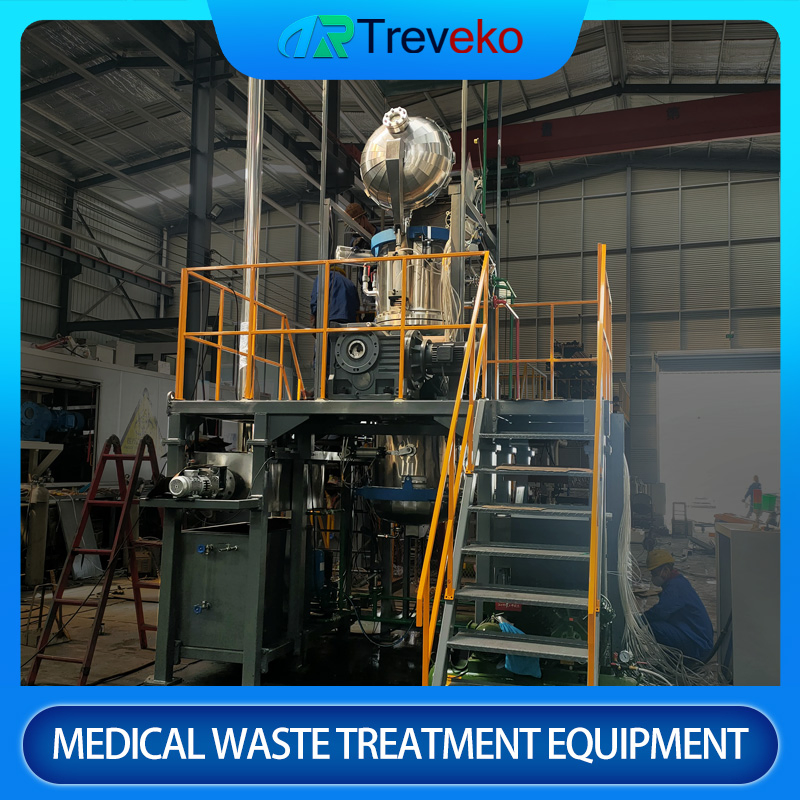

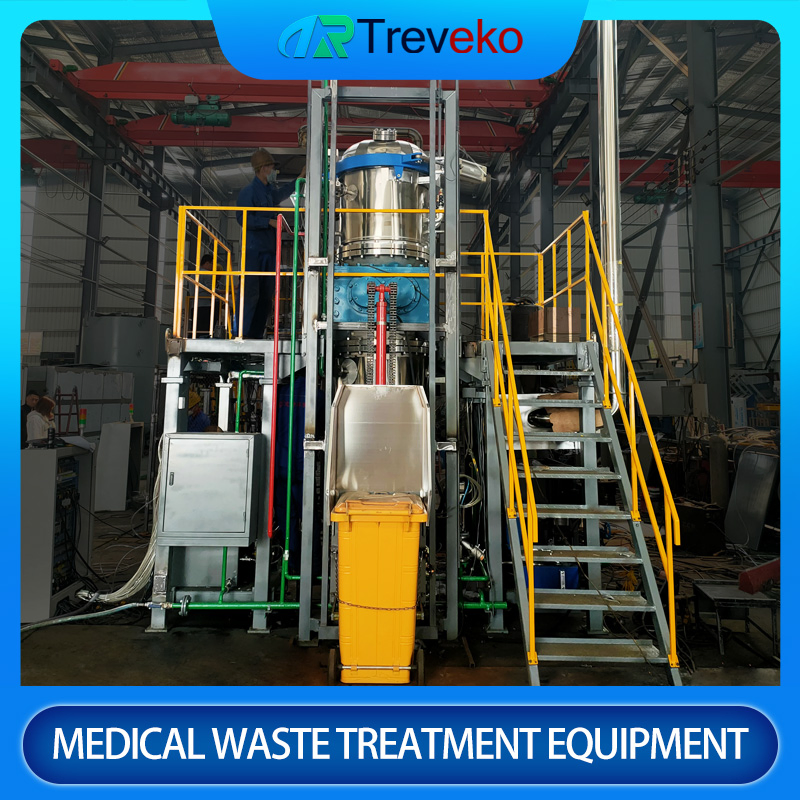

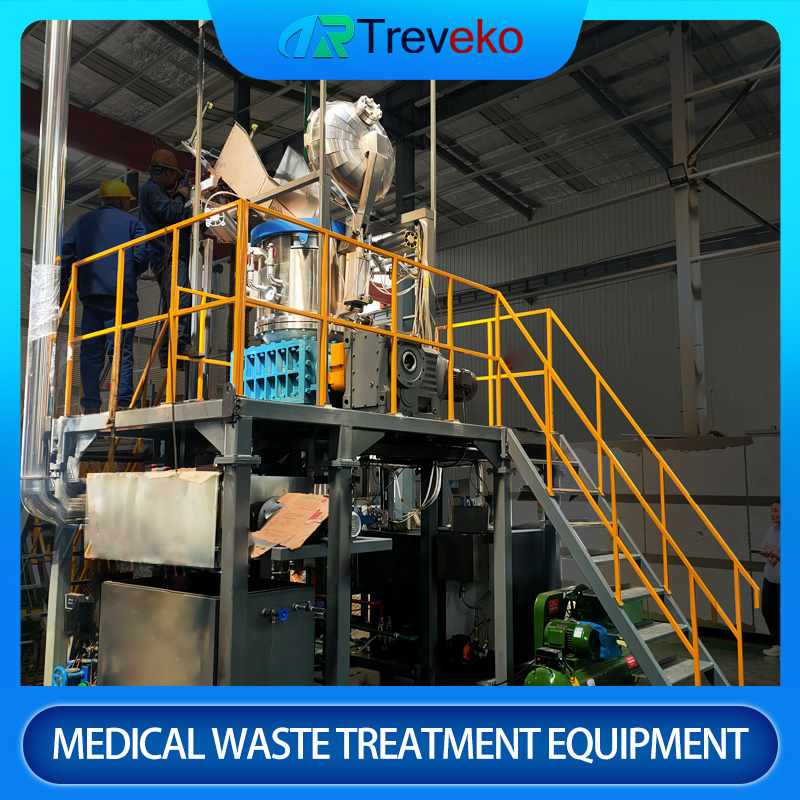

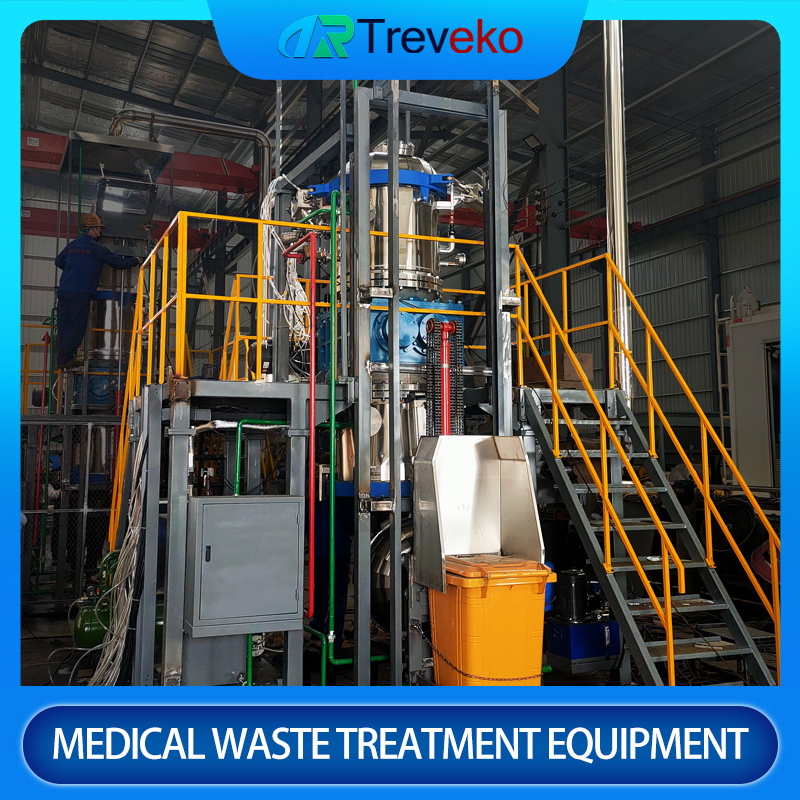

an Integrated Vertical Sterilization Solution Equipment for Clinical and Laboratory Waste Management

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
TR-VMT-60
Condition
New
Certification
ISO, CE
Automation
Automatic
Screw
Twin-Screw
Treatment
Steam
Processing Capacity
60kg/H
Sterilization Method
High-Temperature Steam
Working Temperature
134℃
Volume Reduction Rate
85%
Material
Stainless Steel
HS Code
8419200000
Product Description

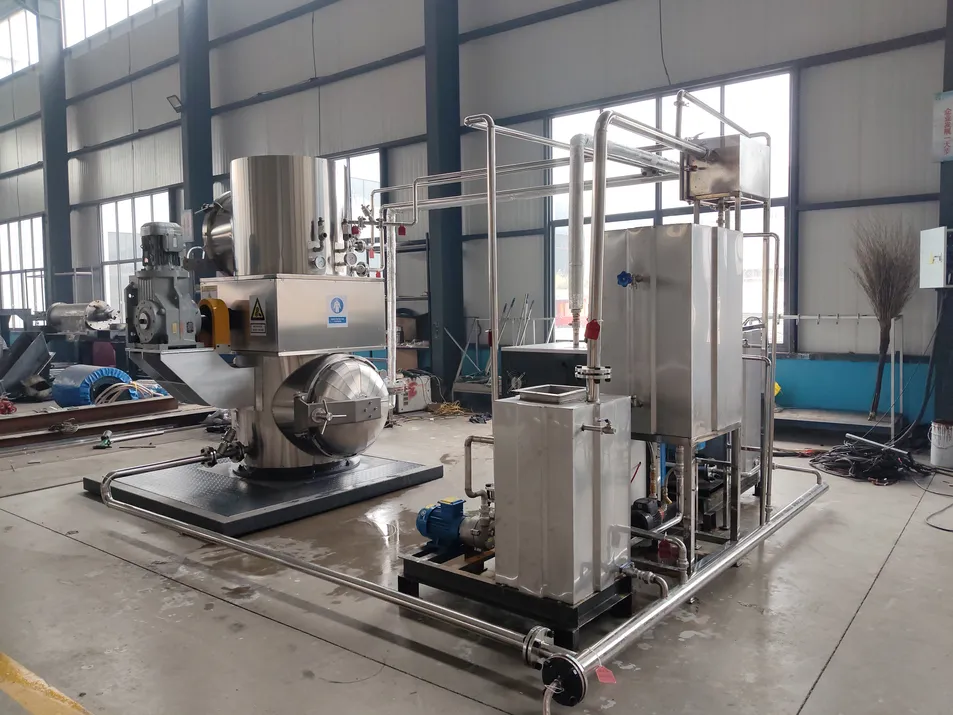

Integrated Vertical Sterilization Solution

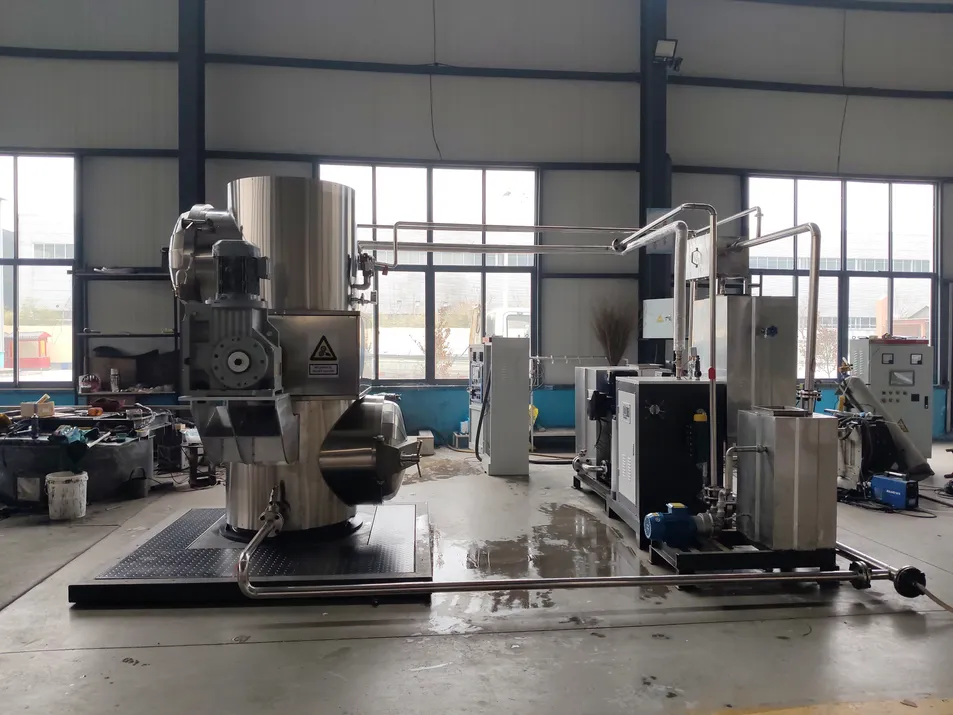

Medical Waste Management Equipment
⚙️
This vertical steam sterilizer is a highly efficient and compliant medical waste treatment device specifically designed for clinics, community hospitals, outpatient departments, small laboratories, and veterinary clinics. Based on saturated steam sterilization technology and a compact vertical design, the device precisely addresses the core needs of small facilities with limited space and low waste generation.

The equipment's sterilization efficiency is tailored to the needs of small facilities, with a single processing cycle of 60-90 minutes. Operating parameters can be flexibly adjusted according to the amount of waste, enabling on-demand processing and preventing the accumulation and deterioration of medical waste. It also features automatic exhaust and drying functions, significantly reducing the moisture content of the waste after sterilization.

Product Features
🛡️
Vertical structure, safe and convenient: The structural design adopts a vertical layout, resulting in a small footprint and high utilization of vertical space. It can be flexibly placed in confined areas such as medical waste temporary storage rooms, eliminating the need for a separate processing area.

The machine body is made of 304 stainless steel, which is high-temperature resistant, corrosion-resistant, and easy to clean. It can withstand the erosion of bodily fluids and chemical reagents, extending the equipment's service life.

📱
Intelligent Operation: Staff can learn to operate the machine after only 1-2 hours of training. It operates automatically throughout the process, supporting one-button start-up. Equipped with a door interlock device and a triple alarm system for over-temperature, over-pressure, and water shortage.
Technical Specifications
System Unit Project Technical Parameters Remark
Processor Parameters Processing Volume 60 kg/h Density 0.1
Single Processing Time 30min -
Sterilization Method High-temperature steam -
Final Effect Microbial inactivation level 8 Log10 -
Container Volume 420L -
Work Pressure 0.3MPa -
Design Temperature 152℃ -
Crushing System Power 7.5kw*1 -
Blade Material Imported high strength material Hardened tooth
Process Flow

1. The collected medical waste is manually fed into a sterilizer. Inside, a shredding system breaks the waste into particles. A pre-vacuum method purges the air, and high-temperature, high-pressure saturated steam is introduced.

2. After treatment, a vacuum process removes remaining air. Pathogens are effectively killed, allowing the sterilized waste to be treated as ordinary household waste, significantly reducing its volume and weight.

Detailed Photos

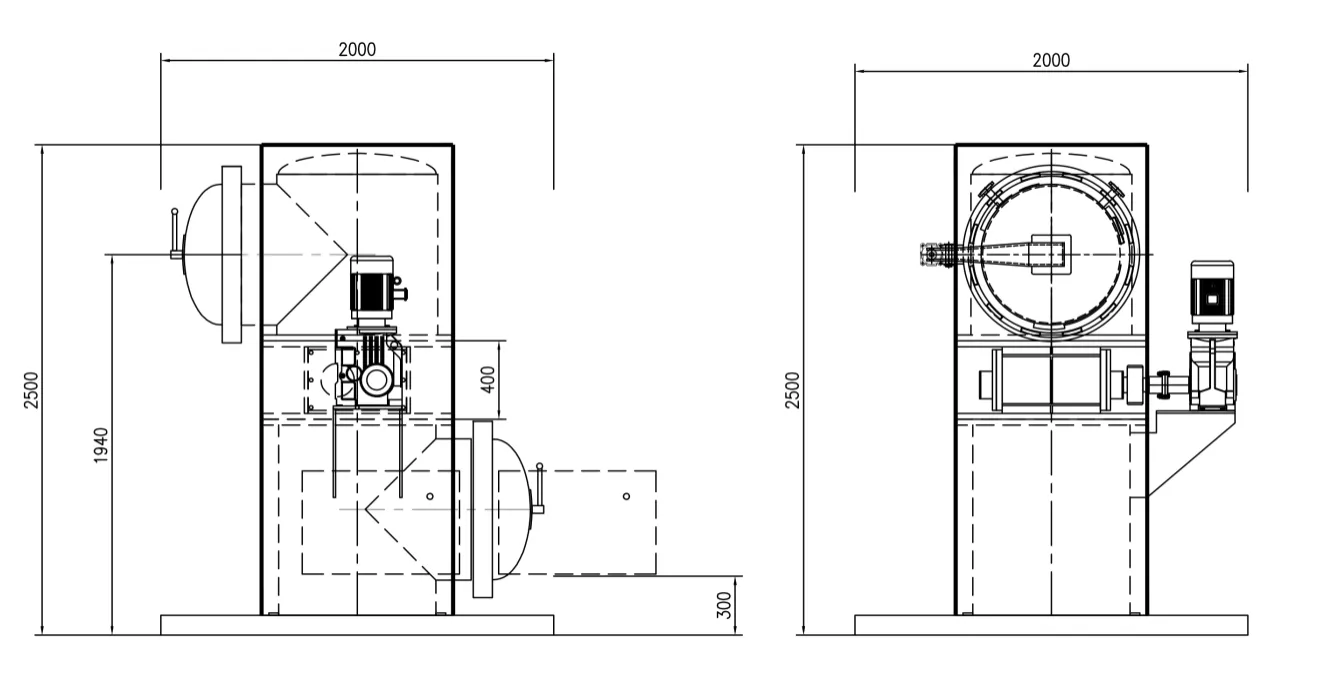

Detailed Equipment View
After Sales Service
Safe operations, meeting all standards: Indicators fully comply with international and local regulations for medical waste management.

Comprehensive after-sales service is provided, including one-on-one video operation training. Core components like the steam generator and control system come with a 1-3 year warranty. Professional support is available 24 hours to ensure continuous and reliable operation.

Customer Visit
Customer Visit 1
Customer Visit 2
Customer Visit 3
Customer Visit 4
Customer Visit 5
Customer Visit 6
Frequently Asked Questions
Q1: Is it a factory? Yes, we have our own manufacturing facility and production lines.
Q2: Can the equipment be customized to meet specific requirements? Yes. We support customization of core parameters such as processing capacity, overall size, and control systems.
Q3: What is the delivery time? Delivery schedules are resolved via negotiation according to the customer's actual location and requirements.
Q4: What is the warranty policy? We provide a 1-year warranty and free repair if quality problems emerge within the warranty period.
Q5: How can you ensure equipment quality? You can send sample scrap materials to us for free testing. We will provide test videos or you can visit our facility to witness the testing.
Q6: What is the maximum working temperature and inactivation level? The equipment reaches a working temperature of 134°C, achieving a spore microbial inactivation level of 8 Log10.
