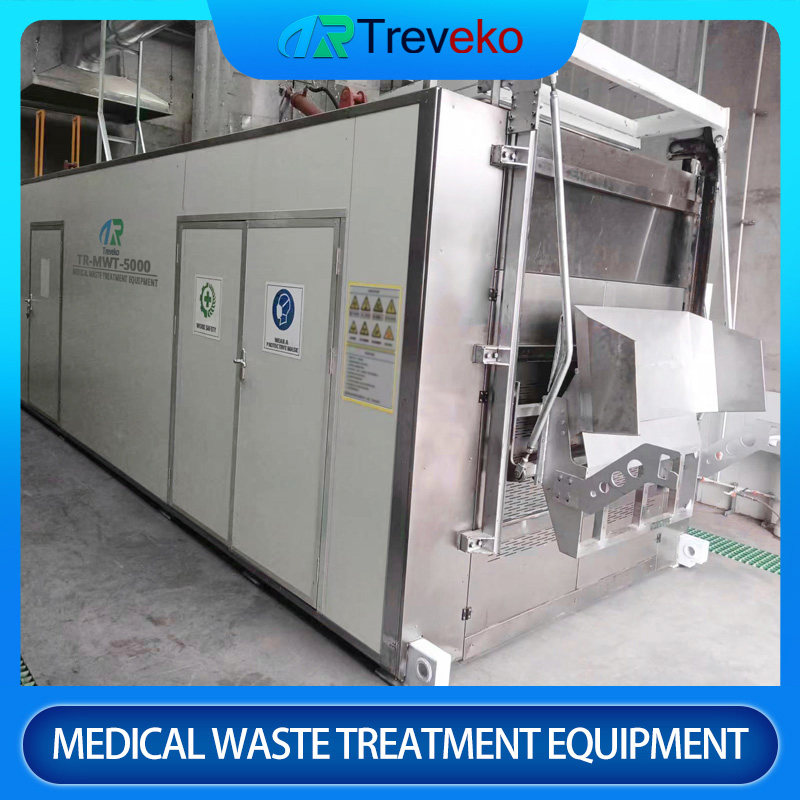

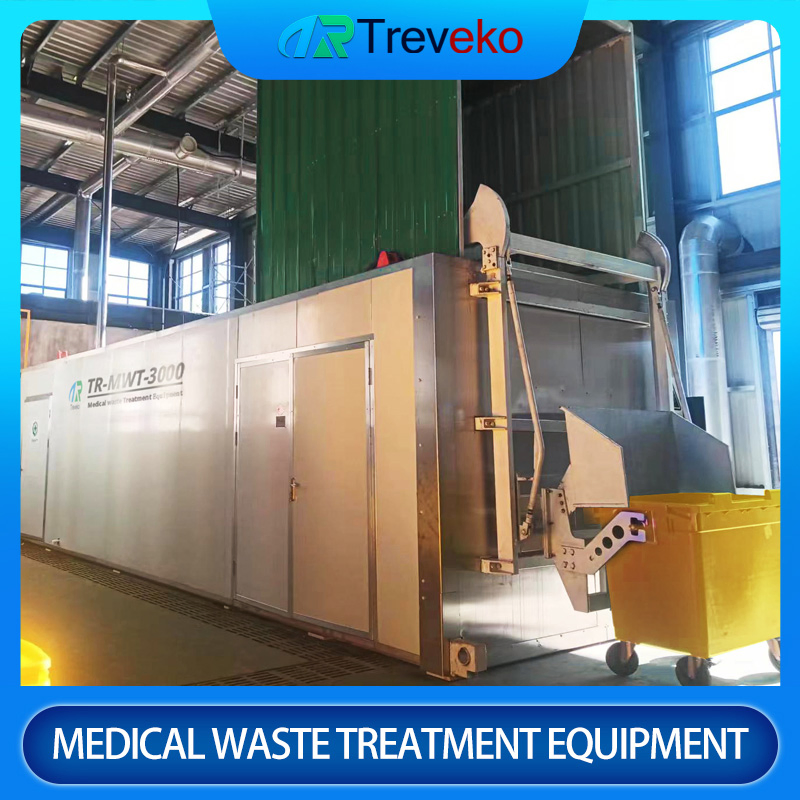

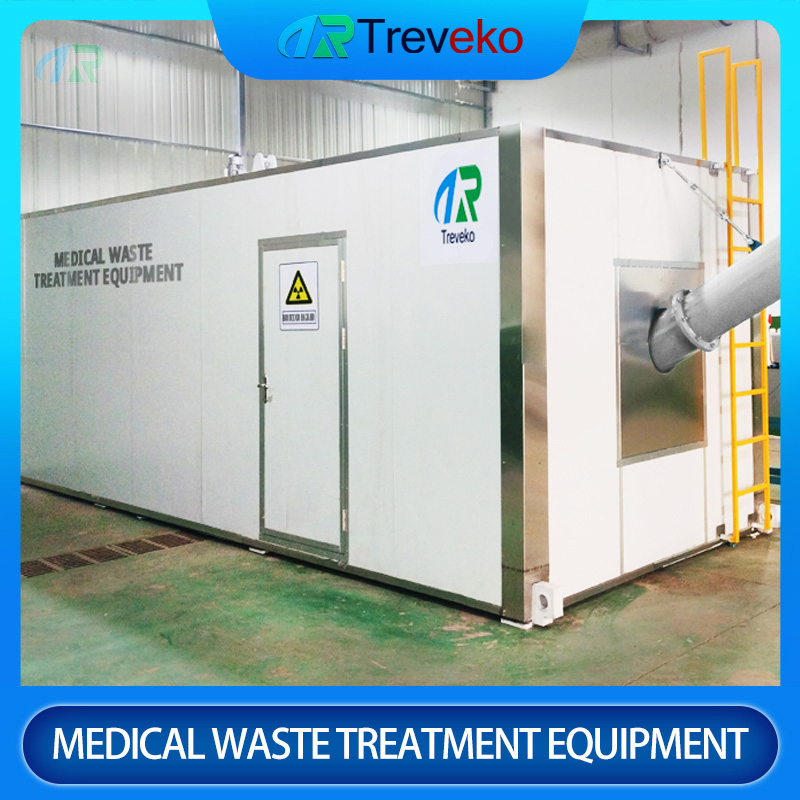

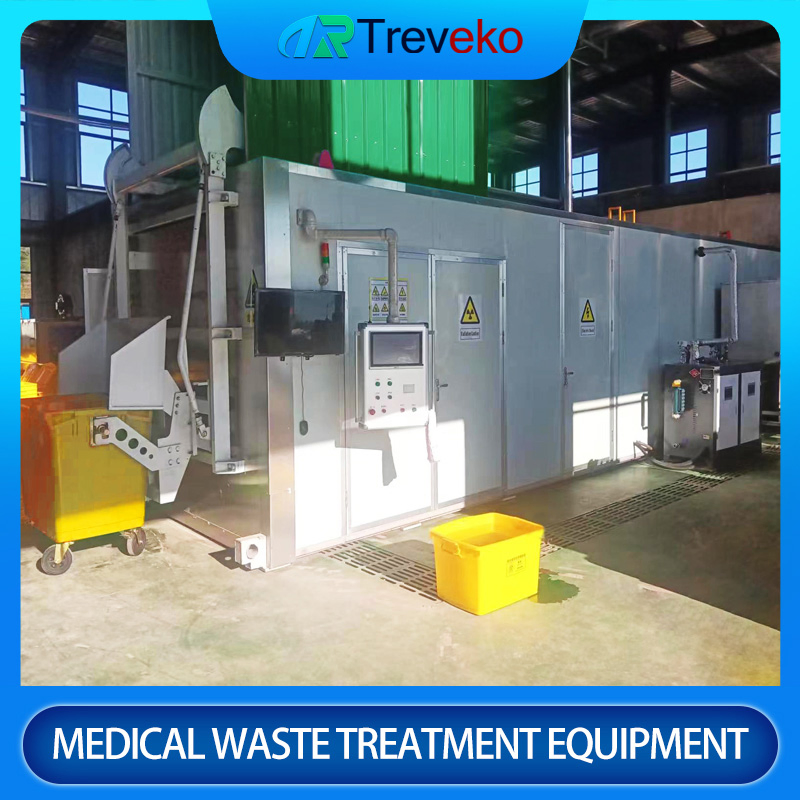

High-Throughput Stationary Microwave Sterilization Crushing Equipment for Demanding Clinical and Laboratory Facilities
High-Throughput Stationary Microwave Sterilization Crushing Equipment for Demanding Clinical and Laboratory Facilities
High-Throughput Stationary Microwave Sterilization Crushing Equipment for Demanding Clinical and Laboratory Facilities
High-Throughput Stationary Microwave Sterilization Crushing Equipment for Demanding Clinical and Laboratory Facilities
High-Throughput Stationary Microwave Sterilization Crushing Equipment for Demanding Clinical and Laboratory Facilities
1 / 5
High-Throughput Stationary Microwave Sterilization Crushing Equipment for Demanding Clinical and Laboratory Facilities
High-Throughput Stationary Microwave Sterilization Crushing Equipment for Demanding Clinical and Laboratory Facilities
High-Throughput Stationary Microwave Sterilization Crushing Equipment for Demanding Clinical and Laboratory Facilities
High-Throughput Stationary Microwave Sterilization Crushing Equipment for Demanding Clinical and Laboratory Facilities
High-Throughput Stationary Microwave Sterilization Crushing Equipment for Demanding Clinical and Laboratory Facilities

High-Throughput Stationary Microwave Sterilization Crushing Equipment for Demanding Clinical and Laboratory Facilities

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
TR-MWT-3000
Condition
New
Certification
CE
Automation
Automatic
Treatment
Microwave and Steam
Capacity (Kg/H)
3000
Total Power(Kw)
97
Control System
PLC
Weight
11000kg
Dimensions
7000*2900*2650mm
Product Description
Microwave Sterilization Equipment
Integrated microwave treatment equipment for medical waste utilizes the synergistic sterilization of microwave irradiation and saturated steam. It effectively kills bacteria using steam heat combined with the thermal and biological effects of microwaves. By manipulating the electron and ion density around bacterial cell membranes, microwaves alter permeability and destroy microorganisms at a biochemical level, breaking down nucleic acids (RNA) and DNA.
Equipment Characteristics
⚙️
High Automation

The entire system is managed by a PLC control system, automatically regulating sterilization temperature and time without manual intervention.

🛡️
Safe Loading

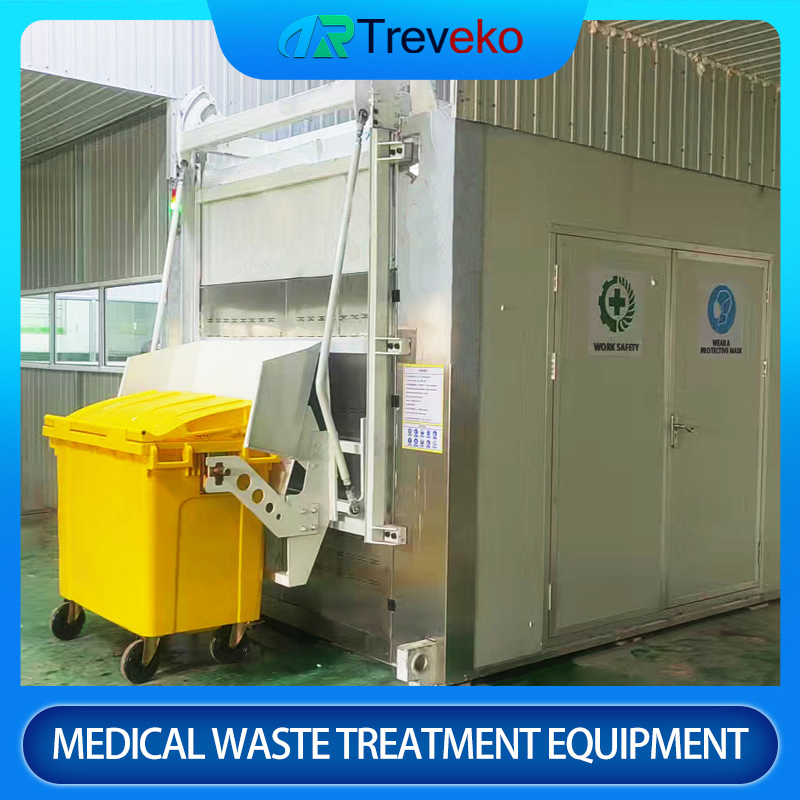

Standard waste bins are automatically lifted into a sealed silo with negative pressure, ensuring zero leakage of waste or exhaust gases.

💎
Durable Construction

Constructed entirely of SUS304 stainless steel for superior pressure and corrosion resistance, featuring integrated guide strips to prevent waste tangling.

💧
Efficient Utilities

Equipped with a high-purity steam generator for one-button operation. Connect water and electricity to generate steam rapidly.

Technical Parameters
System Unit Project TR-MWT-3000 TR-MWT-5000 TR-MWT-10000
Feeding System Garbage Can 660L 660L 660L
Power Source 4kW Hydraulic 4kW Hydraulic 4kW Hydraulic
Silo Volume 1m³ 1.2m³ 1.2m³
Material 4mm Stainless Steel 4mm Stainless Steel 4mm Stainless Steel
Crushing Power 22kw 30kw 30kw
Sterilization Microwave Units 1.5kw * 8 1.5kw * 10 1.5kw * 20
Overall Gross Weight 11000kg 13000kg 15000kg
Process Flow
This machine adopts a fully automatic PLC electrical control system. It features both automatic start-up and material return modes. The system monitors modules including the elevator, dual-shaft crusher, sterilization chamber, and microwave generators in real-time. The sterilization results meet the requirements of "Technical Specification for Centralized Microwave Sterilization and Treatment of Medical Waste (Trial)" (HJ/T229-2021).
Related Equipment

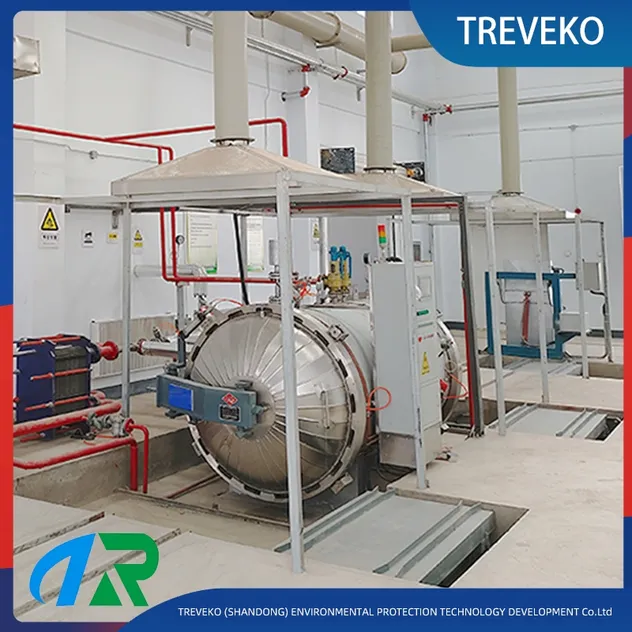

Autoclave

High-pressure Autoclave

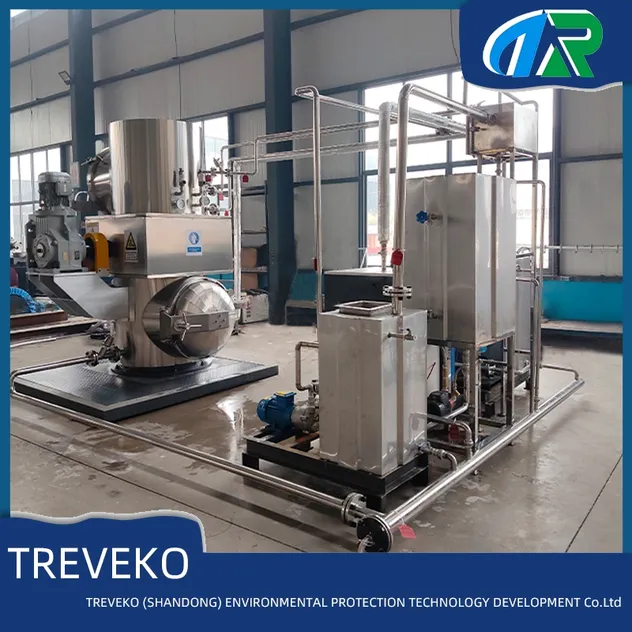

Vertical Sterilizer

Vertical Steam Sterilizer

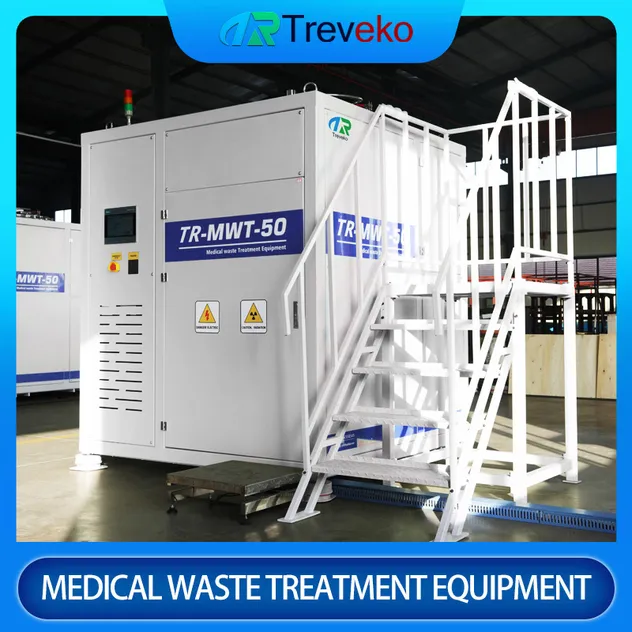

Microwave Disinfection

Microwave Disinfection Unit

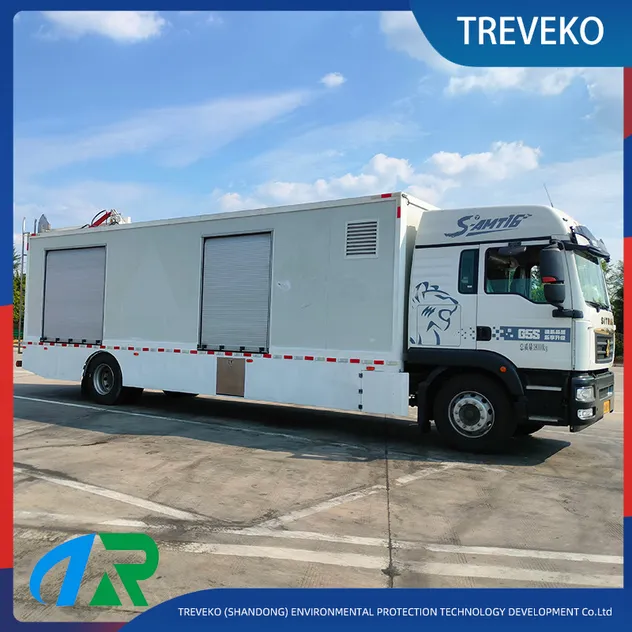

Mobile Equipment

Vehicle-mounted Mobile Unit

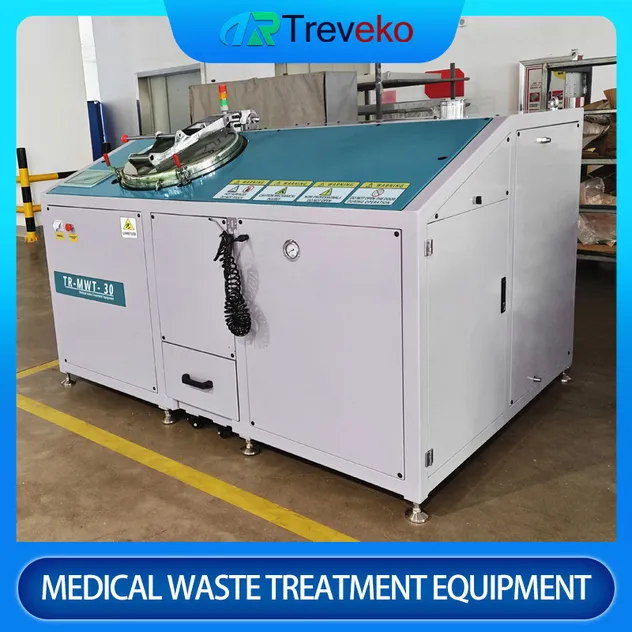

Sterilization Equipment

Standard Microwave System

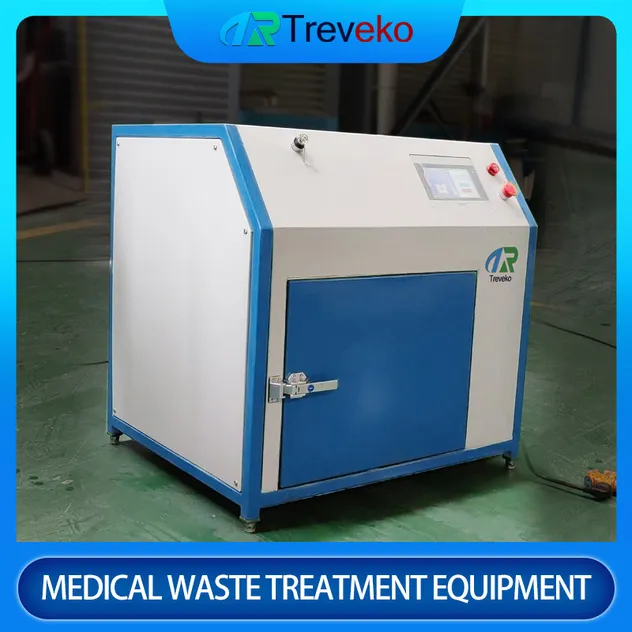

Small Equipment

Small Scale Sterilizer

Professional Capabilities

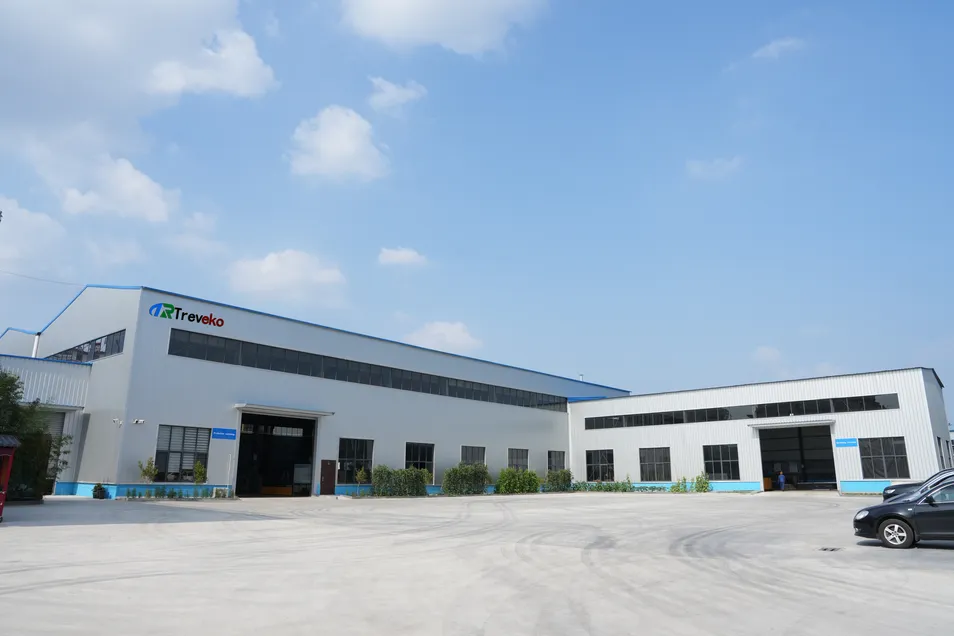

R&D Center
Manufacturing
As an innovative technology enterprise, we focus on the integration of environmental protection and high-end intelligent manufacturing. Our expertise spans R&D, intelligent core equipment production, and digital operation services. We strictly follow international quality standards to ensure superior quality from technological concept to industrial implementation.
Global Collaboration
Visit 1
Visit 2
Visit 3
Visit 4
Visit 5
Visit 6
Frequently Asked Questions
What types of medical waste is this equipment suitable for?
It is primarily designed for infectious medical waste from clinics and hospitals, including cotton swabs, gauze, disposable devices, and masks.
Is the system difficult to operate?
No. The PLC touchscreen allows for one-button start-up. Operators can be trained in 10-30 minutes to manage the entire process independently.
Can the equipment parameters be customized?
Yes, we support customization of processing capacity, overall dimensions, and specific control system requirements.
What material is used for the sterilization chamber?
The chamber is made of high-quality SUS304 stainless steel, which provides excellent corrosion and pressure resistance.
Does it meet environmental standards?
Yes, the sterilization process meets the HJ/T229-2021 technical specifications for medical waste treatment.
How is delivery handled?
Delivery terms are negotiated based on the customer's specific location and logistical requirements.
