🔹 Basic Information
Structure
Tunnel / Horizontal
🔹 Product Description
Saturated steam sterilization, compliant and controllable

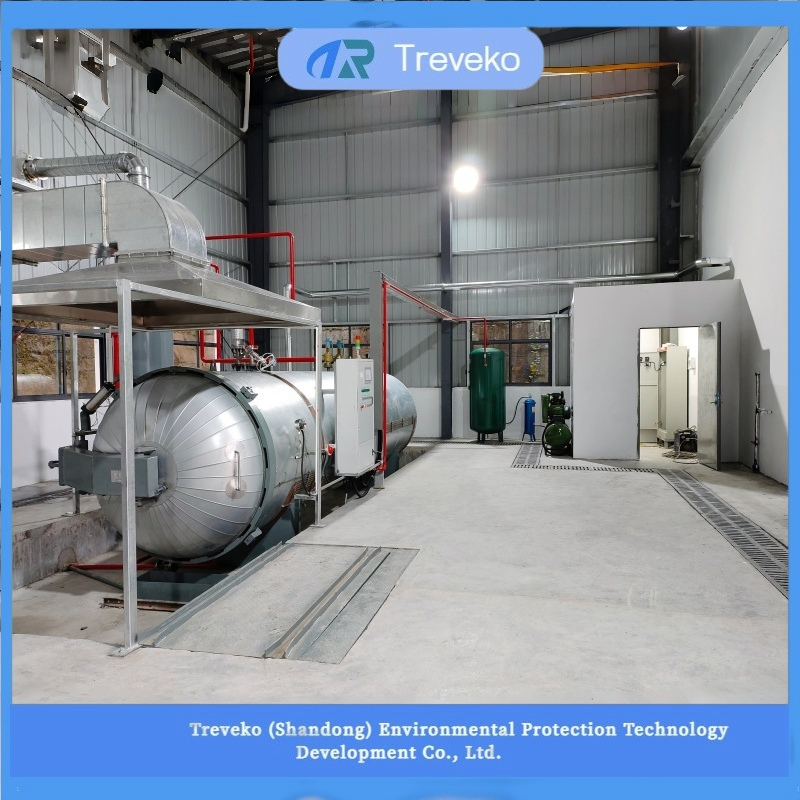

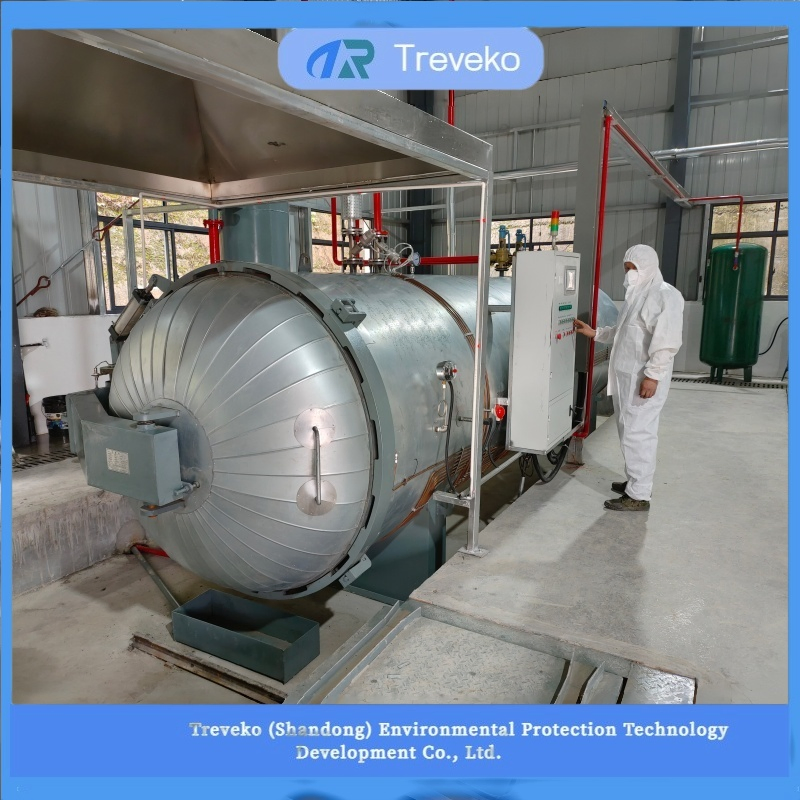

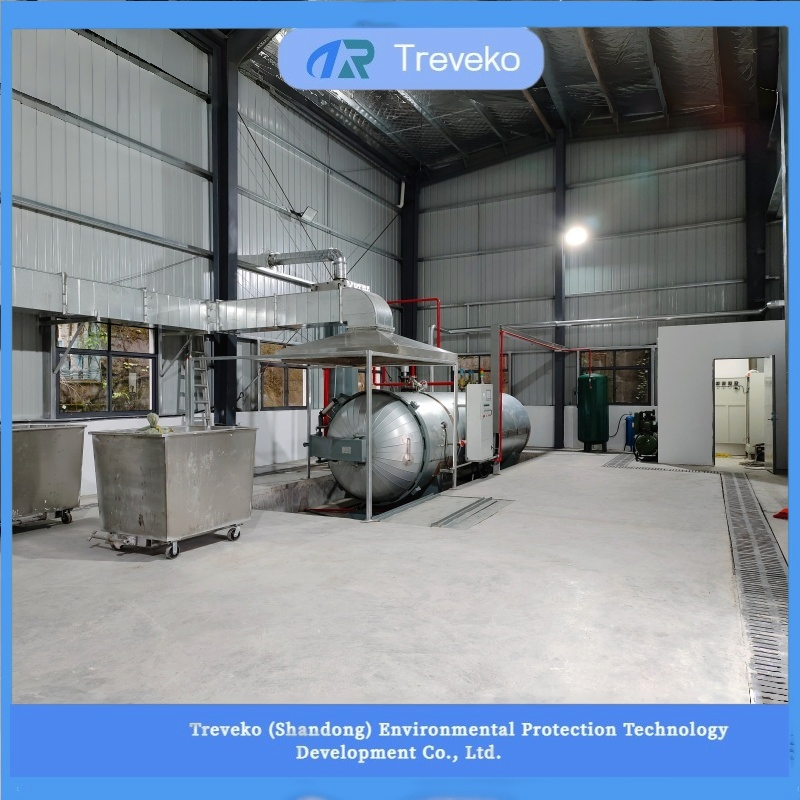

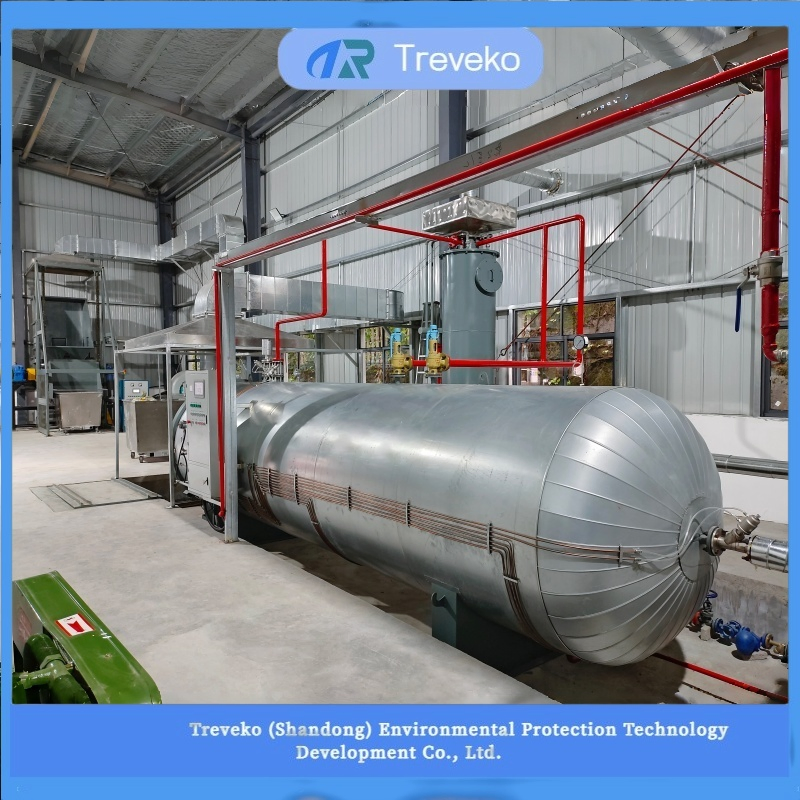

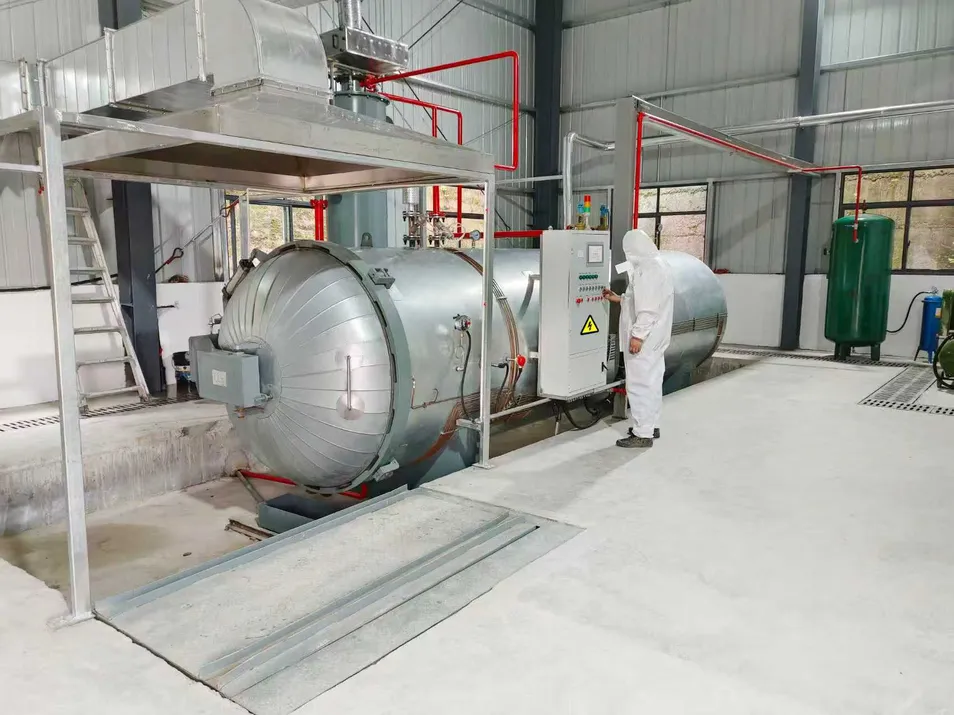

1. The equipment utilizes high-pressure saturated steam sterilization technology, strictly adhering to technical specifications for high-temperature steam disinfection. Based on a horizontal, sealed tank structure, it ensures that high-pressure saturated steam evenly fills the tank's interior, deeply penetrating the medical waste pile.
2. This forces the rapid denaturation and coagulation of microbial proteins, achieving comprehensive sterilization without dead zones. The horizontal tank offers superior batch processing capacity and sealed stability, achieving a killing rate of over 99.99% for various pathogenic microorganisms such as E. coli, Staphylococcus aureus, and hepatitis B virus.
🔹 Main Components of the Equipment

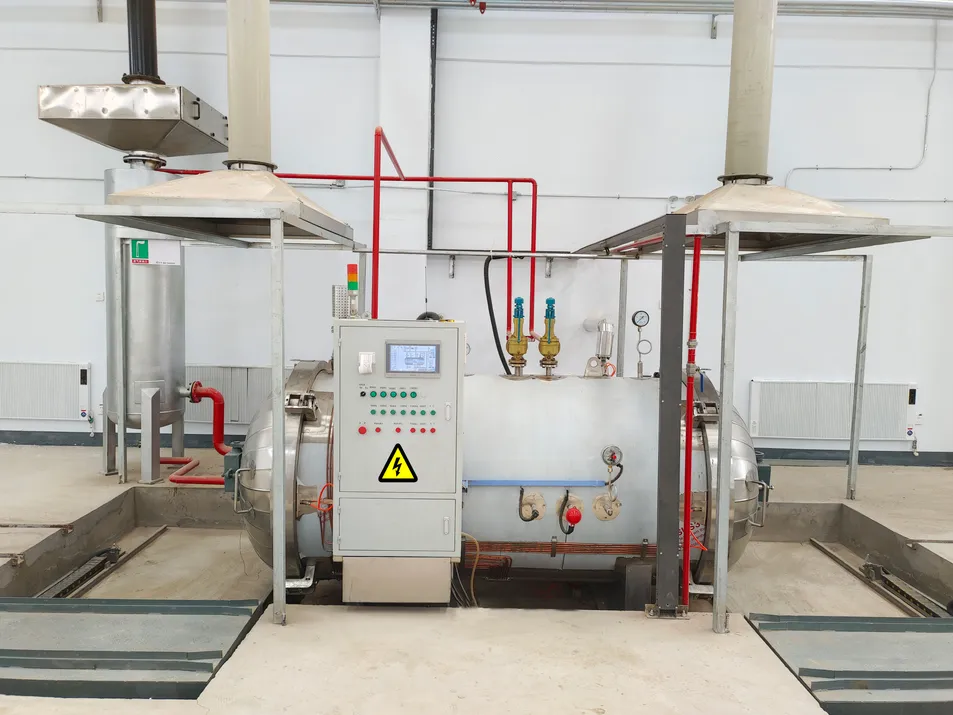

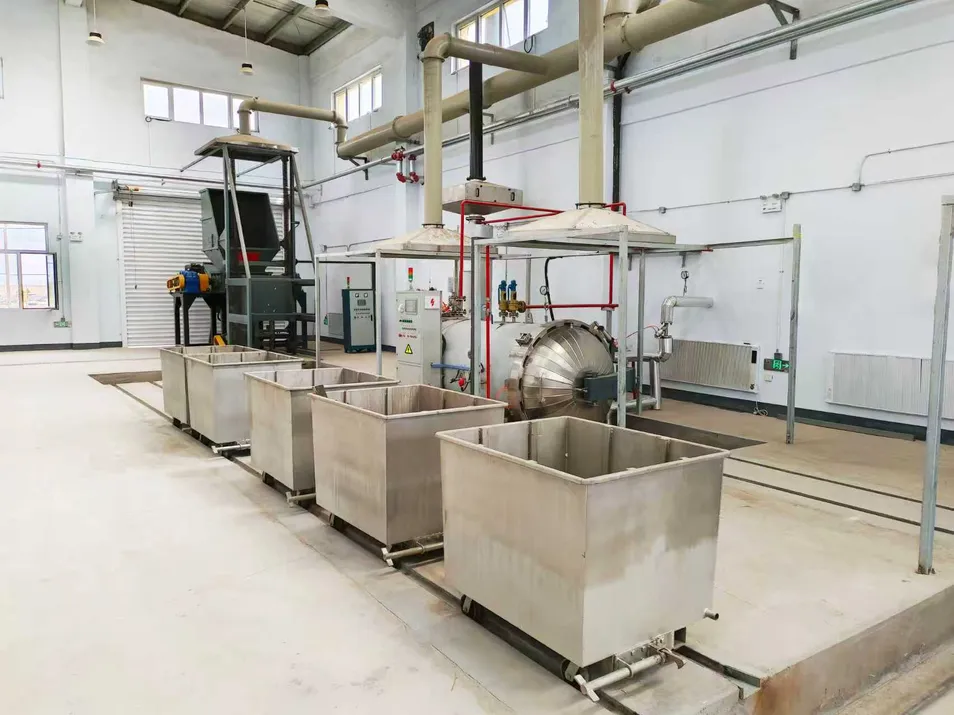

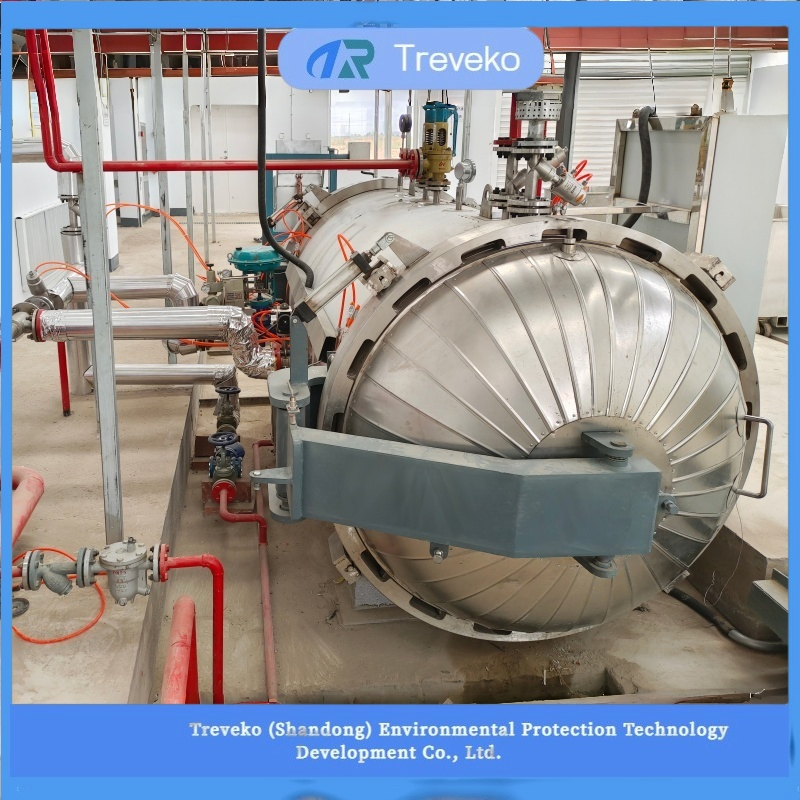

The complete set includes: Sterilizer body (high-pressure tank, air inlet/outlet, sewage outlet, pressure gauges, safety valves), transfer carts, air compressor, water softener, electric steam generator, induced draft fan, photo-oxidation equipment, pipeline circulation pump, and PLC electrical control cabinet.
🔹 Product Parameters
| System Unit |
Project |
2.5T Type |
5T Type |
8T Type |
| High-pressure Tank |
Volume |
2.5m³ |
10m³ |
12m³ |
| Water Softener |
Power |
0.1KW |
0.2KW |
0.2KW |
| Steam Generator |
Power |
72KW×2 |
180KW×2 |
180KW×2 |
| Air Compressor |
Power |
7.5kw |
7.5kw |
7.5kw |
| Exhaust Fan |
Power |
7.5KW |
7.5KW |
7.5KW |
🔹 Equipment Characteristics
-
⚙️
High Automation: Adopts a PLC control system. Temperature, pressure, and sterilization time are automatically managed without manual intervention.
-
🏗️
Structural Design: Horizontal tank layout saves vertical space and supports connection to conveying devices for automated loading/unloading. Made of thickened 304 stainless steel.
-
🛡️
Exhaust Treatment: Treated by pre-filters, high-efficiency filters, and photocatalytic oxidation to remove odors and VOCs effectively.
🔹 Packing & Delivery
We use industry-standard moisture-proof and rust-proof materials, including wooden pallets and stretch film. Precision instruments are vacuum-sealed with cushioning foam. For large equipment, we provide on-site packaging and hoisting services to ensure safe road, sea, or air freight.
🔹 Customer Visits & Factory Display
❓ Frequently Asked Questions
Q1: Does sterilized medical waste have an odor?
The high-temperature steam sterilization process effectively removes odors from the waste, leaving no noticeable odor after treatment.
Q2: Can the equipment be customized to meet specific requirements?
Yes, we support customization of core parameters such as processing capacity, overall dimensions, and the control system configuration.
Q3: What is the typical delivery timeframe?
Delivery schedules are resolved via negotiation according to the customer's actual production needs and project timeline.
Q4: What kind of warranty is provided?
We provide a 1-year warranty and offer free repair services if quality problems emerge within the warranty period.
Q5: What materials are used for the sterilization tank?
The tank is constructed from thickened 304 stainless steel or Q345R pressure vessel steel, ensuring resistance to high pressure and corrosion.
Q6: Is the sterilization process fully automated?
Yes, the entire process—including temperature, pressure, and time—is managed by a PLC control system, requiring no manual intervention.
