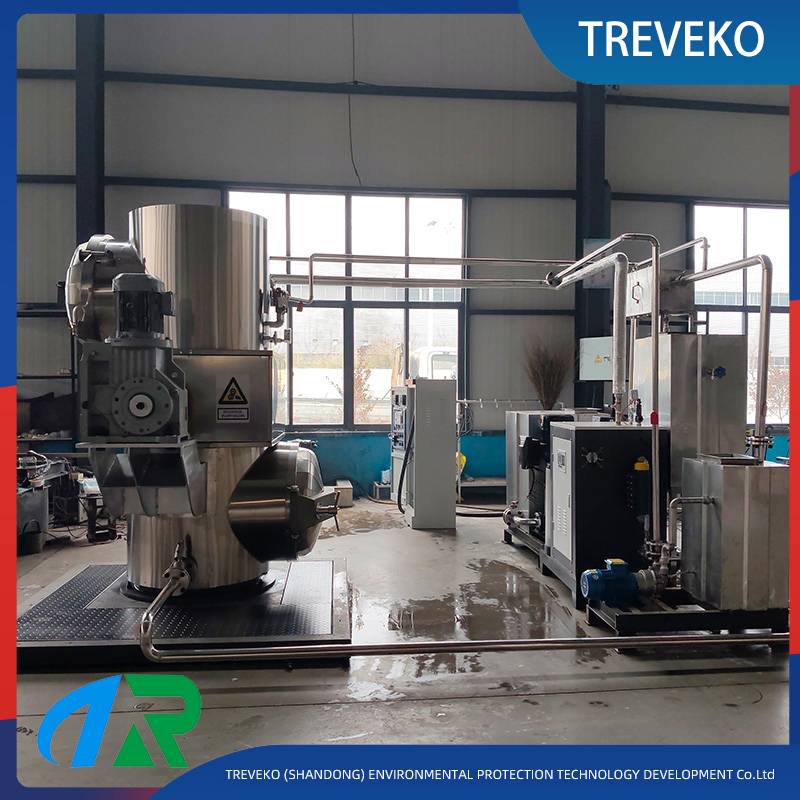

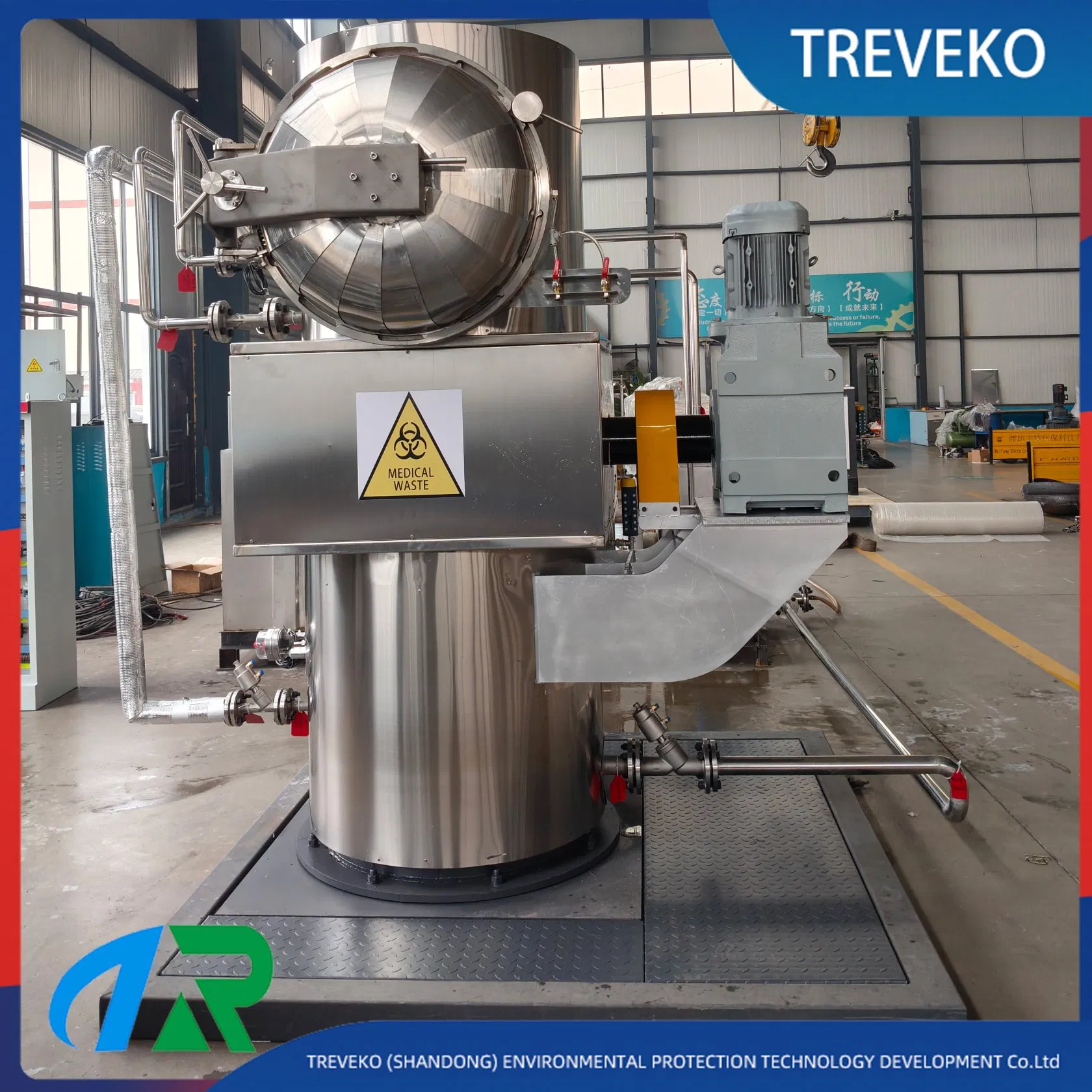

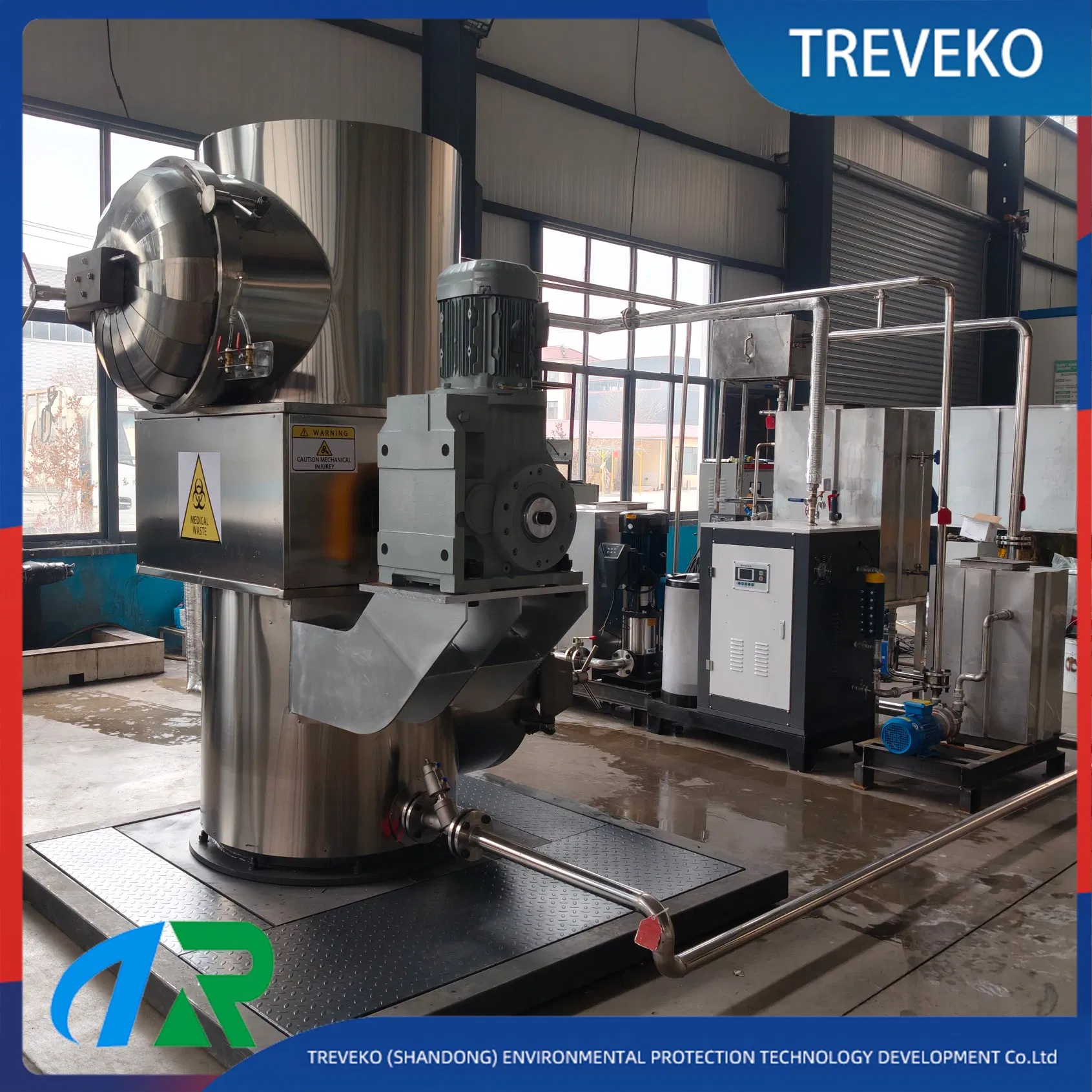

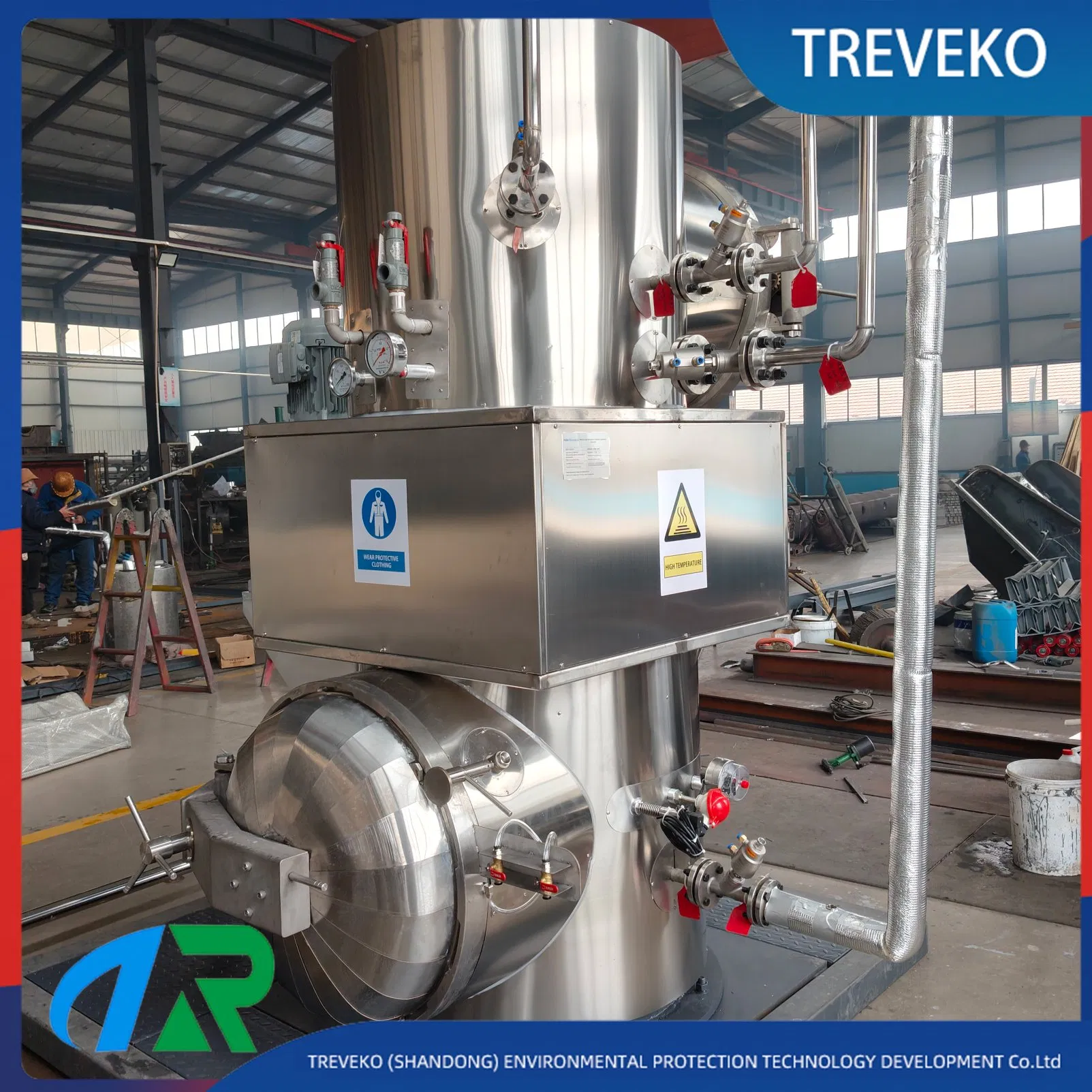

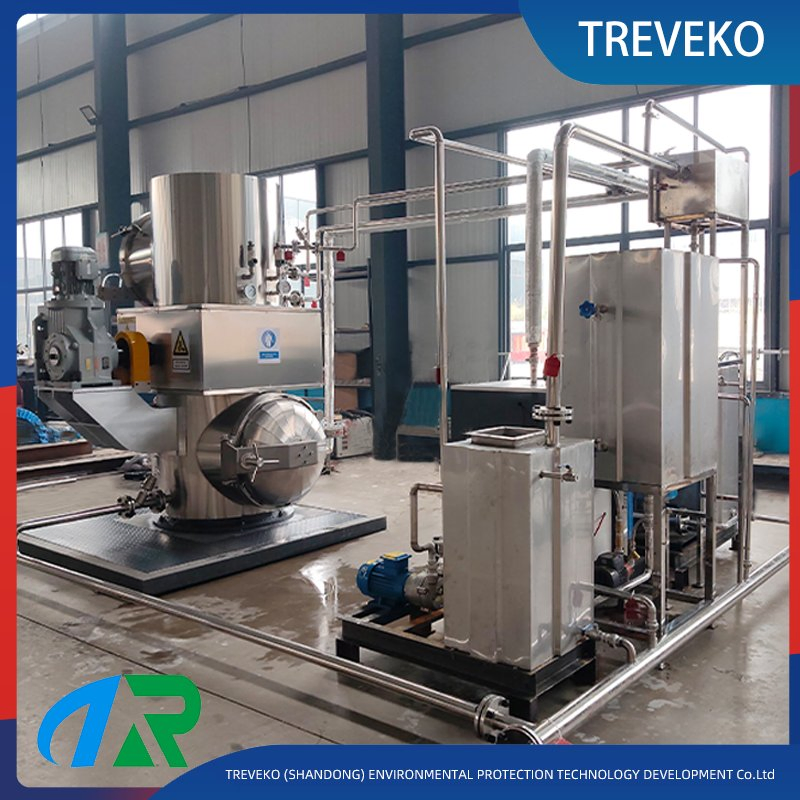

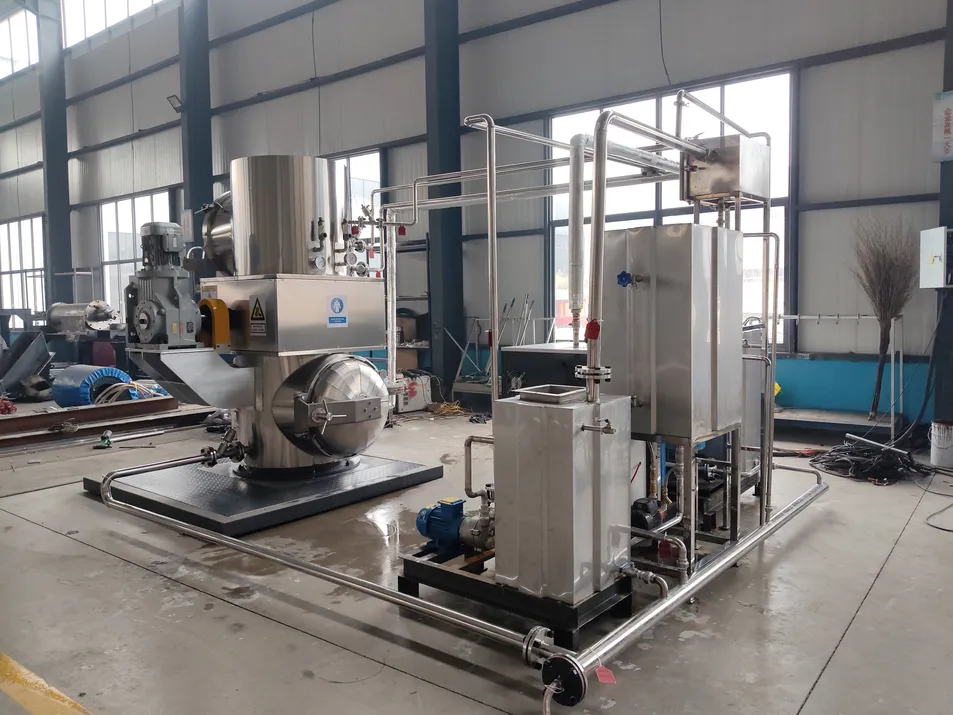

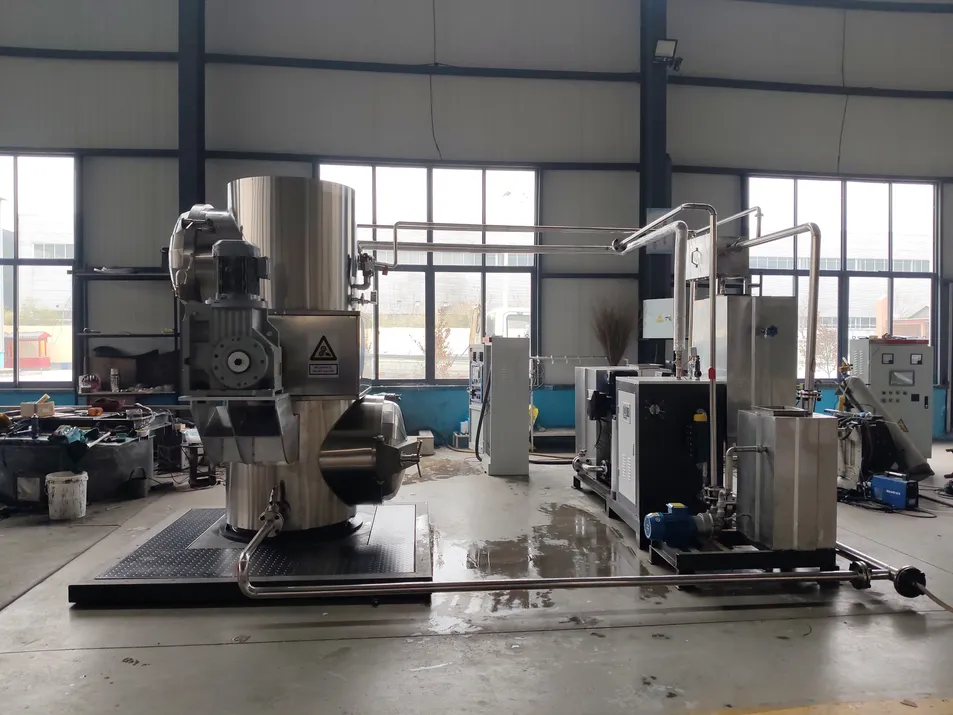

This vertical steam sterilizer for medical waste is a highly efficient and compliant medical waste treatment device specifically designed for clinics, community hospitals, outpatient departments, small laboratories, and veterinary clinics. Based on saturated steam sterilization technology and a compact vertical design, the device precisely addresses the core needs of small facilities with limited space and low waste generation.
It enables on-site, rapid, and thorough sterilization of solid medical waste, effectively preventing the spread of pathogenic microorganisms at the source. The single processing cycle takes approximately 60-90 minutes, with automatic exhaust and drying functions that significantly reduce moisture content post-sterilization.

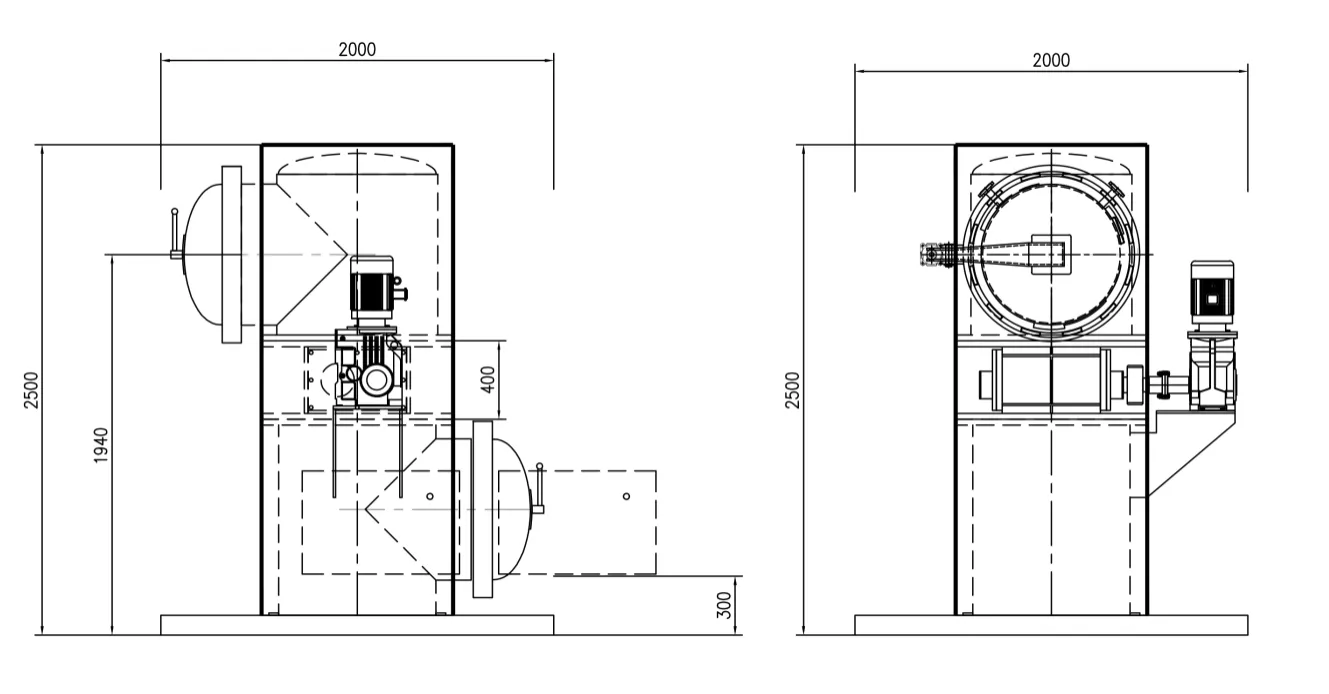

The structural design adopts a vertical layout, resulting in a small footprint and high utilization of vertical space. The machine body is made of 304 stainless steel, which is high-temperature resistant, corrosion-resistant, and easy to clean.
Built-in standardized sterilization programs allow staff to operate after minimal training. Features one-button start-up and automatic operation throughout the entire process.
Equipped with door interlocks, triple alarm systems for over-temperature/pressure, and water shortage protection. Core components meet medical safety standards ensuring stable long-term operation.
| System Unit | Project | Technical Parameters | Remark |
|---|---|---|---|
| Processor | Processing volume | 60 kg/h | Density 0.1 |
| Batch volume | 25-30kg | - | |
| Inactivation level | 8 Log10 | Spore microbial | |
| Reduce capacity | 85% | Weight reduction 15% | |
| Container | Volume | 420L | Stainless steel |
| Work pressure | 0.3MPa | Design 0.4MPa | |
| Temperature | 134℃ | Design 152℃ | |
| Crushing | Power | 7.5kw*1 | - |
| Blade | Φ26*326 D550 | High strength material |
1. Feeding & Shredding: Medical waste is fed into the sterilizer where the shredding system breaks it into small particles.
2. Sterilization: A pre-vacuum method purges air, followed by the introduction of high-temperature, high-pressure saturated steam.
3. Discharge: Post-treatment vacuum removes remaining air, and sterilized waste is removed, now safe to be treated as ordinary household waste.
Standards & Compliance: Our equipment is manufactured in accordance with international regulations and "Technical Specifications for High-Temperature Steam Disinfection Treatment of Medical Waste."
Support: We provide one-on-one video training, a 1-3 year warranty on core components (steam generator, control system), and lifetime technical support with a 24-hour response team.
