Bae517ec Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment
Bae517ec Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment
Bae517ec Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment
Bae517ec Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment
Bae517ec Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment
1 / 5
Bae517ec Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment
Bae517ec Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment
Bae517ec Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment
Bae517ec Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment
Bae517ec Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment

Bae517ec Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment

Customization: Available
Material: Metal
Type: Electric Bed
Send Inquiry

Product Description

Basic Information
Model NO.
BAE517EC
Folded
Unfolded
Using Ambient
Hospital
Numbers of Function
Five-function
Certification
CE, ISO13485
Max Back Elevation
75°
Max Knee Elevation
45°
Max Trend/Reverse
12°
Max Safe Load
250kg
Accuracy
0.1kg (0.05kg 0.02kg Optional)
Castor
5 Inch Standard, 6 Inch Optional
HS Code
94029000
Product Overview

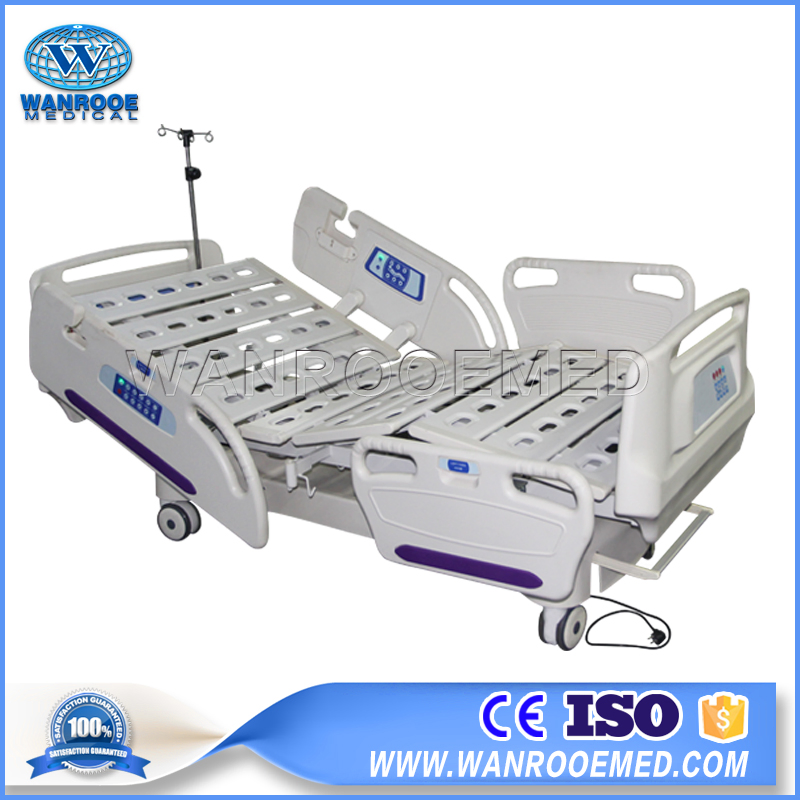

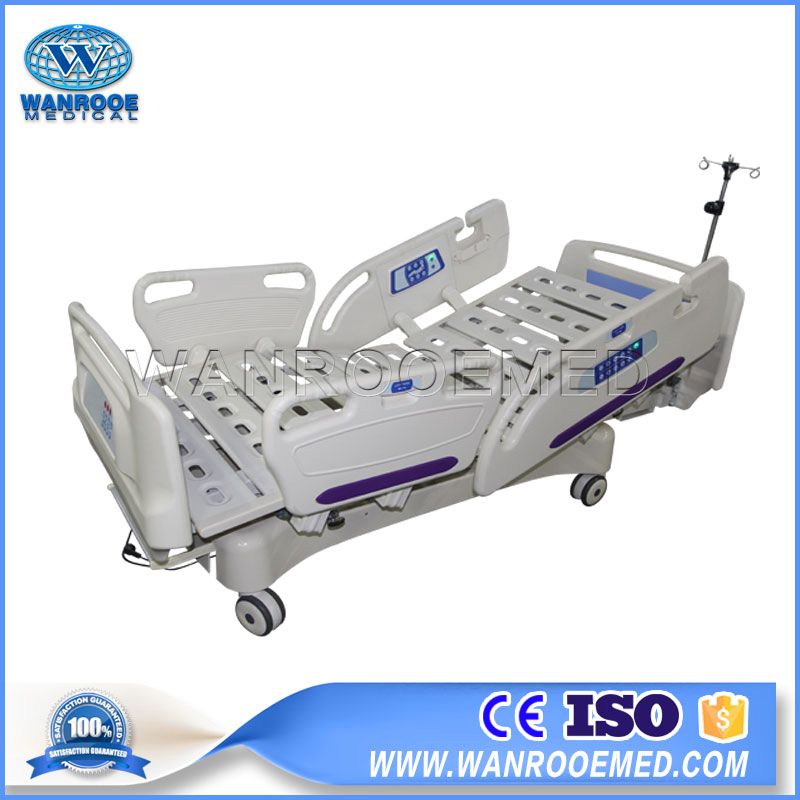

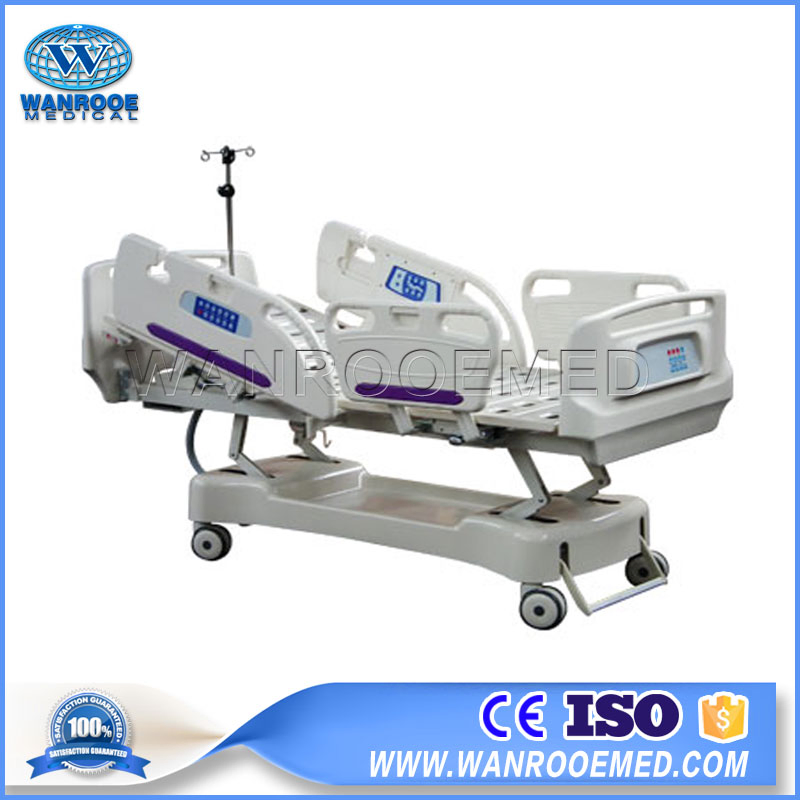

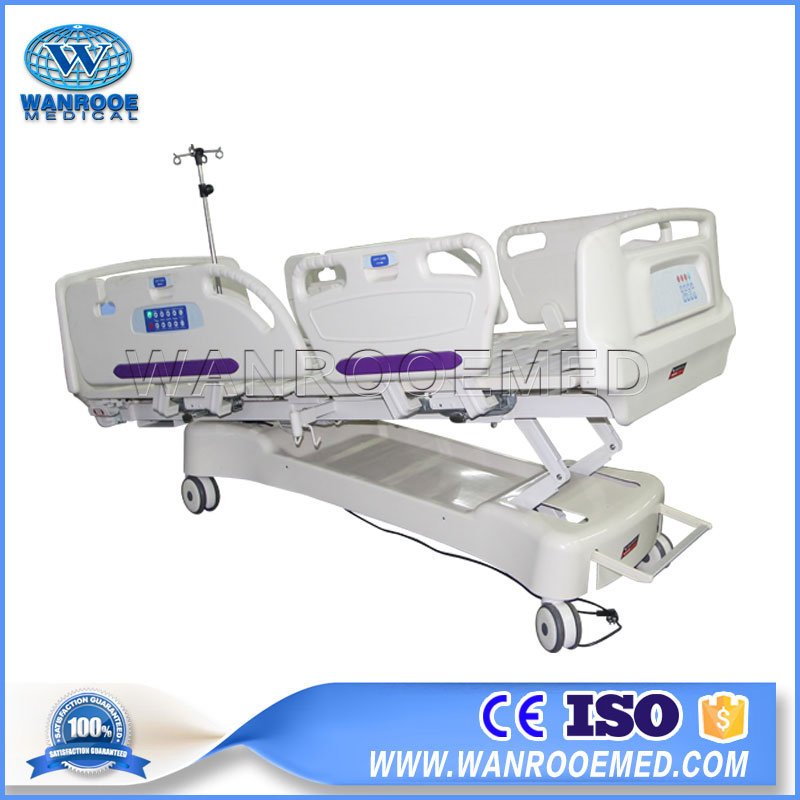

BAE517EC Hospital Medical Furniture Surgical Five Function Adjustable ICU Electric Patient ICU Bed Equipment

ICU Electric Patient Bed

The Electric Hospital Bed is an adjustable electric hospital bed, enjoys a reasonable price with high quality and safe performance. The BAE517EC Electric Bed meets stringent quality and safety standards, is a good choice for patients and caregivers. Patient Safety and comfort are the primary concerns, built with several unique features to help protect and care for patients.

DimensionsBed length with standard sleep deck: 2230mm
Width (with rails up): 1080mm
Width (with rails down): 950mm
Height range: 400mm - 700mm
Sleep DeckWidth: 900mm | Length: 1960mm
Adjustable AnglesBack elevation: 75° | Knee elevation: 45° | Trendelenburg: 12°
Load CapacityMax safe load: 250kg
Scale SystemAccuracy: 0.1kg (Optional 0.05kg / 0.02kg)
Standard Features & Functions
  • 4 LINAK motors for reliable movement
  • Translational side rails with zero-transfer gap
  • Integrated battery backup system
  • Manual CPR handle for emergencies
  • Caregiver controls on side rails and footboard
  • Safety lockout control on footboard
  • 12° Trendelenburg and reverse Trendelenburg
  • Simultaneous head and knee section movement (Cardiac chair)
  • 4-position IV pole mounts on four corners
  • Blow-molded headboard and footboard (molded in one)
  • 4 mobile centrally controlled castors (125mm diameter)
  • Steel carriage base for maximum durability
  • Compatibility with standard mattresses and over-bed tables
Product Details

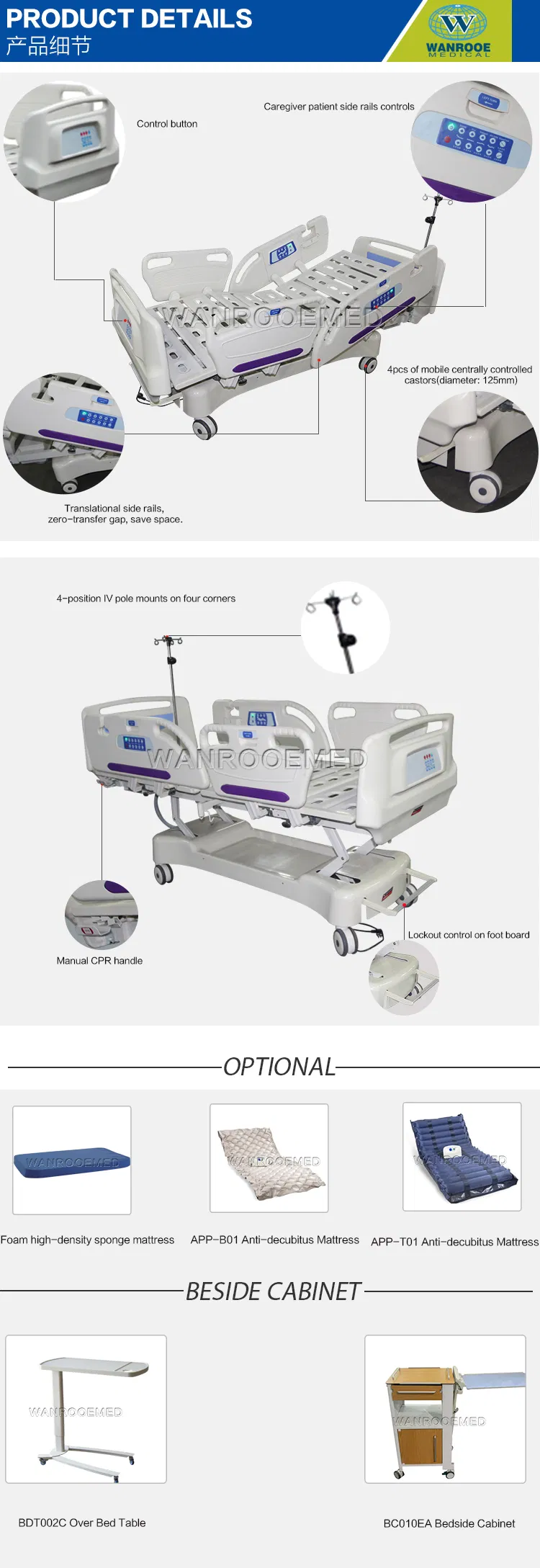

Bed Details View 1

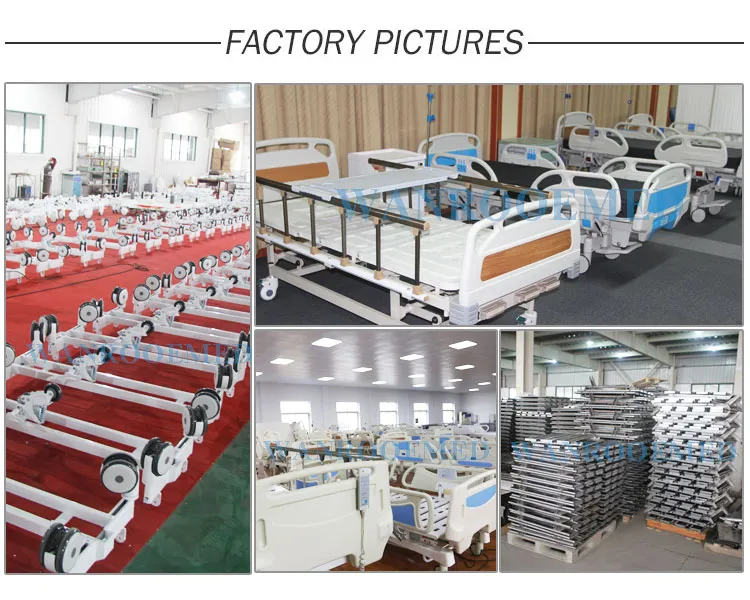

Bed Details View 2
Frequently Asked Questions
1. What are the primary functions of the BAE517EC ICU bed?
This is a five-function adjustable electric bed, featuring back elevation (75°), knee elevation (45°), height adjustment (400-700mm), and Trendelenburg/Reverse Trendelenburg (12°).
2. What is the maximum weight capacity for this patient bed?
The bed is designed for a maximum safe load of 250kg, making it suitable for a wide range of patients in ICU and surgical environments.
3. Does the bed include emergency features?
Yes, it is equipped with a manual CPR handle for rapid flattening, a battery backup system for power outages, and a central lockout control on the footboard for safety.
4. Can the bed be adjusted into a cardiac chair position?
Yes, the head section and knee section can move simultaneously to achieve the cardiac chair position, enhancing patient comfort and clinical utility.
5. Is an integrated weighing scale available?
The bed offers an optional scale system with high accuracy (0.1kg standard, with 0.05kg or 0.02kg options) for precise patient monitoring.
6. What type of motors and castors are used?
The bed utilizes 4 high-quality LINAK motors and features 4 centrally controlled castors (125mm diameter standard) for easy maneuverability and stability.
