Ultrasound B Scanner Ultrasound Accessory (3D imaging, ultrasond, black white, scanner)

Customization:	Available
Classification:	Ultrasound Scanner Box
Type:	Ultrasound Scanner Box

Send Inquiry

Product Description

Basic Information

Model NO.

MY-A010

Operation System

Windows XP(Best) or Windows 7

Max Scanning Depth

250mm

Multi-Frequency

5 Segment Frequencies

Image Gray Scale

256 Level

Dimension

230mm×200mm×64mm

Weight

Approx. 1.2kg (with one probe)

Battery Work Time

About 3 Hours (Optional)

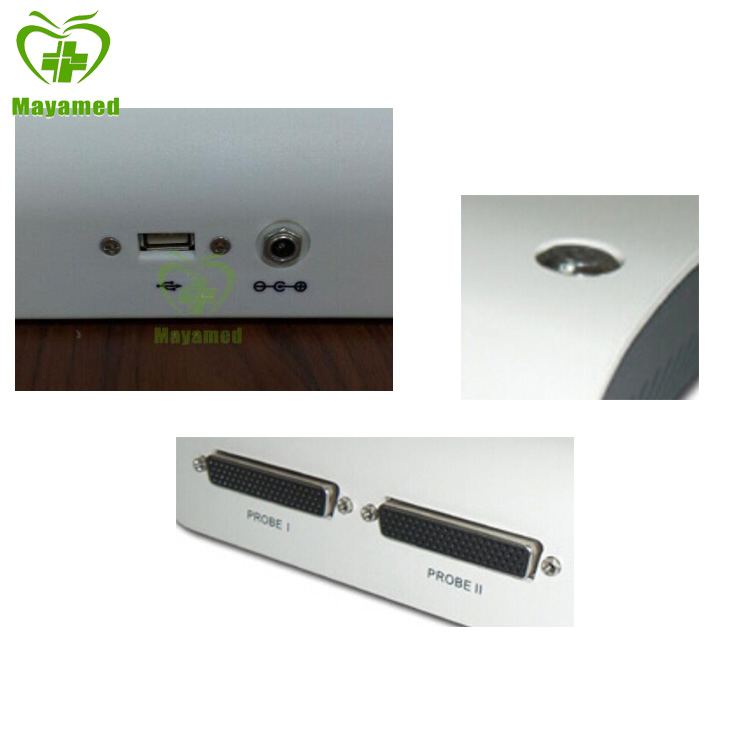

Probe Connector

Image Store

Computer Hard Disk or USB Disk

Production Capacity

50/Month

Product Description

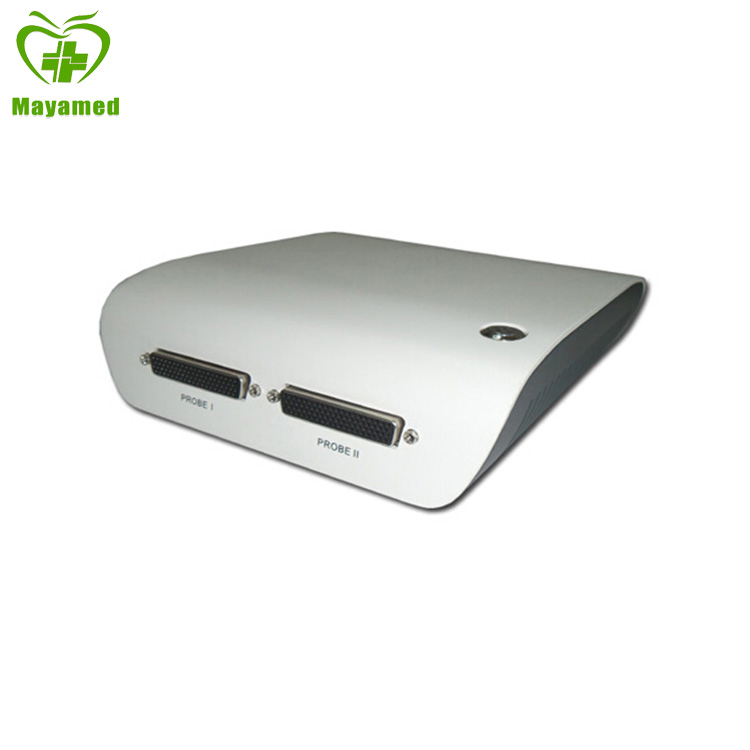

MYA010 Ultrasound B Scanner Box

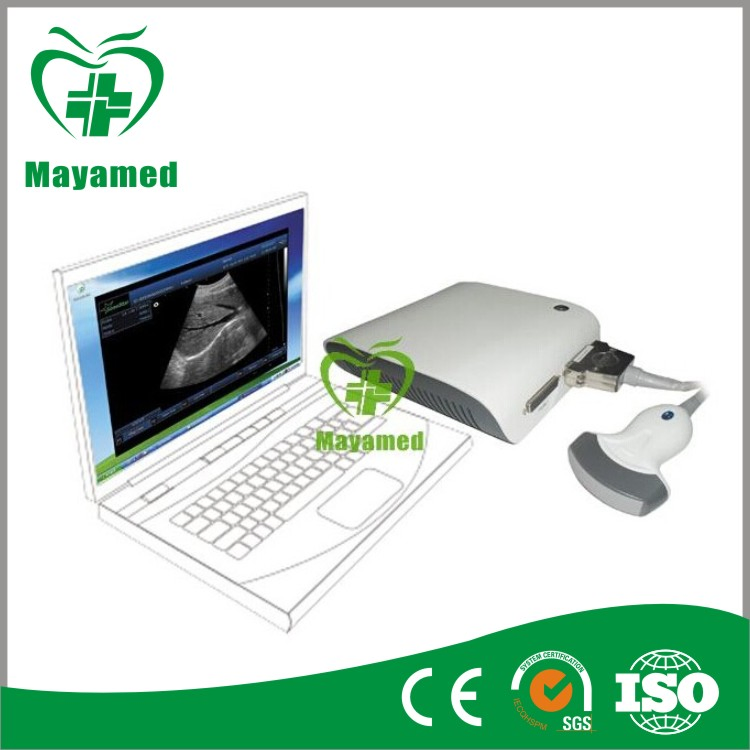

The Ultrasound Box is designed for high efficiency and ease of use. By connecting to a computer via USB cable and installing the dedicated software, users can transform their PC or laptop into a powerful computer-based ultrasound B Scanner.

Instructional Usage:
Utilizes the standard computer keyboard. Through the software, users can define specific keys for various functions. For example, the "Space" key can be set as "Freeze", while "+" and "-" can be assigned to value adjustments, providing a fully customizable user experience.

Key Features

Cost-effective PC-based scanning
Compact and lightweight design
Full digital, high-clear imaging
3D image function (optional)
Large volume storage on PC
USB laser/inkjet printer support
Waterproof silica gel keyboard (optional)
External battery compatibility (optional)

Technical Specifications

Scanning Mode	B, 2B, B/M, M, 4B, 9B, ZOOM (Real-time)
Zoom	10 ratios (1.5 to 6.0)
Cine Loop	Max. 1024 frames
Image Processing	Pre/After-processing, Dynamic range, Frame rate, Line average, Edge enhancement, B/W inversion, Gamma revision
Human Measurement	B mode: Area, Vol, Angle, Ratio, Stenosis; M mode: Heart rate, Time; Gynecology/Obstetrics: GA, Fetal weight, AFI; Urology/Small Parts
Veterinary Measurement	Cattle (BPD, CRL, TD), Horse (GA), Dog (GS), Cat (HD, BD), Sheep (BPD, CRL, TD)
Connectivity	DICOM 3.0, USB connect cable

Standard Configuration: Ultrasound Box, USB cable, Convex probe (3.5MHz), Power adapter, Software CD, Manual.

Optional Accessories: Linear/Trans-vaginal/Micro-convex/Rectal Probes, Ultrasound keyboard, External Battery, Carrying Bag.

Frequently Asked Questions

What operating systems are compatible with this ultrasound box?

The system is optimized for Windows XP and Windows 7 to ensure the best performance and stability.

Can I use this device for both human and veterinary medical imaging?

Yes, the software includes comprehensive measurement and calculation packages for both human applications (OB/GYN, Urology, Cardiology) and veterinary use (Cattle, Horse, Dog, Cat, Sheep).

How does the 3D imaging function work?

The 3D image function is an optional feature that allows the software to rebuild 3D images using data collected from any compatible probe.

Is the device portable for field work?

Absolutely. Weighing only 1.2kg and featuring an optional 3-hour external battery and carrying bag, it is ideal for mobile medical or veterinary services.

How are the images stored and printed?

Images are saved directly to the connected computer's hard drive or an external USB disk. Printing can be done through any standard USB laser or inkjet printer connected to the PC.

Can I customize the control keys?

Yes, the software allows you to define your own computer keyboard keys for specific functions, such as using the spacebar for freezing images.
