Product Description

Basic Info & Overview
Model NO.
LK-JMW
Cooling System
Water/Air Cooling
Laser Class
Continuous Wave Fiber Laser
Applicable Material
Metal Tubing
Item
Ultrasonic Scalpel Laser Cutting Equipment
Cutting Precision
+/-0.02mm
Cutting Speed
30m/Min
Laser Power
200W/500W/1000W/1500W Optional
Configuration
3-Axis, 4-Axis, 5-Axis Optional
Software
Cypcut
Key Selling Point
High Precision Linear Motor
Laser Source
GW/ Max/ Raycus/ IPG Optional

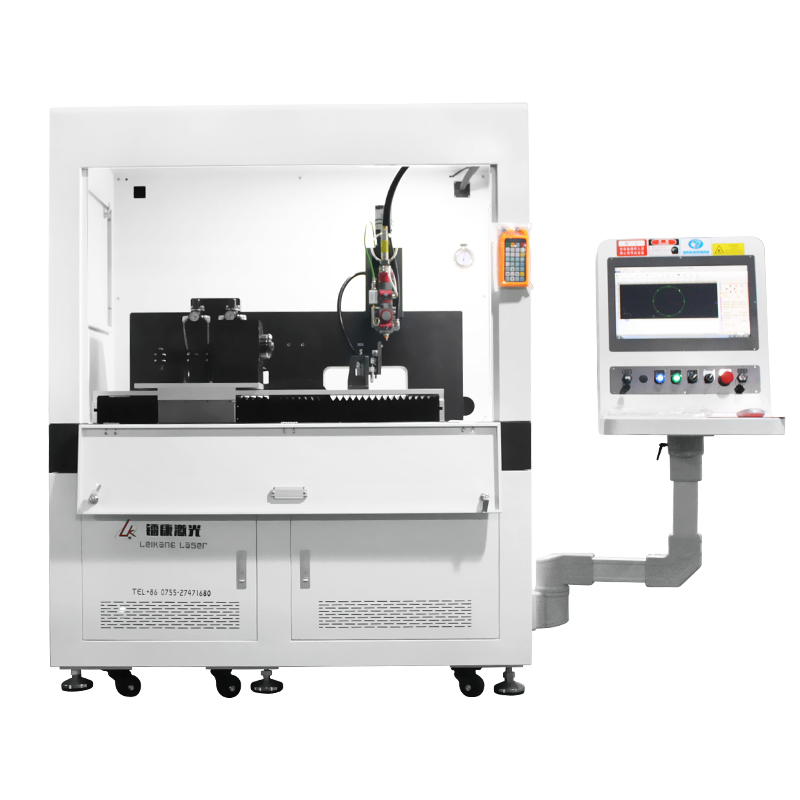

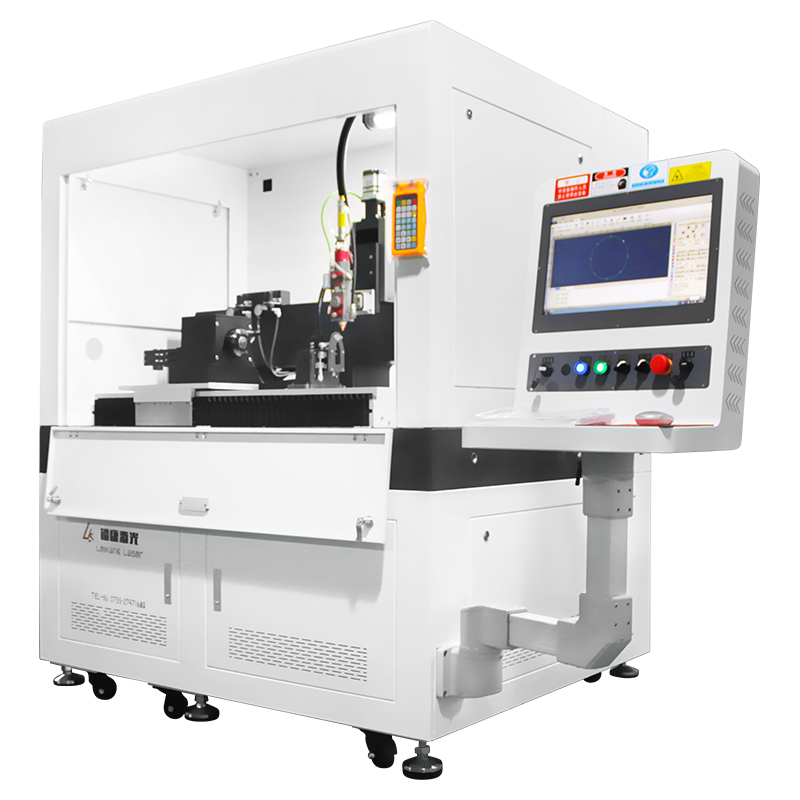

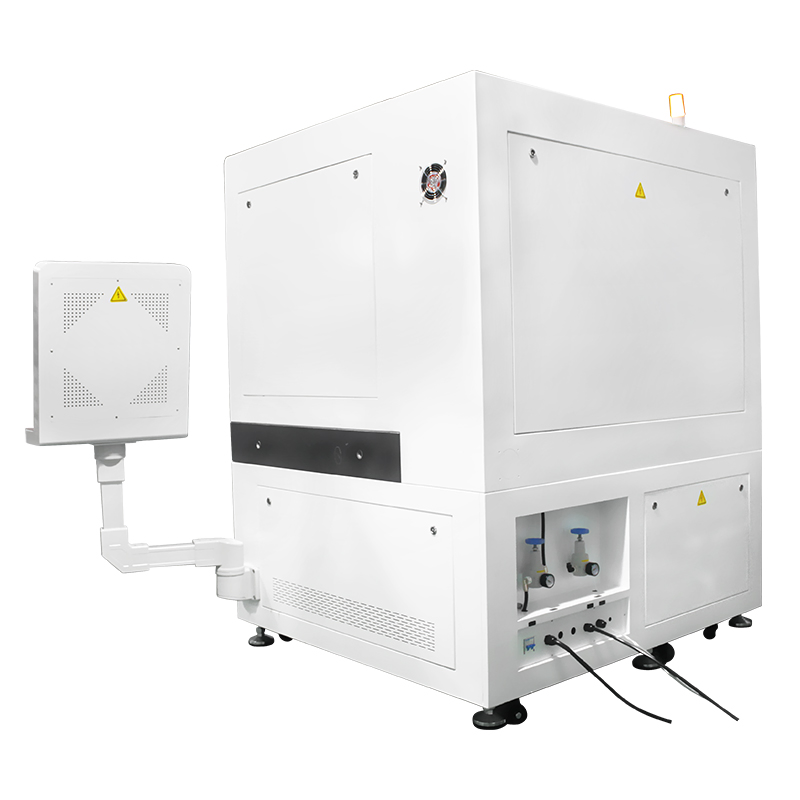

Linear Motor Ultrasonic Scalpel Medical Inner and Outer Automatic Tube Sleeve Metal Tubing Fiber Laser Cutting Machine

The ultrasonic scalpel inner and outer tube laser cutting machine is specially designed for small diameter tube cutting, such as surgical instruments, stents, and implantable devices. Featuring a high-stability marble platform that ensures zero deformation over long-term operation. Utilizing a linear motor system, it supports ultra-high precision cutting within +/-0.02mm, integrated with the industry-standard Cypcut software for stable and easy operation.

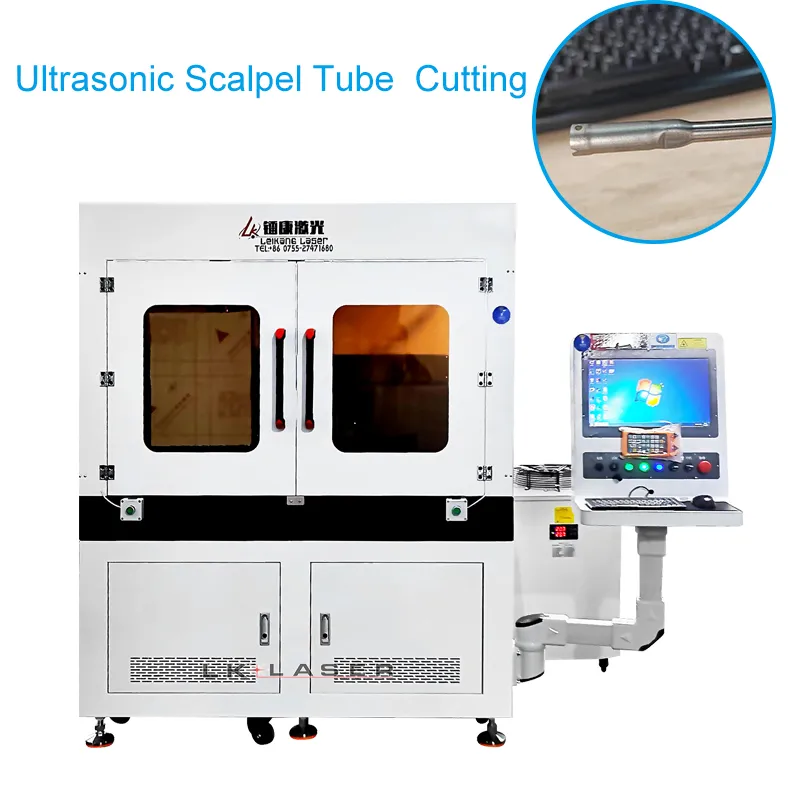

Fiber Laser Cutting Machine
Core Characteristics
🌀 Minimal Deformation The laser beam is focused into an ultra-small spot, achieving high power density. This ensures narrow-slit cutting with no burrs or wrinkles.
🛠️ Non-contact Processing The process is independent of material hardness, allowing the machine to cut through any hard metal without physical wear.
🔄 High Flexibility Easily integrates with automation equipment. Compatible with various tube shapes including round, D-shaped, and square tubes.
Technical Parameters
ModelLK-JMW
Laser Power200W/500W/1000W/1500W optional
Laser SourceGW/ Max/ Raycus/ IPG Optional
Laser Cutting HeadRaytools
Laser Wavelength1064nm
X/Z Travel Distance500mm / 100mm
C Axis Working Speed200r/min
Precision±3um X/Z axis, ±15 arcsec θ axis
Tube Diameter0.3-15mm
Wall Thickness0.1-1.0mm
Width of Cutting Slit20um
Stable of Power<±3% (Continuous working 8 hours)
File FormatDXF, DWG
Power Supply220V ±10%, 50Hz
Detailed Product Display

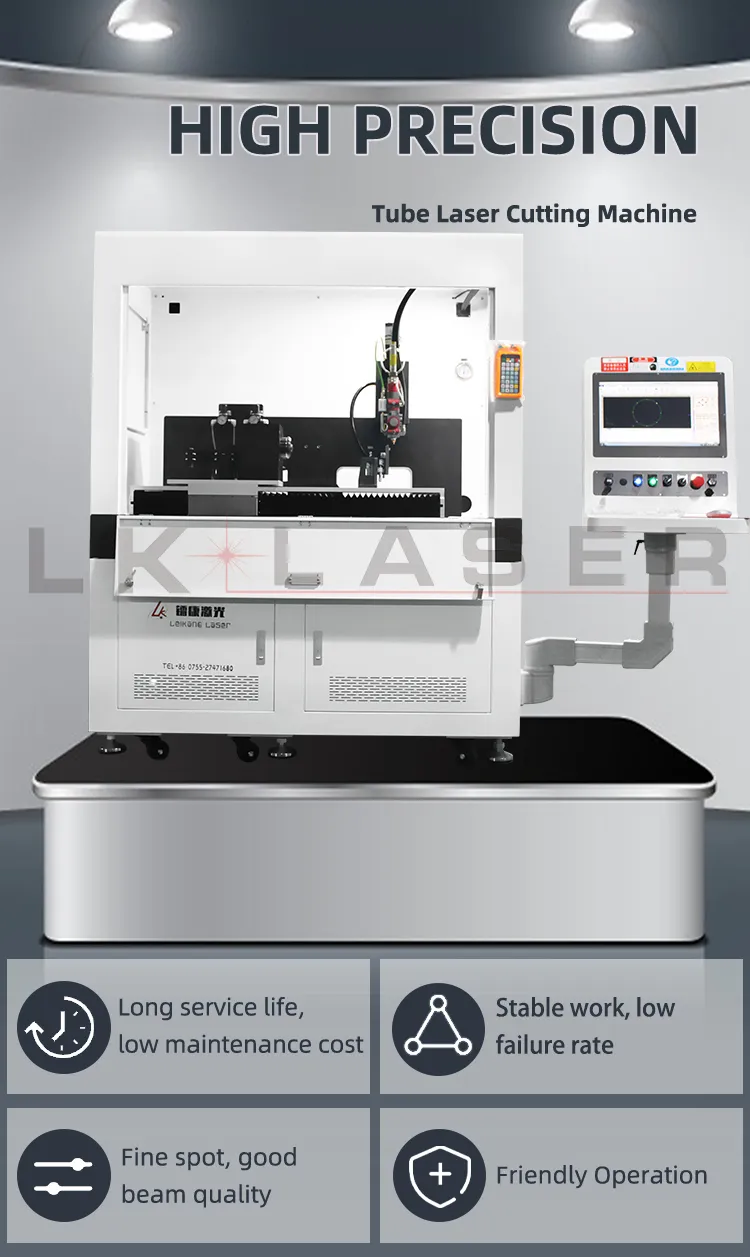

Detail 1

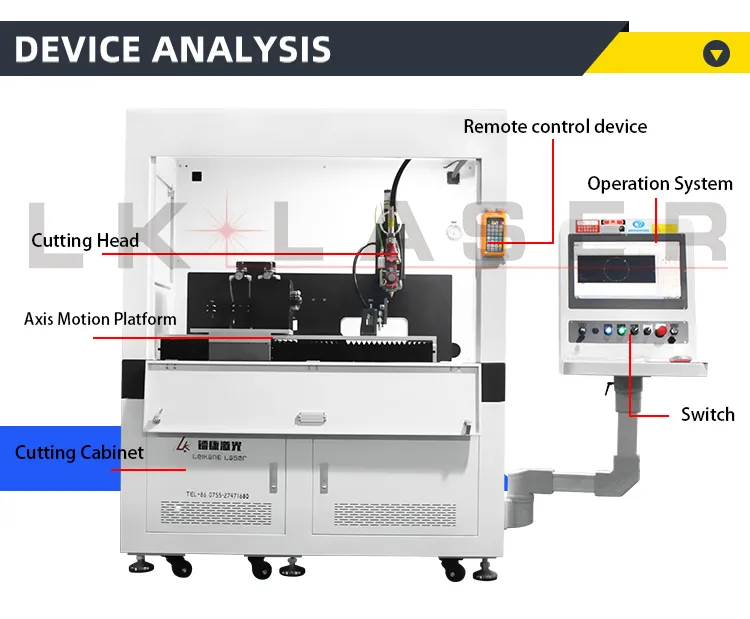

Detail 2

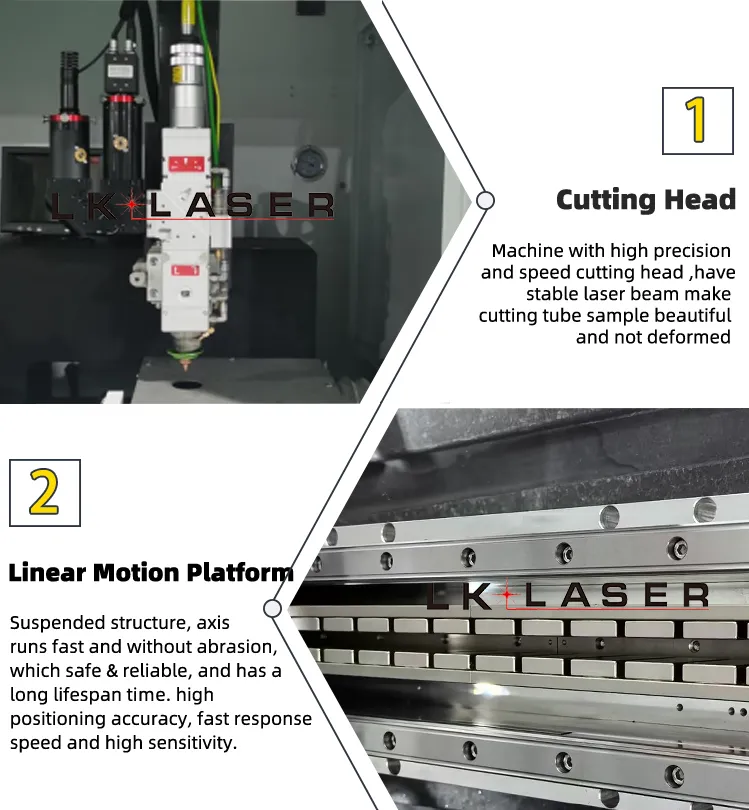

Detail 3

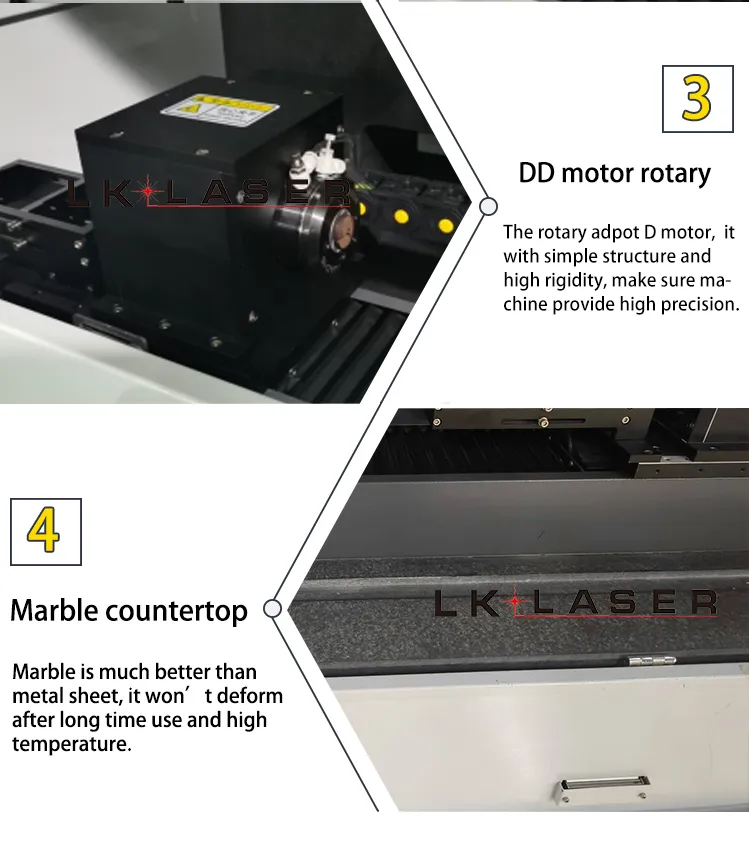

Detail 4

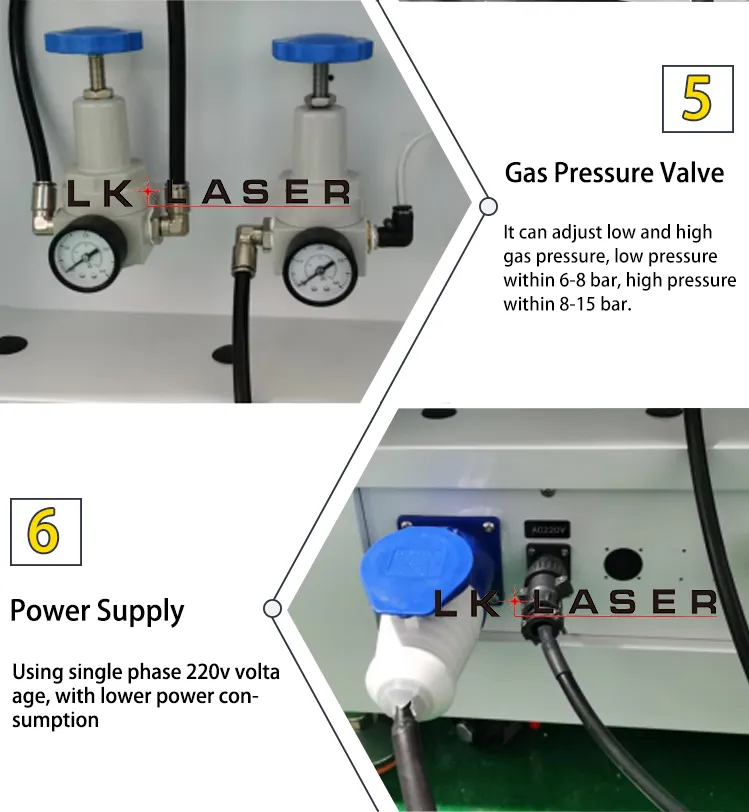

Detail 5
Industry Applications

High precision laser tube sleeve cutting equipment is suitable for various medical tube diameters and thicknesses. It is widely used in the manufacturing of:

  • Micro Hypotubes
  • Spiral & Snake Bone Tubes
  • Endoscopes & Staplers
  • Needles & Cannulas
  • Stents & Ultrasonic Scalpels
  • Trocar & Obturators
  • Catheters & Suture Anchors
  • Articulated Joints

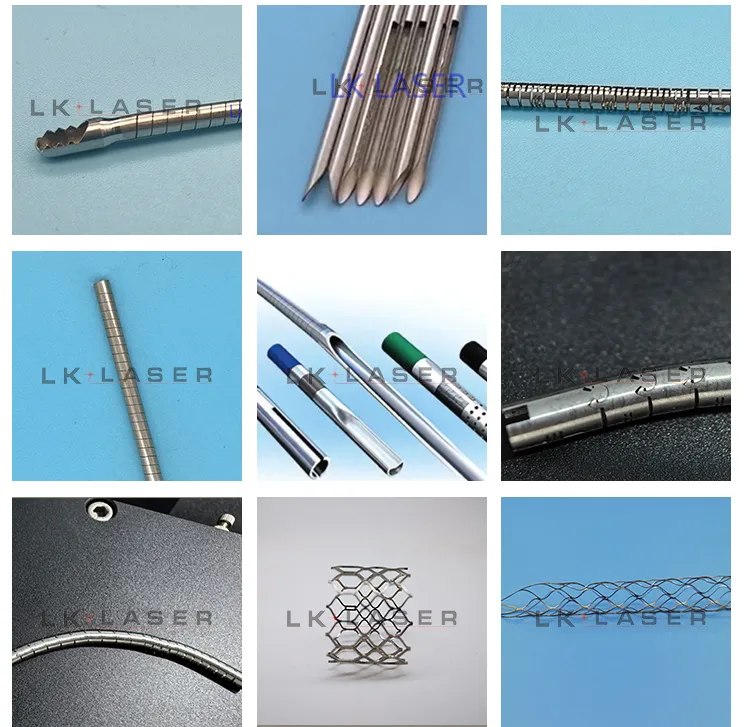

Application 1

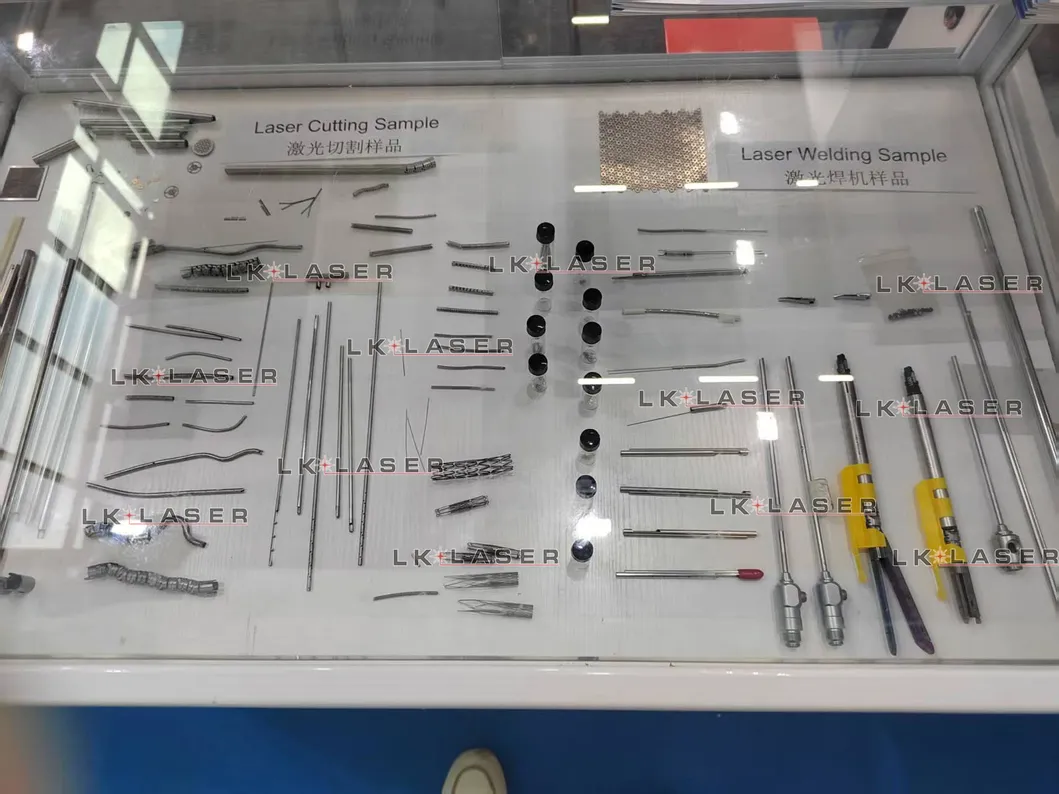

Application 2
Application 3

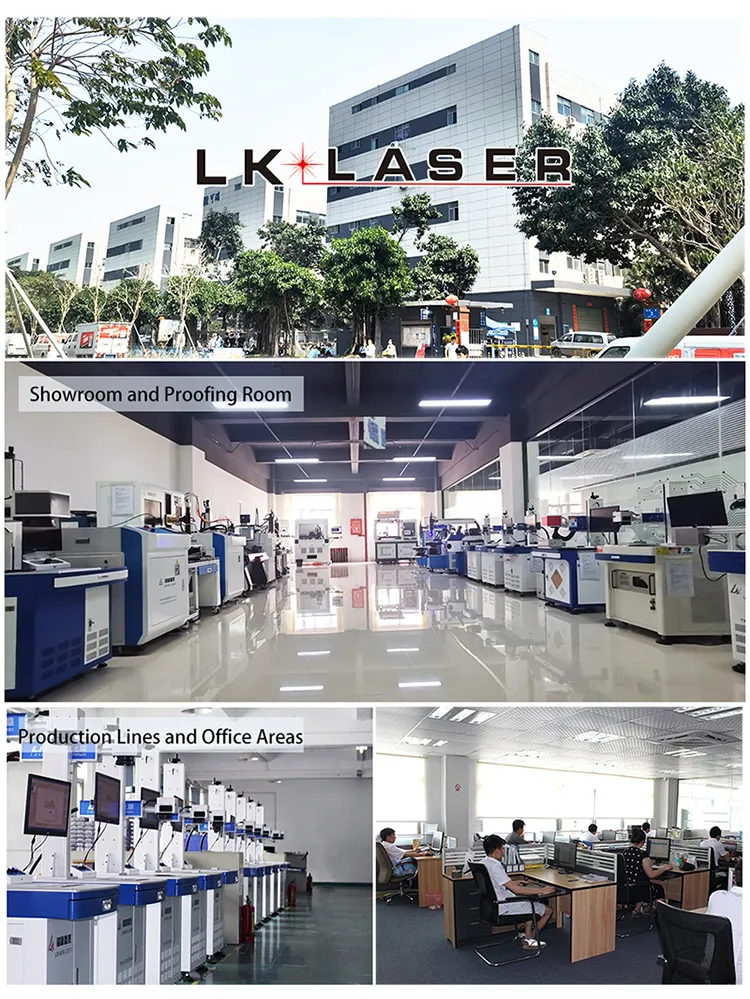

Application 4
Frequently Asked Questions
I know nothing about the tube laser cutting machine, what kind of machine should I choose?
It is very easy to choose. Just inform us of your cutting tube material, diameter, wall thickness, and accuracy requirements. Providing a sample picture helps us suggest the perfect solution.
I don't know how to use the machine once I receive it. What should I do?
We provide an English manual and training videos. If doubts persist, we offer support via telephone or video calls. Engineers can also be dispatched for on-site installation and adjustment if necessary.
What happens if problems occur during the warranty period?
We supply free replacement parts during the warranty period for any machine-related issues. We also offer lifelong technical support and aim to provide solutions within 30 minutes of contact.
How long is the typical delivery time?
Standard machines usually take 10-15 days for delivery, while customized equipment requires approximately 15-20 days.
How is the equipment packaged for shipping?
First, the machine is wrapped in plastic sheet for damp proofing. Second, it is placed in a secure plywood case to prevent clashing. Finally, the case is loaded into a transport container.
What materials can this machine cut?
This equipment is specialized for various metal tubings, including stainless steel and other medical-grade metals used in surgical instruments and implants.
