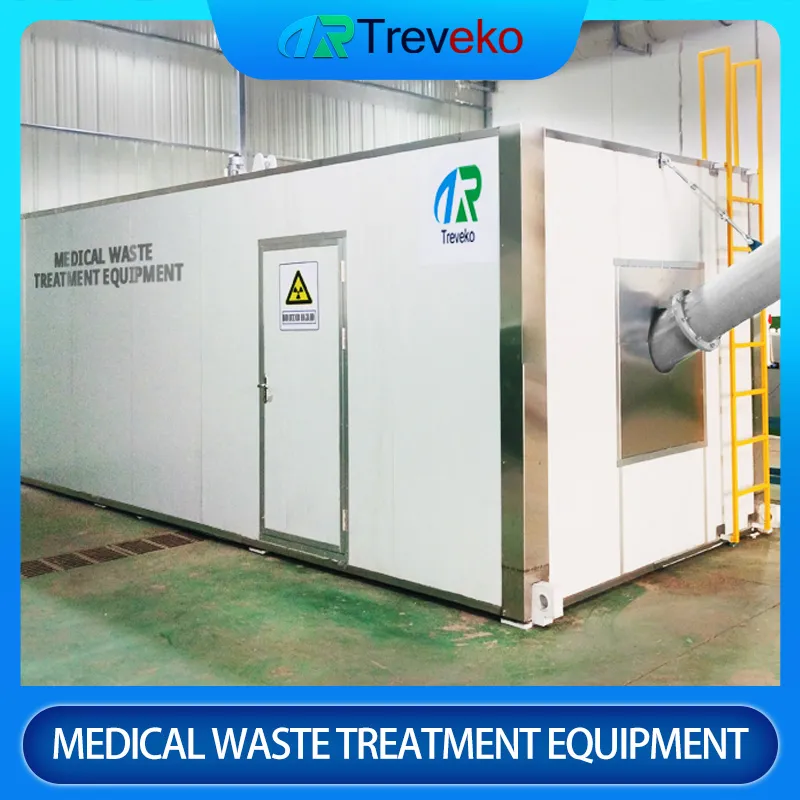

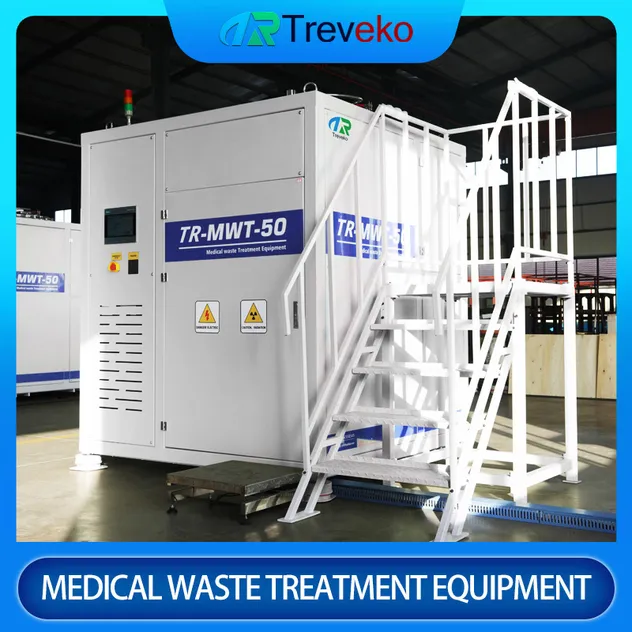

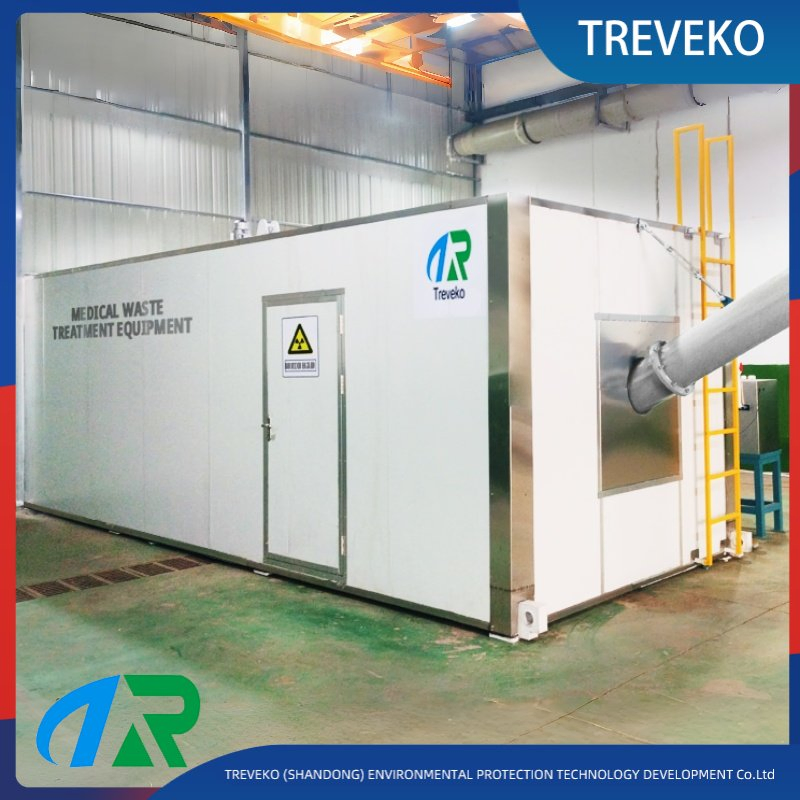

Integrated microwave treatment equipment for medical waste utilizes the synergistic sterilization of microwave irradiation and saturated steam. Its basic principle is to kill bacteria using the heat of steam, the thermal effect of microwaves, and the biological action of microwaves, particularly the biological sterilization effect of microwaves.
Microwaves affect the electron and ion density around the bacterial cell membrane by manipulating the distribution of electrons on the bacterial membrane cross-section, thereby altering the cell membrane's permeability and killing bacteria. From a biochemical perspective, the nucleic acids (RNA) and deoxyribonucleic acid (DNA) used for normal bacterial growth and reproduction are coiled macromolecules tightly linked by numerous hydrogen bonds. Microwaves can cause these hydrogen bonds to loosen, break, and recombine, inducing genetic aberrations.
1. High degree of automation: The entire machine adopts a PLC control system. The sterilization temperature and time within the microwave sterilization chamber are automatically controlled, eliminating the need for manual intervention.

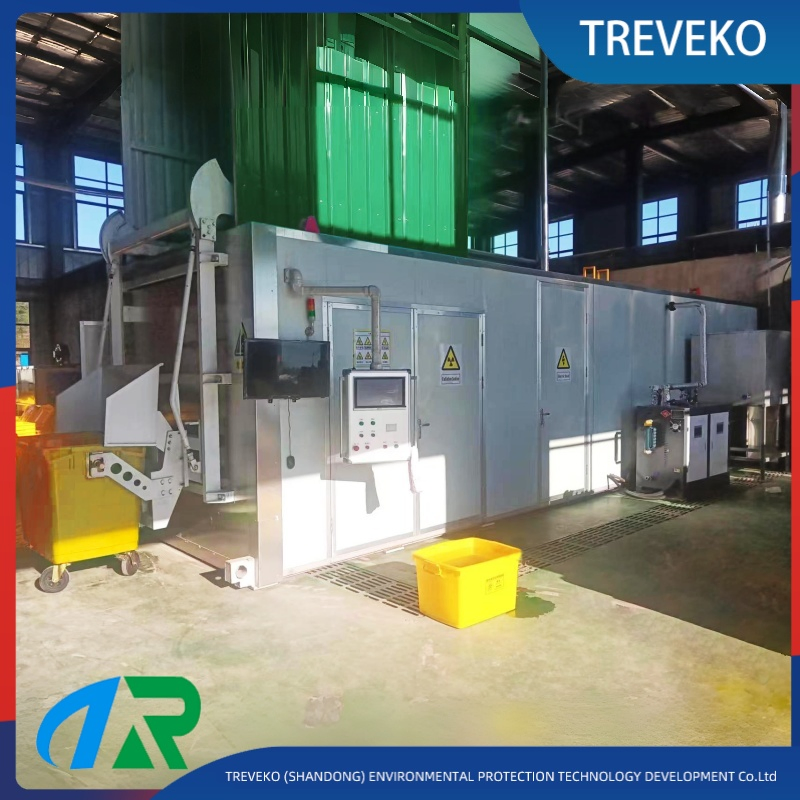

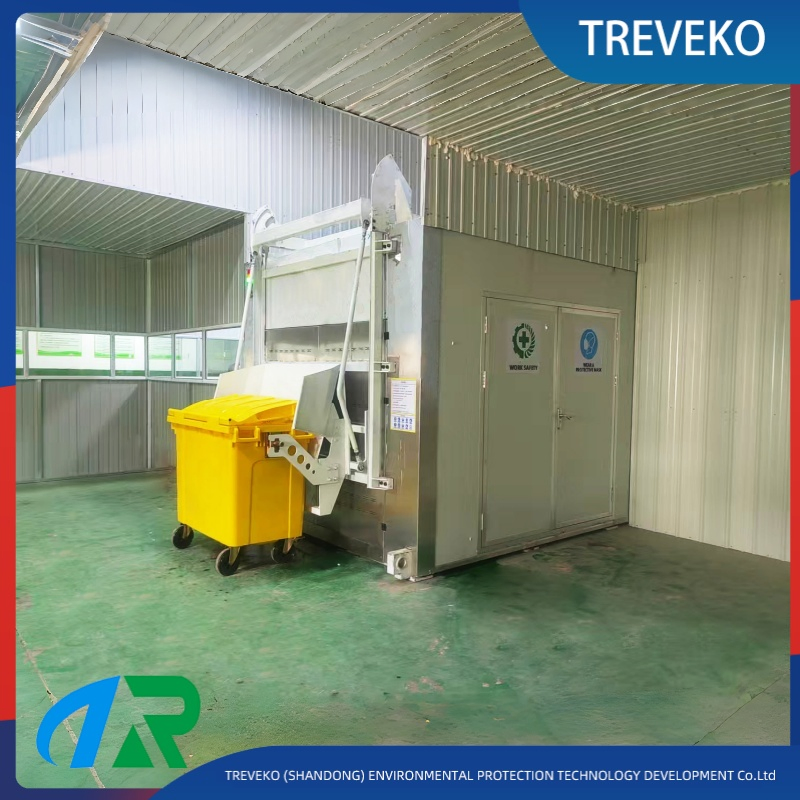

2. Safe Loading Process: Medical waste is placed in standard bins and automatically lifted into a sealed silo. The system maintains a slight negative pressure, ensuring a leak-free loading process with no exhaust gas leakage.
3. Robust Construction: The microwave sterilization chamber is constructed of SUS304 stainless steel, offering high pressure and corrosion resistance. Integrated guide strips prevent material tangling.

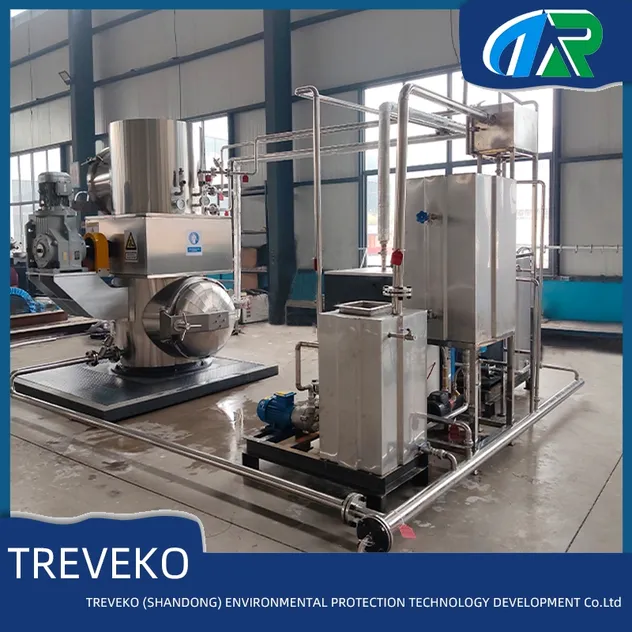

4. Efficient Steam Generation: Equipped with a high-purity steam generator for one-button operation. Simply connect water and electricity to generate steam quickly.
5. Effective Gas Treatment: Generated exhaust gas is processed through a treatment box by an induced draft fan, ensuring environmental compliance.

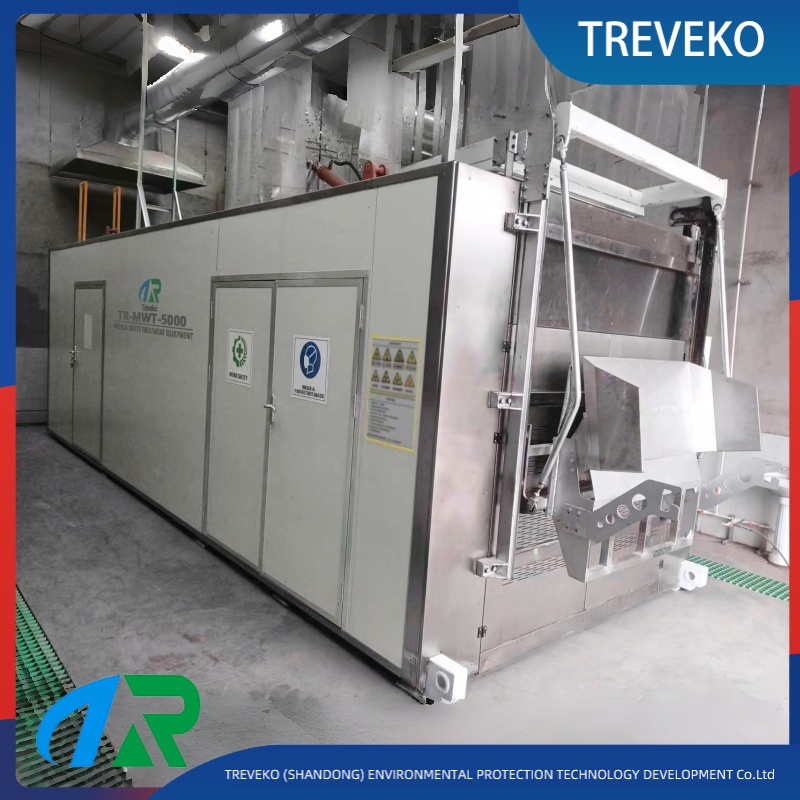

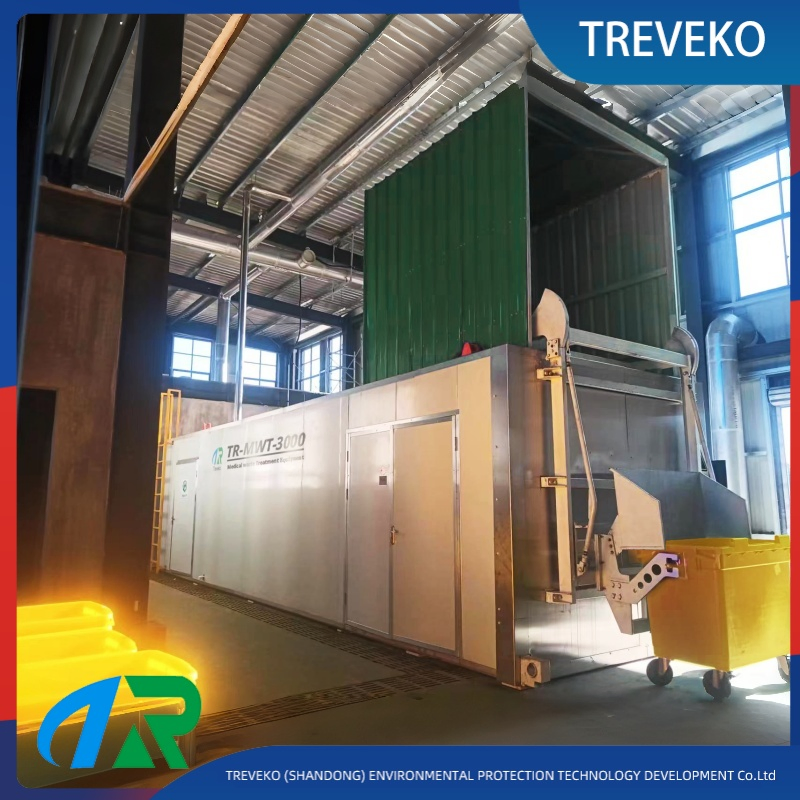

| Project / Model | TR-MWT-3000 | TR-MWT-5000 | TR-MWT-10000 |
|---|---|---|---|
| Silo Volume | 1m³ | 1.2m³ | 1.2m³ |
| Crushing Power | 22kw | 30kw | 30kw |
| Microwave Generator | 1.5kw * 8 units | 1.5kw * 10 units | 1.5kw * 20 units |
| Steam Generator | 54kw | 72kw | 108kw |
| Total Power | 97kw | 130kw | 176kw |
| Processing Capacity (t/h) | 3 | 5 | 10 |
| Gross Weight | 11000kg | 13000kg | 15000kg |
The machine adopts a fully automatic PLC control system with automatic start-up and return modes. The touchscreen display allows real-time monitoring of modules including the elevator, dual-shaft crusher, press, sterilization chamber, and microwave generator. The sterilization results meet strict technical specifications for medical waste treatment, ensuring complete disinfection through precise temperature and time control.
