Product Description

Basic Specifications
Model NO.
MEB-5.2B
Material
Steel
Feature
Reusable
Certification
CE, ISO13485
Group
Adult, Infant, Child
Usage
Difficult Airway Intubation
Display
3.5inch or 10.1"
Working Length
300mm-600mm
Illuminance
800lux
Resolution
600,000 Pixels
Channel
1.2mm to 2.8mm
Battery
Lithium Battery
Function
Take Pictures, Video, Save
Disinfection
Ethylene Oxide, Autoclave Sterilization
Product Description
Electronic Bronchoscope Overview
📌
Portable Fiberoptic Bronchoscope Kit
Integrated LED Light Source for professional respiratory endoscopy procedures. Ideal for Anesthesiology, ICU, Emergency, and Respiratory departments.

This system is specifically designed for efficient airway management, including difficult tracheal intubation, nasal tracheal intubation, and bronchial occluder placement. It allows physicians to perform intubation under clear, direct vision.

Key Features
✅
1) 3.5-inch TFT LCD or 10.1" touch screen for intuitive visualization.
2) Built-in photo and video recording functions.
3) Electronic imaging system for clear, undistorted visuals.
4) Flexible hose resistant to bending.
5) Curved part field of view > 180 degrees.
6) Integrated suction support.
7) Portable, easy to clean, and simple to operate.
Technical Parameters
Parameter Specification
Visual Field90°± 10%
Observe Depth3-100mm
Intubation Diameter3.2mm, 3.8mm, 4.8mm, 5.2mm, 5.8mm
Suction Channel1.2mm, 1.4mm, 2.4mm, 2.6mm, 2.8mm
Effective Work Length600mm

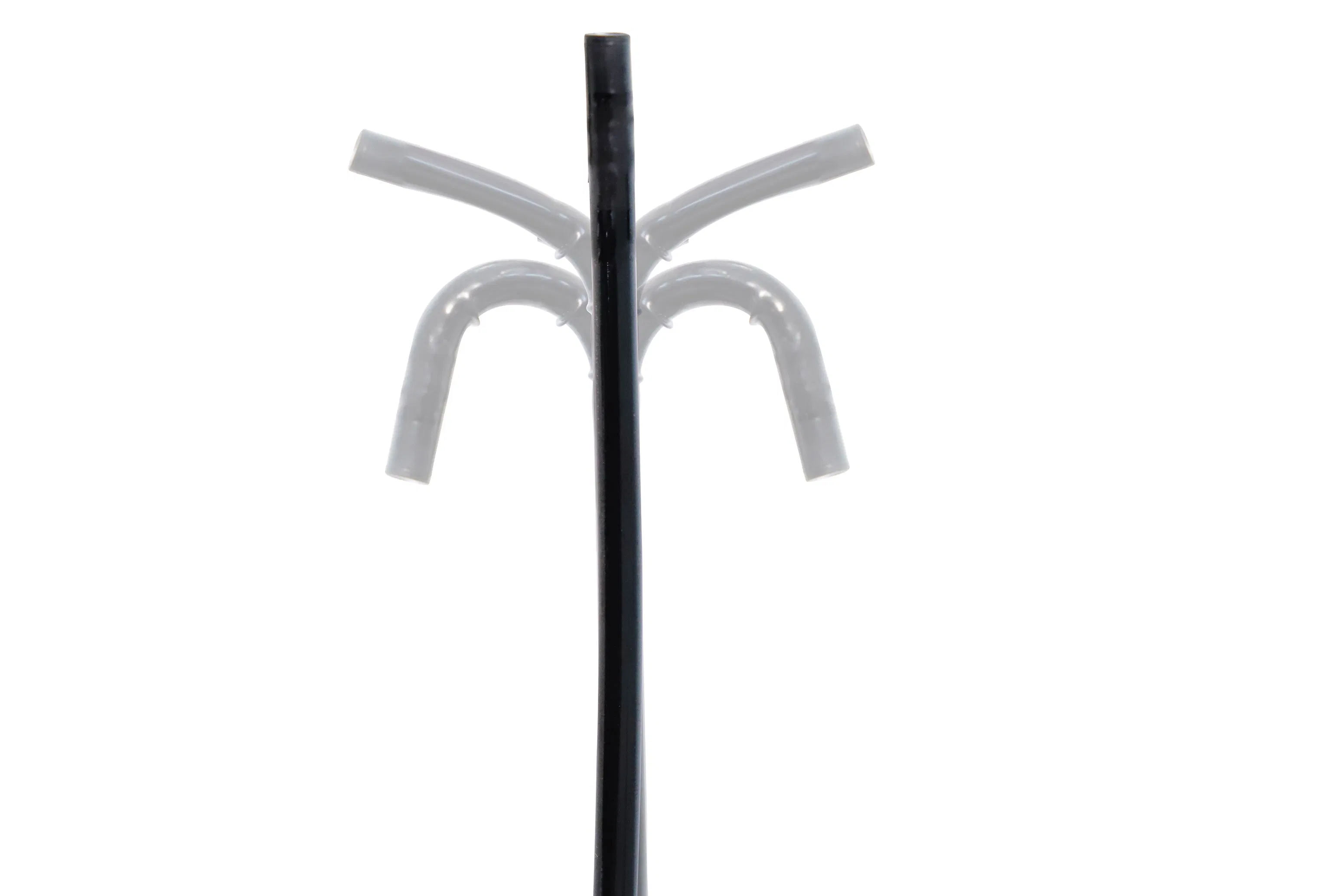

Curved AngleUpward 150°, Downward 130°
Illuminance≥800lux
Pixels2,000,000 pixels
Battery Capacity1850mA (Polymer Lithium)
Charging / Discharge< 3 hours / > 2.5 hours
Standard Configuration List
Item Quantity
3.5inch Display / Operative Section1 Set
Rechargeable Battery1 Pc
Waterproof & Pressure Caps2 Pcs each
Reusable Biopsy Valve2 Pcs
Suction Button / Leak Detector1 Set
Cleaning Brush / SD Card1 Pc each
Detailed Product View

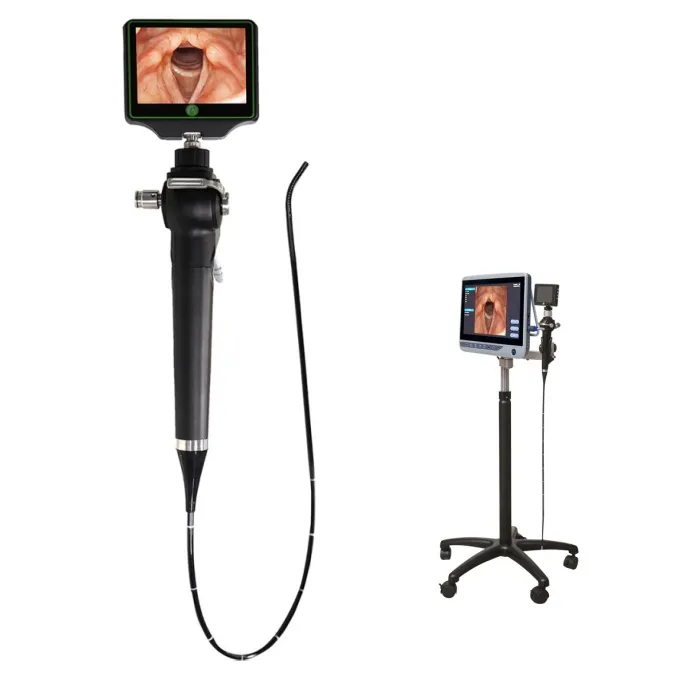

Detailed Bronchoscope

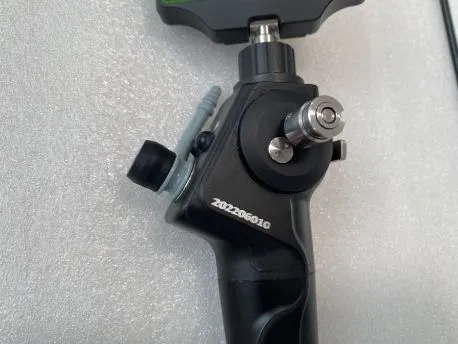

Operation Part

Operation Part: Wrench-driven traction wire for precise bending control.

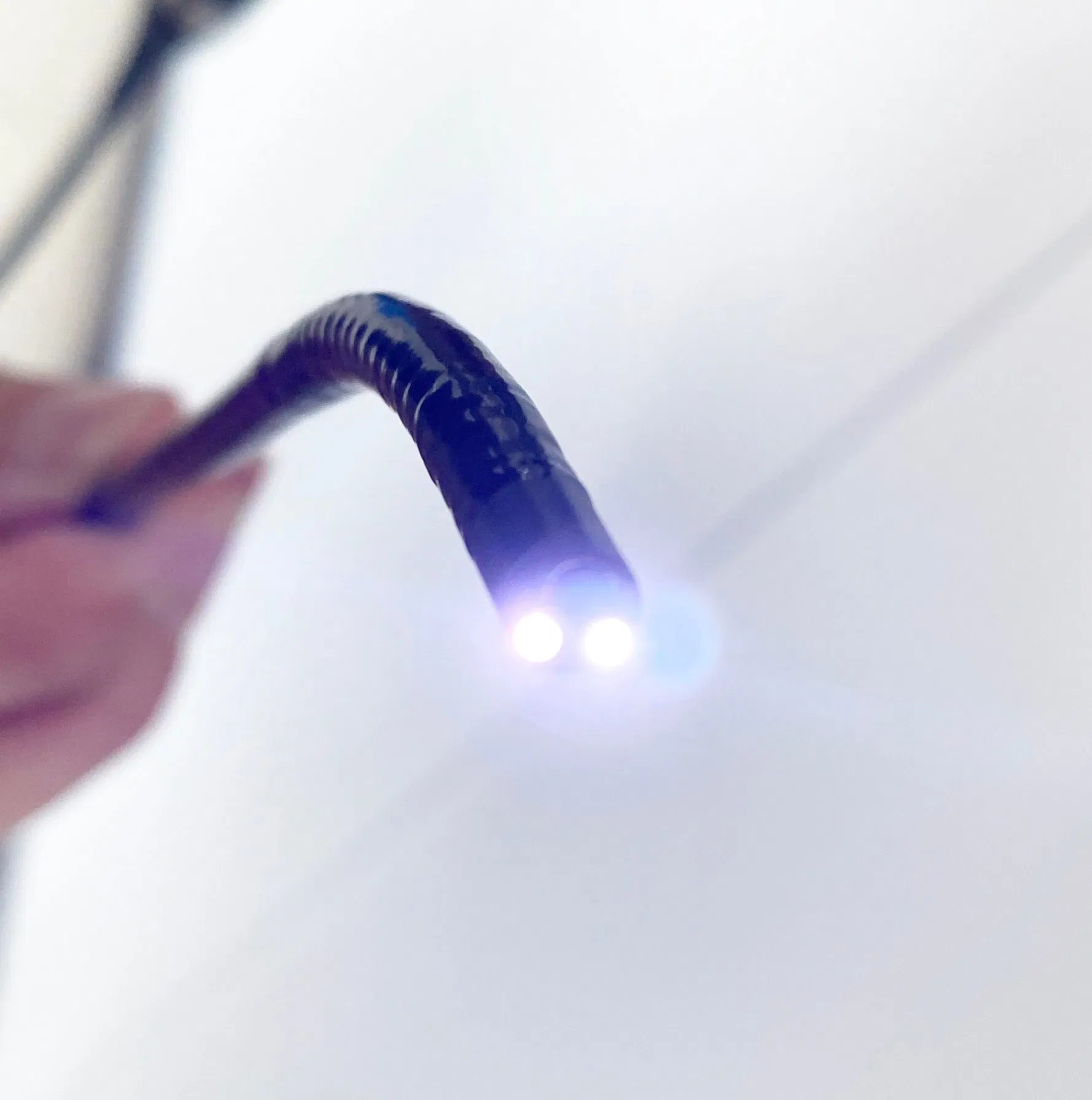

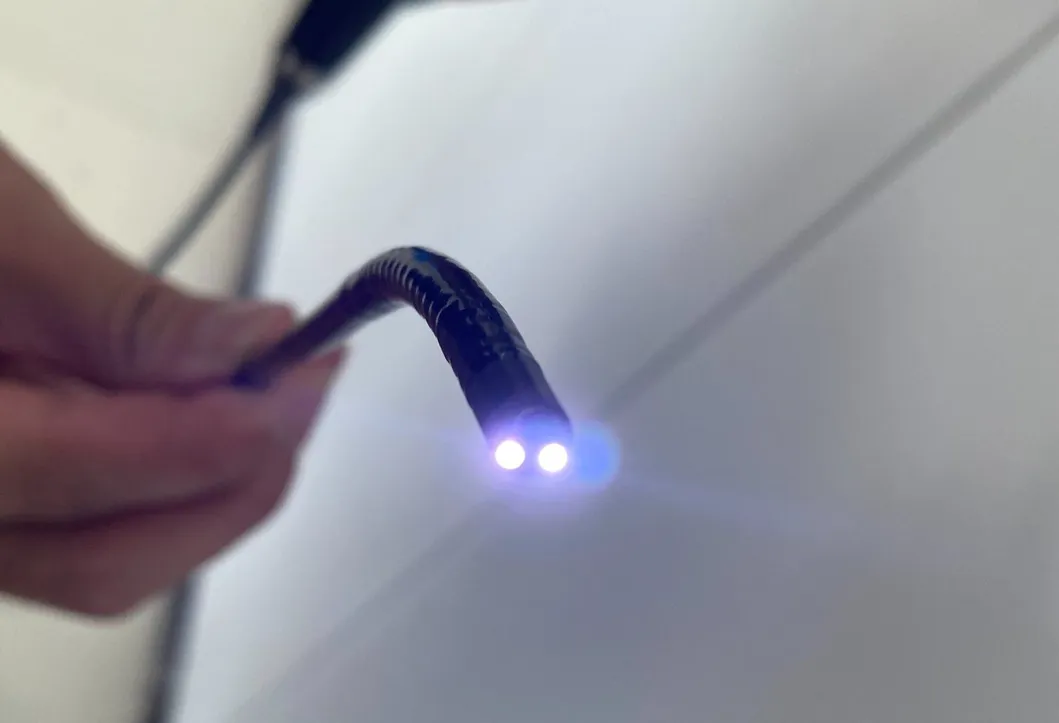

LED Illumination

LED Illumination: Nano anti-fog cold light source ≥800lux.

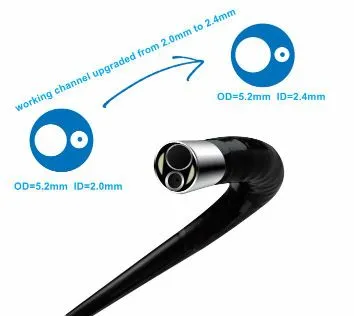

Working Channels

Working Channels: Upgraded from 1.2mm to 2.8mm for high efficiency.

Optional Accessories

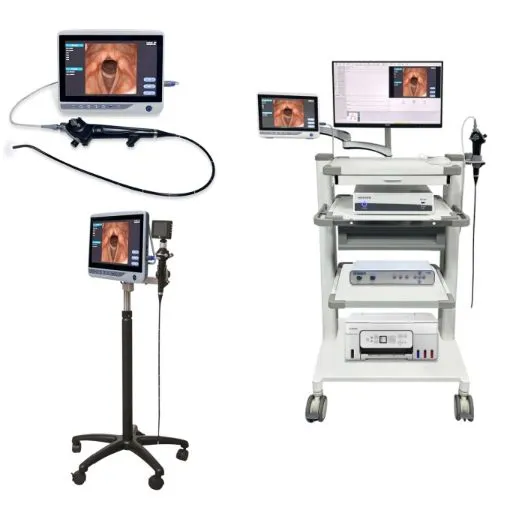

10.1 inch Screen

10.1-inch medical high-definition touch screen with multi-screen support and one-click recording.

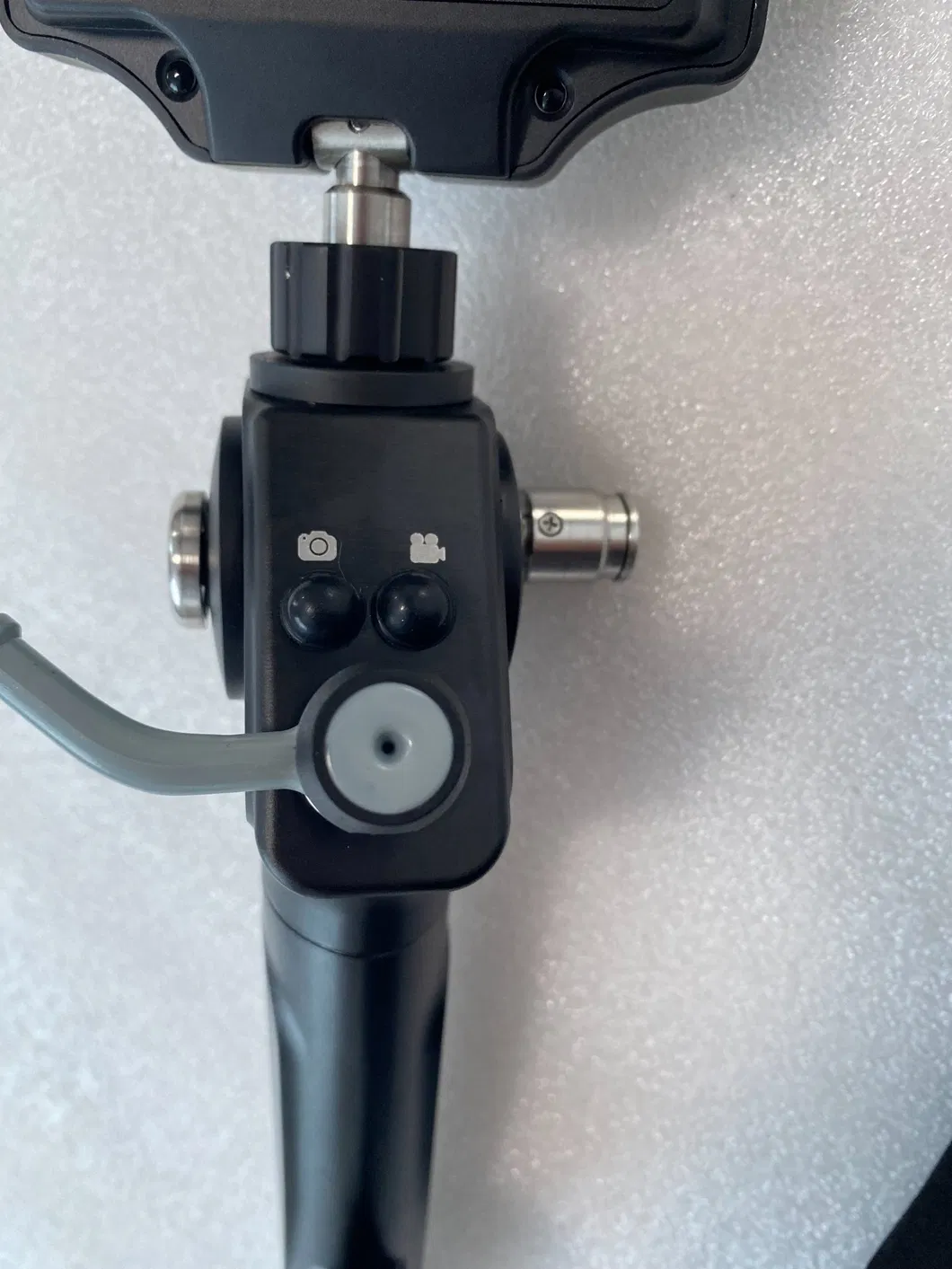

Component 1
Component 2

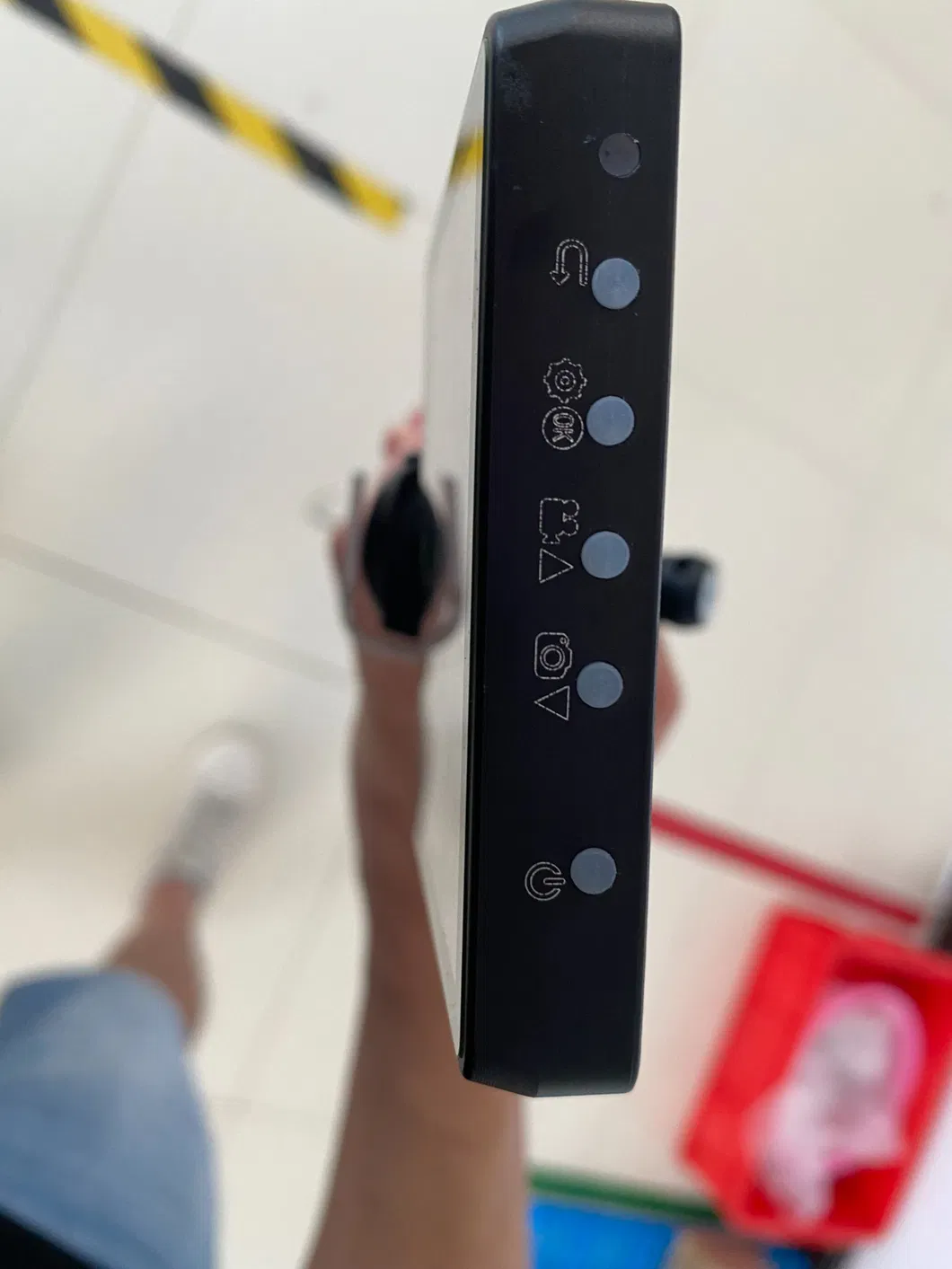

Component 3

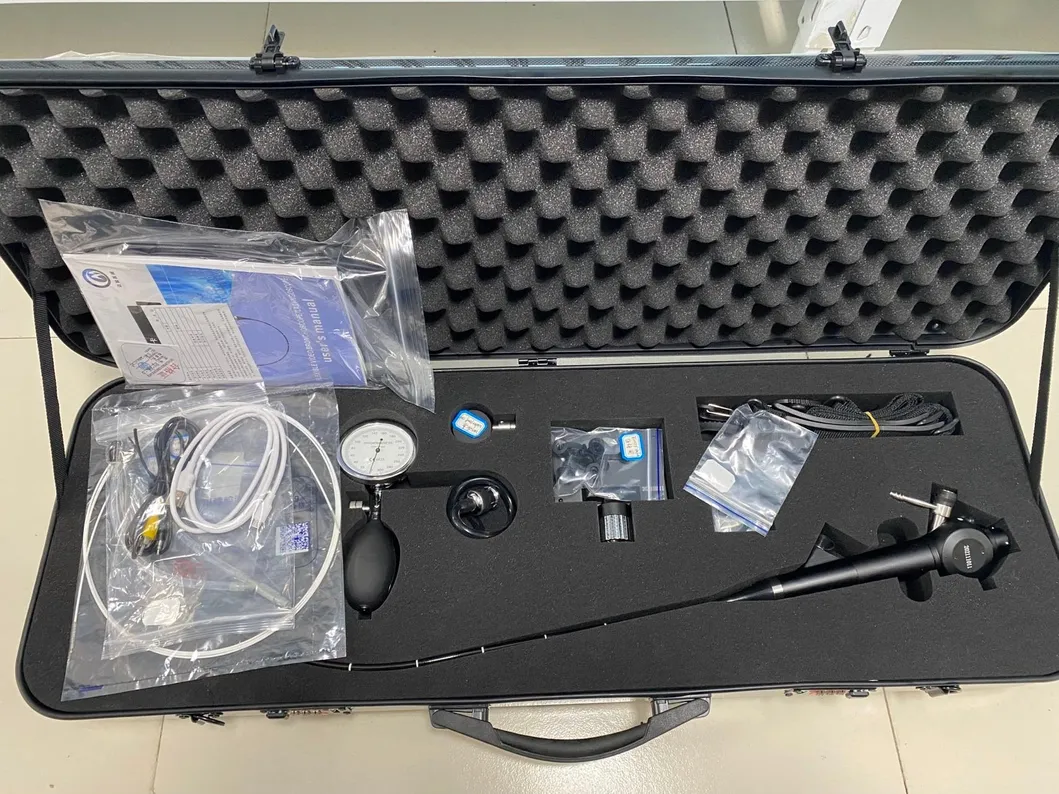

Full Set
Clinical Application

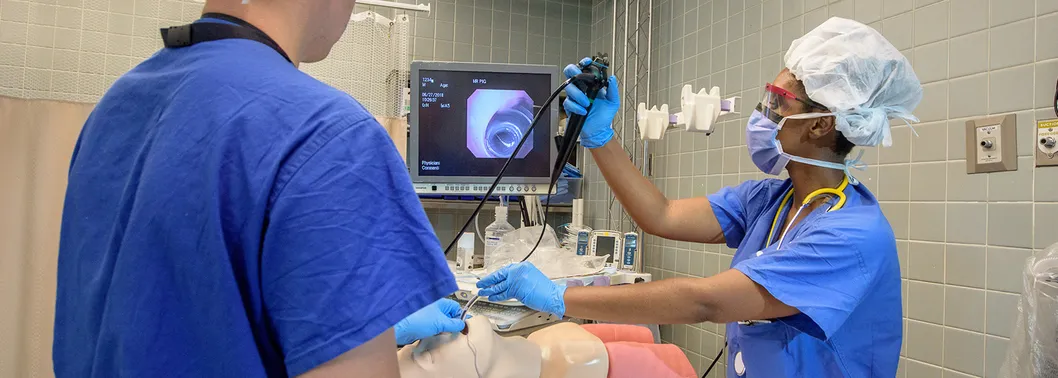

Application Banner
Intubation Example 1

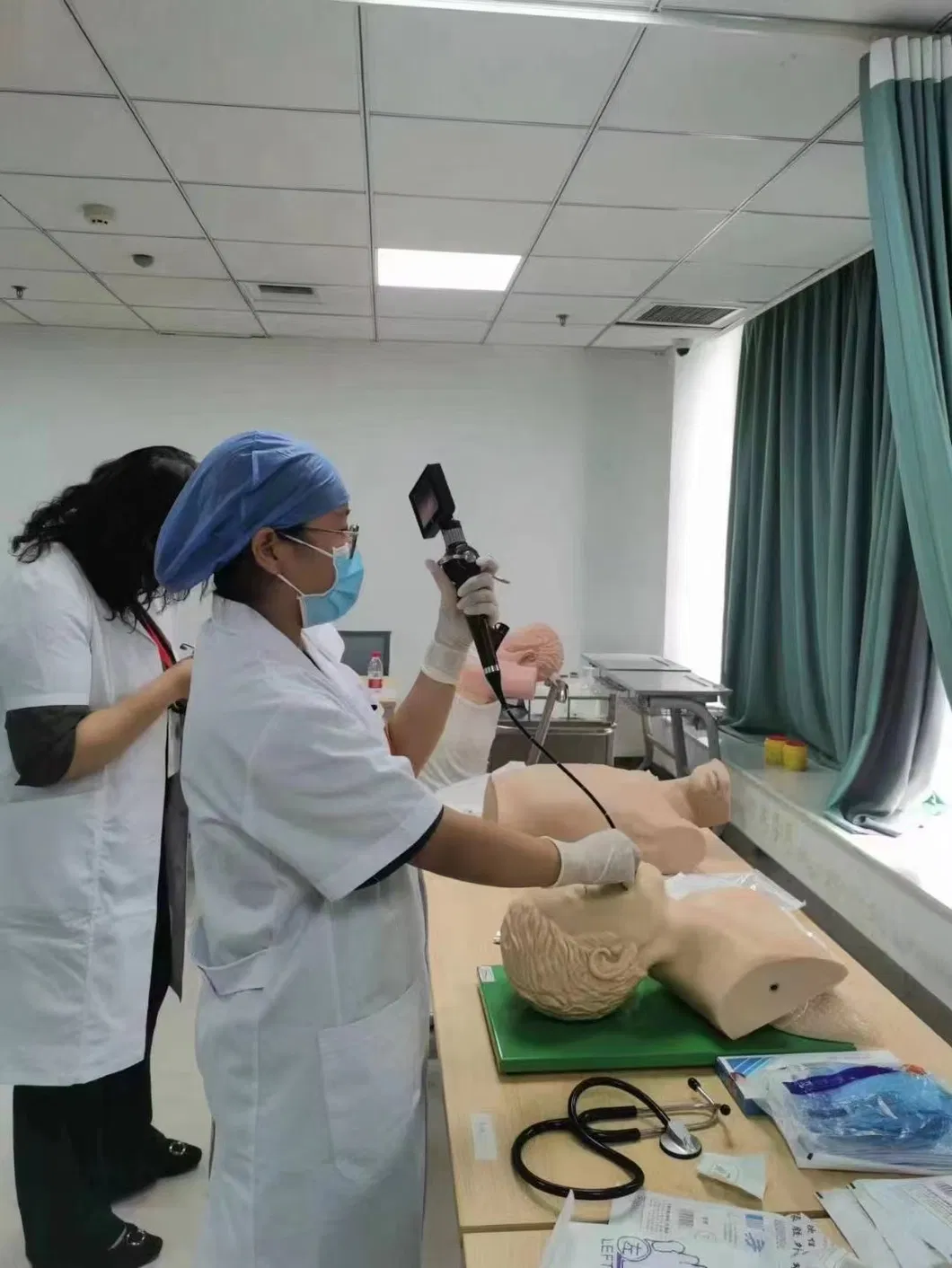

Intubation Example 2
Packaging & Shipping
Safe Packaging

All products are packed in standard export wooden cases or high-density cartons. Every unit is inspected carefully by QC before delivery to ensure safe transportation.

Frequently Asked Questions
What are the primary clinical applications for this bronchoscope?
It is widely used in Anesthesiology, ICU, Emergency, and Respiratory departments for difficult tracheal intubation, airway management, and diagnostic observation.
Does the device support photo and video recording?
Yes, the system features built-in electronic imaging that supports high-quality photo and video functions, with files stored on an SD card or TF card.
How can the equipment be disinfected?
The bronchoscope is compatible with Ethylene Oxide (EO) sterilization and certain parts are designed for autoclave sterilization protocols.
What screen options are available for the display?
The standard kit includes a 3.5-inch TFT LCD screen. However, a 10.1-inch high-definition touch screen is available as an optional accessory for a larger viewing experience.
What is the battery performance of the portable unit?
The unit uses a rechargeable lithium polymer battery. It requires less than 3 hours to charge and provides more than 2.5 hours of continuous discharge time.
Is technical support available for installation and usage?
Yes, we provide professional instructional videos and manuals to guide users through the installation and operational process effectively.
