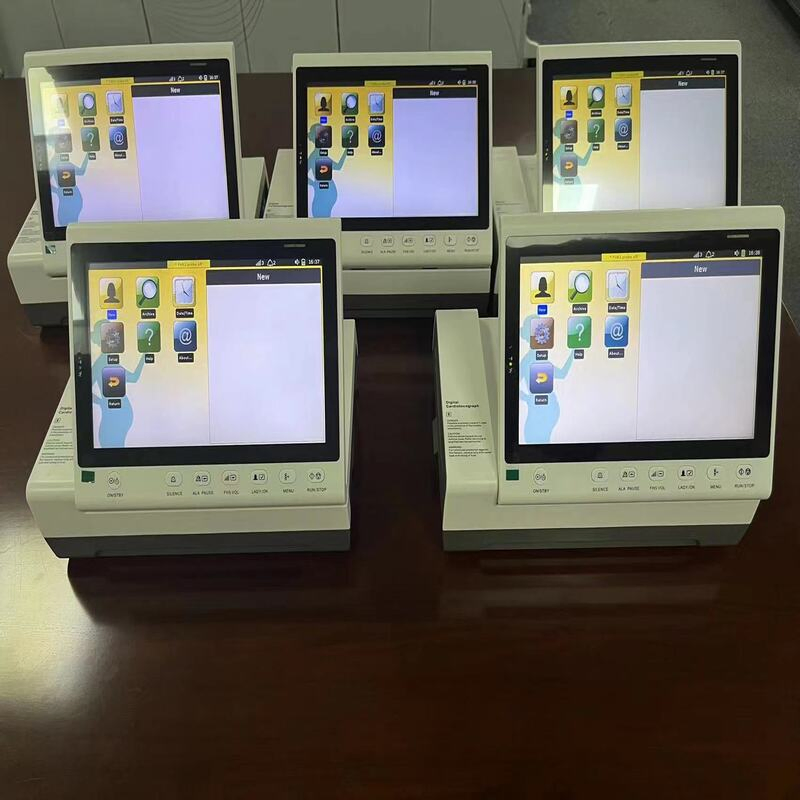

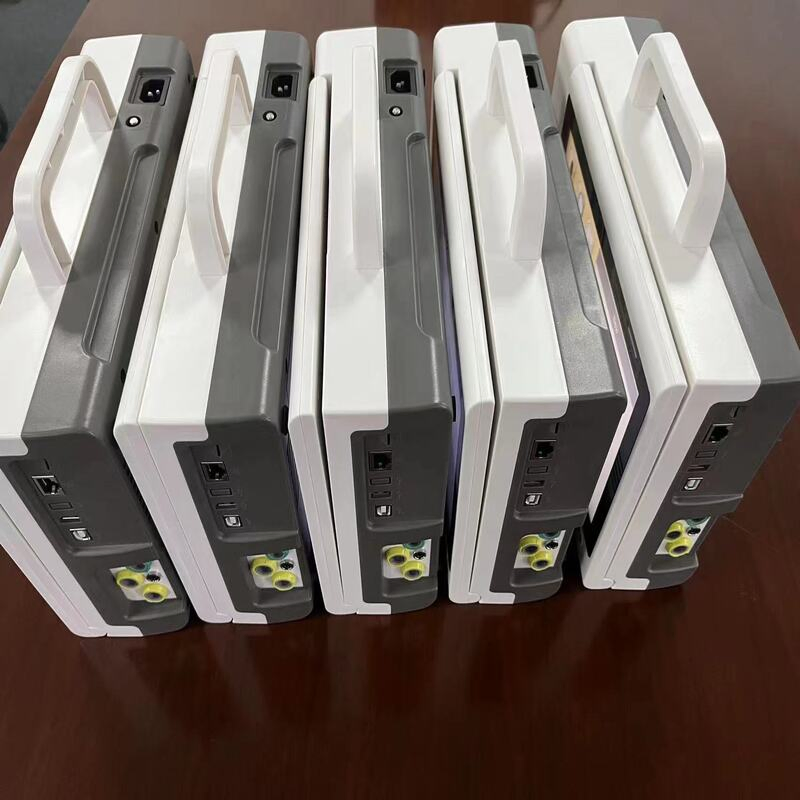

Fetal Monitor Portable Medical Diagnostic Equipment with Ctg Monitoring Machine
Fetal Monitor Portable Medical Diagnostic Equipment with Ctg Monitoring Machine
Fetal Monitor Portable Medical Diagnostic Equipment with Ctg Monitoring Machine
Fetal Monitor Portable Medical Diagnostic Equipment with Ctg Monitoring Machine
Fetal Monitor Portable Medical Diagnostic Equipment with Ctg Monitoring Machine
1 / 5
Fetal Monitor Portable Medical Diagnostic Equipment with Ctg Monitoring Machine
Fetal Monitor Portable Medical Diagnostic Equipment with Ctg Monitoring Machine
Fetal Monitor Portable Medical Diagnostic Equipment with Ctg Monitoring Machine
Fetal Monitor Portable Medical Diagnostic Equipment with Ctg Monitoring Machine
Fetal Monitor Portable Medical Diagnostic Equipment with Ctg Monitoring Machine

Fetal Monitor Portable Medical Diagnostic Equipment with Ctg Monitoring Machine

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: ECG
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
ST FM60
Certification
CE, ISO13485
Group
Female
Selling Units
Single Item
Patient Range
Pregnant Adult
Warranty
1 Year
Classification
Class II
Material
Plastic
Application
Hospital; Clinic
Package
Standard Package
Specification
360*180*300 mm, 4 KG
★

Key Features

10.2'' LED touch-screen, 90° rotation screen
Twins Probe Available
CTG waveforms can be frozen
Thermal printer with 112mm synchronization
Auto interpretation and NST Grade
High performance waterproof Probe
Up to 500 patients data storage
Data transmitting to PC via USB
Historical data review and print
Built-in rechargeable li-ion battery
Sleep mode to extend LED life
Portable design with hidden handle
⚙

Technical Parameters

Ultrasonic Operating Frequent 1MHz, ±10% FHR Range 50-240 beats/min
Uterine contractive pressure 0~100 unit Paper speed 1, 2, 3cm/min(±3%)
Operation mode Manual/Auto Recorder High resolution thermal printer
Specification of Fuse T1.6A 250V Ø5×20 Battery Built-in rechargeable Li-ion battery 11.1V(2200mAh)
Recording Paper 112*100mm Z Fold Thermal Paper Machine Size 307mm×255mm×91mm

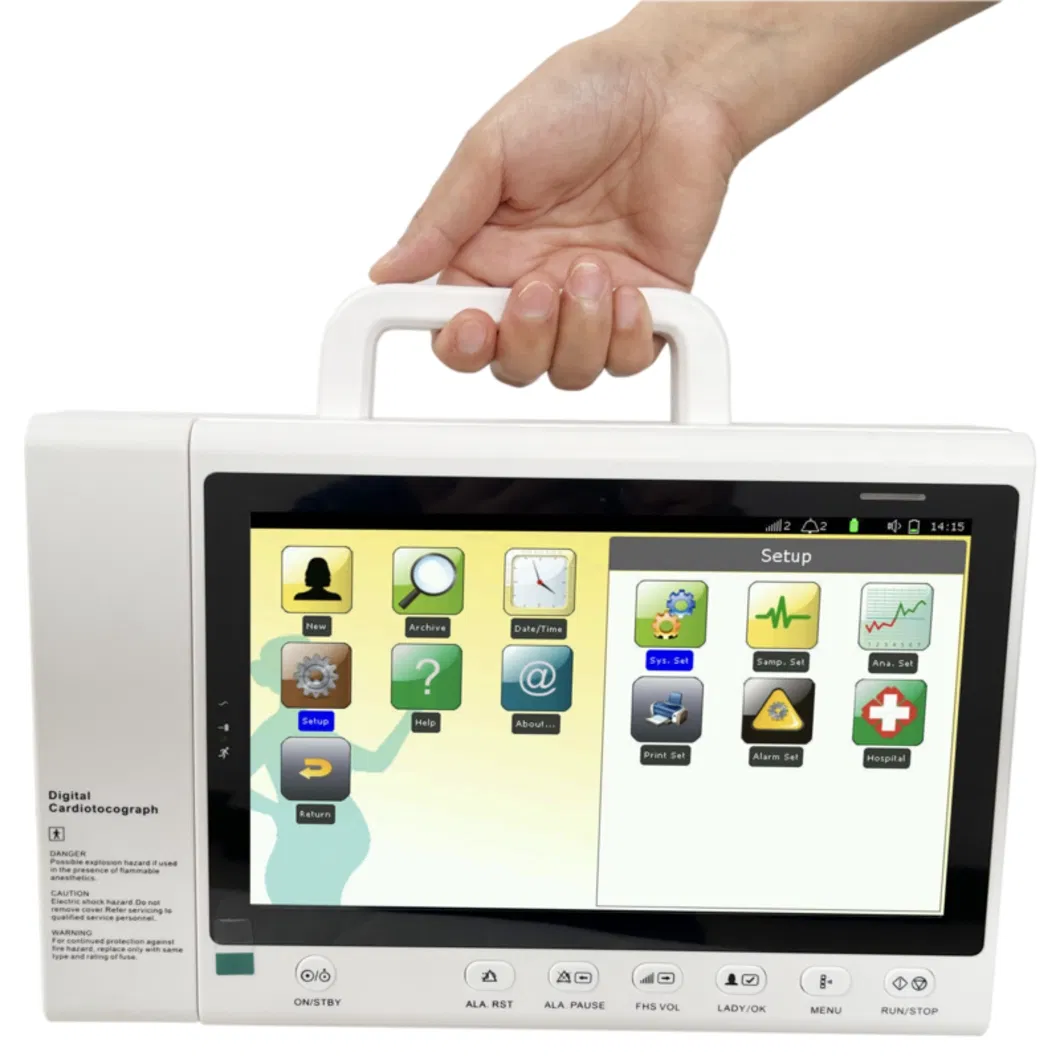

Fetal Monitor Portable Medical Diagnostic Equipment

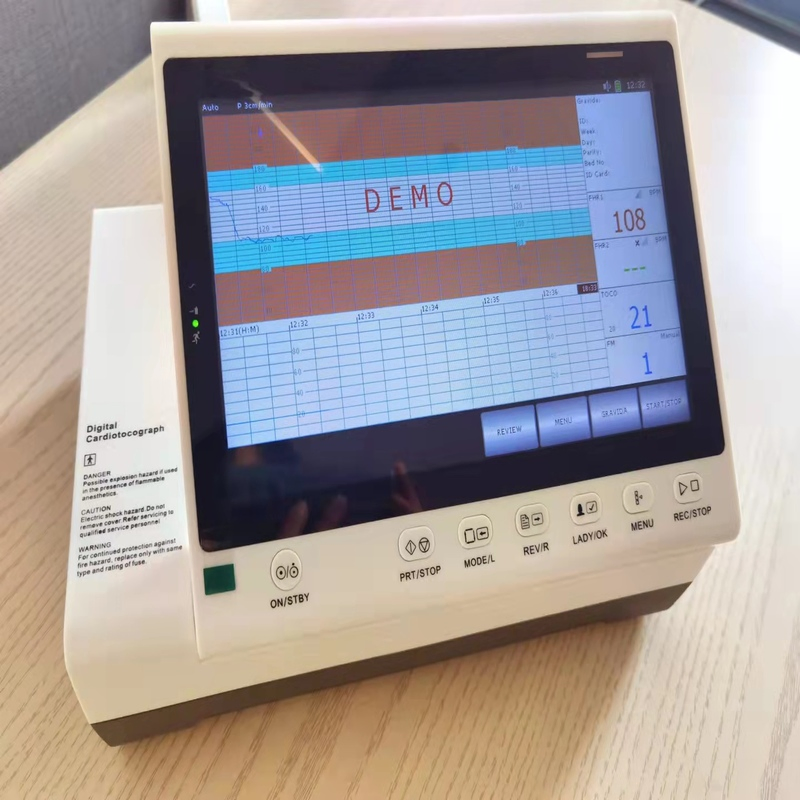

CTG Monitoring Machine Interface
Product Details

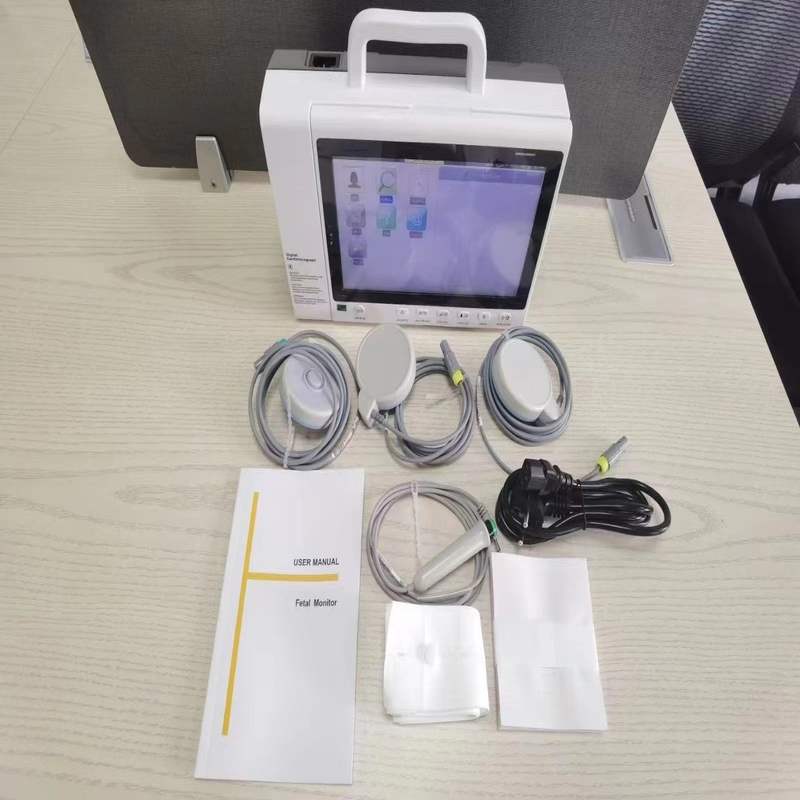

Device Components
Usage Scenario
Full Set Overview
?

Frequently Asked Questions

What are the screen features of the ST FM60?
It features a 10.2-inch LED touch-screen that supports 90° rotation for flexible viewing angles.
Can this monitor handle twin pregnancies?
Yes, the ST FM60 comes with Twins Probe support, allowing for simultaneous monitoring of two heart rates.
How many patients can the device store data for?
The built-in memory can store up to 500 patients' data, which can be reviewed, printed, or exported via USB.
What type of printer and paper does it use?
It uses a high-resolution thermal printer compatible with 112mm Z-fold thermal paper.
Is the device portable for clinic use?
Absolutely. It has a portable design with a hidden handle and a built-in rechargeable Li-ion battery for use without AC power.
Does the monitor provide automated analysis?
Yes, it includes auto-interpretation features and NST (Non-Stress Test) grading for clinical assistance.
