Frequently Asked Questions

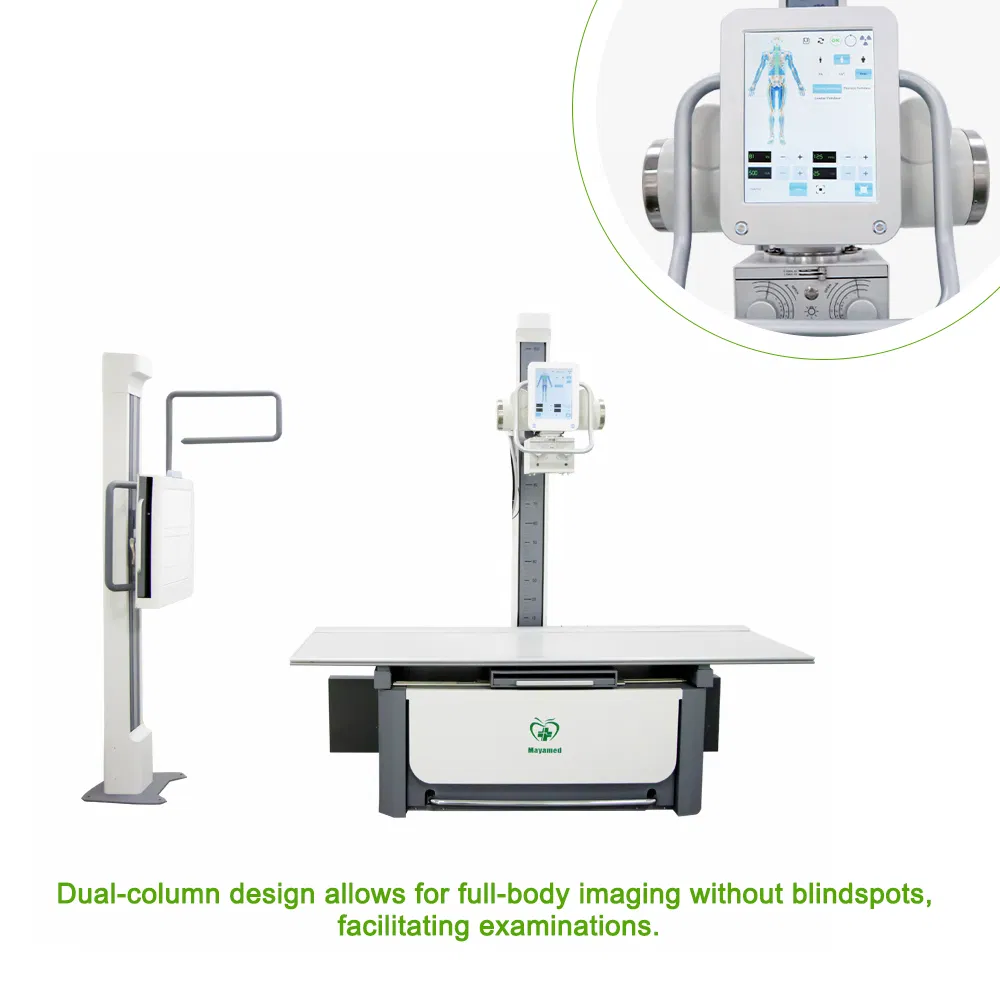

What is the power rating of this X-ray machine?
The MY-D023G features a high-frequency generator with a power rating of 50KW, suitable for various clinical diagnostic needs.

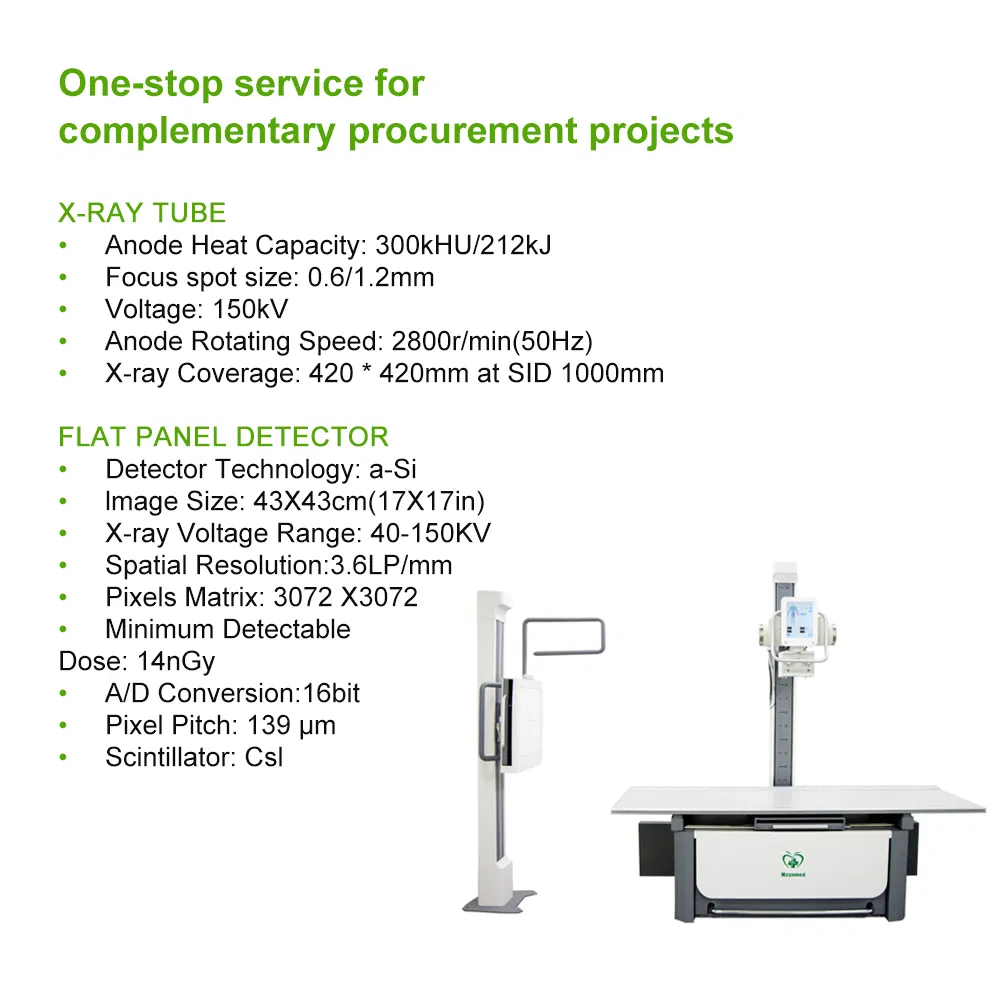

What are the specifications of the Flat Panel Detector?
It uses a-Si technology with a Csl scintillator. The image size is 17x17 inches (43x43cm) with a 3072 x 3072 pixel matrix and 139 μm pixel pitch.
Does the table support movement?
Yes, it includes a 4-way floating table with a longitudinal movement range of 570mm and lateral movement of 210mm, controlled by an EM lock.
What is the rotation range of the X-ray tube?
The tube rotation angle is ±90°, and the column itself can rotate ±180°, providing excellent flexibility for different positioning requirements.
What workstation hardware is included?
The system comes with a Windows-based workstation featuring an i5 3.3 GHz CPU, 8GB RAM, a 1TB hard drive, and a 24-inch image displayer.
What is the spatial resolution of the imaging system?
The system provides a high spatial resolution of 3.6 LP/mm, ensuring clear and detailed diagnostic images.
