Product Description
🚀 High Efficiency Production Line

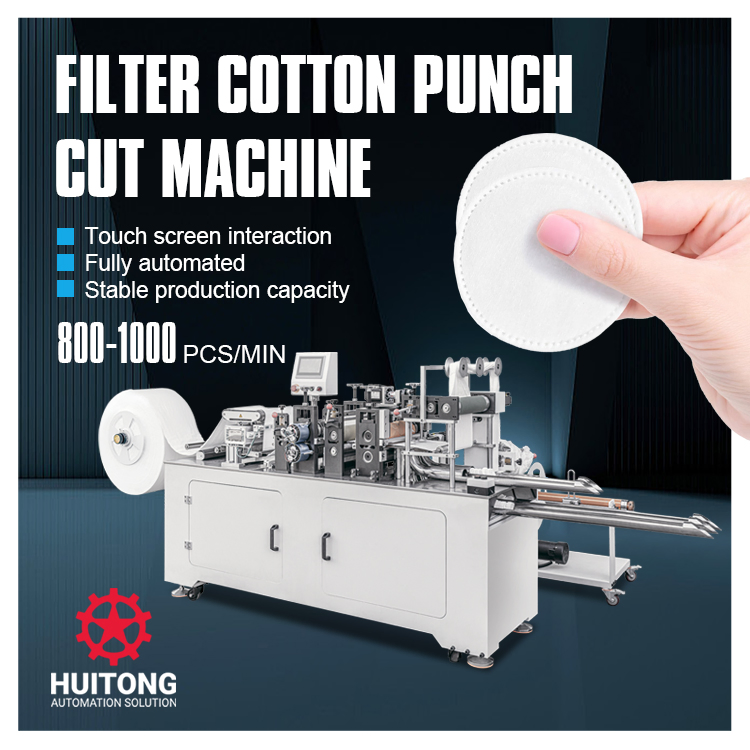

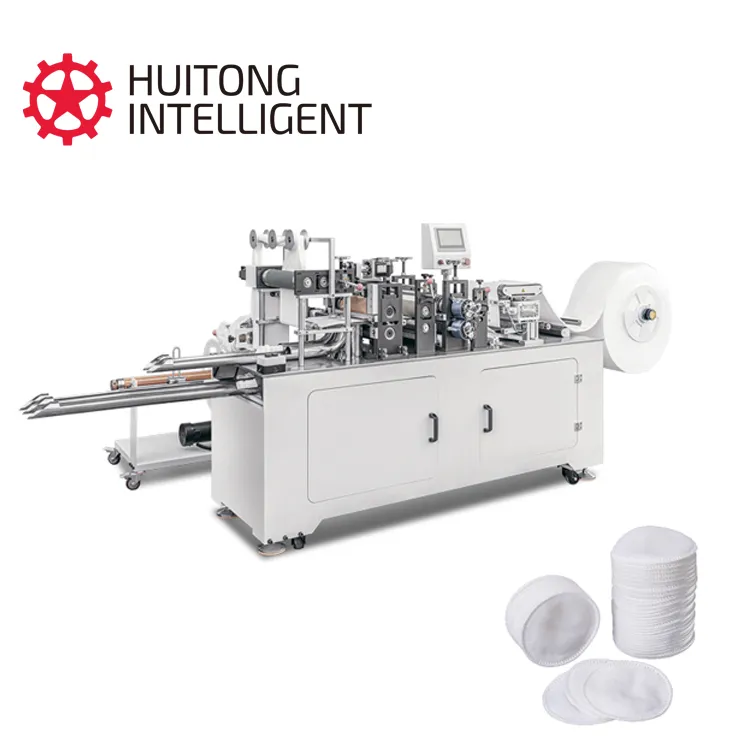

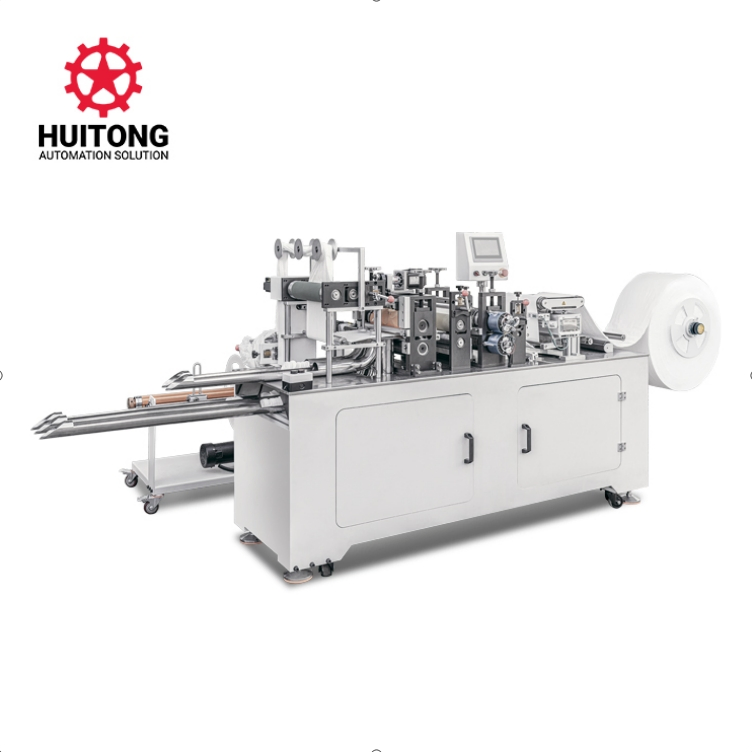

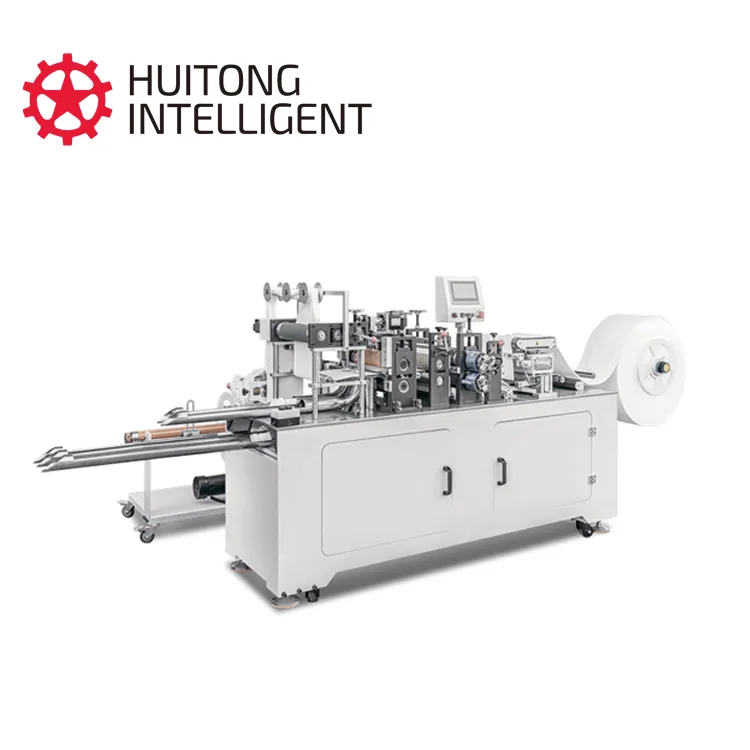

This machine is a device for the production of beauty cotton pads, adopting a consistent operation method. From raw materials through automatic conveying, rolling cutting, automatic counting, stacking arrangement, and discharge, the process is fully automatic.
⚙️ Key Features

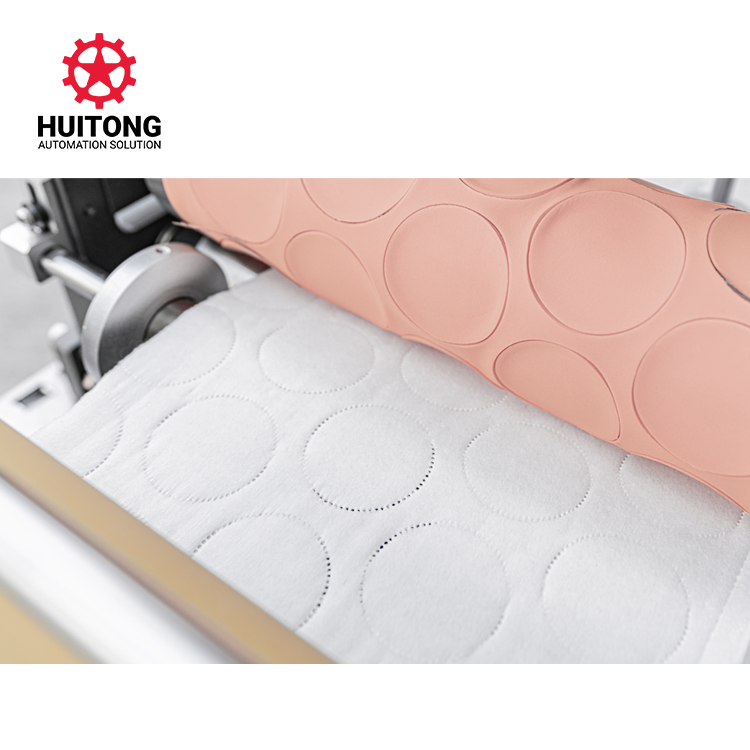

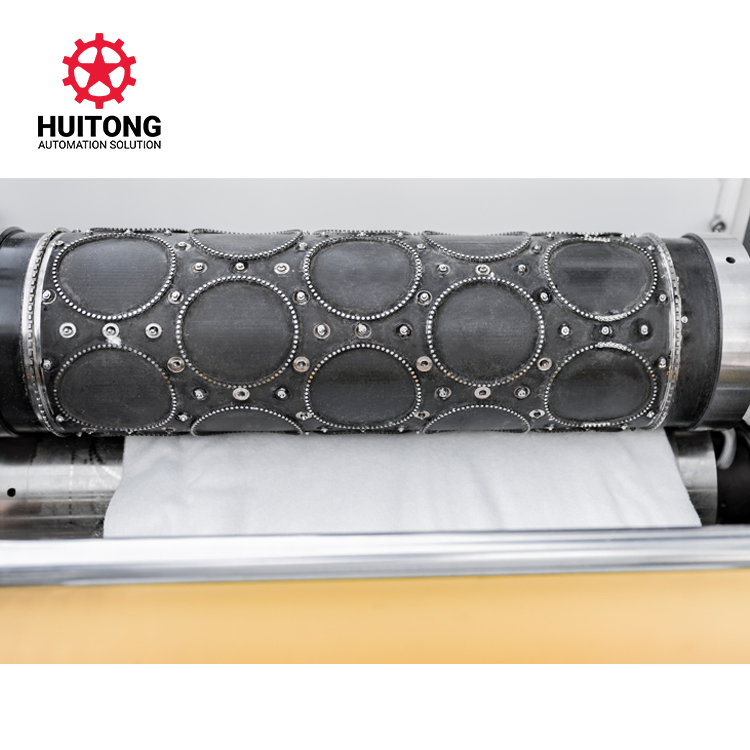

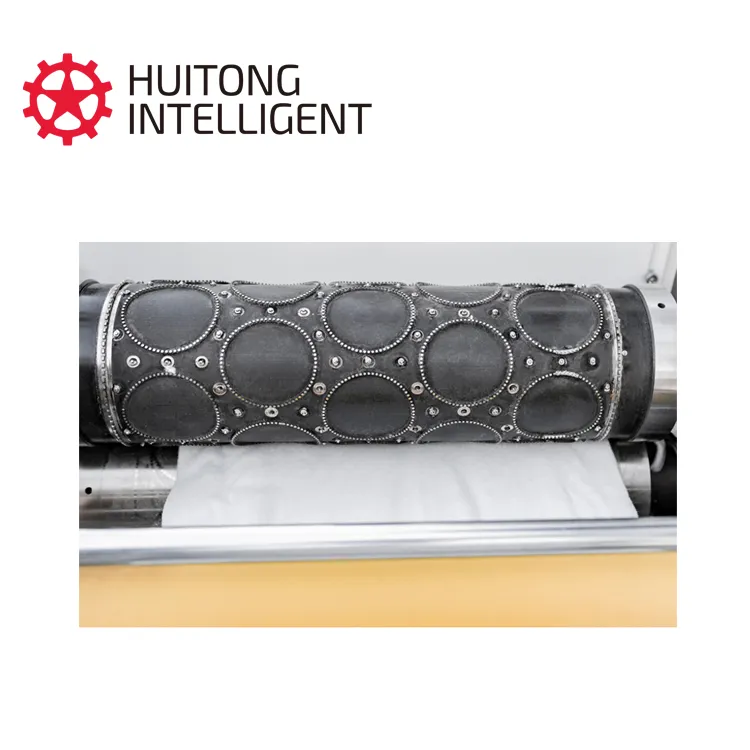

- Stable Conveying: Adopts a mechanical pressing and conveying device, ensuring tidy discharge. The one-out four (diameter 57mm) round special hob forming mold minimizes raw material loss.
- Premium Materials: Constructed with international high-quality steel; hob molds use imported special materials for durability, burr-free cutting, and high precision.
- Automated Management: Equipped with an automatic waste material receiving device and imported brand main bearings for long-term reliability.
- Pneumatic Counting: Features a pneumatic control automatic counting device; coil material width is adjustable based on product size.
- Precision Transmission: Utilizes mechanical transmission with wear-resistant rubber rollers and aluminum alloy guide rollers.
- User-Friendly: Frequency conversion control for speed regulation with a reasonable, safe, and easy-to-operate wiring specification.
📊 Technical Parameters
| Model No. | HT-RC05 |
| Speed | 800-1000 pcs/min |
| Output Power | 5kw |
| Power Supply | AC220V 50/60Hz |
| Air Pressure | 0.6-0.8 mpa |
| Weight | 300 kg |
| Dimensions | 2650 × 1400 × 1335 mm |
Frequently Asked Questions
What is the production capacity of the HT-RC05 machine?
The machine is designed for high-speed production, reaching a capacity of 800 to 1000 pieces per minute.
Does the machine support different cotton pad shapes?

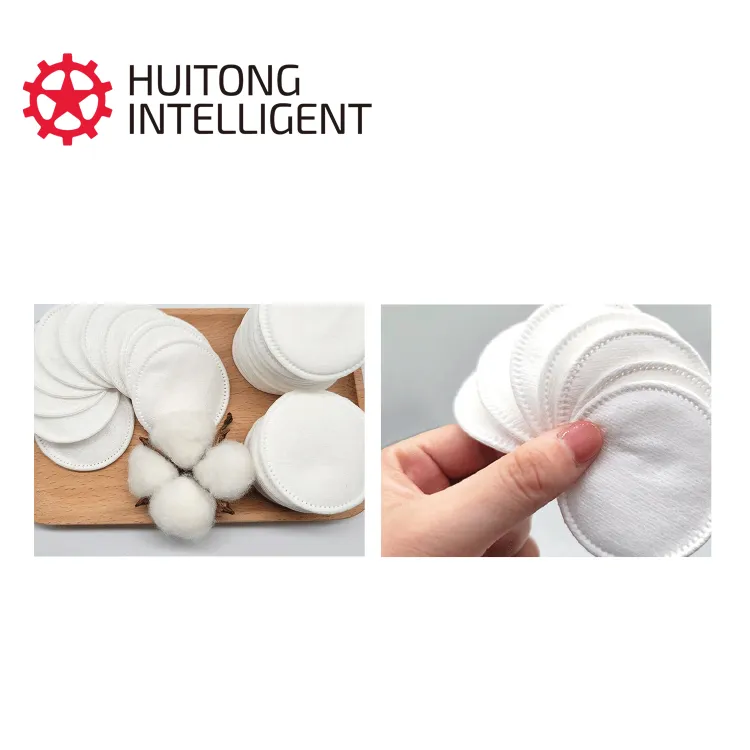

The standard configuration produces 57mm round cotton pads. However, the machine supports customized molds to meet specific size and shape requirements.
How does the machine handle raw material waste?
It is equipped with an automatic waste material receiving device and uses optimized hob forming molds to minimize raw material loss and reduce costs.
Is the machine easy to operate for new staff?
Yes, the machine features a PLC control system and frequency conversion for speed regulation, making the wiring specification reasonable, safe, and user-friendly.
What certifications does this equipment hold?
The machine is fully compliant with international standards and holds CE and ISO9001:2000 certifications.
What kind of after-sales service is provided?
We offer comprehensive support including door-to-door services or online technical assistance to ensure continuous production efficiency.
