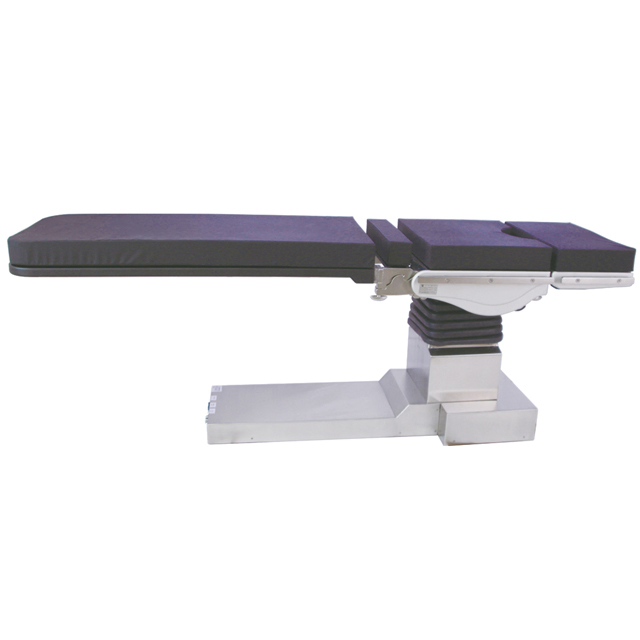

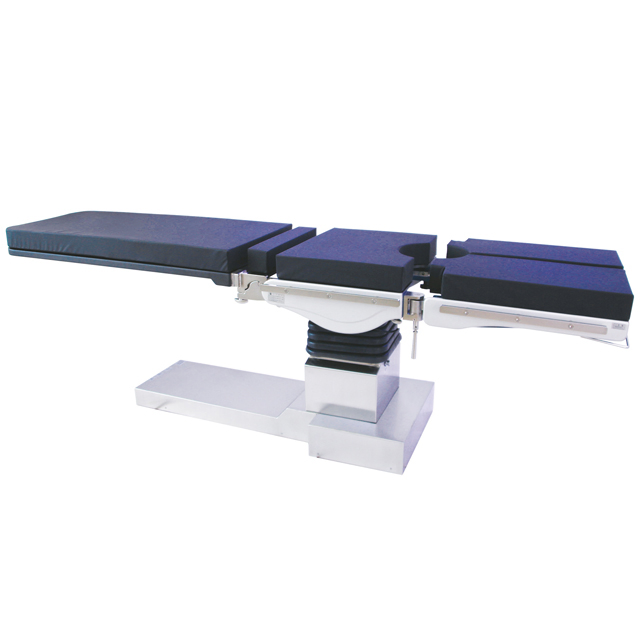

He-608p Electro-Hydraulic General Surgery Imaging Operating Table Multi Accessories

1 / 5

He-608p Electro-Hydraulic General Surgery Imaging Operating Table Multi Accessories

Customization:	Available
Type:	Operating Table
Kind:	Orthopedics

Send Inquiry

Product Description

Basic Specifications

Model NO.

HE-608P

Certification

CE, ISO13485

Material

Carbon Fiber

Power

Electric

Warranty

1 Year

After-Sales

Online Technical Support

Specification

2470*520mm

Production Capacity

500 Sets/Month

Product Description

Electro-hydraulic General Surgery imaging operating table multi accessories

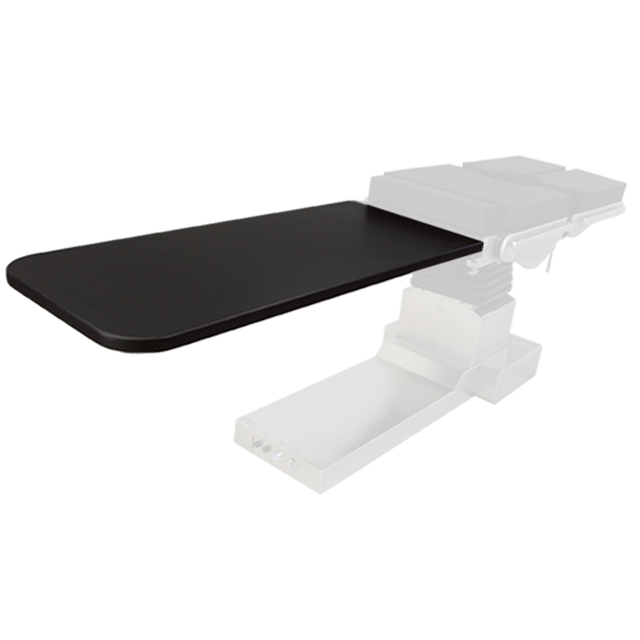

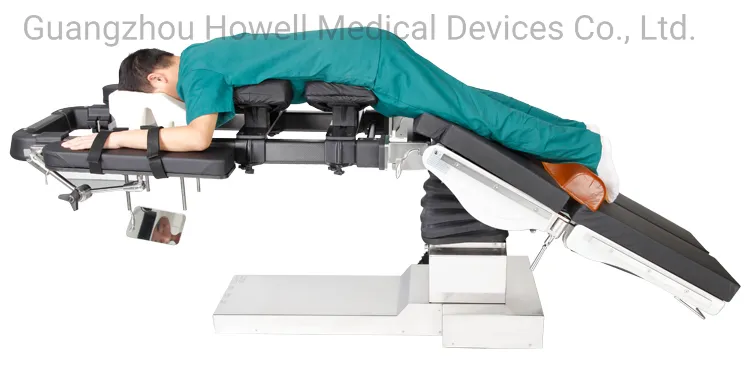

Full carbon fiber spine surgery system: This U-shaped spine surgery system (docking type) is specially designed to support various spine and imaging procedures. It provides an excellent patient fluoroscopy channel and optimizes surgical imaging effects.

1070mm metal-free frame allows anterior, posterior, lateral, and intraoperative tilted imaging views.
Open frame design reduces compression of the patient's vena cava and minimizes epidural venous bleeding.
Adopts an open frame design compatible with most modern imaging equipment at any angle.

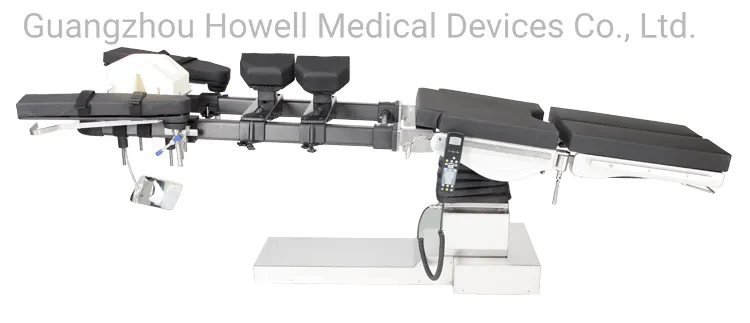

Table Advantages & Characteristics

Precision Engineering: High-precision imported linear guide rails ensure stable operation.
Durable Construction: Bed body combines aluminum alloy and 304 stainless steel for impact and corrosion resistance.
Modular Design: Fully modularized structure allows matching specific action modules for different surgeries.
Optimized Visibility: Trapezoidal carbon fiber tube frame eliminates shadow lines for superior imaging.
Emergency Ready: Equipped with a backup battery and charging device for uninterrupted operation during power failures.
Ergonomic Base: T-shaped design provides ample foot space for the surgical team with a low chassis height of 95mm.

Technical Parameters

Parameter Item	Specifications
Length / Width	2000mm / 520mm
Width (including side rail)	580mm
Longitudinal slide	300mm
Height adjustment	680mm-980mm
Trendelenburg / Reverse Trendelenburg	30° / 30°
Lateral Tilt (Left/Right)	20° / 20°
Spine System (Up/Down)	75° / 40°
Leg plate (Up/Down/Outreach)	50° / 90° / 180°

Standard Accessories

Mattress (1 set)	Hand controller (1 pc)
Waist support (2 pcs)	Shoulder support (2 pcs)
Arm plate (2 pcs)	Leg holder (2 pcs)
Anesthesia screen frame (1 pc)	Clamp & Fixer (5 pcs total)
Spine System (1 set)	Moving side rails (2 pcs)

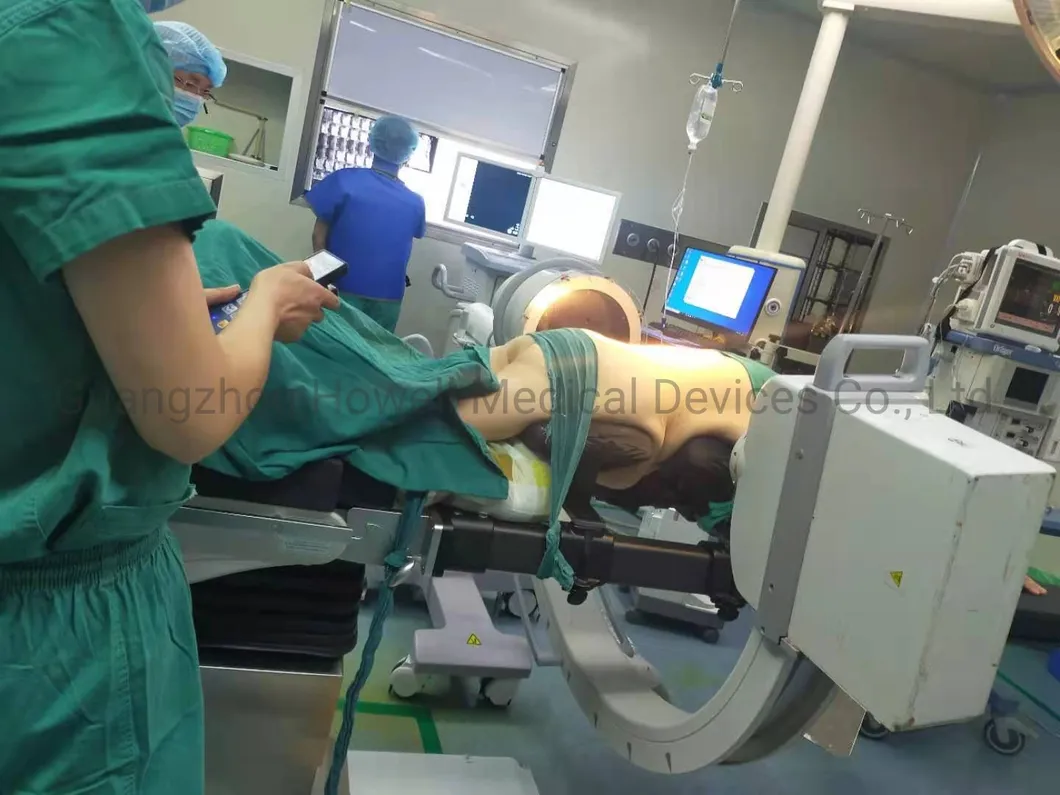

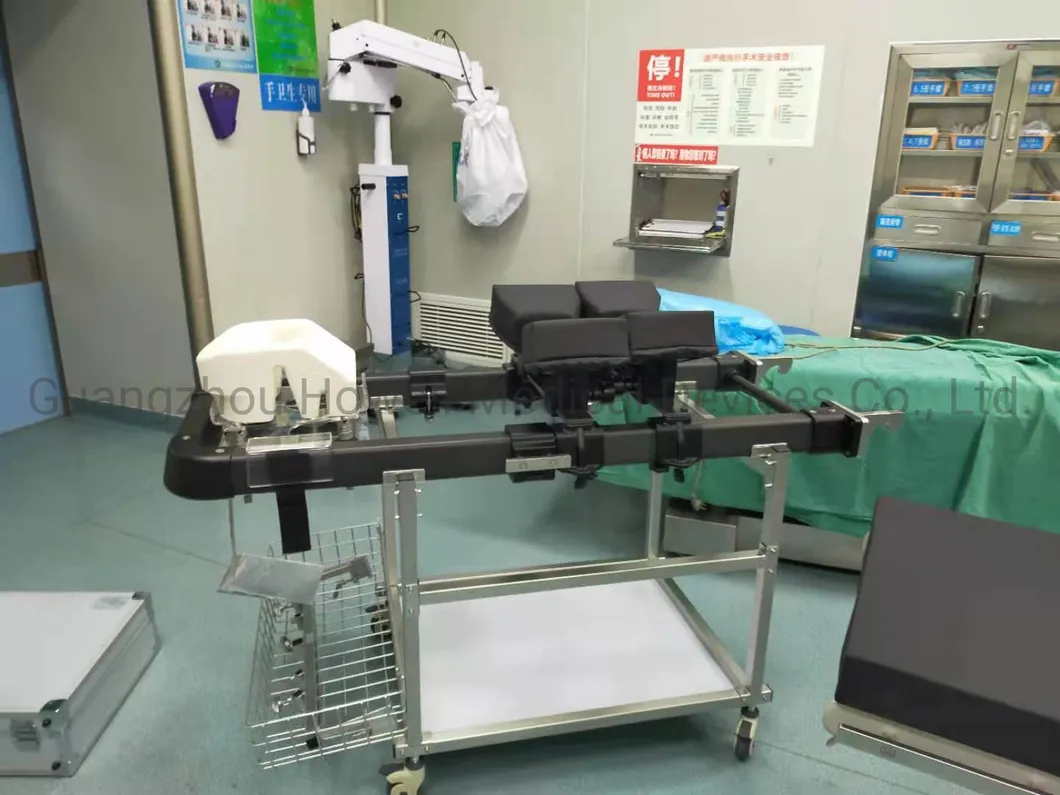

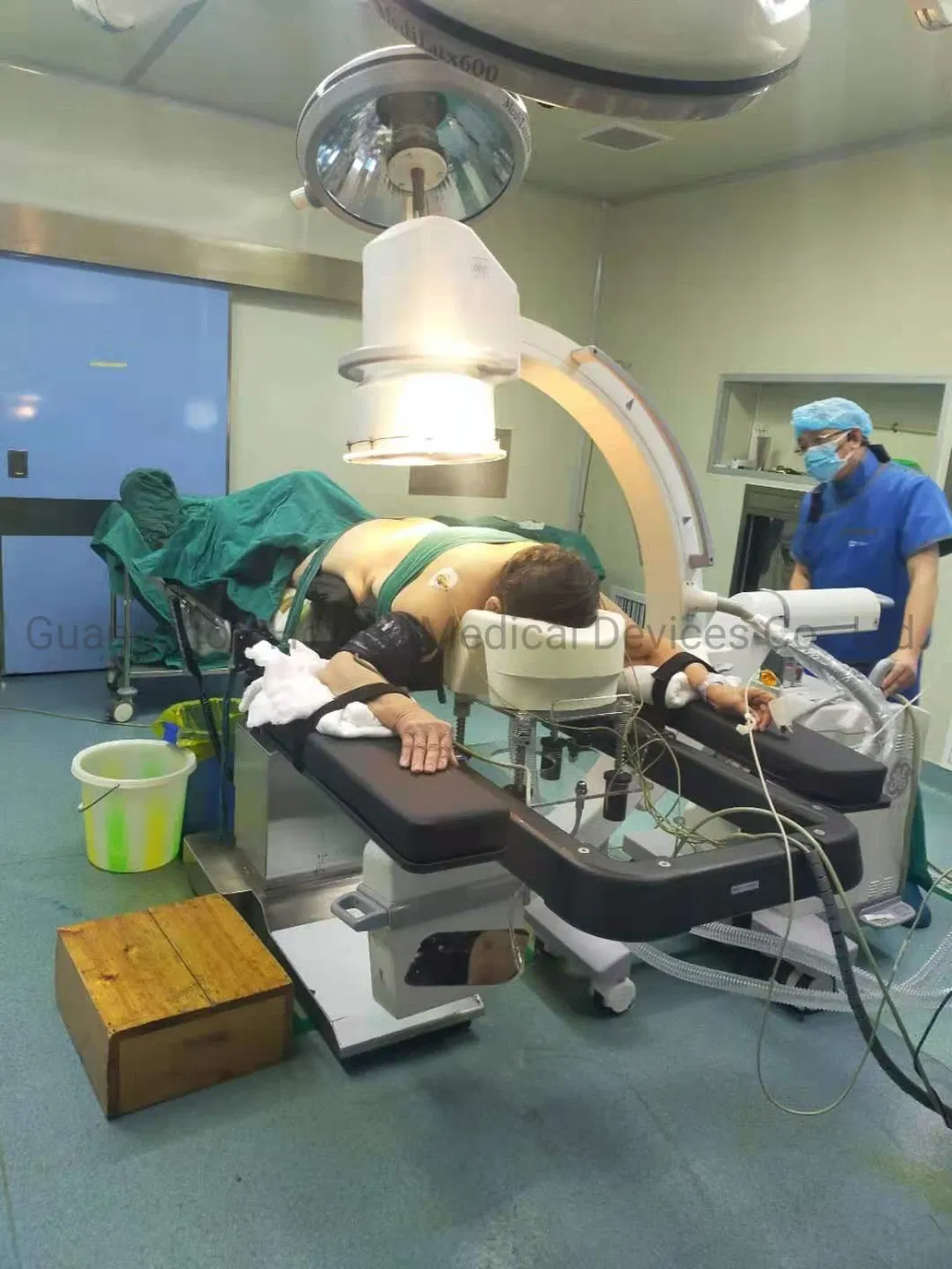

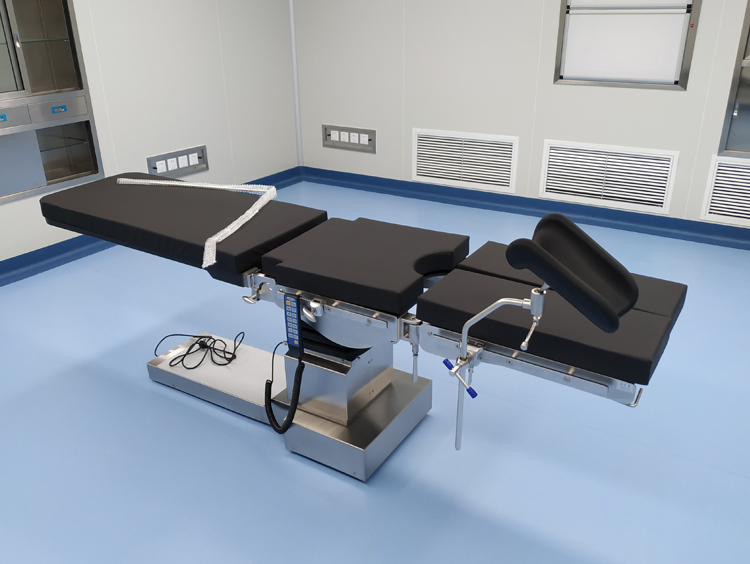

Hospital Real Photos

Certification & Packaging

Manufacturing Excellence

Frequently Asked Questions

1. How is the equipment installed after purchase? We provide professional installation videos and detailed documentation to guide you through the process effectively.

2. How do you ensure high product quality? We hold CE and ISO 13485 certificates. Every unit undergoes a rigorous production inspection and report before final packing.

3. Can the equipment be customized with our logo? Yes, we support logo placement. We will provide photos of the branded product for your confirmation before shipping.

4. Do you offer OEM (Original Equipment Manufacturer) services? Absolutely. As a professional medical equipment manufacturer, we have over 10 years of experience in providing OEM services.

5. Does the operating table work during power outages? Yes, the table is equipped with an internal battery and an automatic charging system that ensures continuous operation if the AC power is interrupted.

6. Is this table compatible with O-arm and C-arm imaging? Yes, the carbon fiber spine system and open frame design are optimized for interaction with modern imaging equipment like O-arm, G-arm, and multi-row spiral CT.
