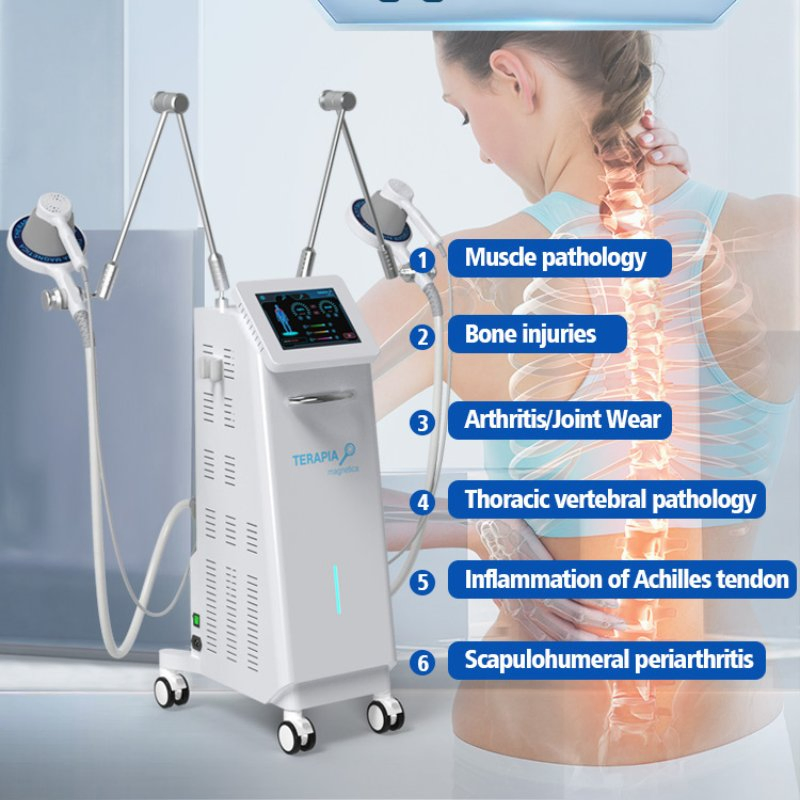

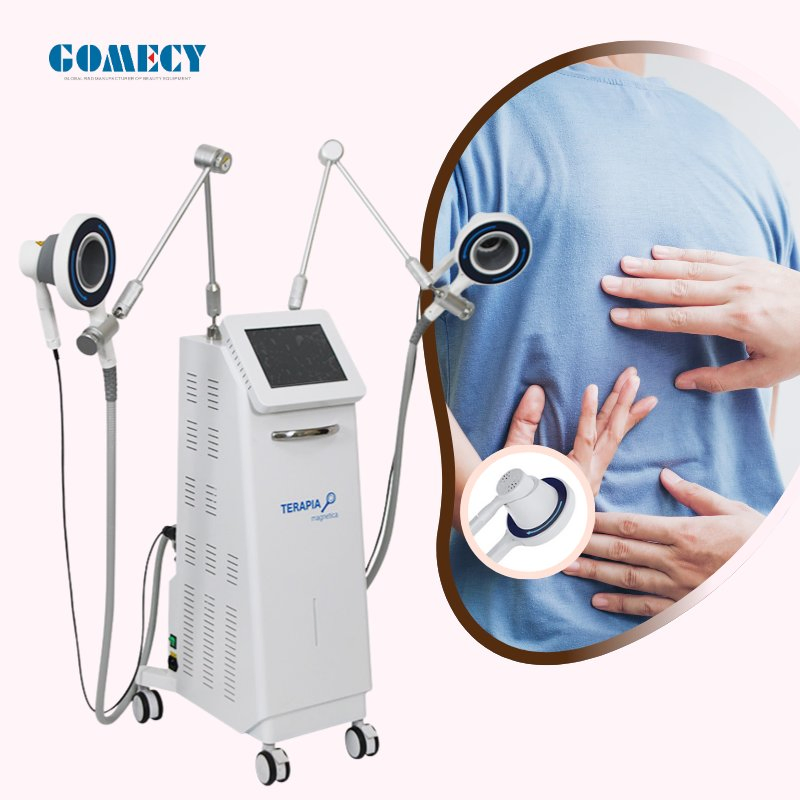

Gms Mt682 Magneto Laser Therapy Device for Pain Relief Rehabilitation Clinics

Customization: Available
Type: Magneto Laser Therapy
Function: Pulsed Magnetic Therapy

Product Description

Basic Information
Model NO.GMS MT682
TheoryPemf Rehabilitation Device
CertificationCE, ISO13485
LCD DisplayWith LCD Display
GroupAdult
Product NameMagneto Laser Therapy
TechnologyPulsed Magnetic Therapy
Power1000W
Magnetic Induction5t
Frequency1Hz ~ 100Hz
Laser Wavelengths685nm, 830nm
Production Capacity500 Pieces/Month
Product Description
What is GMS MT682?

The GMS MT682 is a professional Pemf (Pulsed Magnetic and Laser Therapy) device that combines high-intensity pulsed magnetic fields with dual-wavelength laser therapy (685nm + 830nm). It is designed to relieve pain, improve blood circulation, accelerate tissue repair, and stimulate nerve and lymphatic functions.

GMS MT682 Magneto Laser Therapy
Technical Principles
🧲
Pulsed Magnetic Therapy:
  • Generates high-intensity pulsed magnetic fields (up to 5 Tesla).
  • Penetrates deep tissues to stimulate cellular metabolism and enhance oxygen delivery.
  • The maximum change rate of 40kT/s - 80kT/s promotes tissue regeneration.
🚨
Low-Level Laser Therapy (LLLT):
  • Dual wavelengths: 685nm (red, superficial) and 830nm (infrared, deep).
  • Enhances microcirculation and reduces inflammation.
  • Promotes tissue repair and nerve conduction.
Product Parameters
Parameter Specification
Power1000W
Magnetic Induction Intensity5T
Frequency1Hz ~ 100Hz
Pulse Continuous Time≥250μs (±20μs)
Max Magnetic Induction Change Rate≥40kT/s ~ 80kT/s
Laser Power50W
Laser Wavelengths685nm, 830nm
Handle Intensity1-50mW (685nm), 1-200mW (830nm)
Spot SizeApprox. 45mm × 45mm
Application Range
  • Pain therapy for muscles, joints, and soft tissues
  • Improving superficial and deep blood circulation
  • Stimulating tissue regeneration and healing
  • Enhancing venous and lymphatic drainage
  • Restoring functional activities affecting metabolic homeostasis
  • Increasing sensory nerve conduction velocity
  • Reducing muscle spasms and stiffness
  • Accelerating recovery post-injury or surgery
Detailed Photos

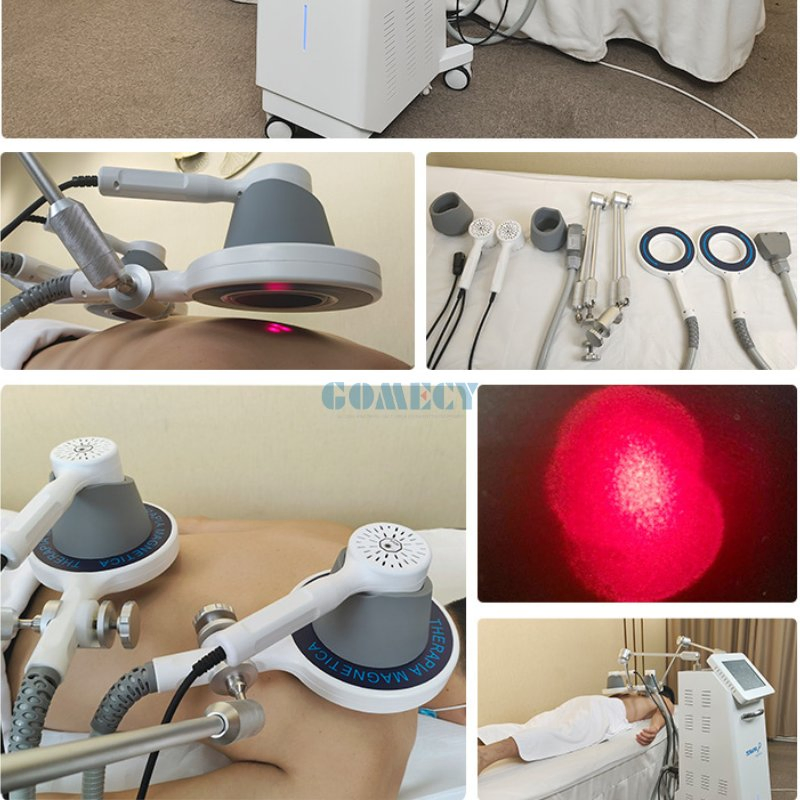

The GMS MT682 features dual therapy handles that combine pulsed magnetic fields and low-level laser energy. The ergonomic handles ensure localized and systemic treatment with effective coverage via a 45mm × 45mm laser spot size.

Product Details
Treatment Steps
1
Patient Assessment: Evaluate the target area and determine frequency/intensity.
2
Device Setup: Position the patient comfortably and set the induction parameters.
3
Therapy Application: Place handles and activate magnetic/laser energy for 15-30 mins.
4
Post-Treatment Care: Observe for minor reactions like warmth; advise hydration.
Therapy Application
Safety & Contraindications
  • Patients with pacemakers or electronic implants
  • Pregnant or breastfeeding women
  • Acute infections or malignancies in the treatment area
  • Severe cardiovascular or neurological conditions
  • Epilepsy or uncontrolled seizure disorders
Facility Showcase

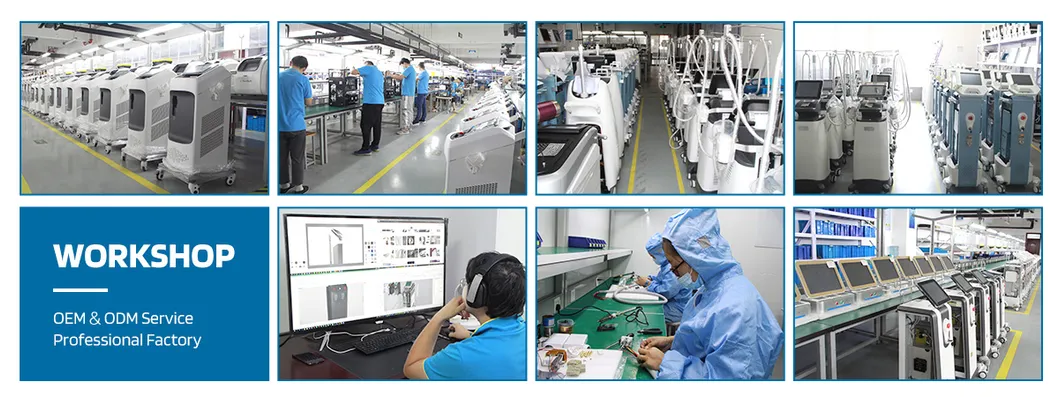

Factory 1
Factory 2
Factory 3
Frequently Asked Questions
Q1: Is the treatment painful?

No, the therapy is non-invasive and generally comfortable. Patients may feel mild warmth or tingling.

Q2: How soon can results be seen?

Some patients notice improved circulation and reduced pain after the first session. Optimal results appear after several sessions.

Q3: Are there side effects?

Side effects are minimal. Mild warmth or temporary tingling is normal. Serious reactions are rare.

Q4: Can it treat deep tissue injuries?

Yes, the 830nm laser penetrates deep tissues for enhanced tissue repair and nerve function improvement.

Q5: How long is a typical session?

Usually 15-30 minutes per target area, adjustable depending on condition and tolerance.

Q6: Can it be combined with other therapies?

Yes, it can complement physiotherapy, rehabilitation, massage, or sports recovery programs for enhanced results.
