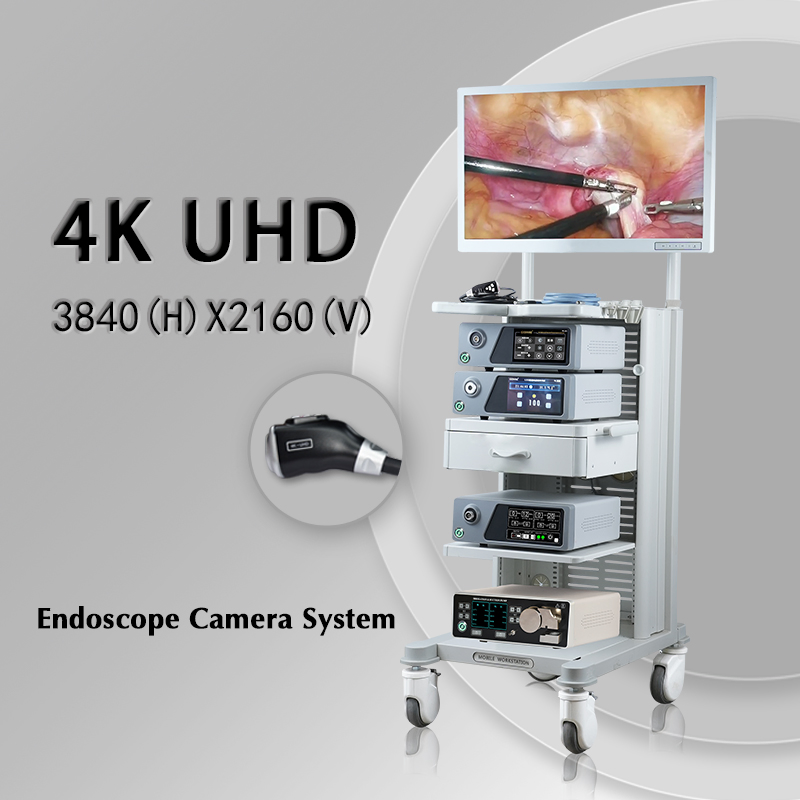

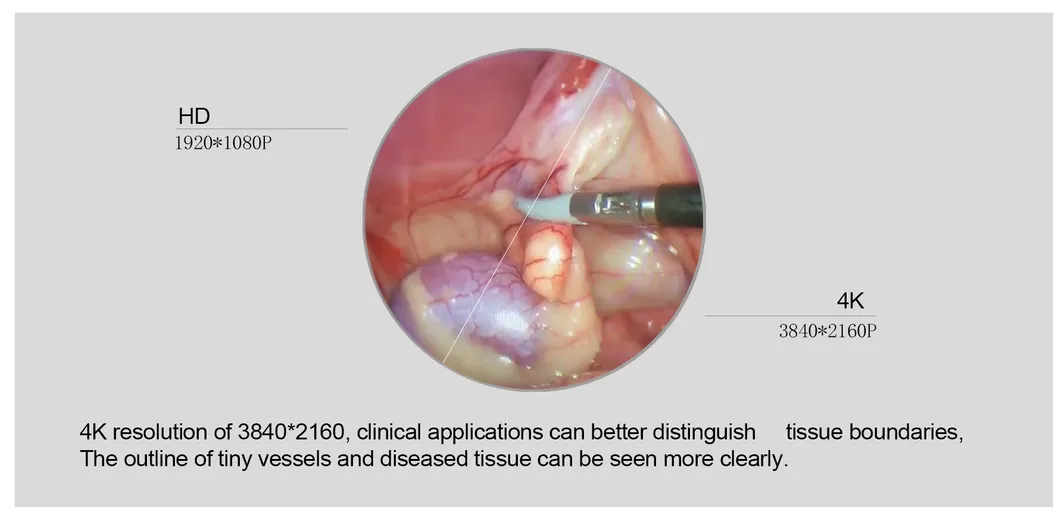

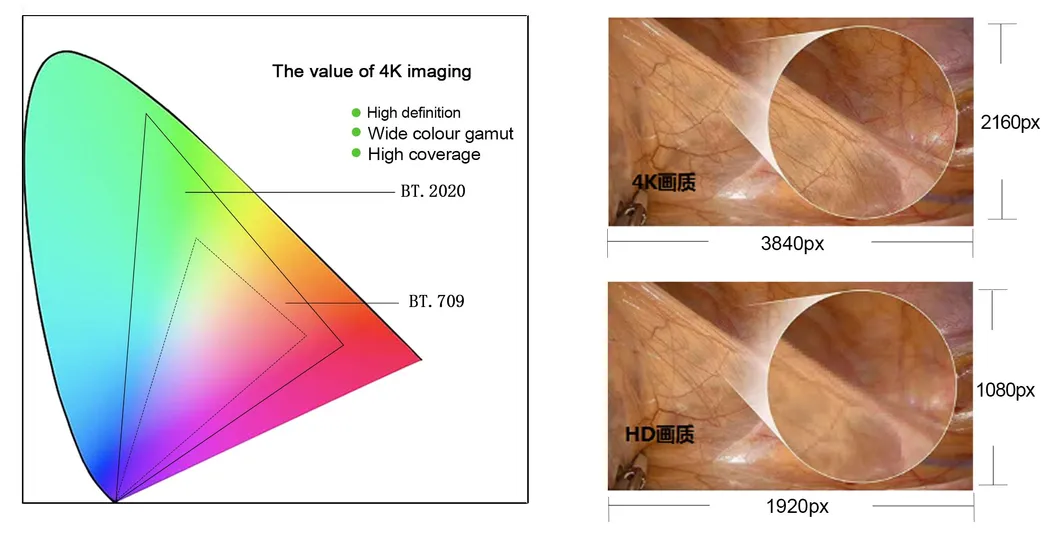

The 4K imaging system offers four times the resolution of 1080p and nine times the resolution of HD imaging systems. This high resolution provides exceptional image clarity and detail, allowing surgeons to see fine structures and subtle changes during the surgical procedure.
4K fluorescence laparoscopy systems utilize advanced image processing technology and optical design to reproduce accurate and vivid colors within the surgical field. This enables surgeons to observe patterns, structures, and abnormalities in high precision.
Allows the use of contrast agents, such as indocyanine green (ICG), which can highlight specific tissues. Emits a fluorescent signal under near-infrared light, enabling surgeons to clearly identify lymphatic vessels, lymph nodes, and tumors.
Provides real-time imaging in high definition during the procedure. This aids in making more accurate decisions and performing precise surgical interventions.
Applications in gastrointestinal surgery, urology, gynecology, and hepatobiliary surgeries, improving accuracy and surgical outcomes.
| Parameter | Specifications |
| Camera | 9,000,000 pixels 1/3" CMOS image sensor |
| Resolution | 3840(H)*2160(V) |
| Definition | 2100 Lines |
| Minimal Illumination | 0.5 Lux |
| Video Output | HDMI 2.0 / 3G-SDI / DVI / USB 3.0 |
| Shutter Speed | 1/60~1/60000(NTSC), 1/50~50000(PAL) |
| Handle Cable | 2.8m (Customizable) |
| SNR | More than 50db |
| Scanning System | Line by line scanning |

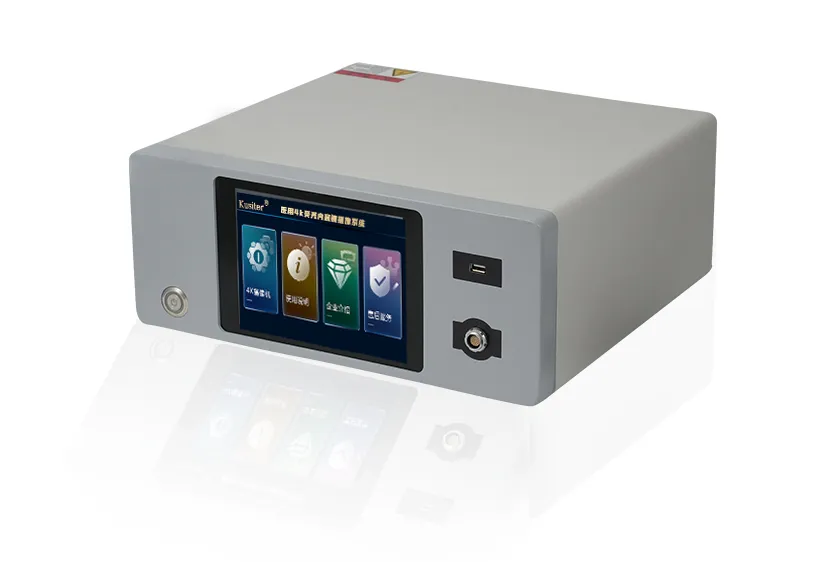

4K Fluorescent Camera Key Features:
| Model | 3210/5510 |
| Screen Size | 32" / 55" |
| Input Interface | VGA, SDI, S-VIDEO, YPbPr, RGB, DVI, VIDEO, YC |
| Resolution | 4096*2160 |
| Ratio | 16:9 |
| Display Color | 1.07B |

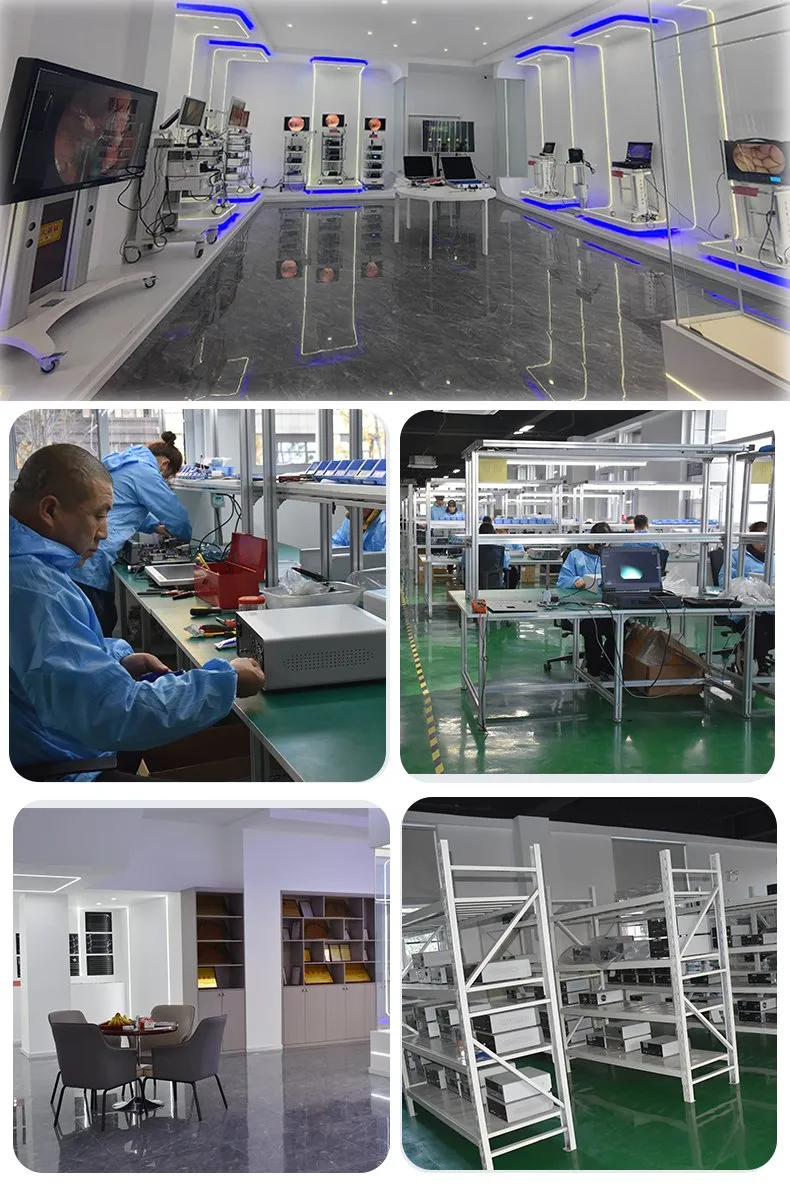

Our company is a comprehensive joint-stock company engaged in the production, management, development, and sales of medical devices. We focus on modern clinical applications and patient needs with high-performance, high-tech, and high-quality products.

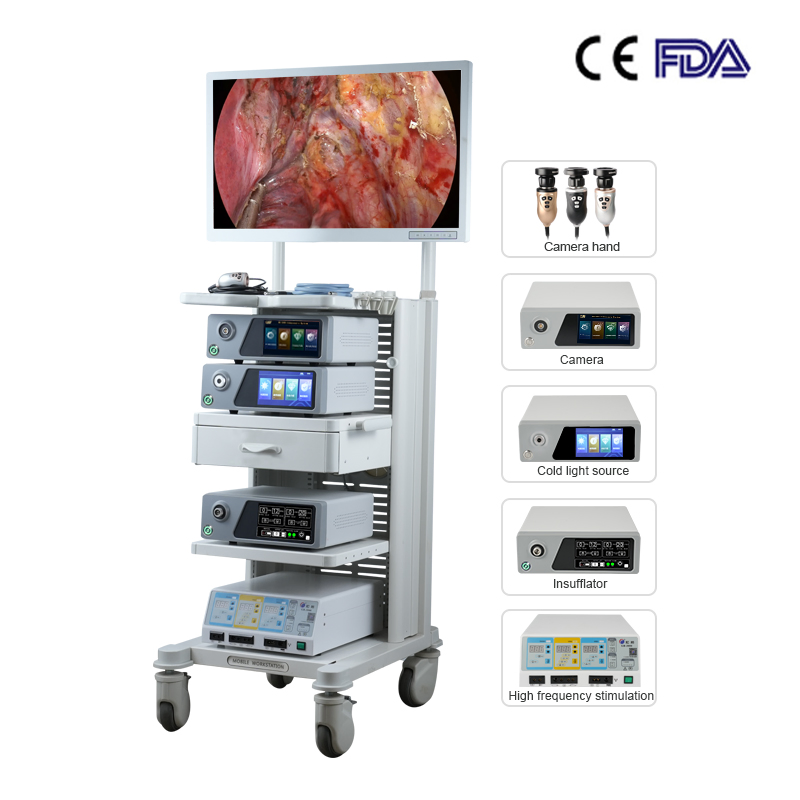

Main Products: Endoscope Image Processing Systems, LED cold light sources, high-definition medical monitors, pneumoperitoneum machines, flushing pumps, laparoscopy, hysteroscopy, and more.
Packaging & Delivery:
Exhibitions:

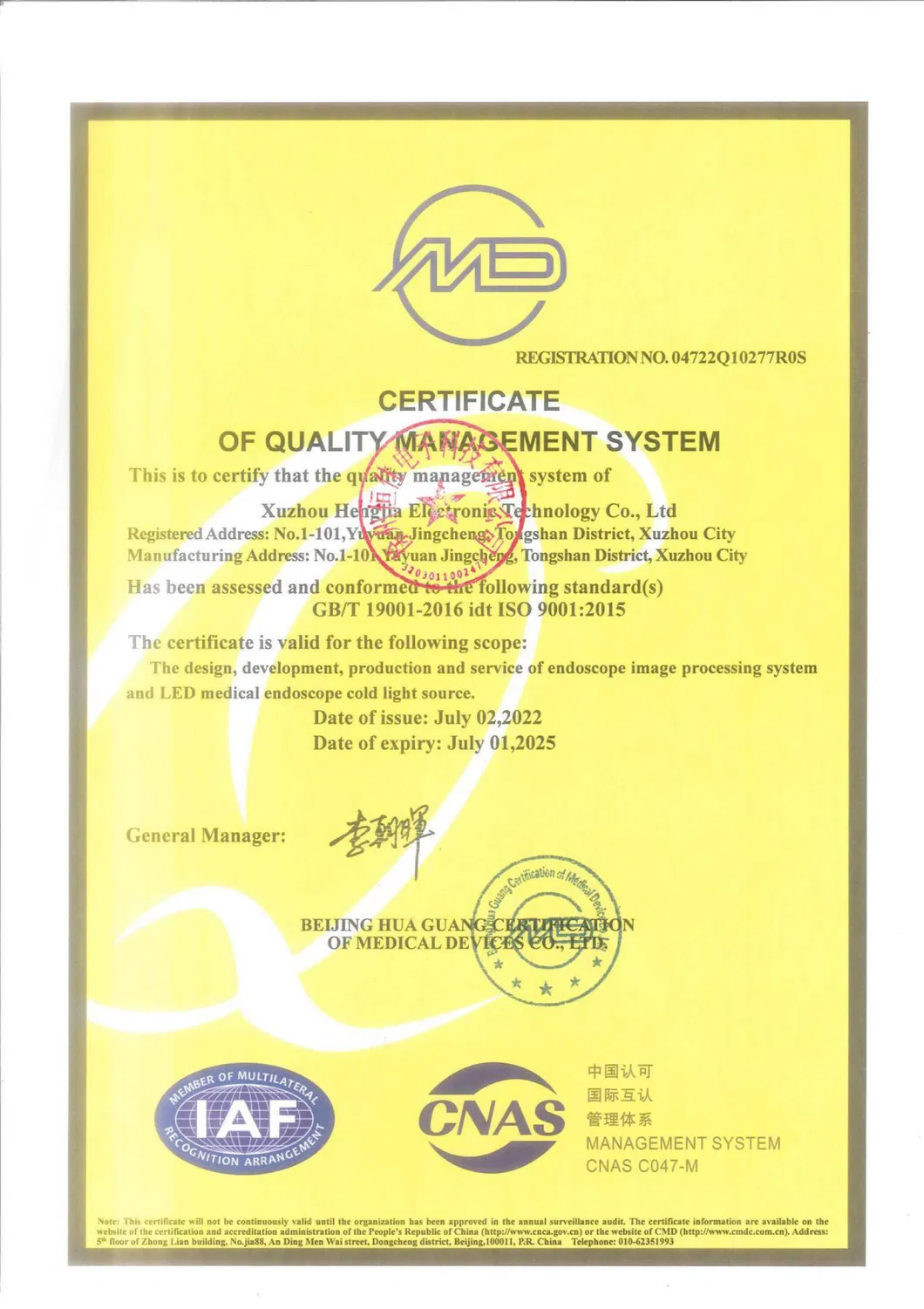

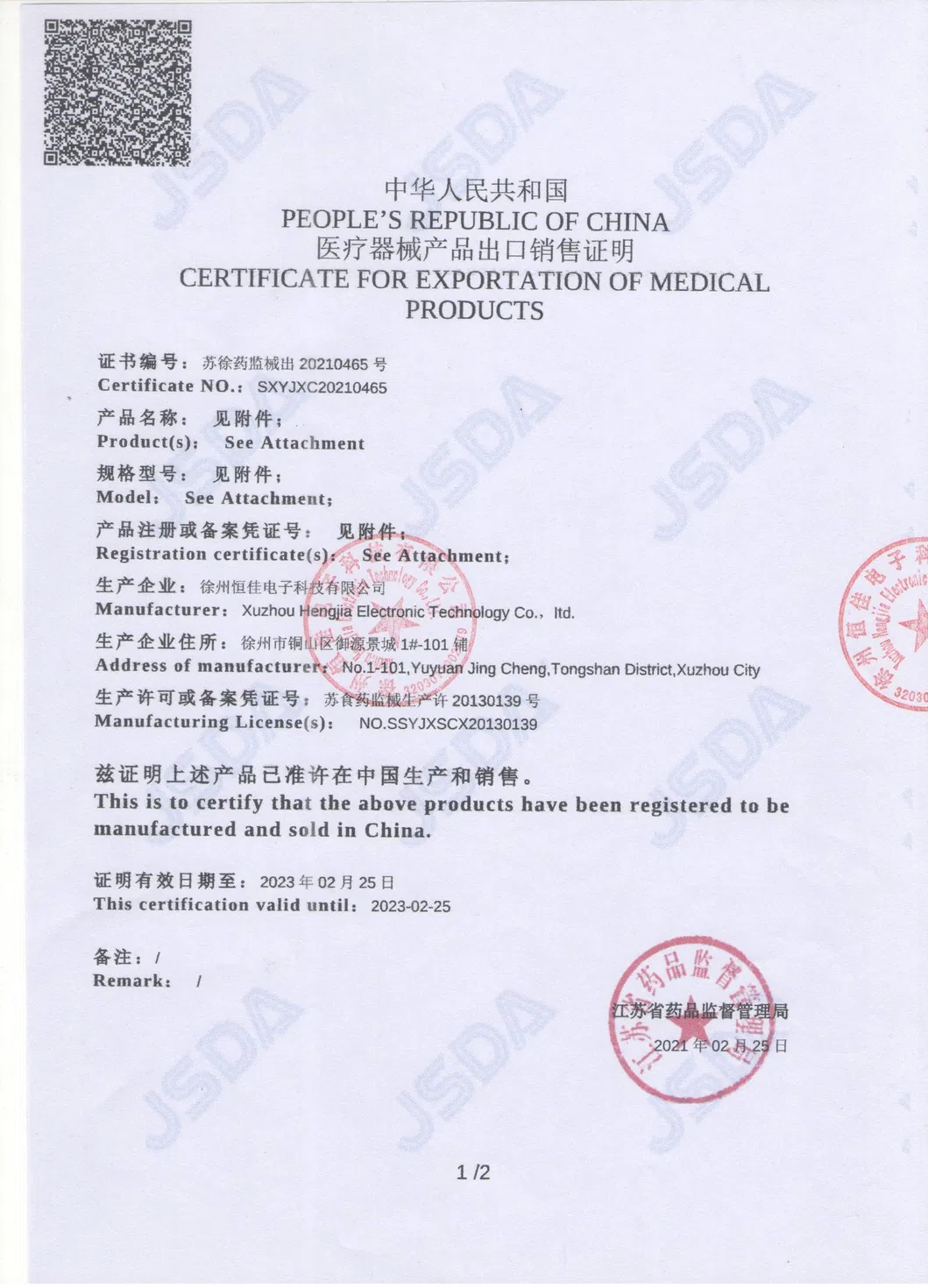

Certifications:
