100mA Radiography Diagnostic X-ray Equipment Yz-100c2
100mA Radiography Diagnostic X-ray Equipment Yz-100c2
100mA Radiography Diagnostic X-ray Equipment Yz-100c2
100mA Radiography Diagnostic X-ray Equipment Yz-100c2
100mA Radiography Diagnostic X-ray Equipment Yz-100c2
1 / 5
100mA Radiography Diagnostic X-ray Equipment Yz-100c2
100mA Radiography Diagnostic X-ray Equipment Yz-100c2
100mA Radiography Diagnostic X-ray Equipment Yz-100c2
100mA Radiography Diagnostic X-ray Equipment Yz-100c2
100mA Radiography Diagnostic X-ray Equipment Yz-100c2

100mA Radiography Diagnostic X-ray Equipment Yz-100c2

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

Basic Information
Model NO.YZ-100C2
CertificationCE, ISO13485
GroupHuman
Transport PackageWooden
Specification450KG
Trademarkkindsway
OriginChina
HS Code9022140090
Production Capacity50units/Month
Product Description

Medical Diagnosis X-ray Machine

The YZ-100C2 is designed for general radiography and ray-filter radiography, offering a reliable solution for diagnostic imaging with the following features:

  • Single bed with single bulb configuration.
  • Excellent design with complete functions and reasonable structural integrity.
  • High-pressure system march-past structure with full-wave rectification.

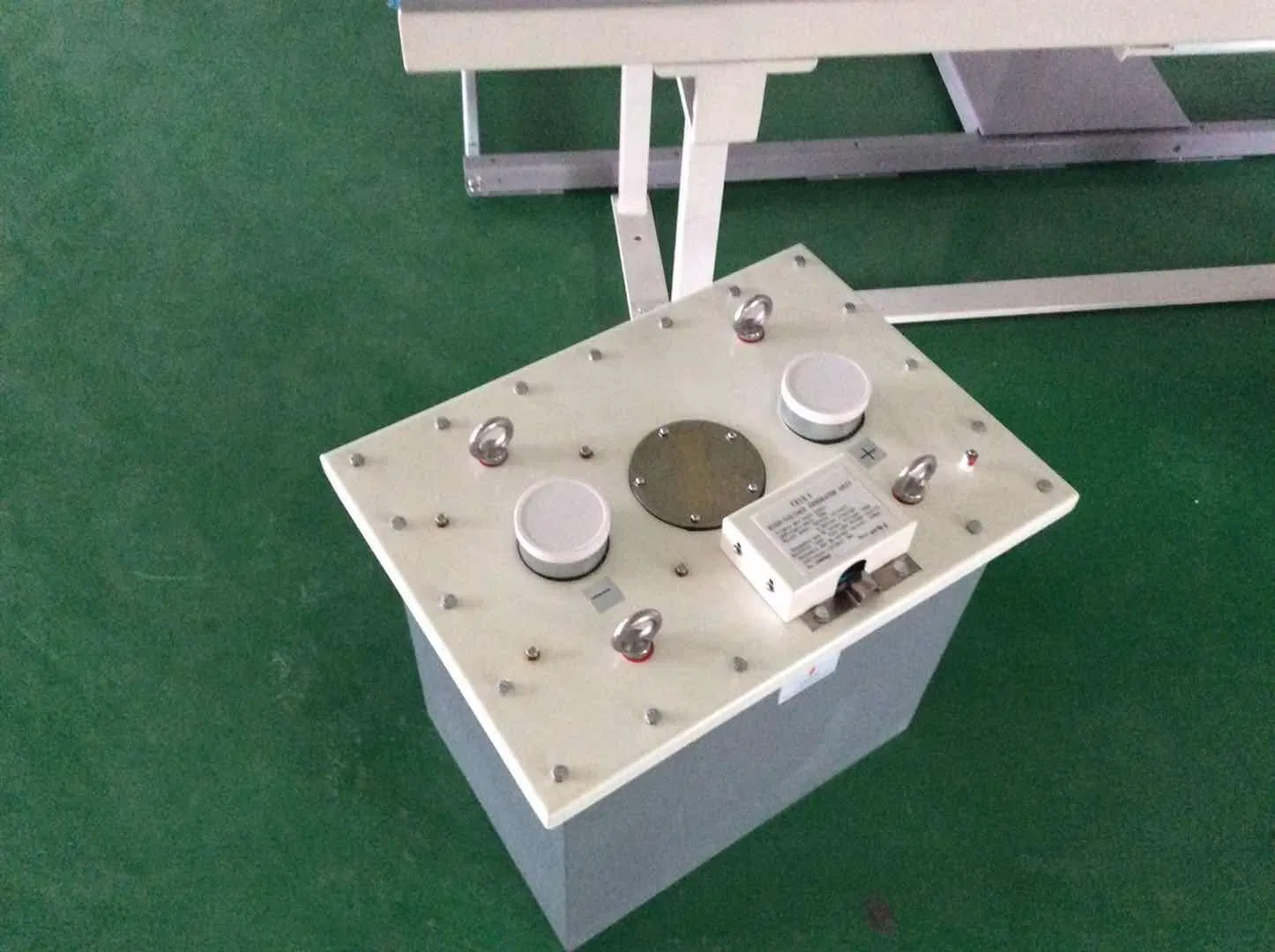

  • High voltage generator and independent X-ray tube assembly (tangential type pipe sleeve) for stable, large power output.

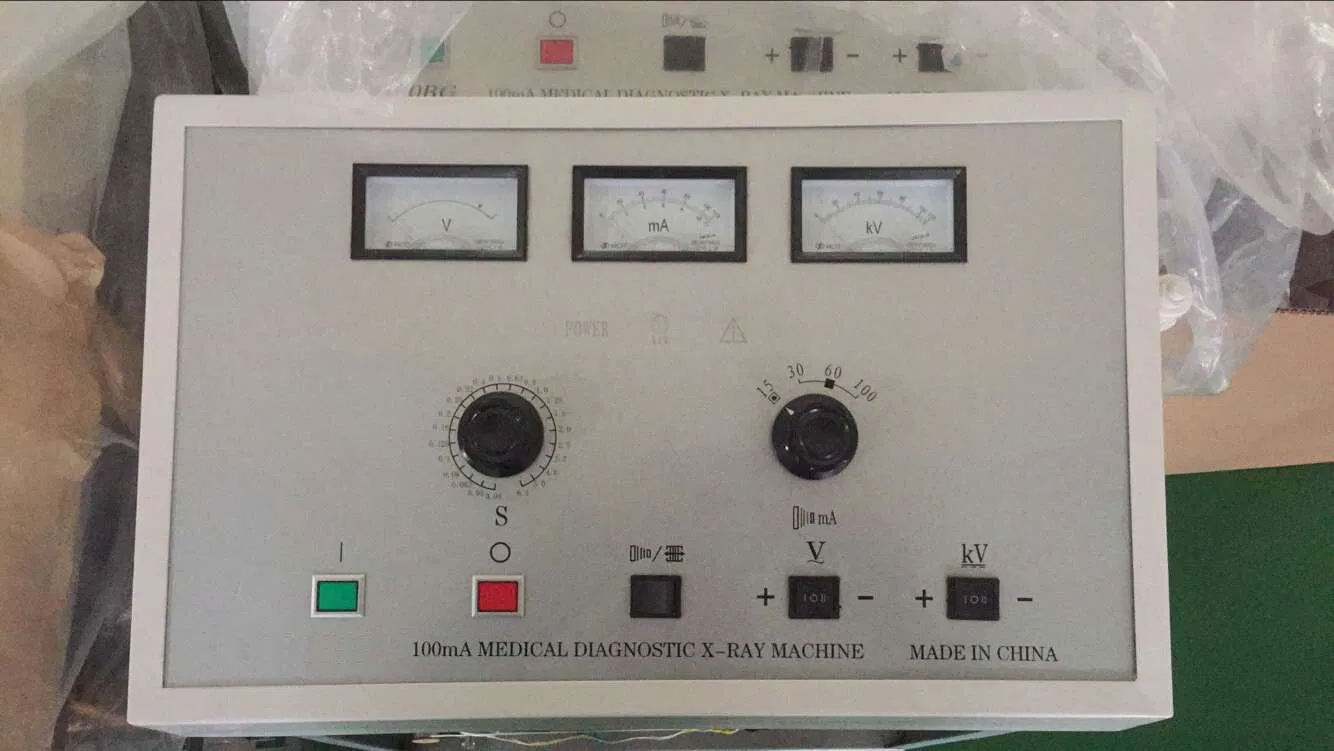

  • Stepless continuous adjustment for power supply voltage (V) and photography (kV).
  • Equipped with voltage stabilizer, space-charge compensator, kV compensator, and power supply compensator for constant output.
  • Timer circuit for exact time control with kV, mA, and s capacity interlocking system.
  • Flat photographic bed integrated with a vibrating type ray-filter.
  • Easy track installation system.
Main Technical Specifications
100mA Medical X-ray Machine YZ-100C2 Parameters
Power Supply Details
Voltage 220V/380V ±10% AC Single Phase Frequency/Capacity 50Hz ±0.5Hz; 10KVA
Current (Max) < 20A Internal Resistance ≤ 0.6Ω (220V) / ≤ 2Ω (380V)
Maximum Rated Capacity (Voltage/Current/Time)
15mA / 90kvp 0.04-6.3s 30mA / 90kvp 0.04-6.3s
60mA / 90kvp 0.04-6.3s 100mA / 85kvp 0.04-2.5s
Component Specification
Timer 0.04s ~ 6.3s in 23 shifts, electronic type

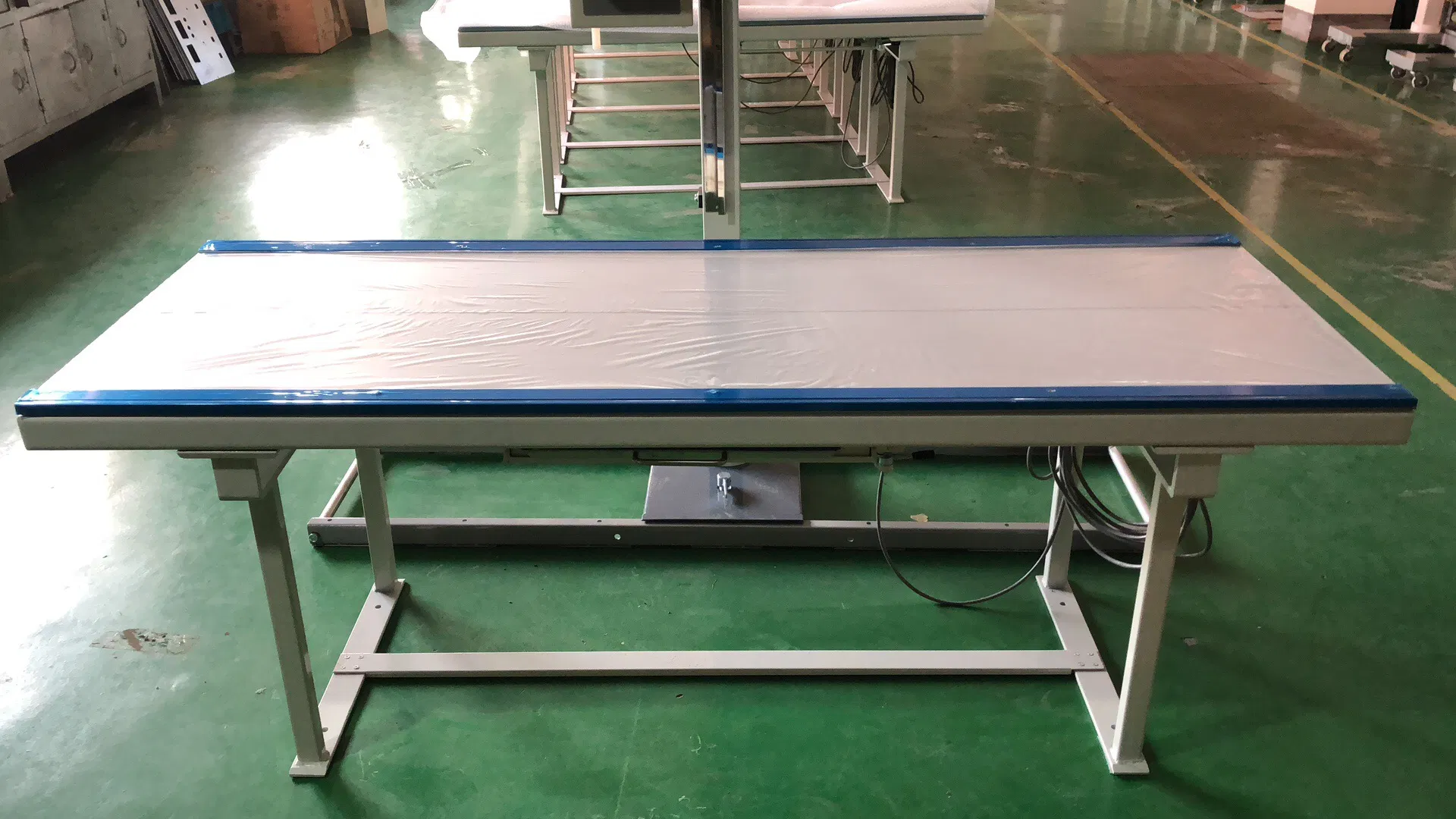

Photographic Bed Size: 1900*695*700mm; Ray-filter: N28, r8, 100cm distance
Max Cassette Size 356mm * 432mm (14" * 17")
X-ray Tube XD4-2.9/100; Small focus 1.8mm, Big focus 4.3mm
Pillar Movement Length: >1350mm; Breadth: >360mm; Vertical: 720-1800mm
Product Gallery
100mA Radiography Diagnostic X-ray Equipment Yz-100c2
X-ray View 1
X-ray View 2
X-ray View 3
X-ray View 4

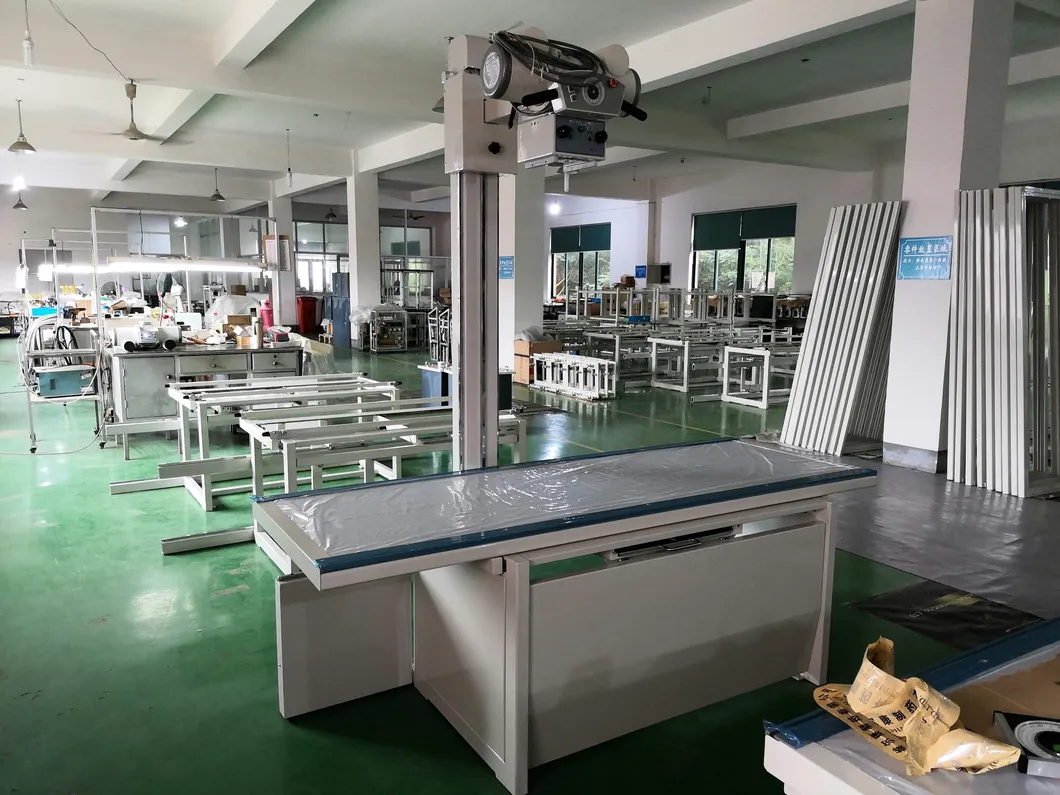

X-ray View 5
X-ray View 6

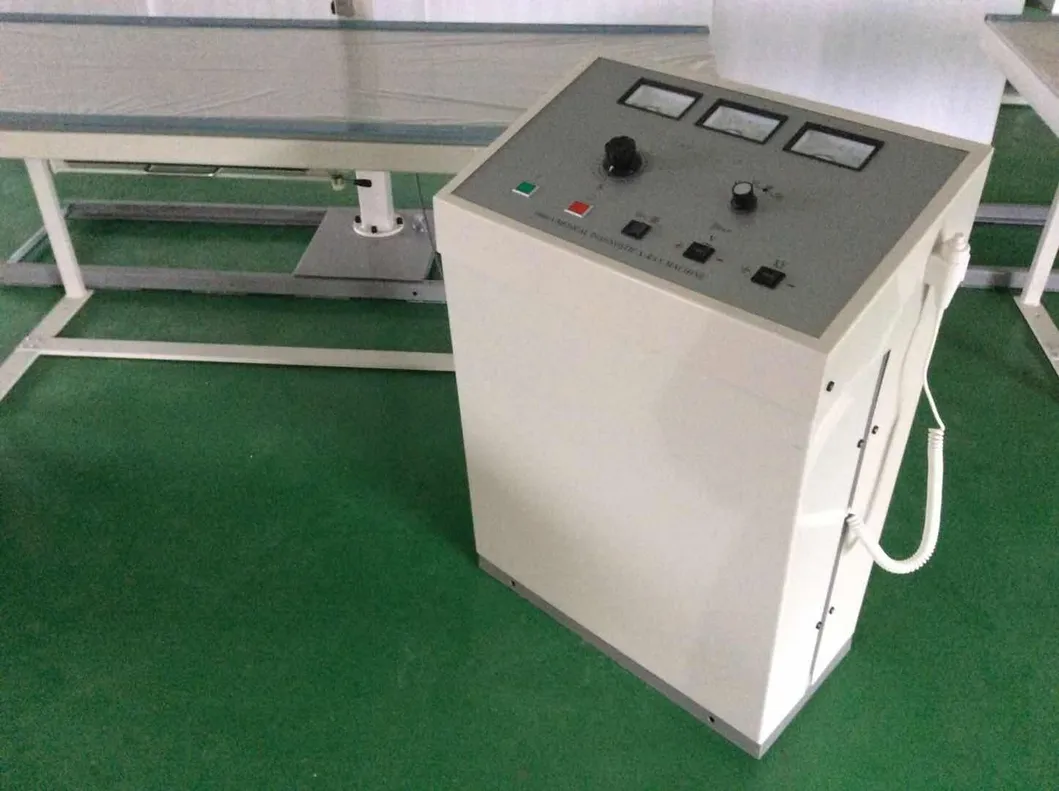

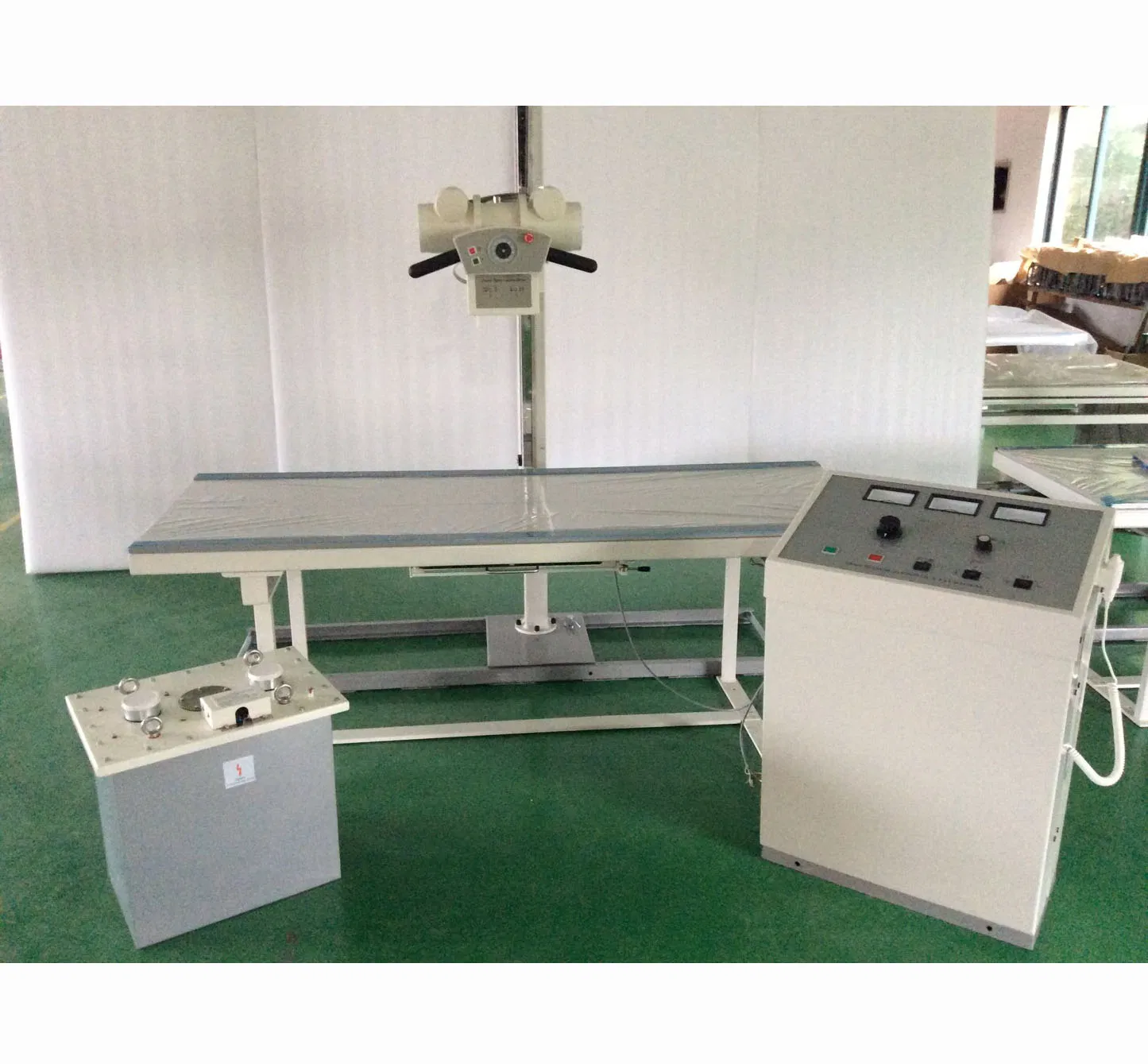

100mA Radiography Diagnostic X-ray Equipment Full Set
Frequently Asked Questions (FAQ)
What are the primary uses for the YZ-100C2 X-ray machine?
It is primarily used for general radiography and ray-filter radiography in medical diagnosis.
What type of power supply does this machine require?
The unit is compatible with 220V or 380V (±10%) AC single-phase power supplies at 50Hz.
Does the machine feature precise exposure control?
Yes, it includes an electronic timer circuit with 23 shifts, allowing for exact time control ranging from 0.04s to 6.3s.
What is the maximum cassette size for imaging?
The machine supports a maximum cassette size of 356mm * 432mm, which is standard 14" * 17".
Is the X-ray tube focus adjustable?
The XD4-2.9/100 tube comes with dual focus options: a small focus of 1.8mm and a big focus of 4.3mm for different imaging needs.
How portable or mobile is the source unit?
The pillar of the X-ray source unit is highly adjustable, moving over 1350mm in length, 360mm in breadth, and having a vertical range of 720-1800mm.
